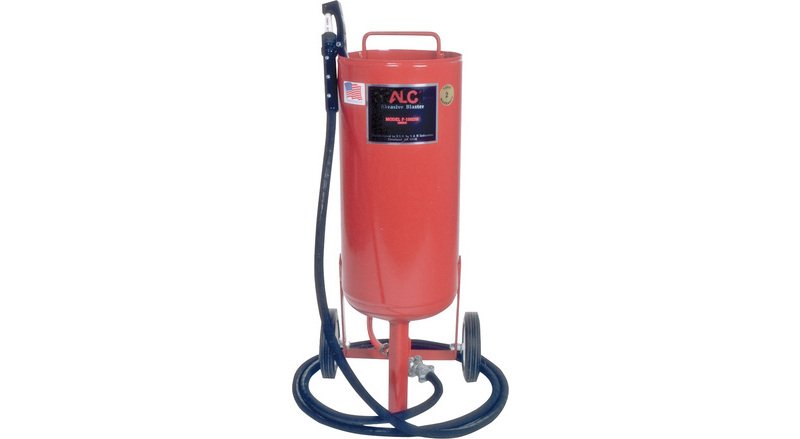

ALC Abrasive Pressure Blaster, 250-Lb. Capacity, Model# 40005
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$1999.99
- Perfect for surface preparation on any type of irregular surfaces where other forms of preparation such as sanding are difficult
- Ideal for removing paint, rust, scale and oxidation on various surfaces
- Steel deadman shutoff handle along with adjustable flow valve and pressure-relieving ball valve provide the operator with complete control of abrasive blasting
- 80-125 psi operating range
- Minimum air volume of 15-25 CFM @ 80 psi
Prop 65 Warning: See Details
See full description
Price for all four:
$2193.96
What's Included
- (1) Abrasive pressure blaster
Downloads
Features + Benefits
- Perfect for surface preparation on any type of irregular surfaces where other forms of preparation such as sanding are difficult
- Ideal for removing paint, rust, scale and oxidation on various surfaces
- Steel deadman shutoff handle along with adjustable flow valve and pressure-relieving ball valve provide the operator with complete control of abrasive blasting
- 80-125 psi operating range
- Minimum air volume of 15-25 CFM @ 80 psi
- Heavy-duty 25ft. Goodyear blast hose for long life
- 125 psi pressure relief valve for operator safety
- Welded steel frame for strength and durability
- 10in. durable rubber wheels and built-in handle allow for easy maneuverability
- Large ceramic blasting nozzle for longer blast life
- Adjustable abrasive flow valve gives the operator precise control of abrasive mixture when blasting
- Powder-coat finish for superior corrosion resistance
- 1/2in. inside diameter blast hose and 1/2in. ball valves for more powerful abrasive and air flow
- Steel deadman handle shuts off automatically when dropped by use of a rubber sealing block at the nozzle to provide safety to the user
- 2.5 cu. ft. pressure tank holds approximately 250 lbs. of abrasive for longer blasting times
- Abrasive blasting hose features a quick disconnect to easily remove the blasting hose from the unit, making relocating or storage easier
- Built-in funnel and pull up tank closure for faster refills
- Easy-to-read pressure gauge to monitor air pressure
- Recommended for use with a compressor that creates minimum 15 CFM @ 90 psi
-
Can a wand extention be added to this unit?
-
Helpful?
-
This unit is designed to be used only with an ALC Deadman Safety handle. Any modifications to the safety control system are not recommended.
Helpful?
-
-
At 100 PSI approximately how long will it take to empty the tank assuming there is 250 ponds of media in the system and no air flow issues?
1 answer-
Using the 1/8" nozzle, this blaster averages approximately 150 pounds of media per hour. Using the 5/32" nozzle, this averages approximately 200 pounds of media per hour.
Helpful?
-
-
Will adding 10' of 1/2" hose to it's already 25' hose, effect the performance of this sand blaster?
1 answer-
The manufacturer does not recommend adding extra length to the hose. It may effect the performance and efficiency.
Helpful?
-
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Portable Abrasive + Soda Blasters
See All ALC Portable Abrasive + Soda Blasters
Currently Viewing This Product
Specifications
Specifications
ALC Abrasive Pressure Blaster, 250-Lb. Capacity, Model# 40005
ALC Portable Abrasive Siphon Blaster, 90 Lb. Capacity, Model# 41018
AllSource VacBlast Siphon Abrasive Blaster, 125-Lb. Capacity, 28 Gallon, Model# 41700
Allsource Roll-About Abrasive Pressure Blaster with Deadman Handle, 20-Lb. Capacity, Model# 41001
Max. PSI
Same
125
110
110
110
Max. Air Consumption
Same
80 cfm
7 cfm
25 cfm
25 cfm
Body Material
Same
Steel
Polymer
Steel
Steel
Body Finish
Same
Powder-Coat
-
Powder-Coat
Powder-Coat
Nozzle Size
Same
Multiple
1/4
1/4
Multiple
Gun Included
Same
Yes
Yes
Yes
Yes
Safety Valve
Same
Yes
-
No
Yes
Moisture Separator
Same
Yes
No
No
Yes
Media Capacity
Same
250 lb
90 lb
125 lb
20 lb
Main Door Length
Same
0 in
0.1 in
0 in
0 in
For Use With
Same
Black Beauty, Steel Grit, Glass Bead
Any Type of Dry Abrasive Such As Glass Bead, Plastic Grit, Aluminum Oxide and Silicon Carbide
Glass Bead, Aluminum Oxide, Steel Grit, Garnet, Plastic Grit, Walnut Shells, Corn Cob
Black Beauty, Steel Grit, Glass Bead
Product Weight
Same
lb
19 lb
lb
lb
Dimensions L x W x H (in.)
Same
16.0 x 16.0 x 40.0 in
-
15.0 x 15.0 x 41.0 in
16.0 x 12.0 x 26.0 in
