This heater cannot be mounted vertically.
Mr. Heater Propane Heater, 40,000 BTU, Model# MH40LP
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$559.99
- Efficient Infrared Heat - Directly heats people and objects which in turn heats surrounding air to desired temperature
- Economical - No electricity required. Heats during power outages.
- Large Capacity - Heats up to 1,000 sq. ft. in low-profile buildings with ceilings between 12 to 15ft.
- Convenient - Easy to operate and install; all necessary brackets and hardware included
- Quiet, clean, odor-free operation
See full description
-
Can this unit be mounted vertically.
-
Helpful?
-
This heater cannot be mounted vertically.
Helpful?
-
-
What material are the infrared panels made of?
Are the infrared panels made of ceramic, catalytic, quartz lamp etc.??
What's the efficiency rating on this heater?
-
The Mr. Heater Propane Heater includes ceramic panels and the heater boasts a 99% efficiency rating.
Helpful?
-
Thank you for your inquiry. The panels are made of ceramic. The heater is 99% efficient.
Helpful?
-
-
Use 20lb tank instead of 40lb just for this winter?
Can I use 20lb propane tanks for this winter to run it instead of the 40lb recommended? I'm going to run a gas line across my yard and into my shop in the spring to run it off of my three - 100lb tanks but for this winter could I use 20lb tanks with no issues? Thanks in advance
-
A 20 lb. propane tank can be used to run this heater.
Helpful?
-
Thank you for your inquiry. Yes you can. A 40,000 BTU unit will burn 1.853 pounds of propane per hour, so be mindful that the tank will be empty quicker compared to a 40 pound tank or 100 pound tank.
Helpful?
-
-
Will this heater work on a 2 pound system?
-
This heater can only run on a 1/2 psi system. It will need to be regulated down.
Helpful?
-
Thank you for your inquiry. The heater can only run on a 1/2 psi system at the heater. It will need to be regulated down.
Helpful?
-
-
How does the thermostat work?
If there is no electricity required how does the thermostat work? Is it mounted on the heater and you have to climb up and down a ladder to turn it on and off? Or is the thermostat mounted on the wall requiring electricity?
-
The thermostat does not require electricity. you mount it on a wall. After you start the heater you turn the knob to on. The thermostat controls it then. I leave it on and just turn the thermostat to off when I'm not using it. The flame just goes to almost pilot then. So I use a ladder twice a year. Fall to start it and spring to turn it off. I would recommend this heater for over work areas in garages and pole buildings.
I plan on buying more.Helpful?
-

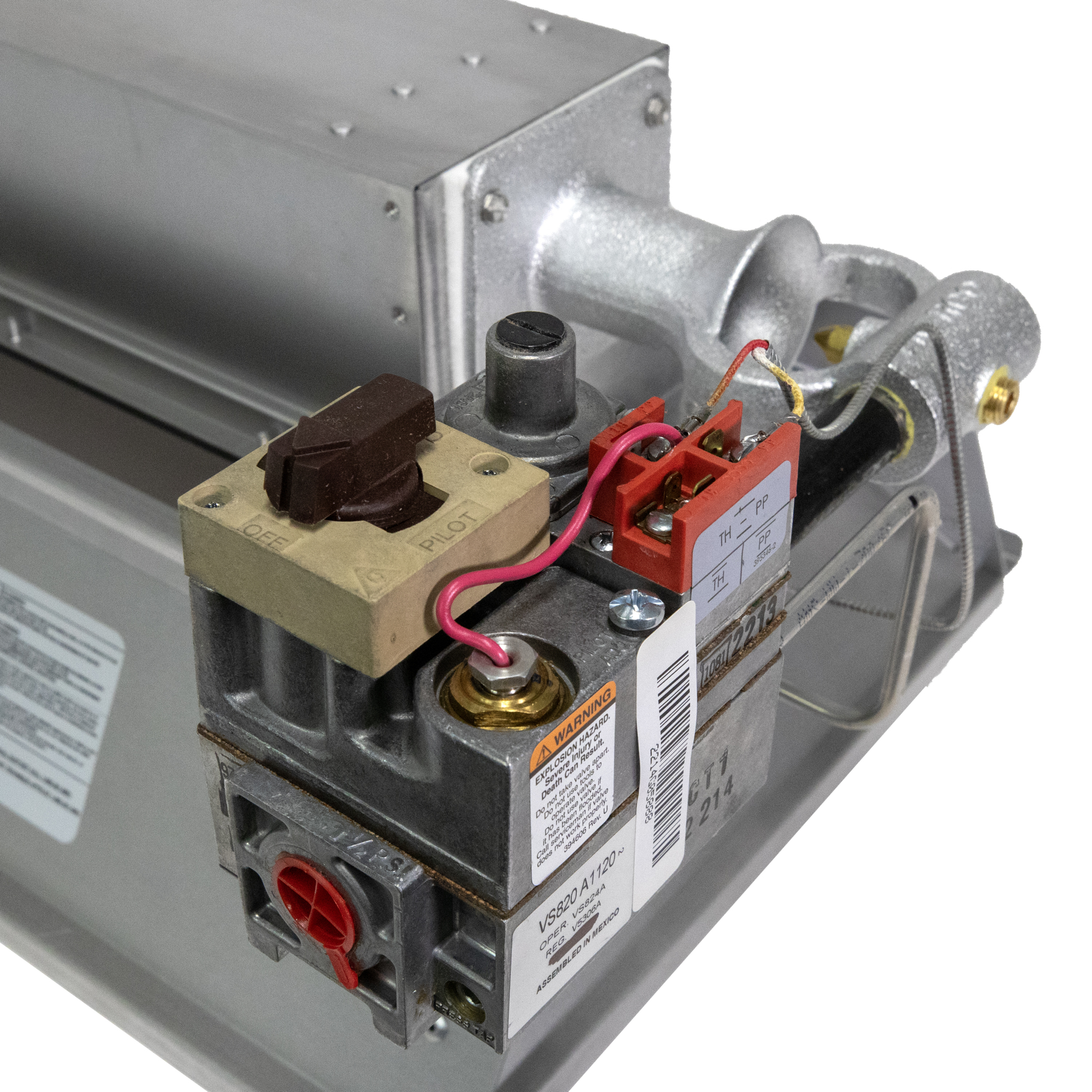

The thermostat works using the powerpile on the gas valve. The thermostat can be mounted anywhere near the unit and can be on a wall. No electricity is required. A power pile is a thermocouple that produces power. This electrical output from the thermocouple is enough to operate the gas valve and thermostat without using an outside power source.
Helpful?
-
-
does this unit auto light and what is the power source?
-
This does not auto light. It stays on a "Pilot Like" setting in the off setting and turns up when you turn up thermostat.
Helpful?
-
This does not have an auto light option. The heater must be lit manually. Once the pilot is lit, the unit will turn on or off based on the thermostat. The power source is from the powerpile generator on the gas valve.
Helpful?
-
-
does this unit need to be vented?
-
no, this heater is not vented
Helpful?
-
You may use natural ventilation. Where natural ventilation is provided for the exhaust, (preferably peak of the roof) and the areas of opening shall not be less than 300 square inches for every 1000,000 BTU input.
Helpful?
-
-
would this be suitable for a 36'x75'x12' shop if i'm only trying to keep one side warm?
-
If your insulated the answer is yes but it will take a little while if it's turned on only when needed. If your not insulated I would say no only because this is not forced air (a fan). I would upgrade to the 60,000btu to be safe. Hope this helps.
Helpful?
-
To calculate BTU's to heat a room use this formula:
(CU.FT. X .133) X DESIRED TEMP RISE = BTU'S NEEDED TO HEAT ROOM.Helpful?
-
-
Can I hook this heater to my already existing Natural Gas line the is available on my patio?
-
The heater is not designed to be used with natural gas.
Helpful?
-
This heater is for propane only, there is another model that would work for natural gas.
Helpful?
-
-
Can this unit be used in an elevation of 7300 ft?
1 answer-
A high-altitude conversion kit is available through the manufacturer directly.
Helpful?
-
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Propane Garage Heaters
See All Mr. Heater Propane Garage Heaters
Currently Viewing This Product
Specifications
Specifications
Mr. Heater Propane Heater, 40,000 BTU, Model# MH40LP
HeatStar High-Intensity Infrared Propane Heater, 100,000 BTU, Model# F191931
SunStar Heating Products Infrared Ceramic Heater, Propane, 65,000 BTU, Model# SG6-L
SunStar Heating Products Infrared Ceramic Heater, Propane, 26,000 BTU, Model# SGM3-L1
Heat Output
Same
40,000 Btu/hour
100,000 Btu/hour
65,000 Btu/hour
26,000 Btu/hour
Heat Type
Same
Infrared
Infrared
Infrared
Infrared
Heating Capability
Same
1,000 ft²
1,200 ft²
2,500 ft²
750 ft²
Needs Direct Venting
Same
No
No
Yes
No
Blower Included
Same
No
No
No
No
Thermostat Included
Same
Yes
No
No
No
Dimensions L x W x H (in.)
Same
30 x 19 x 12 in
60.5 x 21.5 x 11.0 in
28 x 31 x 11 in
16.75 x 20 x 10.37 in
Oxygen Depletion Sensor
Same
-
No
-
-
Product Weight
Same
-
lb
-
-
