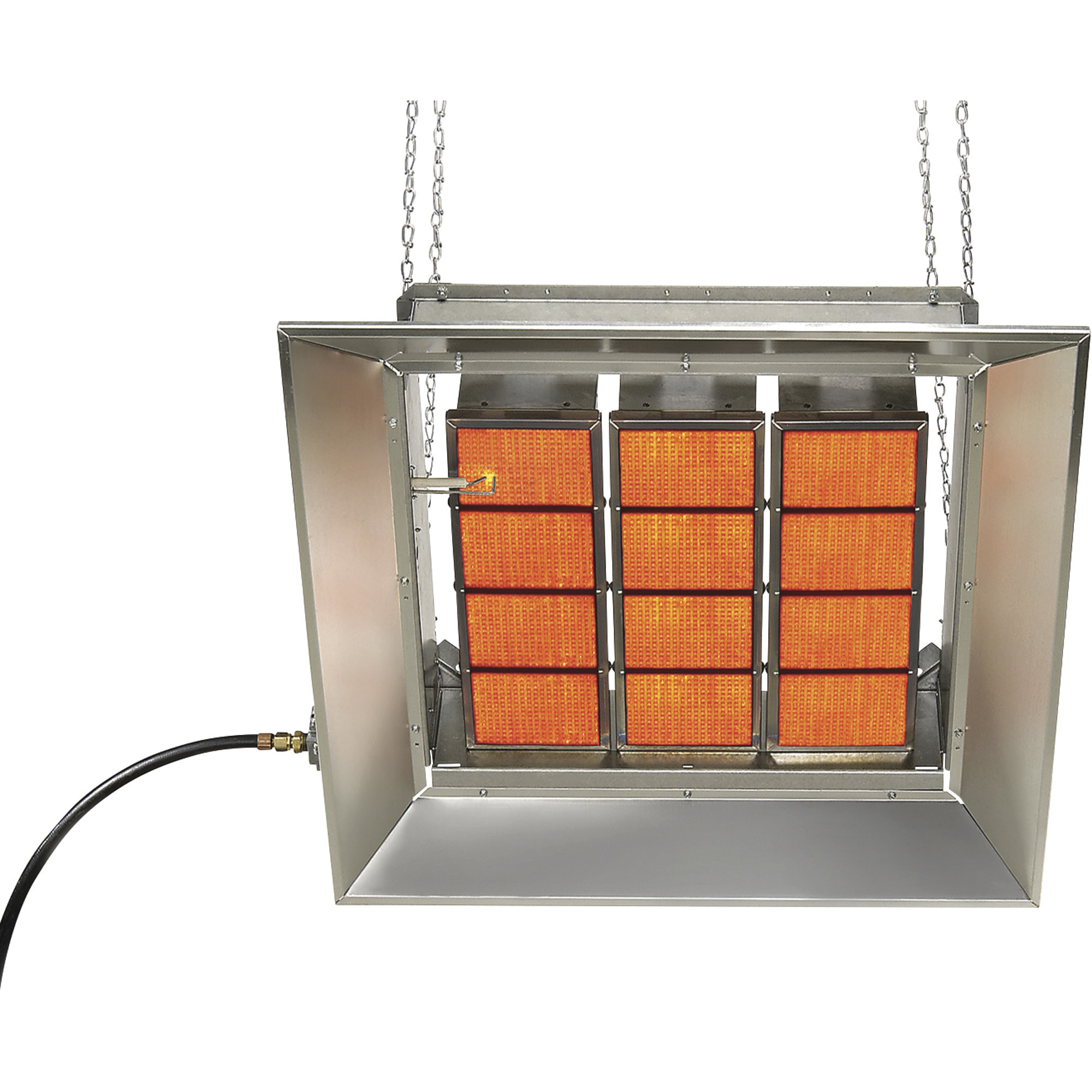

SunStar Heating Products Infrared Ceramic Heater, Propane, 130,000 BTU, Model# SG13-L

Item# 16309
SunStar Heating Products Infrared Ceramic Heater, Propane, 130,000 BTU, Model# SG13-L

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

SunStar Heating Products Infrared Ceramic Heater, Propane, 130,000 BTU, Model# SG13-L

Click or Tap image to Zoom

$791.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Constructed from aluminized steel for corrosion resistance and long life
  • Aluminum reflectors are designed to maximize radiant efficiency
  • Heaters can be angle mounted horizontally and up to 30 degrees
  • The minimum mounting height is 17ft. above finished floor for uniform energy distribution and human comfort
  • Requires the following clearances from any combustible material: 65in. above, 137in. below and 49in. from the sides of the heater

See full description

Complete Your Solution

  • SunStar Heating Products Infrared Ceramic Heater, Propane, 130,000 BTU, Model# SG13-L
  • SunStar Heating Products SIR Series Garage Heater Regulator, Above 2 PSIG, Model# 03483070
  • SunStar Heating Products SIR Series Garage Heater Regulator, Up To 2 PSIG, Model# 03307260
  • SunStar Heating Products 24 Volt Thermostat, Model# 30562000
Price for all four:

$984.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The SunStar Heating Products Ceramic Heater is ideal for spot heating or area heating of remote locations, farm buildings, shops, service areas, pump houses or other hard-to-heat spaces, providing both fuel efficiency of radiant heat and installation flexibility (not recommended for car washes). This is an energy-saving Direct Spark Ignition heater and can be controlled by a line voltage or 24V thermostat (sold separately). May require the following second stage regulators prior to the heater based on gas supply pressure: A regulator up to 2 PSIG line pressure or a regulator above 2 PSIG line pressure (both sold separately). NOT CERTIFIED OR APPROVED FOR RESIDENTIAL USE. Indoor use only. U.S.A.

NOTE: Please review the detailed Installation Operating Instructions (attached) for other specific installation requirements (gas pressure, ventilation etc) prior to purchasing the heater.

What's Included

    (1) Infrared ceramic heater

Downloads

Product Manual

Features + Benefits

  • Constructed from aluminized steel for corrosion resistance and long life
  • Aluminum reflectors are designed to maximize radiant efficiency
  • Heaters can be angle mounted horizontally and up to 30 degrees
  • The minimum mounting height is 17ft. above finished floor for uniform energy distribution and human comfort
  • Requires the following clearances from any combustible material: 65in. above, 137in. below and 49in. from the sides of the heater
  • The minimum supply gas pressure is 11.0in. Water Column (WC) and the maximum supply pressure is 14in. WC gas pressure
  • If higher gas pressure is supplied, you will need to install a line pressure regulator (sold separately) to reduce it to less than 14in. WC (or 1/2 PSIG)
  • No assembly required
  • Heaters are 100% test-fired prior to shipment
  • CSA design certified

Key Specs

AttributeSpecification

item#

16309

Brand

SunStar

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2.0 LB

Heat Output

130,000 Btu/hour

Heat Type

Infrared
AttributeSpecification

Heating Capability

3,000 ft²

Needs Direct Venting

Yes

Blower Included

No

Thermostat Included

No

Dimensions L x W x H (in.)

31 x 38 x 11 in

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–10 of 10 Questions
Sort by:

  1. Does this heater require venting? The area I'm heating has very little air circulation

    1. As per the instructions it does require an exchange of air in the building, like a small exhaust fan.

      Helpful?

    2. This heater would require some ventilation. The General Ventilation Rules outlined in ASHRAE GUIDE AND DATA BOOK should be observed when locating vents. Exhaust vents must be located at the highest point above and in the vicinity of the heaters and the inlet vents must be located below the level of the heaters. Local codes may require that mechanical exhaust systems be interlocked with the function simultaneously or allow control of exhausters to humidistat. See the product manual on the website for more details venting the heater.

      Helpful?

  2. Is this natural gas or propane?

    1. Propane

      Helpful?

    2. This infrared ceramic heater uses propane only not natural gas.

      Helpful?

  3. Can this be Used with natural gas?

    1 answer

    1. The heater is unable to be converted to natural gas.

      Helpful?

  4. I have a 30x40 pole barn with 14ft metal ceiling does this still need the 65 inch ceiling clearance?

    1 answer

    1. The heater would still require the 65" ceiling clearance.

      Helpful?

  5. Three questions. Can this heatrr be used in an outdoor patio space? How is it mounted? Are the controls hard wired or rote?

    1 answer

    1. The heater is designed for indoor use only. The minimum height requirement is 17 feet. The heater is suspended from a permanent structure that can handle the weight capacity. The heater is hardwired to the thermostat.

      Helpful?

  6. What do I need to hook it up to propane tank ?

    1 answer

    1. The main items needed are an approved gas line, regulator and safety shut off valve. Specifics may vary based on your local codes for installation.

      Helpful?

  7. The description says that this heater is not certified or approved for residential use. Does that mean not in a house? or does it mean it is not for garages, shops or any structure other than a commercial or professional building?

    1 answer

    1. This heater is not approved in any residential application. This includes homes, living quarters and attached garages.

      Helpful?

  8. Thermostat

    two questions. One will this run automatically with the thermostat and what is the temperature range? Two does it truly put out 130,000 btu? I have a salamander style heater that is 130,000 btu and it works perfect just to noisy, will this put out the same amount of heat?

    1 answer

    1. This heater does not include a thermostat, but can be connected to one, like item 16342 shown below. The thermostat will control the heater to maintain the desired temperatures by turning it on and off. The temperature range is approximately 50 degrees F to 90 degrees F. This heater does have a 130,000 BTU output and is quiet because it does not use a blower.

      Helpful?

  9. what kind of blower do these require?

    1 answer

    1. This item is not designed to support the use of a blower.

      Helpful?

  10. How big of a Propane tank will this require. And how long will the tank last.

    1 answer

    1. This heater doesn't have a minimum tank size that it requires. At its highest output, this heater consumes 1.3 gallons of propane per hour.

      Helpful?
