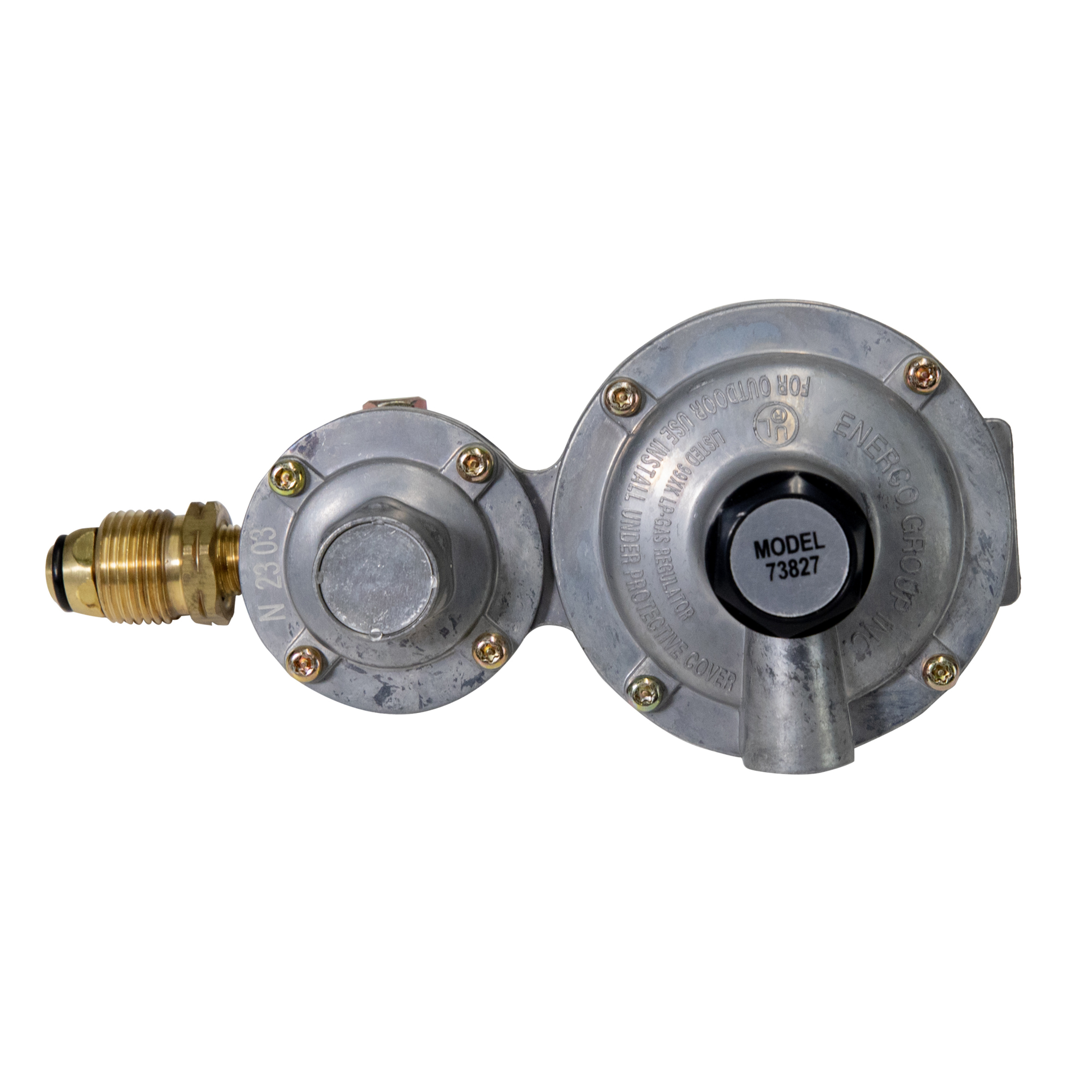

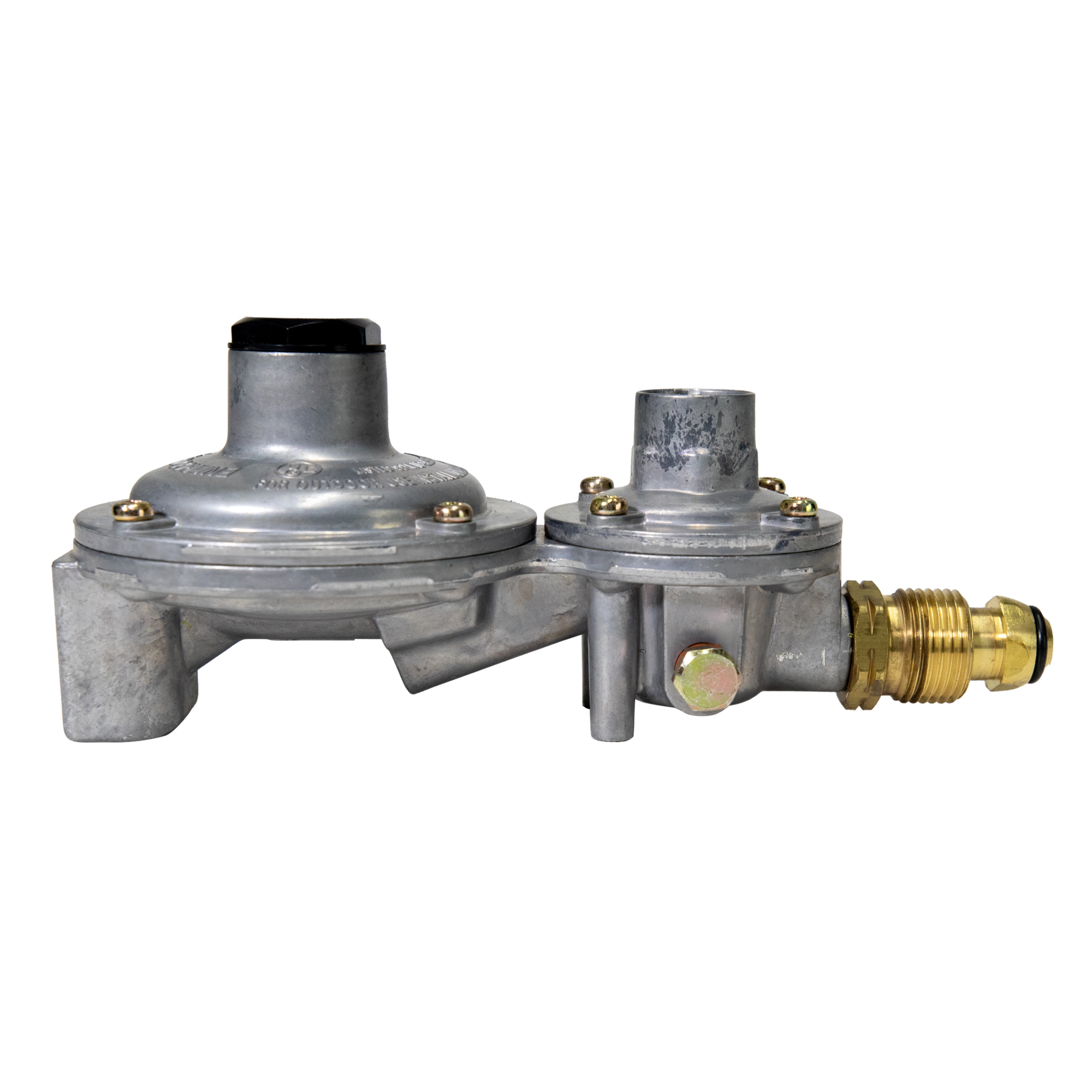

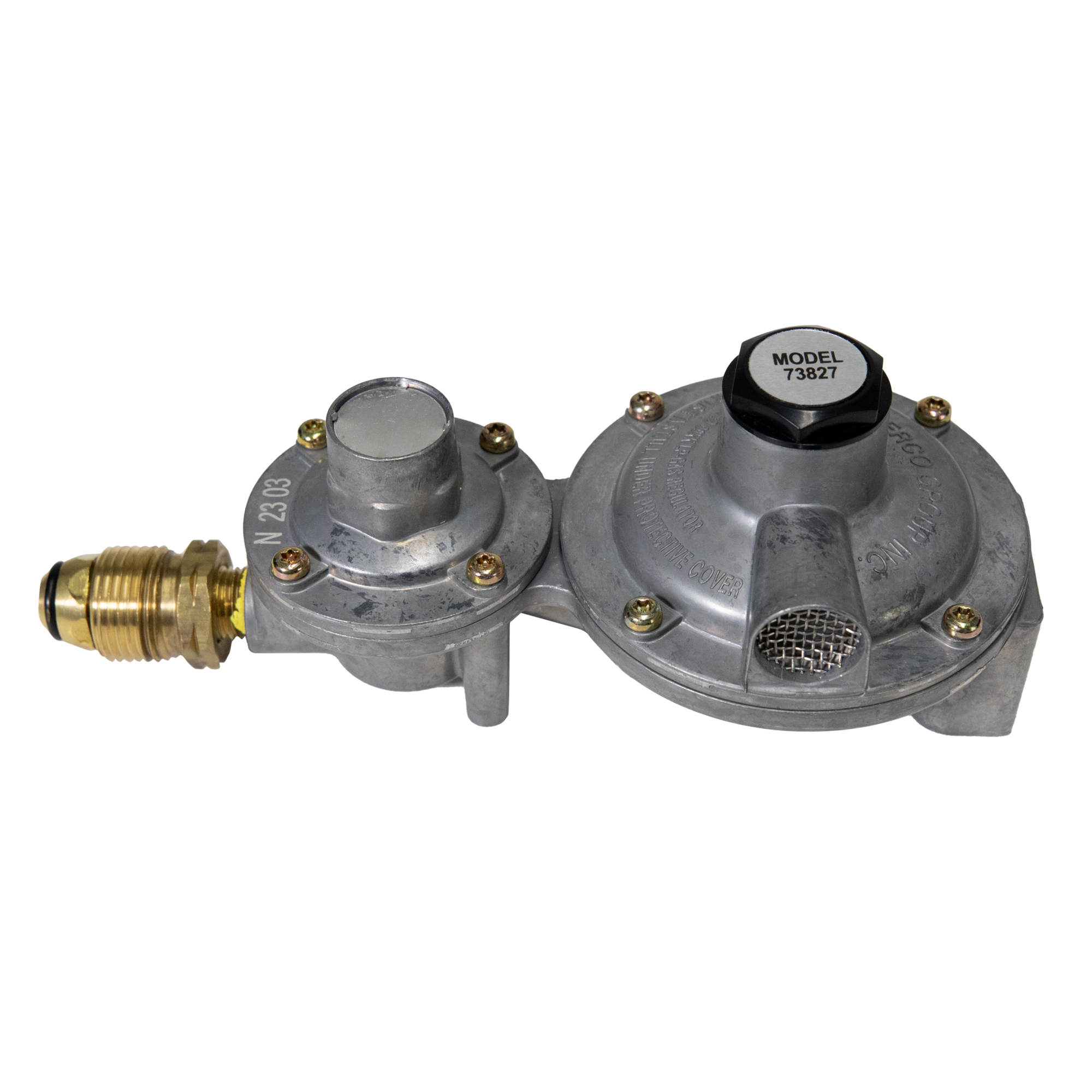

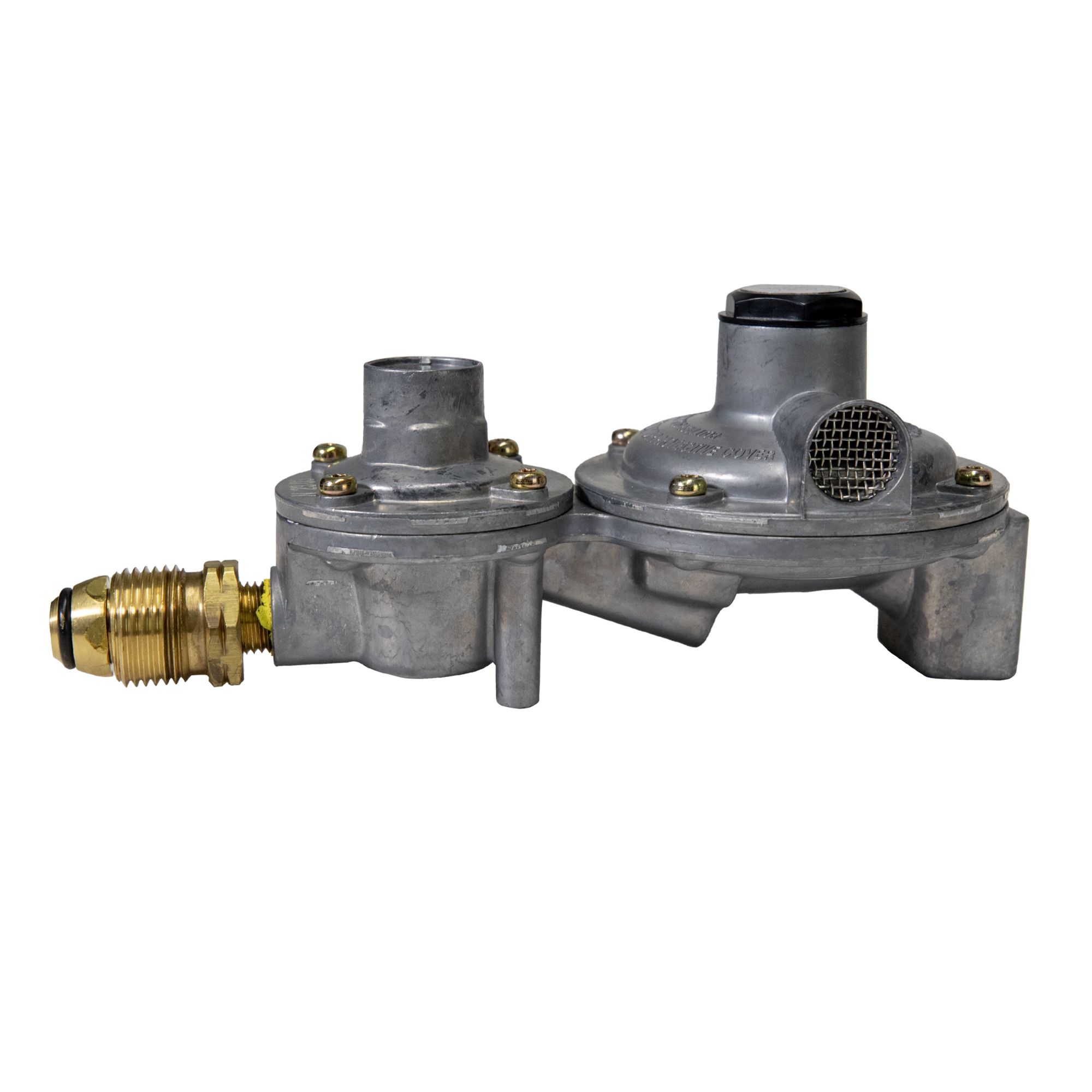

Mr. Heater 225,000 BTU, 2-Stage Regulator, Model# F273863

Item# 25819
Top Seller1 Included
Mr. Heater 225,000 BTU, 2-Stage Regulator, Model# F273863

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Mr. Heater 225,000 BTU, 2-Stage Regulator, Model# F273863

Click or Tap image to Zoom

$44.99

  • Shipping:

    Available now

  • Store Pickup:

    Not Available
  • Excess flow soft nose P.O.L. x 3/8in. female pipe thead
  • 160,000 BTU capacity
  • 11in. W.C. (water column) output

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Mr. Heater Propane Two-Stage Regulator, is designed to deliver a consistent and reliable gas flow for various propane-powered appliances, including wall mount heaters, log sets, and gas stoves. With a capacity of 225,000 BTUs, this regulator ensures optimal performance and efficiency by maintaining a steady pressure across different stages of gas flow. Its robust construction and precise engineering make it suitable for demanding applications, providing peace of mind and safety in both residential and commercial settings. Easy to install and compatible with a wide range of propane devices, the Mr. Heater Two-Stage Regulator is an essential component for those seeking dependable and efficient gas regulation for their heating and cooking needs.

What's Included

    (1) Regulator

Features + Benefits

  • Excess flow soft nose P.O.L. x 3/8in. female pipe thead
  • 160,000 BTU capacity
  • 11in. W.C. (water column) output

Key Specs

AttributeSpecification

item#

25819

Brand

Mr. Heater

Manufacturer's Warranty

1 year limited warranty
AttributeSpecification

Ship Weight

1.1 LB

Included (qty.)

1

Compatible With

Wall Mount Heaters, Log Sets and Gas Stoves

Reviews

Questions & Answers

40 Reviews This action will navigate to reviews.

Questions

1–10 of 28 Questions
Sort by:

  1. No where does ad say it's indoor or out door?

    Can it be mounted outside (outdoors) on the tank or will the elements destroy it?

    1. Yes, it has to be. Because you never use propane tanks indoors.

      Helpful?

    2. you can use it outside.

      Helpful?

    3. This two stage regulator mounts directly to the propane tank which must be outdoors. It is designed to be okay in the elements.

      Helpful?

  2. Can the soft nose POL adapter be removed?

    What is the inlet thread size if I can remove the POL adapter?

    I plan on using this on a 20,000 BTU vent-less heater. Min/Max WC is 11 to 14". Will this work or is there a better option?

    1. Will work just fine have one set up on a 30000 btu heater will work at 14WC-11WC at 2psi

      Helpful?

    2. Thank you for your inquiry. Yes, the POL can be removed and this two stage regulator can be used for installing your Vent Free heater.

      Helpful?

    3. The soft nosed POL adapter can be removed. After removal, the inlet would have a 3/8" male pipe thread fitting. This regulator will function on your heater as it has a 11" WC output.

      Helpful?

  3. will F273863 adapt/screw directly in the newer style 20lb propane tanks,if not what adapter?

    1. yea. tanks have a female left hand thread that matches up with the regulator

      Helpful?

    2. The Mr. Heater 2-Stage Regulator fits directly to a 20 pound propane tank.

      Helpful?

  4. Black pipe vs copper tubing

    Is there any advantage to running a gas line with copper tubing vs black pipe?

    1. It would depend on where you live because certain areas will require one over the other. You would need to check local and state regulations for your area.

      Helpful?

    2. This depends, you would need to contact your local building department because, certain areas require one over the other.

      Helpful?

  5. Will this work with the 50000btu big maxx?

    I bought a 50,000 BTU Big Maxx and have a 100lb propane tank. The specs call for 11 - 13" wc. Does this regulator meet the specs for that combo?
    Is a 100lb propane tank large enough?

    1. This regulator will have an 11” water column output. It will work with your 100 pound propane tank and Mr. Heater Big Maxx heater.

      Helpful?

    2. Yes, that regulator will work with your unit heater, this propane tank will also be large enough, to operate this heater.

      Helpful?

  6. Can this unit feed more than one heater?

    1. It would depend on the pressure that is needed for the heaters. This regulator is measured at 1/2 psi or 11" W.C. of pressure.

      Helpful?

    2. Thank you for your inquiry. It would depend on the pressure that is needed to those specific heaters. This regulator is measured at 1/2 psi or 11" W.C. of pressure.

      Helpful?

  7. Will this regulator be suitable for a 40lb. tank going to a gas log rated at 75000btu?

    1. Yes. The 2 stage regulator will work with the 40 pound tank. It is measured at 11" W.C.

      Helpful?

    2. This 2-stage regulator can be used with a 40 lb. propane tank.

      Helpful?

  8. Is this regulator adjustable? For changing pressure or water column?

    1 answer

    1. The regulator on model F273863 is adjustable.

      Helpful?

  9. Do I need this for propane

    1 answer

    1. Kindly check the requirements of the propane product being used to determine if a 2-stage regulator is required.

      Helpful?

  10. What size pipe

    1 answer

    1. The outlet port on the F273863 regulator has a 3/8-inch female pipe thread (NPT), requiring a 3/8-inch male-threaded pipe or hose for downstream connection.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
