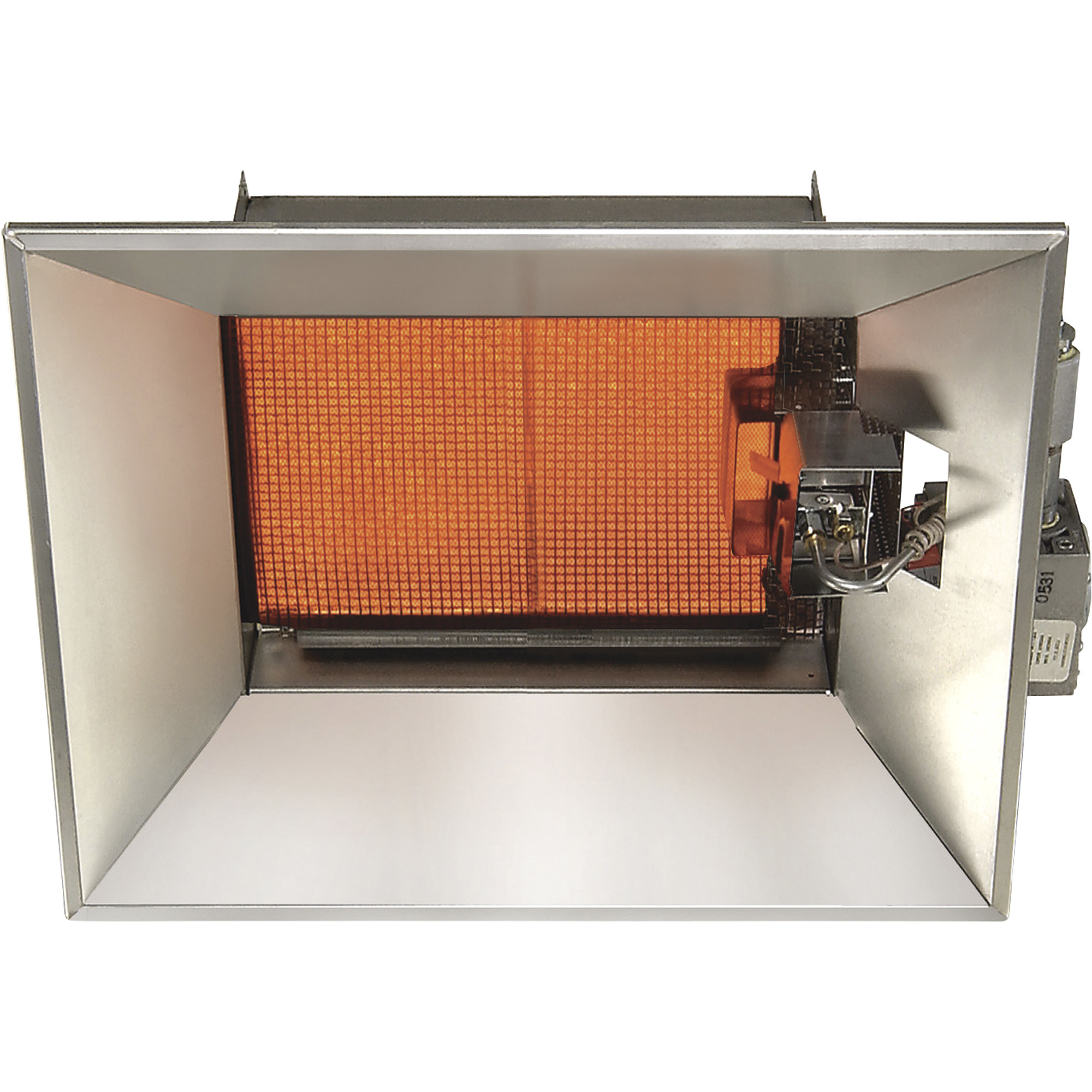

SunStar Heating Products Infrared Ceramic Heater, Propane, 26,000 BTU, Model# SGM3-L1

Item# 16329
SunStar Heating Products Infrared Ceramic Heater, Propane, 26,000 BTU, Model# SGM3-L1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

SunStar Heating Products Infrared Ceramic Heater, Propane, 26,000 BTU, Model# SGM3-L1

Click or Tap image to Zoom

$559.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Constructed from aluminized steel for corrosion resistance and long life
  • Aluminum reflectors are designed to maximize radiant output
  • Heaters can be angle mounted horizontally and up to 45 degrees
  • The minimum mounting height is 12ft. above finished floor for uniform energy distribution and human comfort
  • Requires the following clearances from any combustible material: 24in. above, 48in. below and 24in. from the sides of the heater

See full description

Complete Your Solution

  • SunStar Heating Products Infrared Ceramic Heater, Propane, 26,000 BTU, Model# SGM3-L1
  • SunStar Heating Products 750 Millivolt Thermostat for SGM Series Infrared Ceramic Heaters, Model# 42489010
  • SunStar Heating Products SIR Series Garage Heater Regulator, Above 2 PSIG, Model# 03483070
  • SunStar Heating Products SIR Series Garage Heater Regulator, Up To 2 PSIG, Model# 03307260
Price for all four:

$754.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The SunStar Heating Products Ceramic Heater is ideal for spot heating or area heating of remote locations, farm buildings, shops, service areas, pump houses or other hard-to-heat spaces, providing both fuel efficiency of radiant heat and installation flexibility (not recommended for car washes). This is a Millivolt Standing Pilot heater and does not require an external power or electricity to operate, so it's great for use during power outages. Requires a 750 Millivolt Thermostat to operate (sold separately). May require the following second stage regulators prior to the heater based on gas supply pressure: A regulator up to 2 PSIG line pressure or a regulator above 2 PSIG line pressure (both sold separately). NOT CERTIFIED OR APPROVED FOR RESIDENTIAL USE. Indoor use only. U.S.A.

NOTE: Please review the detailed Installation Operating Instructions (attached) for other specific installation requirements (gas pressure, ventilation etc.) prior to purchasing the heater.

What's Included

    (1) Infrared ceramic heater

Downloads

Product Manual

Features + Benefits

  • Constructed from aluminized steel for corrosion resistance and long life
  • Aluminum reflectors are designed to maximize radiant output
  • Heaters can be angle mounted horizontally and up to 45 degrees
  • The minimum mounting height is 12ft. above finished floor for uniform energy distribution and human comfort
  • Requires the following clearances from any combustible material: 24in. above, 48in. below and 24in. from the sides of the heater
  • The minimum supply gas pressure is 11.0in. Water Column (WC) and the maximum supply pressure is 14in. WC gas pressure
  • If higher gas pressure is supplied, you will need to install a line pressure regulator (sold separately) to reduce it to less than 14in. WC (or 1/2 PSIG)
  • Supply pressure of 11in. WC is critical and supply pressure less than 11in. WC can affect the operation of the pilot/heater
  • The standing pilot flame can be affected in windy/drafted areas and not recommended in these environments
  • No assembly required
  • Heaters are 100% test-fired prior to shipment
  • CSA design certified

Key Specs

AttributeSpecification

item#

16329

Brand

SunStar

Manufacturer's Warranty

1 year limited warranty

Ship Weight

13.0 LB

Heat Output

26,000 Btu/hour

Heat Type

Infrared
AttributeSpecification

Heating Capability

750 ft²

Needs Direct Venting

No

Blower Included

No

Thermostat Included

No

Dimensions L x W x H (in.)

16.75 x 20 x 10.37 in

Reviews

Questions & Answers

Questions

1–4 of 4 Questions
Sort by:

  1. Are there hazardous fumes, and if so, how much ventilation is required?

    1 answer

    1. The heater would require ventilation in the building to provide fresh air for efficient combustion. It would require a minimum ventilation flow of 4 CFM per 1,000 BTU per hour of total installed capacity. Power ventilation is recommended, the minimum vent air flow for this heater would be 400 CFM. Additional info. is listed in the online product manual.

      Helpful?

  2. is this a direct spark unit ?

    1 answer

    1. This SunStar propane heater has a standing pilot, it is not direct spark.

      Helpful?

  3. does it come with mounting part?

    1 answer

    1. This heater does not include mounting hardware.

      Helpful?

  4. Run time

    How many hours run time , full on , in 60# cylinder ? REF: the 26K BTU ceramic heater. SGM3-L1

    1 answer

    1. This product on full output will burn approximately 1 pound of propane an hour. If you are using a 60 pound propane cylinder you can expect it to run for about 60 hours on full output.

      Helpful?
