The Honda GX340UT2XQA2 engine is manufactured by Honda in facilities in Japan and the United States depending on production batch, and it does have a 1-inch straight keyed shaft with a 1/4-inch keyway slot.

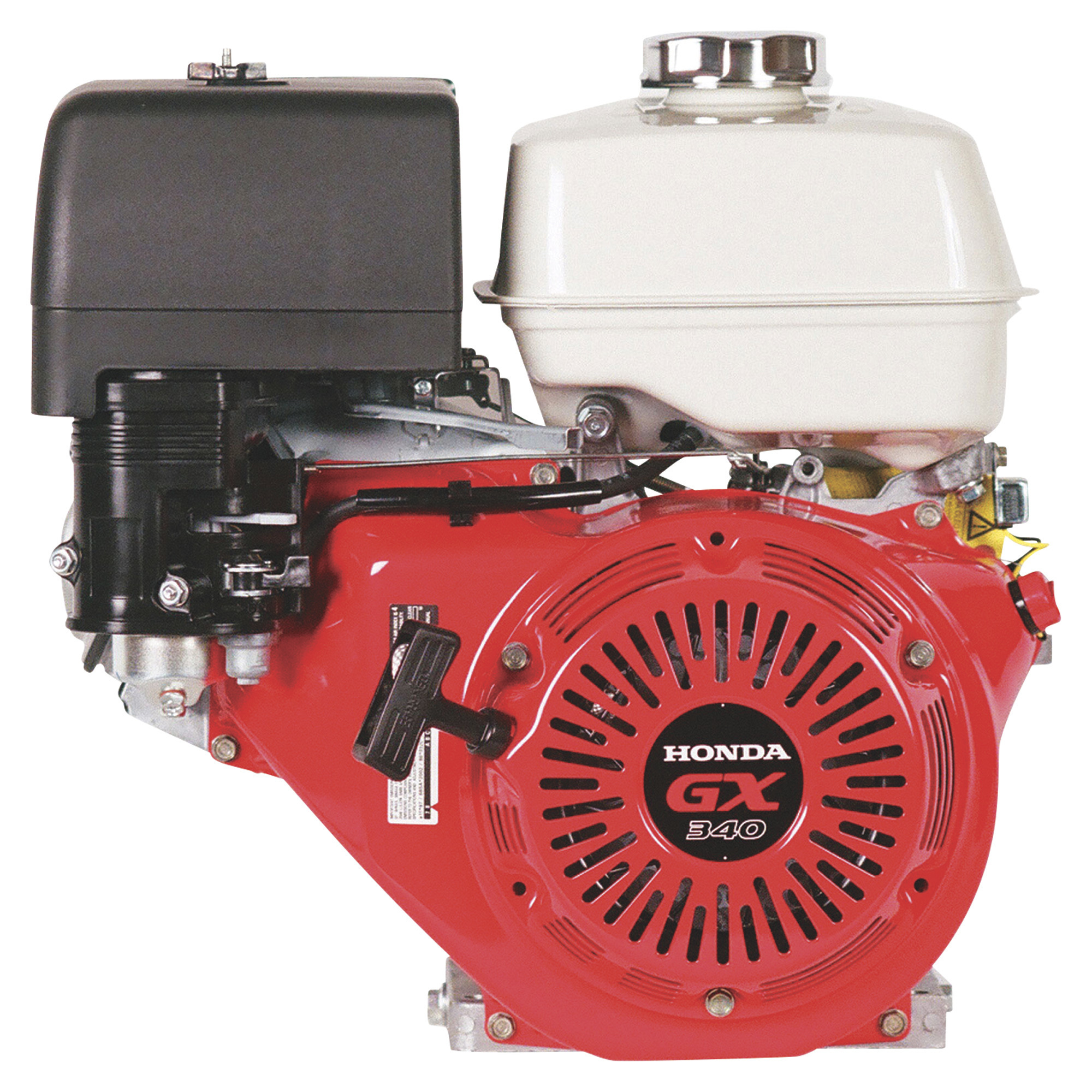

Honda 389cc GX Series OHV Commercial-Grade Engine, 1in. Shaft, Model# GX340UT2XQA2
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$639.99
- Model# GX340UT2XQA2; Honda 389 OHV air-cooled, 4-stroke, horizontal engine
- Precision camshaft design for precise valve timing, optimal valve overlap and better fuel economy
- OHV design for increased efficiency and optimal power transfer
- High-compression ratio for better fuel efficiency
- Low vibration from precision-engineered components
See full description
Price for all four:
$728.96
What's Included
- (1) Engine, Model# GX340UT2XQA2
Features + Benefits
- Model# GX340UT2XQA2; Honda 389 OHV air-cooled, 4-stroke, horizontal engine
- Precision camshaft design for precise valve timing, optimal valve overlap and better fuel economy
- OHV design for increased efficiency and optimal power transfer
- High-compression ratio for better fuel efficiency
- Low vibration from precision-engineered components
- Ball bearing-supported crankshaft for greater stability
- Large capacity, multi-chamber exhaust system for a low noise level
- Sophisticated air intake system
- Oil Alert for extra engine protection
- Carburetor filter and chamber coating help protect against fuel impurities
- Cast iron cylinder sleeve
- Dual element air filter
- Simple throttle control
- Double walled heavy-duty 6.4-qt. tank with in-tank fuel strainer
- Large automotive-style fuel cap for easy filling
- Dual oil fills and drains for quick oil changes
- Easily accessible spark plug
- Ergonomic recoil design for easy starts
- Automatic decompression for easy starting
- Not for sale in CA
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Horizontal Engines
See All Honda Engines Horizontal Engines
Currently Viewing This Product
Specifications
Specifications
Honda 389cc GX Series OHV Commercial-Grade Engine, 1in. Shaft, Model# GX340UT2XQA2
Honda 118cc GX Series OHV Commercial-Grade Engine, 3/4in. Shaft, Model# GX120T3XQX2
Honda Engines, HONDA 120CC OHV 6:1 ENGINE, Engine Displacement 118 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 3/4 in, Model# GX120T3XHX2
Honda Horizontal OHV Engine, 389cc, GX Series, 1in. x 3 31/64in. Shaft, Model# GX390UT1QAA2
Engine Displacement
Same
389 cc
118 cc
118 cc
389 cc
Engine Type
Same
GX Series OHV Commercial-duty
GX Series OHV Commercial-duty
GX Series OHV Commercial-duty
GX Series OHV Commercial-duty
Shaft Diameter
Same
1 in
3/4 in
3/4 in
1 in
Shaft Length
Same
3.48 in
2.43 in
2.09 in
3.48 in
Start Type
Same
Recoil
Recoil
Recoil
Recoil
Shaft Keyway
Same
0.25 in
0.18 in
0.25 in
0.25 in
Net Torque
Same
19.5 ft-lbs.
5.4 ft-lbs.
5.4 ft-lbs.
19.5 ft-lbs.
Crankshaft
Same
Q-type
Q-type
H-type
Q-type
PTO Height
Same
5.25 in
4.17 in
4.17 in
5.25 in
Cylinders (qty.)
Same
1
1
1
1
Cylinder Bore
Same
Cast Iron
Cast Iron
Cast Iron
Cast Iron
Net Power Output
Same
10.7 HP
3.5 HP
3.5 HP
11.7 HP
Compression Ratio
Same
8.2:1
8.5:1
8.5:1
8.2:1
Fuel Tank
Same
Yes
-
-
Yes
Fuel Tank Capacity
Same
6.4 qt
2.1 qt
2.1 qt
6.4 qt
Oil Capacity
Same
1.16 qt
0.59 qt
0.59 qt
1.16 qt
Low Oil Shutdown
Same
Yes
Yes
Yes
Yes
Low Oil Alert
Same
Yes
Yes
Yes
Yes
Shaft Rotation (From PTO Shaft Side)
Same
Counter Clockwise
Counter Clockwise
Counter Clockwise
Counter Clockwise
Governor System
Same
Centrifugal Mechanical
Centrifugal Mechanical
Centrifugal Mechanical
Centrifugal Mechanical
Ignition System
Same
Electronic
Electronic
Electronic
Electronic
Carburetor
Same
Float, External Vent
Float
Float
Float, External Vent
Lubrication System
Same
Splash
Splash
Splash
Splash
Auto Compression Release
Same
Yes
Yes
Yes
Yes
Cooling System
Same
Air
Air
Air
Air
Bore
Same
3.2 in
2.4 in
2.4 in
3.5 in
Stroke
Same
2.5 in
1.7 in
1.7 in
2.5 in
Air Cleaner Type
Same
Dual Element
Dual Element
Dual Element
Dual Element
Choke Control
Same
Manual
Manual
Manual
Manual
Throttle Control
Same
Manual
Remote
Remote
Remote
Fuel Filter
Same
Yes
-
-
Yes
Muffler Included
Same
Yes
Yes
Yes
Yes
