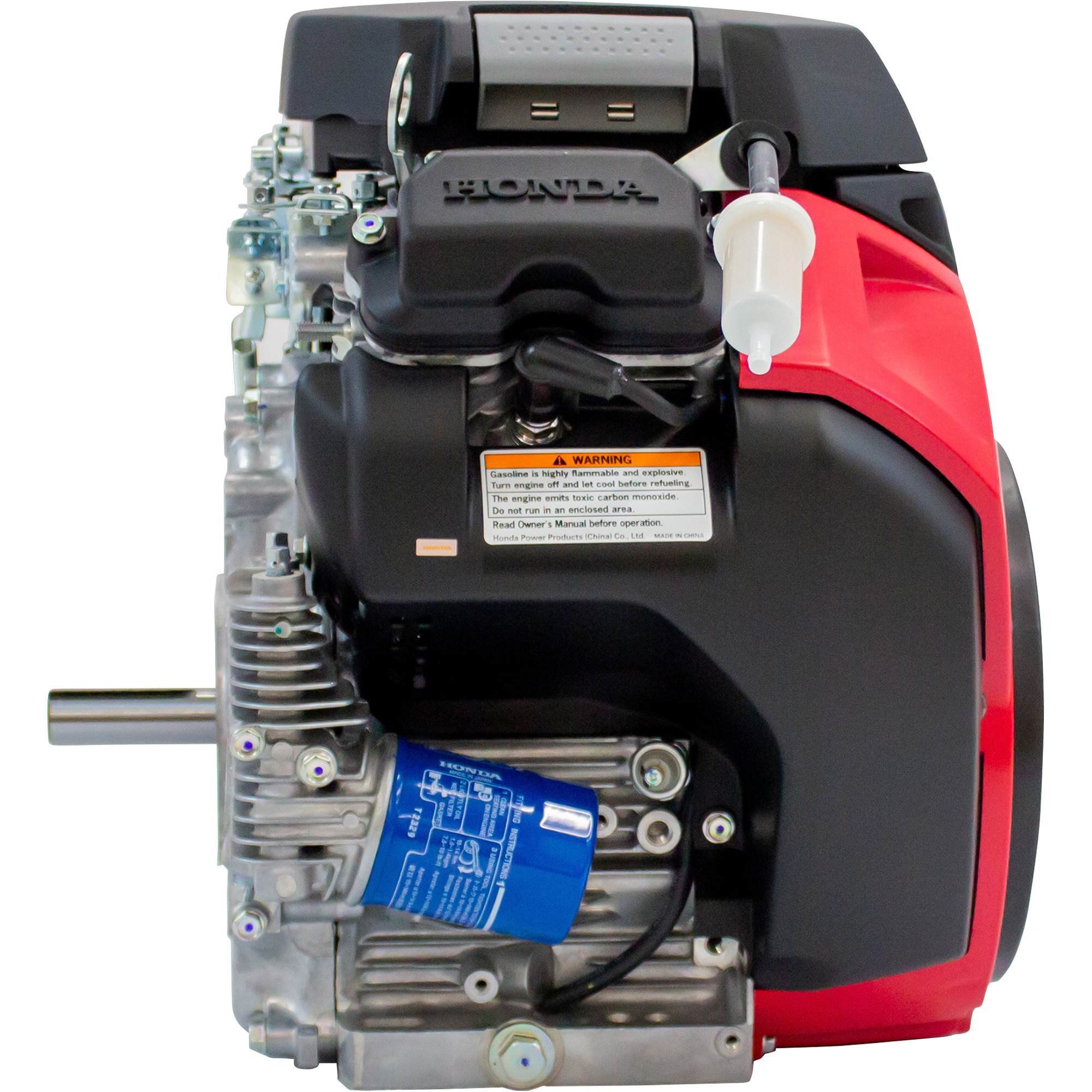

Honda Engines, HORIZONTAL ENGINE 630CC RQYF, Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQYF

Item# 166132
"Honda Engines, HORIZONTAL ENGINE 630CC RQYF, Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQYF"
Honda Engines, HORIZONTAL ENGINE 630CC RQYF, Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQYF

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Honda Engines, HORIZONTAL ENGINE 630CC RQYF, Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQYF

Click or Tap image to Zoom

$1829.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Model# GX630RHXQYF; Honda 688cc, 20.3 HP air-cooled, 4-stroke V-twin engine with 1in. dia. x 2 29/32in.L horizontal shaft
  • OHV overhead valve design
  • Digital CDI ignition coil ensures improved fuel economy and lowered emissions
  • 5in., 6 1/2in., 7 3/4in. bolt circle; 7 11/16in. L x 3 25/64-4 21/32in. W mounting base
  • Integrated cylinder bore

See full description

Complete Your Solution

  • Honda Engines, HORIZONTAL ENGINE 630CC RQYF, Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQYF
  • Honda Engines, MUFFLER RH GX630,GX660,GX690 Model# MUF-0560.SIL
  • Honda Engines, MUFFLER LH GX630,GX660,GX690 Model# MUF-0560R.SIL
  • MUFFLER LH GX630,GX660,GX690 Model# V2MFLRHIL
Price for all four:

$2404.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

With experience born on the raceways and roadways and a dedication to innovation, there's plenty of reasons to insist on the new Honda GX630 V-Twin engine. There's superior engine design, with a 90° configuration that reduces vibration and allows a compact footprint. There's superior construction, with a forged steel crankshaft and an integrated cylinder head. Fewer parts means better durability. There's a digital CDI ignition coil that ensures improved fuel economy and lowered emissions. There's even improved air cleaning, meaning that you can wait 5 times longer between filter changes. Honda even gives their engines a 3-year limited warranty.

The image shown is not reflective of the actual item shipped. There is no control panel as shown in the image. Not for sale in CA.

What's Included

    (1) Engine, Model# GX630RHQYF

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Model# GX630RHXQYF; Honda 688cc, 20.3 HP air-cooled, 4-stroke V-twin engine with 1in. dia. x 2 29/32in.L horizontal shaft
  • OHV overhead valve design
  • Digital CDI ignition coil ensures improved fuel economy and lowered emissions
  • 5in., 6 1/2in., 7 3/4in. bolt circle; 7 11/16in. L x 3 25/64-4 21/32in. W mounting base
  • Integrated cylinder bore
  • Improved air cleaning allows for up to 5 times longer intervals between filter changes
  • Not for sale in CA

Key Specs

AttributeSpecification

item#

166132

Brand

Honda Engines

Manufacturer's Warranty

3 year limited warranty

Ship Weight

111.0 LB

Engine Displacement

688 cc

Engine Type

GX Series OHV V-twin Commercial-duty

Shaft Diameter

1 in

Shaft Length

2.9 in

Start Type

Electric

Shaft Keyway

0.25 in

Net Torque

35.6 ft-lbs.

Crankshaft

Q-type

PTO Height

5.25 in

Cylinders (qty.)

2

Cylinder Bore

Integrated

Net Power Output

20.8 HP

Compression Ratio

9.3:1
AttributeSpecification

Fuel Tank

No

Oil Capacity

2 qt

Low Oil Alert

Yes

Shaft Rotation (From PTO Shaft Side)

Counter Clockwise

Governor System

Mechanical

Ignition System

Electonic, Digital CDI W/variable Ignition Timing

Carburetor

2-barrel, Fuel Cut Solenoid, Inner Vent

Lubrication System

Full Pressure

Cooling System

Air

Bore

3.1 in

Stroke

2.8 in

Air Cleaner Type

Dual Element

Choke Control

Remote

Throttle Control

Remote

Charging System Amps

17

Muffler Included

No

Reviews

Questions & Answers

7 Reviews This action will navigate to reviews.

Questions

1–10 of 13 Questions
Sort by:

  1. Does the motor have a fuel tank

    1 answer

    1. The Honda GX630RHXQYF engine does not include a fuel tank and is designed to use an external fuel source.

      Helpful?

  2. Is the output shaft threaded?8

    1 answer

    1. The engine will come with a straight shaft. The shaft is not threaded.

      Helpful?

  3. Is there a remote oil filter mounting kit for this engine?

    1 answer

    1. A remote oil filter mounting kit would not be available for this engine.

      Helpful?

  4. What is the max rpm?

    1 answer

    1. The Maximum is 3600 RPM.

      Helpful?

  5. what is the horsepower

    1 answer

    1. The Honda GX630RHQYF is a 688cc horizontal shaft V-twin engine that produces 20.8 HP at 3,600 RPM

      Helpful?

  6. WHAT DOES RHQYF MEAN?

    1 answer

    1. The model number specifies the differences in the options that the engine will consist of. This engine will have a straight shaft, oil pressure switch, remote throttle, remote choke, 12 amp charge coil, oil filter, screen fan cover, standard air filter, electric starter, 20 amp regulator and a diaphragm fuel pump.

      Helpful?

  7. what type ground + or -

    1 answer

    1. The Honda V-Twin Horizontal OHV Engine with Electric Start (Model GX630RHQYF) uses a negative ground system.

      Helpful?

  8. specifications on height and width please

    1 answer

    1. The overall dimensions for this will be 16"L X 18"W X 18"H.

      Helpful?

  9. Can you ship this engine to California

    1 answer

    1. This engine cannot be shipped to California.

      Helpful?

  10. Any information on fuel consumption @ 100% 75% 50% 25% ??

    1 answer

    1. The fuel consumption of this engine will average between 1 and 1.5 gallons depending on the application in which the engine is used.

      Helpful?
