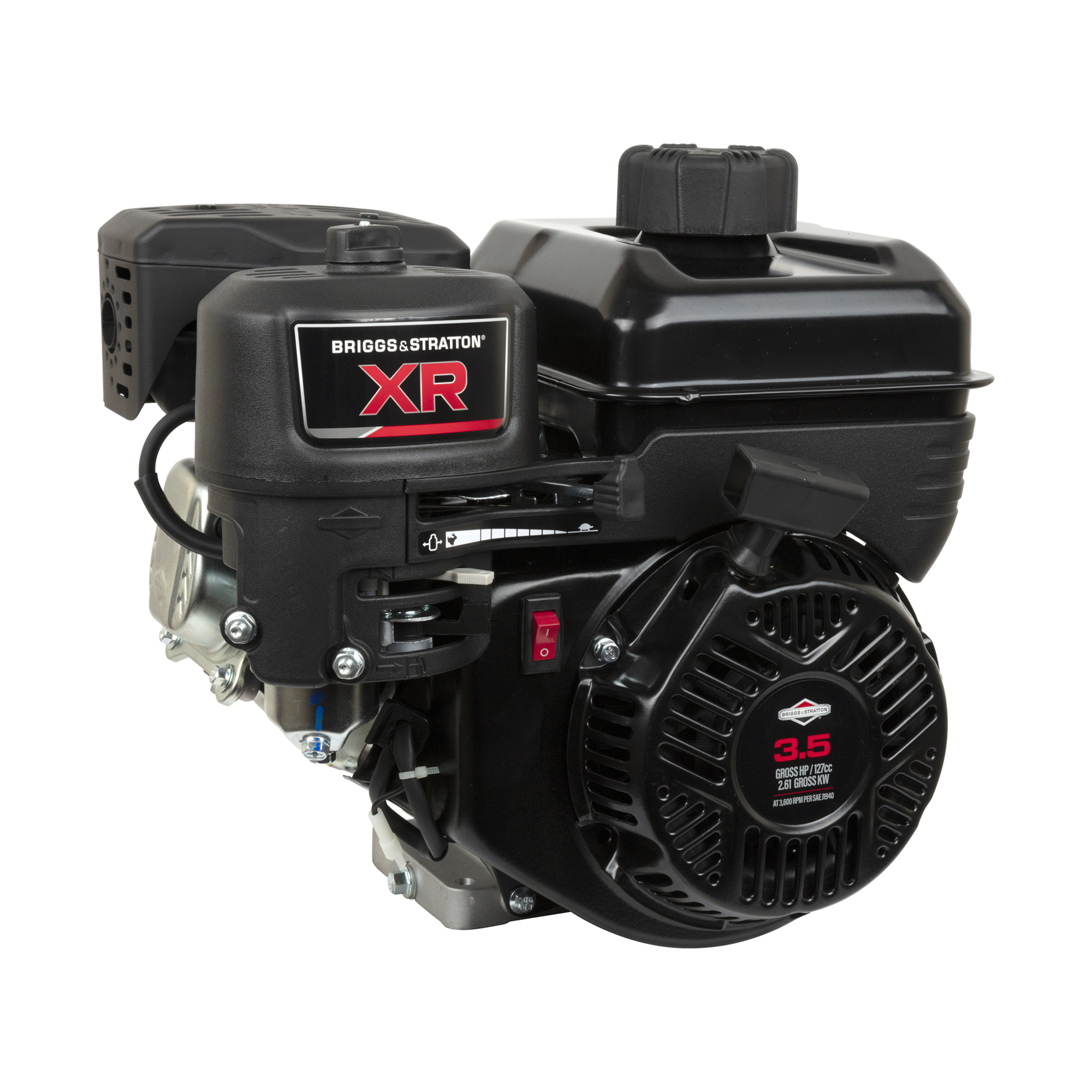

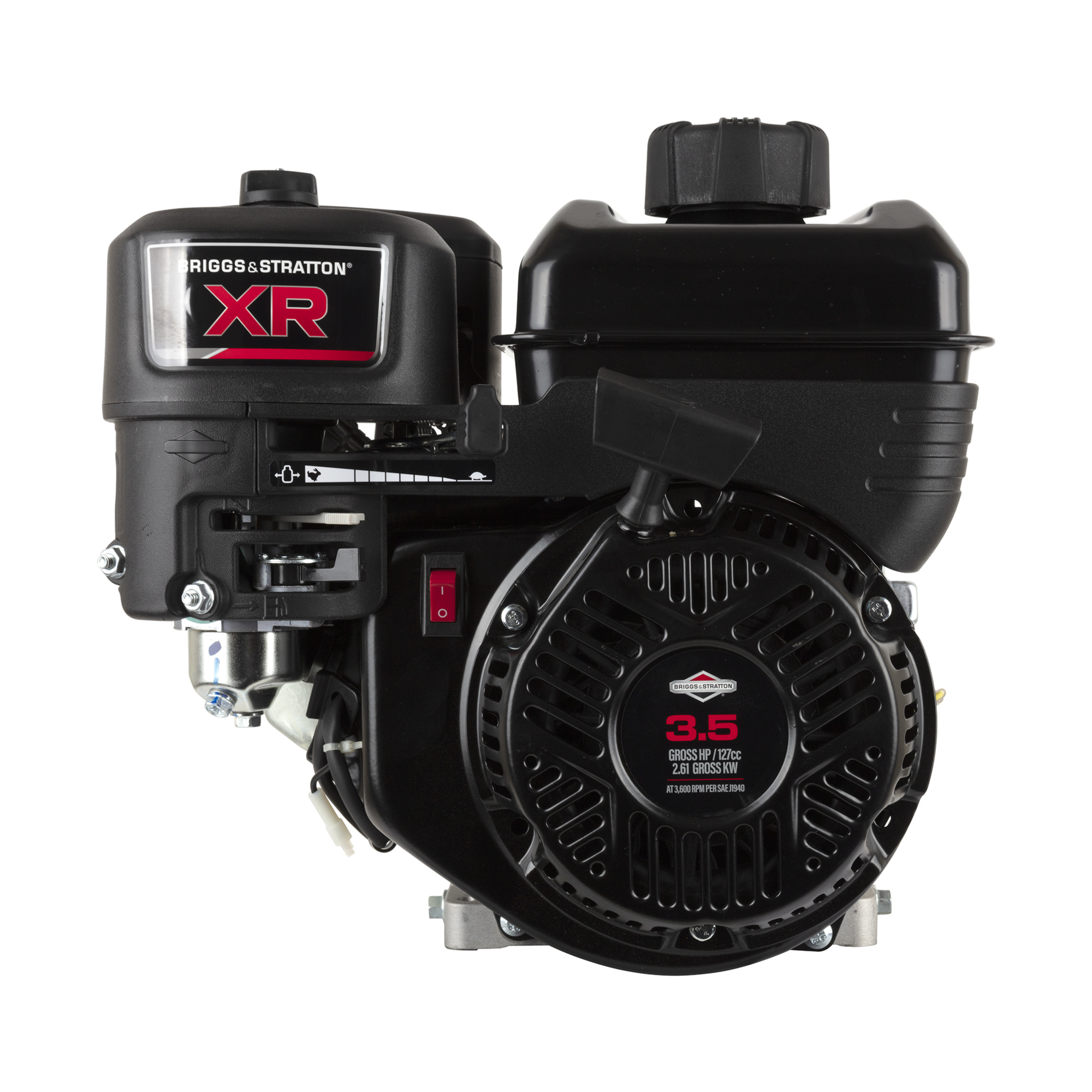

Briggs & Stratton 550 Series Horizontal OHV Engine, 127cc, Standard 3/4in. dia. x 2 27/64in.L Shaft, Model# 83132-1035-F1

Item# 26168
Briggs & Stratton 550 Series Horizontal OHV Engine, 127cc, Standard 3/4in. dia. x 2 27/64in.L Shaft, Model# 83132-1035-F1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Briggs & Stratton 550 Series Horizontal OHV Engine, 127cc, Standard 3/4in. dia. x 2 27/64in.L Shaft, Model# 83132-1035-F1

Click or Tap image to Zoom

$368.32

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • OHV design for cooler operation, longer valve life
  • Dura-Bore™ cast iron cylinder sleeve for extended life
  • Float carburetor for consistent, easy starting
  • Maintenance-free Magnetron® electronic ignition for quick, dependable starts
  • Maxi-Clean™ automotive-style paper air filter for superior protection and long engine life

See full description

Complete Your Solution

  • Briggs & Stratton 550 Series Horizontal OHV Engine, 127cc, Standard 3/4in. dia. x 2 27/64in.L Shaft, Model# 83132-1035-F1
  • Honda Power Equipment 10W-30 Motor Oil, 1-Qt. Bottle
Price for all two:

$378.31

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Briggs Stratton 550 Series Horizontal OHV Engine runs cooler and cleaner, delivering more power, smoother operation, longer engine life and improved fuel economy. An excellent, compaft performer for mid-duty applications that you can depend on.

What's Included

    (1) Engine, Model# 83132-1035-F1

Downloads

Product Manual
Additional Product Info
Play Item Video

Features + Benefits

  • OHV design for cooler operation, longer valve life
  • Dura-Bore™ cast iron cylinder sleeve for extended life
  • Float carburetor for consistent, easy starting
  • Maintenance-free Magnetron® electronic ignition for quick, dependable starts
  • Maxi-Clean™ automotive-style paper air filter for superior protection and long engine life
  • Dual oil filter and drain
  • Dual ball bearings reduce wear for long life
  • DuraLube™ gear-driven splash lubrication continuously applies oil to all internal parts
  • Super Lo-Tone muffler reduces noise level
  • Not for sale in CA
  • 550 Series, Single Cylinder, Air Cooled, 4-Cycle Gas Engine, 3/4" x 2-27/64" Crankshaft, Model# 83132-1035-F1

Key Specs

AttributeSpecification

item#

26168

Brand

Briggs & Stratton

Manufacturer's Warranty

2 year limited warranty

Ship Weight

35.0 LB

Engine Displacement

127 cc

Engine Type

550 Series

Shaft Diameter

3/4 in

Shaft Length

2.42 in

Start Type

Recoil

Shaft Keyway

0.18 in

PTO Height

4.17 in

Cylinders (qty.)

1

Cylinder Bore

Cast Iron

Fuel Tank

Yes

Fuel Tank Capacity

2 qt

Oil Capacity

0.625 qt

Low Oil Shutdown

No
AttributeSpecification

Low Oil Alert

No

Shaft Rotation (From PTO Shaft Side)

Counter Clockwise

Governor System

Mechanical

Ignition System

Electronic

Carburetor

Float

Lubrication System

Splash

Bearing Type

Ball

Auto Compression Release

Yes

Cooling System

Air

Bore

2.44 in

Stroke

1.65 in

Air Cleaner Type

Dual Element

Choke Control

Manual

Throttle Control

Manual

Fuel Filter

Yes

Muffler Included

Yes

Reviews

Questions & Answers

13 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. Is this engine made in the USA???

    1 answer

    1. This engine is manufactured in China.

      Helpful?

  2. Do you have to mix gas with this engine

    1 answer

    1. The engine use gasoline only, no mix required.

      Helpful?

  3. does it have a 6 to 1 gearbox reducer on it?

    1 answer

    1. The engine does not have a 6:1 gear reduction.

      Helpful?

  4. can you get shaft threaded

    1 answer

    1. The engine comes with a standard straight shaft with an internal tapped 5/16-24 TPI end.

      Helpful?

  5. Does this engine have a place to put a throttle cable like on a go kart

    1 answer

    1. This Briggs Engine is not equipped with a remote throttle cable hookup.

      Helpful?

  6. I would like to know what the horsepower rating is on this engine.

    1 answer

    1. This engine would have been rated as a 4 hp unit, however the industry now rates engines this style in cc's.

      Helpful?
