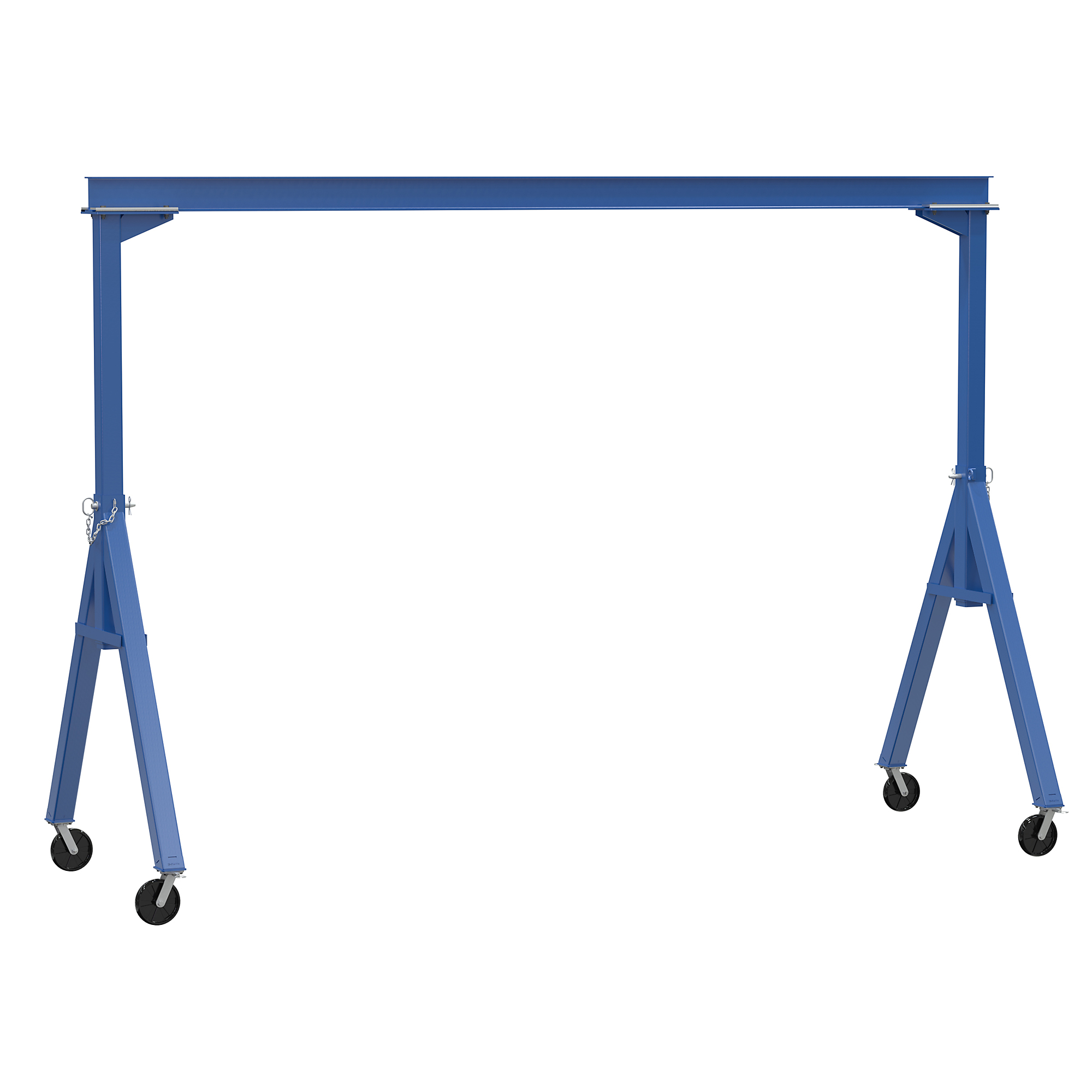

Vestil Fixed Gantry Crane — 2,000-Lb. Capacity

Item# 1031331
Vestil Fixed Gantry Crane — 2,000-Lb. Capacity
Vestil Fixed Gantry Crane — 2,000-Lb. Capacity

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Vestil Fixed Gantry Crane — 2,000-Lb. Capacity

Click or Tap image to Zoom

From

$2199.99

Save up to $150.00

Choose Options for complete product description, reviews and purchasing.

BEAM LENGTH/BEAM HEIGHT

See full description

  • Description

  • Reviews

  • Q & A

Product Summary

The Vestil Fixed Gantry Crane is designed for transporting and positioning materials. The strong, solid steel construction will provide years of service. Large casters with roller bearings facilitate easy mobility from one area to another when unloaded. Available in 3 sizes. Complies with applicable CMAA and ANSI specifications. Gantry crane is NOT to be moved while loaded. Trolley and hoist not included.

Note: Inspect frequently to insure safe operation; final testing and inspection is the user's responsibility after final assembly has been completed.

Downloads

Product Manual
Additional Product Info Additional Product Info2
Play Item Video

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–8 of 8 Questions
Sort by:

  1. What is the I beam dimensions h x w" for the vestal steel gantry crane model # VHS -2-15

    What is the I beam dimensions for the vessel steel gantry crane model# VHS-2-15

    Originally posted on "Vestil Steel Fixed Gantry Crane with Glass Filled Nylon Casters - 2,000-Lb. Capacity, 15ft. x 10ft. Beam, Blue, Model# FHS-2-15"

    1. The overall beam length is 180 inches, the overall beam height is 6 inches with a flange width of 4 inches.

      Helpful?

    2. Good Morning, the FHS-2-15 has a overall beam length of 180 inches, overall beam height of 6 inches with a flange width of 4 inches.

      Helpful?

  2. What is the usable length of the cross beam?

    1 answer
    Originally posted on "Vestil Steel Fixed Gantry Crane with Glass Filled Nylon Casters - 2,000-Lb. Capacity, 15ft. x 10ft. Beam, Blue, Model# FHS-2-15"

    1. The usable length of the I-beam on this gantry crane is 149-3/4 inches.

      Helpful?

  3. What is the working load height?

    I know the gantry is 10' above the ground but what height can you have a load at with taking in to account the chain fall etc.
    I am hoping it can lift a load 8' above the base.

    1 answer
    Originally posted on "Vestil Steel Fixed Gantry Crane with Glass Filled Nylon Casters - 2,000-Lb. Capacity, 15ft. x 10ft. Beam, Blue, Model# FHS-2-15"

    1. The height to the bottom of the I-beam is 10'. A two ton chain hoist will require approximately 18" of head room to operate. The maximum lift height would be approximately 8 1/2'.

      Helpful?

  4. What is the exact weight of the gantry after it is put together?

    I am assuming shipping weight is greater than the actual product due to the wooden pallet etc.

    1 answer
    Originally posted on "Vestil Steel Fixed Gantry Crane with Glass Filled Nylon Casters - 2,000-Lb. Capacity, 15ft. x 10ft. Beam, Blue, Model# FHS-2-15"

    1. The weight of the gantry crane once it is assembled is 809 pounds.

      Helpful?

  5. Are there any V-groove casters available for this model?

    1 answer
    Originally posted on "Vestil Steel Fixed Gantry Crane with Glass Filled Nylon Casters - 2,000-Lb. Capacity, 15ft. x 10ft. Beam, Blue, Model# FHS-2-15"

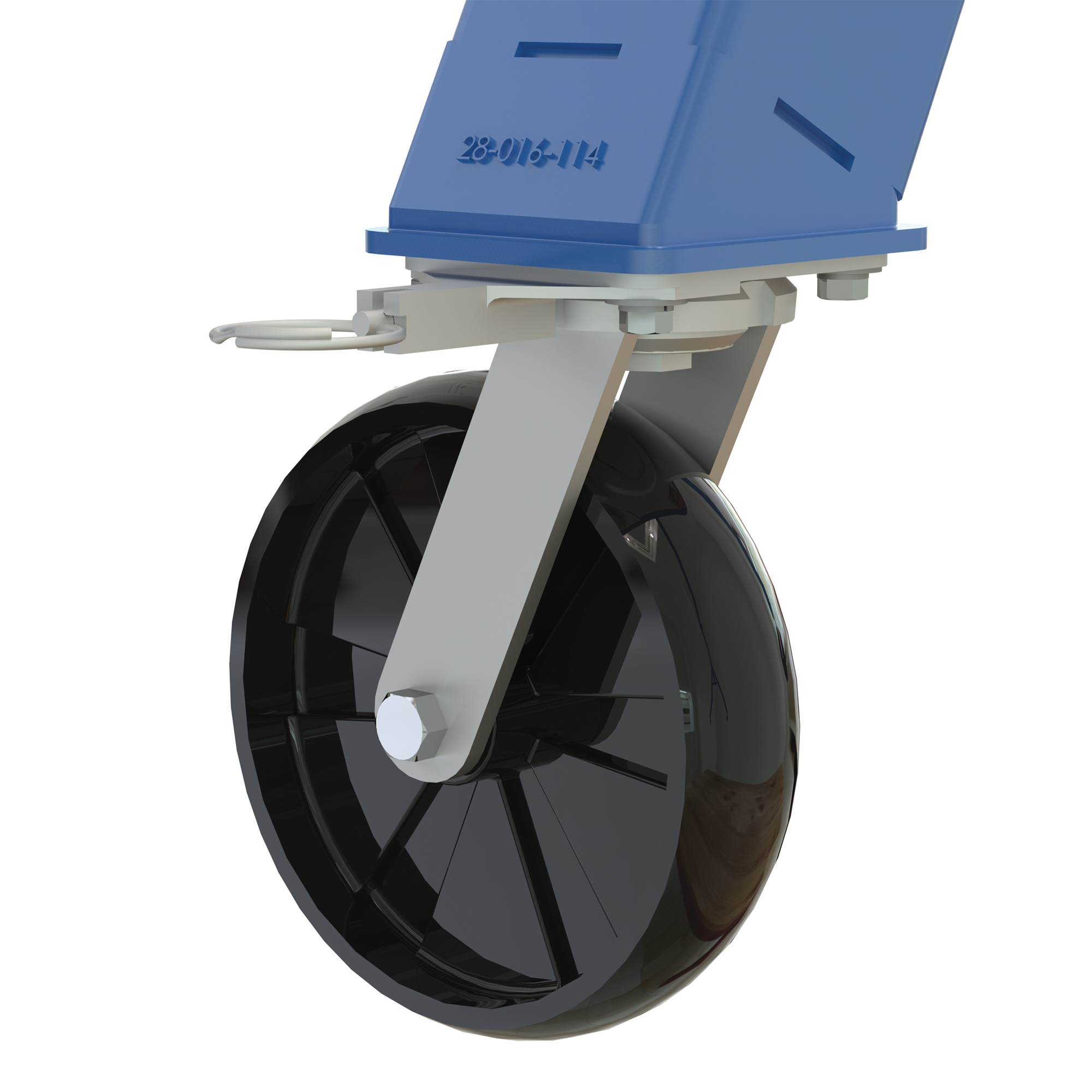

    1. This crane comes with the 4 position locking swivel casters. Northern does not carry any v-groove casters to replace them.

      Helpful?

  6. how thick is this i beam?

    1 answer
    Originally posted on "Vestil Steel Fixed Height Gantry Crane - 2000-Lb. Capacity, 8in. Locking Phenolic Casters, Model# FHS-2-20"

    1. The i beam flange width is 6 inches.

      Helpful?

  7. what size is the I beam?

    1 answer
    Originally posted on "Vestil Steel Fixed Gantry Crane with Glass Filled Nylon Casters — 2,000-Lb. Capacity, 10ft. x 10ft., Model# FHS-2-10"

    1. The dimensions for the I-beam are as follows 10 feet in length as well as from the ground 5 inches in height and 6 inches in width with 9 feet in usable width. The base width is 64-1/2 inches and a 3 inch flange width.

      Helpful?

  8. What is its height at its lowest setting?

    We need one of these that can fit under a 8' clearance.

    1 answer
    Originally posted on "Vestil Steel Fixed Gantry Crane with Glass Filled Nylon Casters — 2,000-Lb. Capacity, 10ft. x 10ft., Model# FHS-2-10"

    1. This Vestil gantry crane is not adjustable and it measures 10 feet high, please see the adjustable gantry crane listed below that can stand exactly 8 feet high...

      Helpful?
