Strongway Electric Chain Hoist, 1-Ton Load Capacity, 9.8ft. Lift

Item# 72642
"Strongway Electric Chain Hoist, 1-Ton Load Capacity, 9.8ft. Lift"
Top Seller
Strongway Electric Chain Hoist, 1-Ton Load Capacity, 9.8ft. Lift

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Strongway Electric Chain Hoist, 1-Ton Load Capacity, 9.8ft. Lift

Click or Tap image to Zoom

$1099.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

  • Operates on standard 110V power, making it easy to power in a variety of situations
  • Handheld remote control with emergency stop switch allows hoist to be controlled from up to 19.68ft. away
  • Upper and lower limit switches prevent over-travel
  • Quick-connect wiring for power and pushbutton controls
  • Integrated slip clutch ensures continuous duty and tension control and protects transmission from overload

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Strongway Electric Chain Hoist, 1-Ton Load Capacity, 9.8ft. Lift
  • Tianchen, Electronic Crane Scale, Capacity 2200 lb, Model# OCS-S1
  • SmartStraps Web Sling, 3,200-Lb. Breaking Strength, 4ft. x 2in., Model# 841
  • Strongway Quick Install Trolley with Lift Eye, 2200-Lb. Capacity, Fits Flange Width 2-15/16in.–5-1/8in.
Price for all four:

$1385.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Strongway Electric Chain Hoist lifts and lowers loads up to 9.8ft., all with the push of a button. No need to climb a ladder and crank a lever with this hoist; you can remain on the ground to control operations. Enclosed steel plate construction holds a heavy-duty ventilated motor with thermal overload protection. Gear trains are permanently lubricated for long life.

What's Included

    (1) Electric hoist

Downloads

Product Manual
Play Item Video

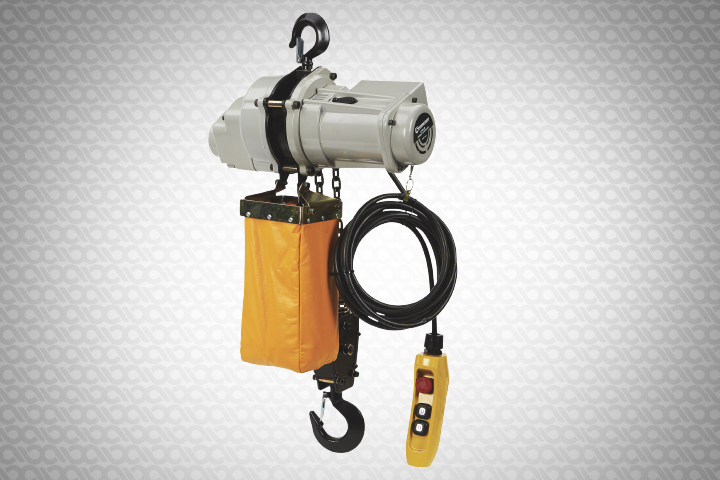

CONVENIENT AND POWERFUL LIFTING

The STRONGWAY ELECTRIC CHAIN HOIST offers a simple and EFFICIENT LIFTING SOLUTION, capable of handling significant weights with the ease of remote control operation

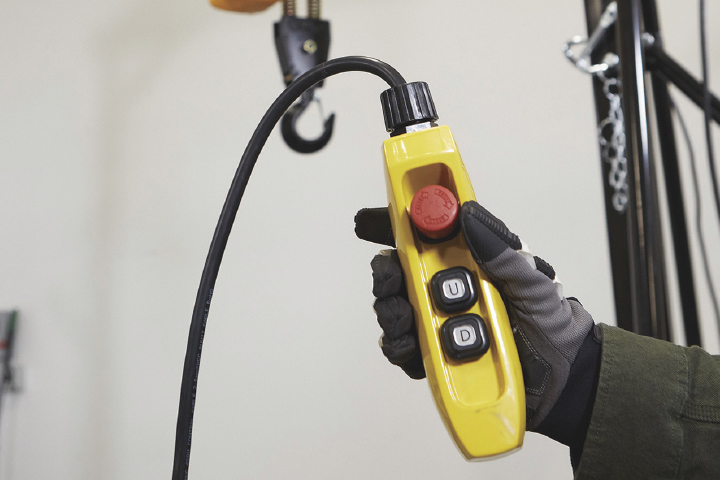

USER-FRIENDLY DESIGN

The REMOTE CONTROL FUNCTIONALITY, combined with QUICK-CONNECT WIRING for power and controls, makes operation straightforward and user-centric

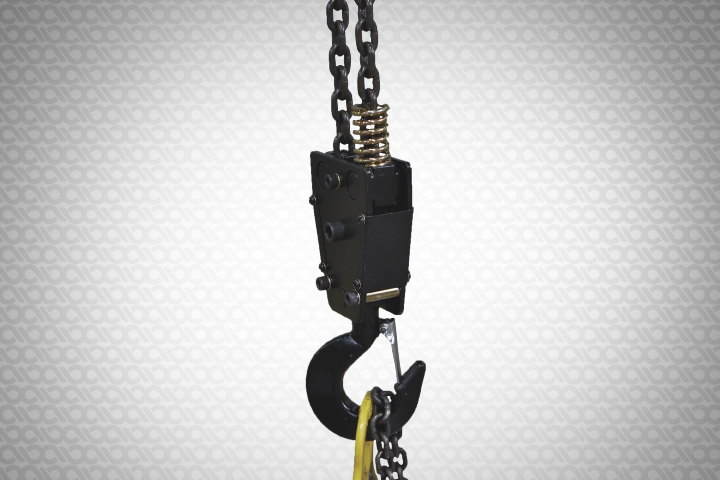

FLEXIBLE RIGGING OPTIONS

HEAT-TREATED HOOKS and the ability to attach to various trolley systems make this hoist exceptionally ADAPTABLE FOR DIFFERENT OPERATIONAL setups

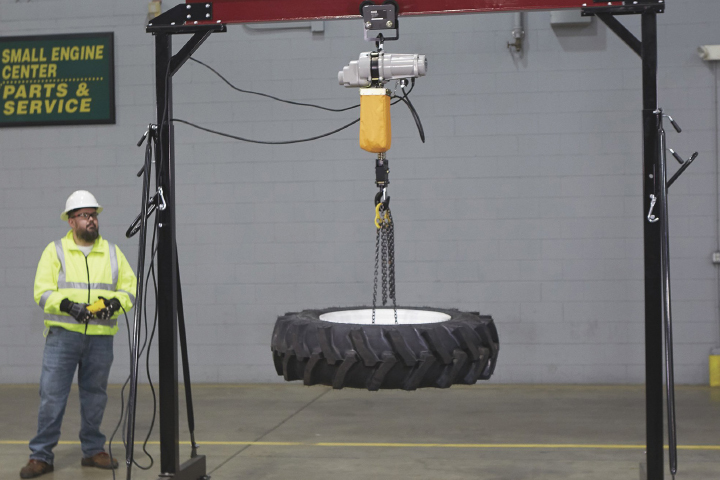

DURABLE AND RELIABLE

Built to last, the HOIST’S STEEL PLATE CONSTRUCTION and THERMALLY PROTECTED MOTOR provide a reliable performance in demanding industrial environments

Features + Benefits

  • Operates on standard 110V power, making it easy to power in a variety of situations
  • Handheld remote control with emergency stop switch allows hoist to be controlled from up to 19.68ft. away
  • Upper and lower limit switches prevent over-travel
  • Quick-connect wiring for power and pushbutton controls
  • Integrated slip clutch ensures continuous duty and tension control and protects transmission from overload
  • Gear trains are permanently lubricated for long life and minimal maintenance
  • Built-in chain bag helps protect chain and keeps it neatly out of the way during operation
  • Heat-treated, drop-forged hooks swivel 360° for easy rigging
  • Easily attaches to most trolleys or beam clamps
  • Features electromagnetic brake that holds the load even if power is interrupted

Key Specs

AttributeSpecification

item#

72642

Brand

Strongway

Manufacturer's Warranty

1 year limited warranty

Ship Weight

66.4 LB

Capacity

2,200 lb

Lift Height

9.8 ft

Lift Speed

9.8 ft./min.

Duty Cycle

30 %

Volts

110
AttributeSpecification

Brake Type

Combination

Control Type

Push Button

Chain Bag Included

Yes

Required Head Room

18.5 in

Watts

1,400

Motor Output

1.8

Thermal Overload Protection

No

Dimensions L x W x H (in.)

17.75 x 6.68 x 20.5 in

Product Weight

64.0000 lb

Reviews

Questions & Answers

62 Reviews This action will navigate to reviews.

Questions

1–10 of 20 Questions
Sort by:

  1. What is the IP rating

    1 answer

    1. This hoist has an IP54 rating, indicating it is protected against limited dust entry and water splashes from any direction.

      Helpful?

  2. Is this hoist pre lubricated or does it need oil or grease added to it once it has been shipped to me?

    1 answer

    1. Before use, check the oil level and add oil if needed. For ambient temperature of approximately 50℉ to 122℉, a gear oil of Mm²/S at 104℉, with mild high-pressure additives should be used. IDEMITSU racing gear 140 GL-5 is the oil that should be used.

      Helpful?

  3. do you sell replacement brushes for this crane?

    1 answer

    1. The carbon brush set, part #SNW72642.19.1, is available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  4. Wht is the lift speed for thye Strongway 1 ton lift

    1 answer

    1. This will lift 9.8 feet a minute.

      Helpful?

  5. What is total measurable distance between top of mounting hook to bottom furthest point on the lower hook?

    1 answer

    1. This hoist measures 17.72" fully retracted.

      Helpful?

  6. I need a hanging hight from top hook to bottom of chain bag and from top hook to bottom of winch

    1 answer

    1. From the top hook to bottom of chain bag is about 23.6".
      From the top hook to bottom of hoist body is 11.8".

      Helpful?

  7. The product states there is an Upper and Lower limit switch. Can you explain how the limit switches function on this product?

    1 answer

    1. When the overload torque exceeds the set value, the torque limiter will have a separation in order to effectively protect the driven machinery and prevent over load or over winding.

      Helpful?

  8. where is this hoist manufactured?

    1 answer

    1. This item is manufactured in Taiwan.

      Helpful?

  9. is this 110V

    1 answer

    1. This operates on standard 110V power.

      Helpful?

  10. Will this plug in to a regular 20 amp circuit

    1 answer

    1. This will operates on standard 3 prong 110V outlet with 20 amps.

      Helpful?
