Strongway Electric Cable Hoist, 1100-Lb. Single-Line Capacity/2200-Lb. Double-Line Capacity, 38ft./19ft. Lift

Item# 4584154
"Strongway Electric Cable Hoist, 1100-Lb. Single-Line Capacity/2200-Lb. Double-Line Capacity, 38ft./19ft. Lift"
Top SellerOn Sale
Strongway Electric Cable Hoist, 1100-Lb. Single-Line Capacity/2200-Lb. Double-Line Capacity, 38ft./19ft. Lift

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Strongway Electric Cable Hoist, 1100-Lb. Single-Line Capacity/2200-Lb. Double-Line Capacity, 38ft./19ft. Lift

Click or Tap image to Zoom

$349.99
Reg $399.99Save $50.00

Order today to get this price.

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    2 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Rugged efficient 120V/60 Hz hoist for easy lifting
  • Lifts loads up to 38ft. at speeds up to 33 FPM with a single line, or 19ft. with speeds up to 16 1/2 FPM with a double line
  • Spring shock function to keep things safe
  • 120 Volts, 2.15 HP motor for longer 10-minute duty cycles at 20%
  • Easy-access 360° swivel hook for attaching and removing loads easily from any angle

See full description

Complete Your Solution

  • Strongway Electric Cable Hoist, 1100-Lb. Single-Line Capacity/2200-Lb. Double-Line Capacity, 38ft./19ft. Lift
  • SmartStraps Web Sling, 3,200-Lb. Breaking Strength, 4ft. x 2in., Model# 841
  • Pyramex Cap-Style Hard Hat with 4-Point Pin-Lock Suspension - White, One Size Fits All, Model# HP14010
  • Bullhead Safety Discus Safety Glasses, 10 Base Curve Wrap Around Clear Lens, Model# BH2811
Price for all four:

$384.16

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Strongway Electric Cable Hoist is a rugged, efficient 120V/60 Hz unit that makes lifting easy. It lifts loads up to 38ft. at speeds up to 33 FPM with a single line, or 19ft. with speeds up to 16-1/2 FPM with a double line. The spring shock function keeps things safe. The 2.15 HP motor leads to long 10-minute duty cycles at 20%. The easy-access 360° swivel hook allows you to attach and remove loads easily from any angle. A heavy-duty 3-button control allows easy operation. Includes 40ft.L x 0.23in. diameter cable.

What's Included

    (1) Strongway Electric Cable Hoist (1) Mounting kit (1) Pulley hook

Downloads

Product Manual

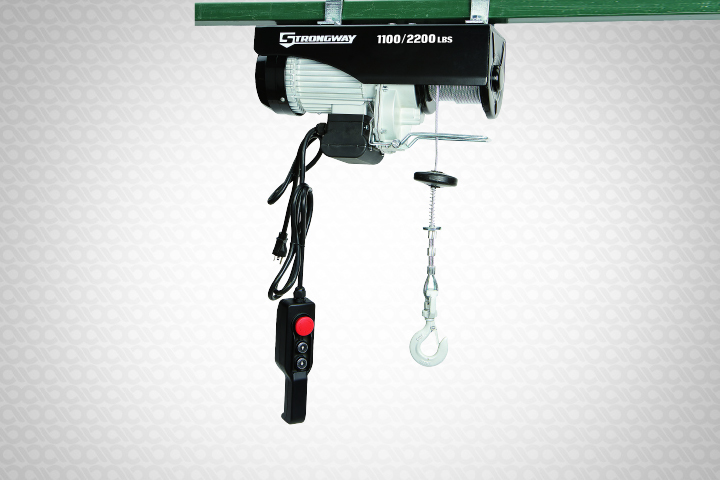

EFFICIENT AND POWERFUL LIFTING

The Strongway ELECTRIC CABLE HOIST is designed to optimize your lifting operations, efficiently moving heavy LOADS QUICKLY with its POWERFUL MOTOR and effective cable system

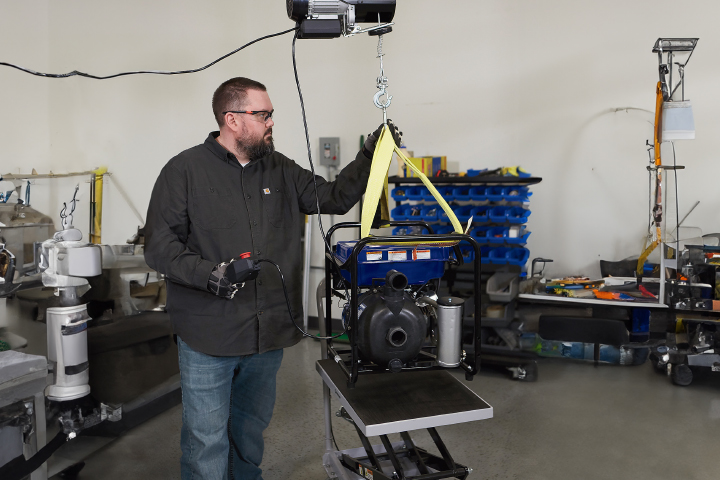

ROBUST CONSTRUCTION

Built to last, the included cable is tough enough to handle the RIGORS OF HEAVY LIFTING, ensuring that the hoist remains a dependable part of your EQUIPMENT ARSENAL

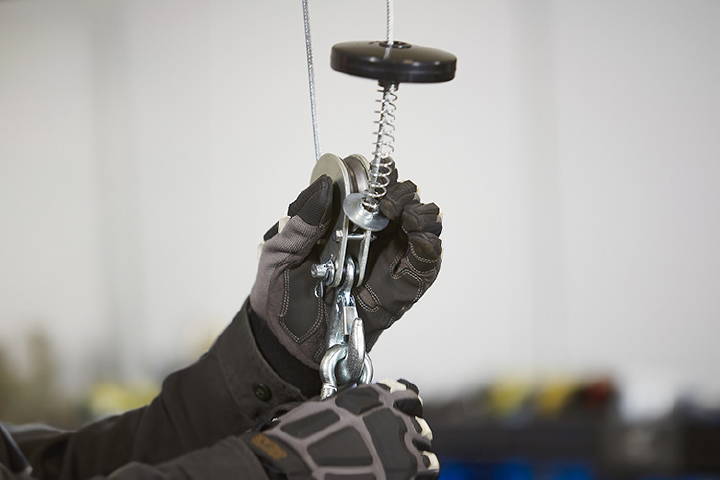

DUAL LIFTING CAPACITY

Offering both SINGLE and DOUBLE LINE CONFIGURATIONS, this hoist provides flexibility to adapt to different lifting needs, making it ideal for a wide range of industrial applications

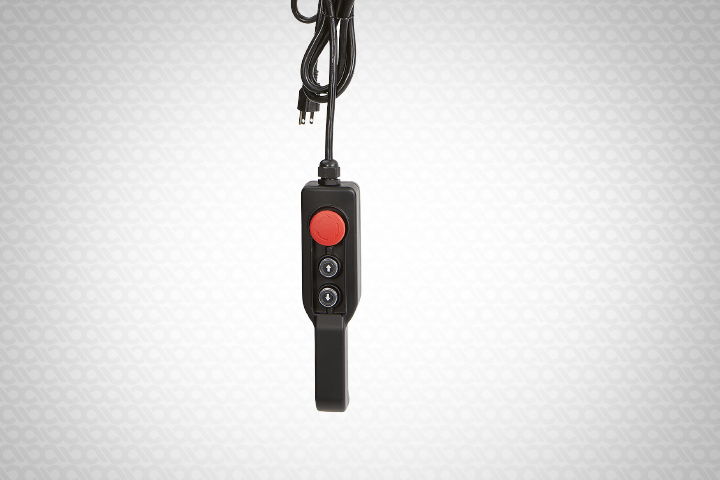

ADVANCED SAFETY MECHANISMS

Equipped with a SPRING SHOCK FUNCTION to prevent accidents and an emergency STOP BUTTON that provides quick response to potential hazards, ensuring a safe work environment

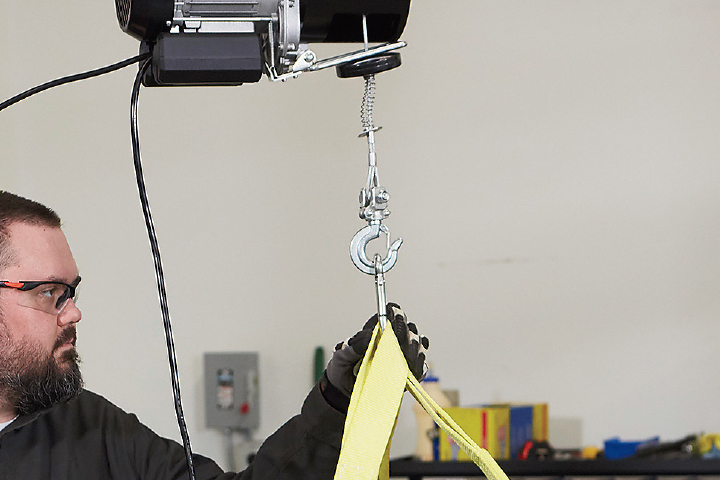

USER-FRIENDLY OPERATIONS

The 360° SWIVEL HOOK and intuitive 3-BUTTON CONTROL PANEL make it easy to operate, reducing labor intensity and enhancing productivity on the jobsites

Features + Benefits

  • Rugged efficient 120V/60 Hz hoist for easy lifting
  • Lifts loads up to 38ft. at speeds up to 33 FPM with a single line, or 19ft. with speeds up to 16 1/2 FPM with a double line
  • Spring shock function to keep things safe
  • 120 Volts, 2.15 HP motor for longer 10-minute duty cycles at 20%
  • Easy-access 360° swivel hook for attaching and removing loads easily from any angle
  • Heavy-duty 3-button control for easy operation
  • Emergency stop button for emergency hazard handling
  • Includes 38ft.L x 0.23in. diameter cable

Key Specs

AttributeSpecification

item#

4584154

Brand

Strongway

Manufacturer's Warranty

1 year limited warranty

Ship Weight

70.0 LB

Amps

16

Single Line Lift Capacity

1,100 lb

Double Line Lift Capacity

2,200 lb

Single Line Lift Height

38 ft

Double Line Lift Height

19 ft
AttributeSpecification

Single Line Lift Speed

33 ft./min.

Double Line Lift Speed

16.5 ft./min.

Cable Length

38 ft

Cable Diameter

0.23 in

Duty Cycle

20%-10min min

Phase

Single-phase

Product Weight

68.8600 lb

Dimensions L x W x H (in.)

19.29 x 11.02 x 7.28 in

Reviews

Questions & Answers

43 Reviews This action will navigate to reviews.

Questions

1–10 of 50 Questions
Sort by:

  1. CAN I USE A 2" PIPE AS A MEANS OF MOUNTING THIS HOIST

    1. Thats's what I have done

      Helpful?

    2. The inside of each hanger bracket can accept up to 2.40" beams. This item would work with a 2" pipe so long as it would be sturdy enough to handle the maximum weight capacity.

      Helpful?

  2. What is the part number for replacement sheave for the hook? Is there a option to purchase a swivel hook with double line usage?

    1 answer

    1. The hook sheave would be part of the snatch block pulley, part #SNW4584154.86. This part is available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability. A swivel hook is not available for double line usage.

      Helpful?

  3. where is it made

    1 answer

    1. The hoist is manufactured in China.

      Helpful?

  4. Does the lifting speed vary based on the load? If so, is there a speed vs load chart available?

    1 answer

    1. The single line lifting speed is 33 feet per minute and the double line lifting speed is 16.5 feet per minute.
      The lifting speed will not vary based on the load, it is stable.

      Helpful?

  5. What is the length of the pendant for the controls?

    1 answer

    1. The overall length of the control pendant with the cord is 5.25". Just the handheld portion of the control pendant is 10.11" long x 2.25" wide x 2.28" deep.

      Helpful?

  6. Can a wireless remote be added to this hoist

    1 answer

    1. This hoist is not designed for use with a wireless remote.

      Helpful?

  7. Is this hoist OSHA/ASME approved to be used in an industrial setting?

    1 answer

    1. For industrial or commercial applications, this hoist must be installed according to OSHA requirements to be OSHA compliant. It has not been ASME tested.

      Helpful?

  8. Is the cable pre-stretched? Or should we run it out and under a load wind it up. When 1st operating?

    1 answer

    1. The cable is not considered pre-stretched. There is no need to run it without a load when first operating as the cable is rated to handle the maximum load.

      Helpful?

  9. The specifications say the double line can lift at speeds up to 16.5 ft/min. Is the lift speed adjustable? If so, what is the slowest lift speed option?

    1 answer

    1. The lift speed on this hoist is not adjustable.

      Helpful?

  10. How much does it weigh

    1 answer

    1. The weight of the cable hoist is 70.4 pounds.

      Helpful?
