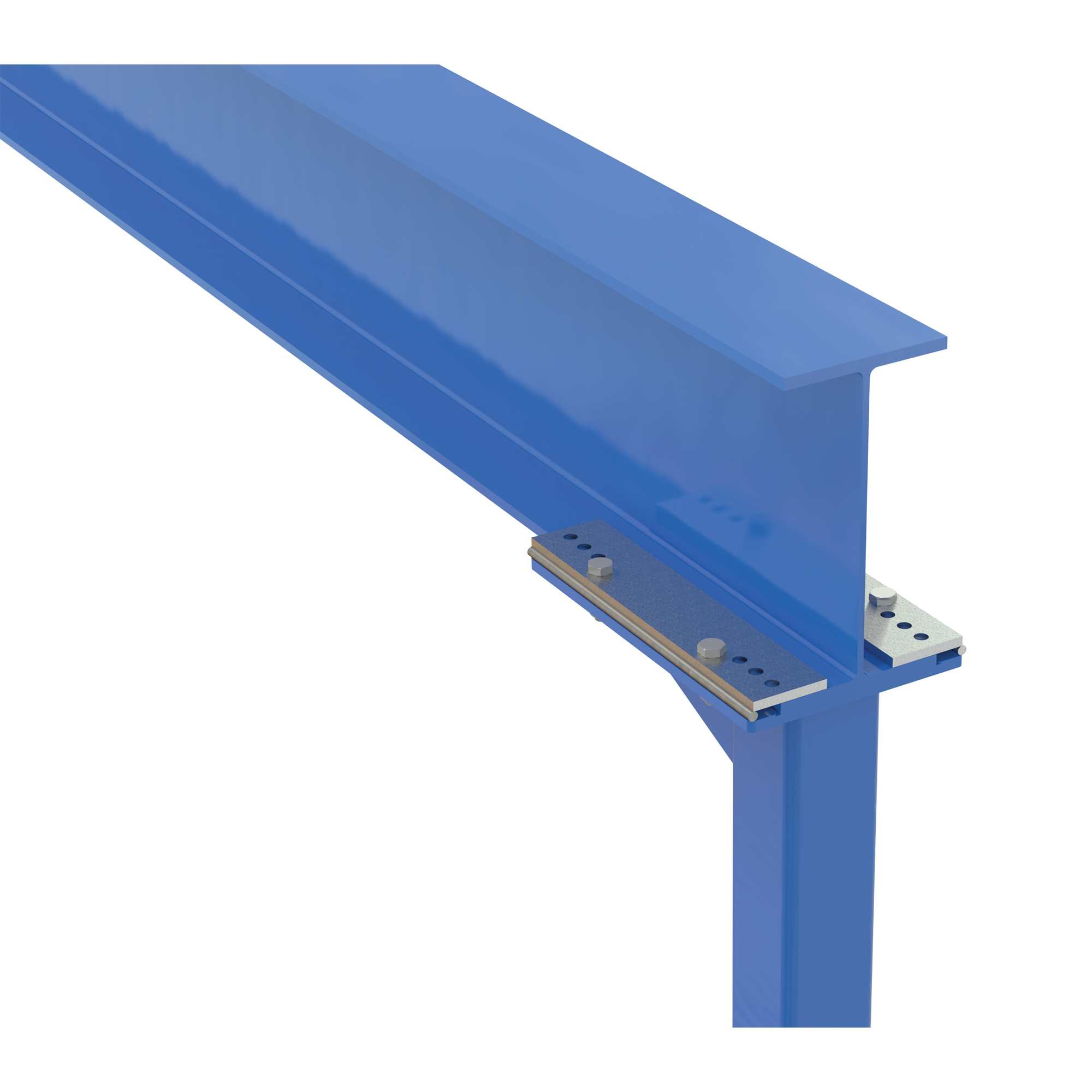

The overall beam length is 180 inches, the overall beam height is 6 inches with a flange width of 4 inches.

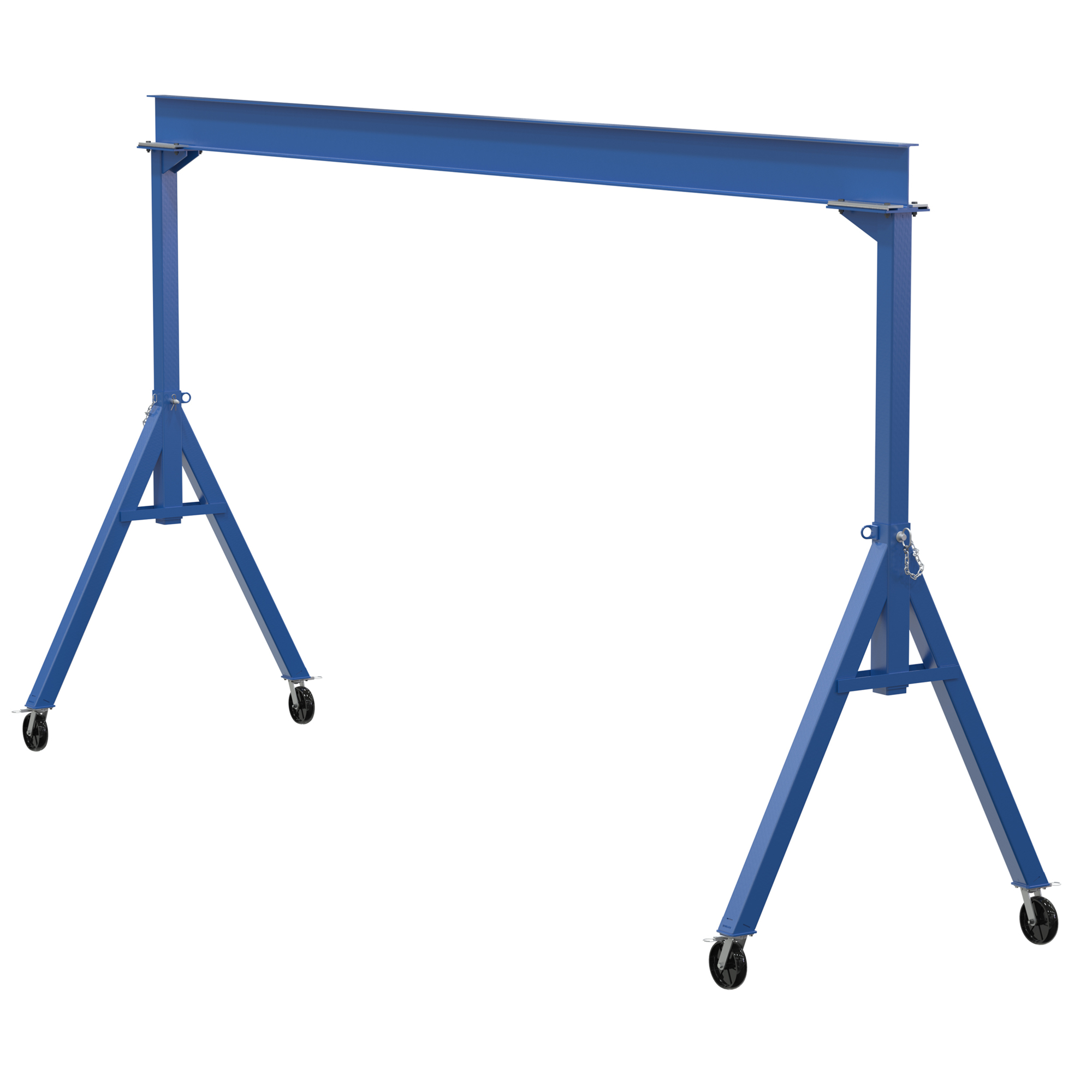

Vestil Steel Fixed Height Gantry Crane - 2000-Lb. Capacity, 8in. Locking Phenolic Casters, Model# FHS-2-20
On Sale
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$2199.99
Choose Options for complete product description, reviews and purchasing.
BEAM LENGTH/BEAM HEIGHT
- Industrial steel gantry cranes are designed for transporting and positioning materials
- Solid steel construction will provide years of service

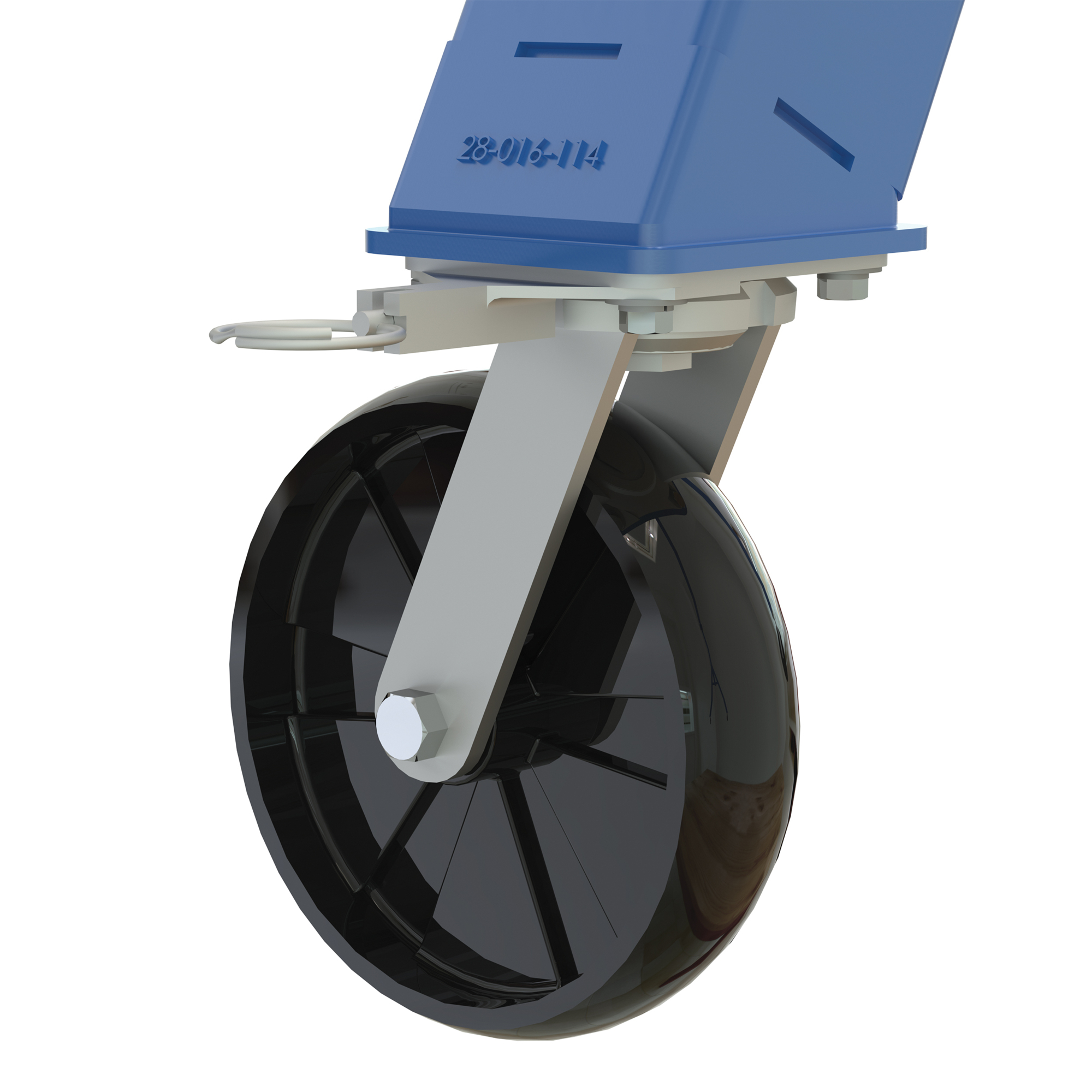

- Large 8in. dia. locking phenolic casters with roller bearings facilitate easy mobility from one area to another when unloaded
- More economical and flexible than permanent cranes
- Quick setup design
See full description
Note: Inspect frequently to insure safe operation; final testing and inspection is the user's responsibility after final assembly has been completed.
What's Included
- (2) Uprights (1) I-Beam (5) 4 casters and 1 hardware kit
-
What is the I beam dimensions h x w" for the vestal steel gantry crane model # VHS -2-15
What is the I beam dimensions for the vessel steel gantry crane model# VHS-2-15
-
Helpful?
-
Good Morning, the FHS-2-15 has a overall beam length of 180 inches, overall beam height of 6 inches with a flange width of 4 inches.
Helpful?
-
-
What is the usable length of the cross beam?
1 answer-
The usable length of the I-beam on this gantry crane is 149-3/4 inches.
Helpful?
-
-
What is the working load height?
I know the gantry is 10' above the ground but what height can you have a load at with taking in to account the chain fall etc.
I am hoping it can lift a load 8' above the base.1 answer-
The height to the bottom of the I-beam is 10'. A two ton chain hoist will require approximately 18" of head room to operate. The maximum lift height would be approximately 8 1/2'.
Helpful?
-
-
What is the exact weight of the gantry after it is put together?
I am assuming shipping weight is greater than the actual product due to the wooden pallet etc.
1 answer-
The weight of the gantry crane once it is assembled is 809 pounds.
Helpful?
-
-
Are there any V-groove casters available for this model?
1 answer-
This crane comes with the 4 position locking swivel casters. Northern does not carry any v-groove casters to replace them.
Helpful?
-
-
how thick is this i beam?
1 answer-
The i beam flange width is 6 inches.
Helpful?
-
-
what size is the I beam?
1 answer-
The dimensions for the I-beam are as follows 10 feet in length as well as from the ground 5 inches in height and 6 inches in width with 9 feet in usable width. The base width is 64-1/2 inches and a 3 inch flange width.
Helpful?
-
-
What is its height at its lowest setting?
We need one of these that can fit under a 8' clearance.
1 answer-
This Vestil gantry crane is not adjustable and it measures 10 feet high, please see the adjustable gantry crane listed below that can stand exactly 8 feet high...
Helpful?
-
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Gantry Cranes
See All Vestil Gantry Cranes
Currently Viewing This Product
Specifications
Specifications
Vestil Steel Fixed Height Gantry Crane - 2000-Lb. Capacity, 8in. Locking Phenolic Casters, Model# FHS-2-20
Vestil Adjustable Height Aluminum Gantry Crane - 8ft. x 12ft., 2000 lb Load Capacity, Corrosion-Resistant, Model# AHA-2-8-12-ALO
Vestil Adjustable Height Aluminum Gantry Crane - 12ft. x 8ft., 2000-Lb. Capacity, Corrosion-Resistant, Model# AHA-2-12-8-ALO
Vestil Adjustable Height Aluminum Gantry Crane - 15ft. x 8ft., 2000-Lb. Capacity, Corrosion Resistant, Model# AHA-2-15-8-ALO
Material
Same
Steel
Aluminum
Aluminum
Aluminum
Load Capacity
Same
2,000 lb
2,000 lb
2,000 lb
2,000 lb
I-Beam Length
Same
239.75 in
96 in
144 in
180 in
I-Beam to Ground
Same
130.31 in
158 in
114 in
114 in
Flange Width
Same
4 in
3.31 in
4 in
4.19 in
Product Weight
Same
968.0000 lb
198.0000 lb
218.0000 lb
272.0000 lb
Dimensions L x W x H (in.)
Same
239.75 x 64.5 x 130.3125 in
96.0 x 64.0 x 158.0 in
144.0 x 64.0 x 114.0 in
180.0 x 64.0 x 114.0 in
