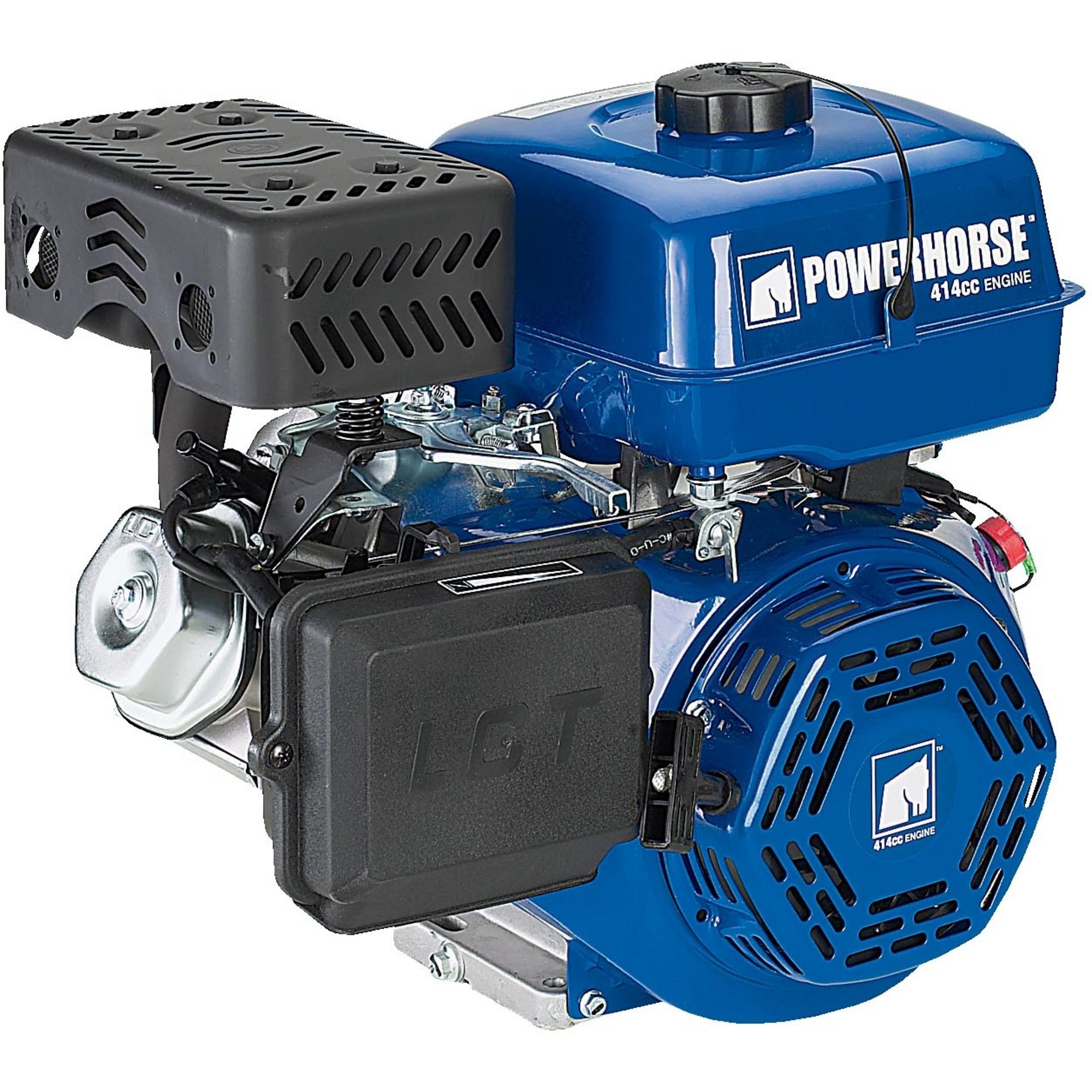

Powerhorse 414cc OHV Horizontal Engine

Item# 60916
Powerhorse 414cc OHV Horizontal Engine

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Powerhorse 414cc OHV Horizontal Engine

Click or Tap image to Zoom

  • 12 HP previously rated
  • 18.02 ft.-lbs. of torque ; Shaft 1in. x 3 31/64in.
  • Bolt mount circle 5in., 6 1/2in.
  • Approx. mounting base dim. 7 11/16in. x 3 25/32in.
  • OHV engines deliver more power more efficiently by running smoother and cooler, resulting in longer engine life

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Powerhorse™ 414cc OHV horizontal engine is an easy-to-install solution for your small engine needs. With 414cc and 9.00 ft.-lbs. of torque, it provides the power you need to run a wide range of equipment, including wood splitters, tillers, pressure washers and go-karts. The patented design incorporates an industrial-strength cast iron cylinder sleeve, dual ball bearing crankshafts and an internal oil splash enhancement system. Low oil shutdown turns off the engine if it runs low on oil, preventing serious damage or failure. The recoil start has a compression release that helps you get running on the first pull. Combine these features with thorough U.S.-based testing, dedicated customer/tech support and incredible value, and you'll own one of the most reliable engines in the industry.

What's Included

  • (1) Powerhorse 414cc OHV engine

Downloads

Product Manual

Features + Benefits

  • 12 HP previously rated
  • 18.02 ft.-lbs. of torque ; Shaft 1in. x 3 31/64in.
  • Bolt mount circle 5in., 6 1/2in.
  • Approx. mounting base dim. 7 11/16in. x 3 25/32in.
  • OHV engines deliver more power more efficiently by running smoother and cooler, resulting in longer engine life
  • OHV improves fuel economy while reducing exhaust emissions and greenhouse gasses
  • Cast iron cylinder sleeve reduces bore wear and extends engine life, reduces emissions and oil consumption
  • Dual ball bearings for reduced friction and wear for prolonged life
  • The forged crankshaft gives superior strength in high PTO torque situations
  • Recoil start w/compression release
  • Low oil shutdown
  • Internal oil splash enhancement and delivery system that delivers extra lubrication system
  • Sound pressure balanced muffler
  • Heavy-duty metal fuel tank w/anti-splash baffles
  • Side air ports reduce debris entry
  • A paper-pleated filter and foam pre-cleaner provide maximum protection

Key Specs

AttributeSpecification

item#

60916

Brand

Powerhorse

Manufacturer's Warranty

24 months parts / 24 months labor

Ship Weight

69.0 LB

Engine Type

OHV

Start Type

Recoil

Shaft Keyway

1/4

PTO Height

5.24

Cylinders (qty.)

1

Cylinder Bore

Cast Iron
AttributeSpecification

Low Oil Alert

Yes

Shaft Rotation (From PTO Shaft Side)

Counterclockwise

Governor System

Mechanical

Ignition System

Recoil

Carburetor

Float

Lubrication System

Oil splash

Cooling System

Air cooled

Air Cleaner Type

Dual–paper

Muffler Included

Yes

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. If I were to use this motor for a go-cart, what clutch should I use?

    1 answer

    1. There are a number of clutching options for this engine. The clutch should feature a 1" bore and be able to handle at least 12 horsepower. See links below for some suggestions of clutches that would work with this engine.

      Helpful?

  2. how does engine compare to wisconsin-robin

    w/r mounted on yazoo 26in walk behind engine mod is ey23w or ey25w. will either engines compare.

    1 answer

    1. We have been selling our Powerhorse brand engines for a few years now, and we base the quality of our products on our customer opinions through web based review ratings and testimonies.

      With such a high positive feedback from our previous customers on Powerhorse we started a whole product line with the engine to include...log splitters, generators, pressure washers, water pumps, chainsaws, and air compressors.

      With that said...I am unable to compare a Wisconsin Robin directly because we do not sell them but with the history of Powerhorse you will not be disappointed.

      To adequately cross reference your engine we will need the following information...

      1. Horizontal or vertical shaft.

      2. Shaft length and diameter.

      3. Mounting bolt pattern.

      4. Horse power.

      5. Total dimensions of the engine, length and width.

      Helpful?

  3. what are the overall dimensions of the engine?

    1 answer

    1. This engine is 18" wide x 22" tall. The mounting base is 7.69" wide X 3.78" tall.

      The Powerhorse engines are a great, high quality choice that will not break the bank.

      Helpful?

  4. can an electric starter be added to this engine or do you have any Powerhorse electric start models?

    Powerhorse 414cc OHV Horizontal Engine

    1 answer

    1. Unfortunately at this time we do not offer a Powerhorse engine that features electric start or an electric start kit that can be added. However this has been an extremely popular option for customers that are seeking a high quality engine at a reasonable price. Check the reviews and see what our other customers are saying about this engine.

      Helpful?
