The differences would be the GX630RVXE1 has a fixed throttle and is preset at 3200 RPM. The GX630RVXA1 has a cable holder to set up to control the throttle and is preset to run at 3850 RPM. Either engine is suited for generator use.

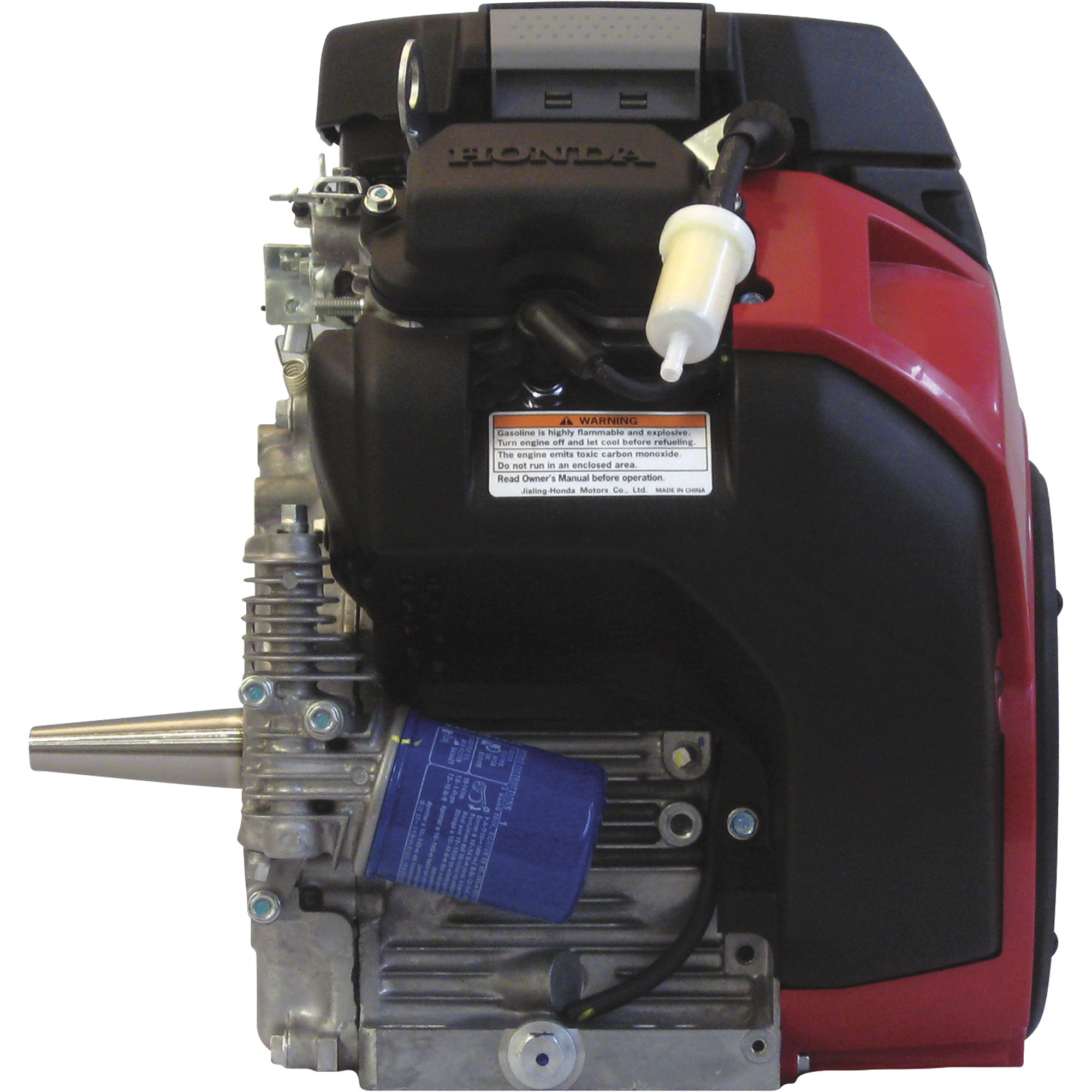

Honda Engines, V-TWIN HORIZONTAL 630CC RVXE1 Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Model# GX630RHXVXE1
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$1999.99
- Generator tapered shaft
- 688cc air-cooled, 4-stroke OHV engine
- Not for sale in CA
See full description
Price for all four:
$2477.96
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Horizontal Engines
See All Honda Engines Horizontal Engines
Currently Viewing This Product
Specifications
Specifications
Honda Engines, V-TWIN HORIZONTAL 630CC RVXE1 Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Model# GX630RHXVXE1
Honda Engines, 200CC HONDA ENG W/THREAD SHAFT, Engine Displacement 196 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 5/8 in, Model# GX200UT2XTX2
Honda Engines, Honda GX690 Horizontal V-Twin, Engine Displacement 688 cc, Shaft Diameter 1-1/8 in., Model# GX690RHXTXA2
Honda Engines, HONDA GX270 6:1 ELECTRIC START, Engine Displacement 270 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX270UT2HEA2
Engine Displacement
Same
688 cc
196 cc
688 cc
270 cc
Engine Type
Same
GX Series OHV V-twin Commercial-duty
GX Series OHV Commercial-duty
GX Series OHV V-twin
GX Series OHV Commercial-duty
Shaft Diameter
Same
Tapered
5/8 in
1-1/8 in
1 in
Shaft Length
Same
3 in
2.42 in
3.96 in
3.23 in
Start Type
Same
Electric
Recoil
Electric
Electric and Recoil
Net Torque
Same
35.6 ft-lbs.
9.1 ft-lbs.
35.6 ft-lbs.
14.1 ft-lbs.
Crankshaft
Same
V-type
T-type
T-type
H-type
PTO Height
Same
5.25 in
4.17 in
5.25 in
5.25 in
Cylinders (qty.)
Same
2
1
2
1
Cylinder Bore
Same
Integrated
Cast Iron
Integrated
Cast Iron
Net Power Output
Same
20.8 HP
5.5 HP
22.1 HP
8.5 HP
Compression Ratio
Same
9.3:1
8.5:1
9.3:1
8.5:1
Fuel Tank
Same
No
Yes
No
-
Oil Capacity
Same
2 qt
0.63 qt
2 qt
1.16 qt
Low Oil Alert
Same
Yes
-
Yes
-
Shaft Rotation (From PTO Shaft Side)
Same
Counter Clockwise
Counter Clockwise
Counter Clockwise
Counter Clockwise
Governor System
Same
Mechanical
Centrifugal Mechanical
Mechanical
Centrifugal Mechanical
Ignition System
Same
Electonic, Digital CDI W/variable Ignition Timing
Electronic
Electrical, Digital CDI W/variable Ignition Timing
Electronic
Carburetor
Same
2-barrel, Fuel Cut Solenoid, Inner Vent
Float
(2) Barrel, Fuel Cut Solenoid, Inner Vent
Float, External Vent
Lubrication System
Same
Full Pressure
Splash
Forced Lubrication
Splash
Cooling System
Same
Air
Air
Air
Air
Bore
Same
3.1 in
2.7 in
3.1 in
3 in
Stroke
Same
2.8 in
2.1 in
2.8 in
2.3 in
Air Cleaner Type
Same
Dual Element
Dual Element
Dual Element
Dual Element
Choke Control
Same
Manual
Manual
Manual
Manual
Throttle Control
Same
Manual
Manual
Manual
Remote
Charging System Amps
Same
2.7
-
17
-
Muffler Included
Same
No
Yes
No
-
Fuel Tank Capacity
Same
-
3.3 qt
-
5.6 qt
Low Oil Shutdown
Same
-
Yes
Yes
-
Shaft Keyway
Same
-
-
0.25 in
0.25 in
Bearing Type
Same
-
-
Ball
-
Auto Compression Release
Same
-
-
Yes
-
Fuel Filter
Same
-
-
Yes
Yes
