On the GX630 engines the connecting rods will all be made of steel.

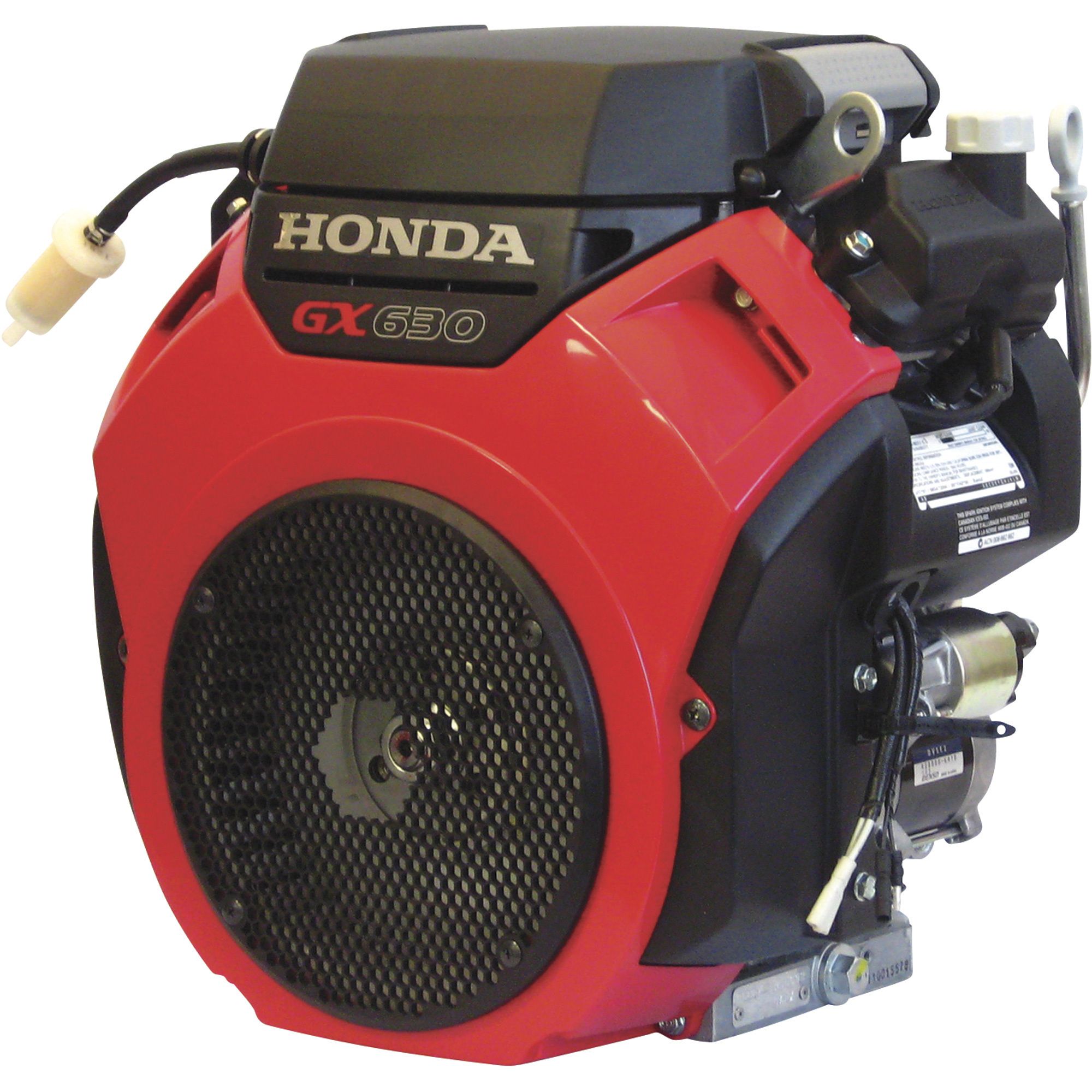

Honda Engines, V-TWIN HORIZONTAL 688CC RQAF, Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQAF
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$1999.99
- PTO fan cover
- 688cc air-cooled, 4-stroke OHV engine
- Not for sale in CA
See full description
Price for all four:
$2574.96
-
Do all the GX 630 have Steel (not Aluminum) connecting rods?
-
Helpful?
-
The connecting rods in the GX630 are made of steel.
Helpful?
-
-
Is the pto shaft drilled and tapped?
1 answer-
This engine has a crankshaft end that is both drilled and tapped. The thread size for the tapped hole is 3/8-24.
Helpful?
-
-
How much horsepower is that
1 answer-
This engine is rated at 20.8 HP.
Helpful?
-
-
Does this come with voltage rectifier?
1 answer-
This engine does include a voltage rectifier.
Helpful?
-
-
this engine has a 1 inch shaft with .25 keyway. is the shaft straight (1") the full length?
1 answer-
The entire shaft length is 1" diameter.
Helpful?
-
-
What is the lowest idle speed for a gx630
1 answer-
The lowest idle speed would be 2000 RPM.
Helpful?
-
-
Can you put a pull start on this motor for back up?
1 answer-
The engine does not have an option for a recoil start.
Helpful?
-
-
What type of connections are available for the throttle and choke? Is an electrical schematic provided for keyswitch & other connections?
Thanks! :)
1 answer-
This engine has remote (manual) throttle and choke with connections which are holes provided to attach remote cables which are not included.
This engine does not come with a keyswitch so it does not come with an electrical schematic for the keyswitch. Northern does not carry a key switch for this engine because the engine is designed to be a replacement for an engine that already has a keyswitch.
There are other connection schematic diagrams which are provided in the owners manual which is also available in a PDF on the item page of of the Northern website.Helpful?
-
-
What is the country of origin for this engine?
1 answer-
This Honda engine is manufactured in China.
Helpful?
-
-
Is a remote keyswitch available for this engine?
1 answer-
Northern Tool does not offer a remote key switch for this engine. This engine is designed to be a replacement for equipment that already has a key switch. Shown below is the same engine with an included key switch.
Helpful?
-
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Horizontal Engines
See All Honda Engines Horizontal Engines
Currently Viewing This Product
Specifications
Specifications
Honda Engines, V-TWIN HORIZONTAL 688CC RQAF, Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQAF
Honda Engines, HONDA 270CC 6:1 ENGINE, Engine Displacement 270 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX270UT2HA2
Honda Engines, V-TWIN HORIZONTAL 630CC RQAF1 Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQAF1
Honda Engines, V-TWIN HORIZONTAL 630CC RVXE1 Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Model# GX630RHXVXE1
Engine Displacement
Same
688 cc
270 cc
688 cc
688 cc
Engine Type
Same
GX Series OHV V-twin Commercial-duty
GX Series OHV Commercial-duty
GX Series OHV V-twin Commercial-duty
GX Series OHV V-twin Commercial-duty
Shaft Diameter
Same
1 in
1 in
1 in
Tapered
Shaft Length
Same
2.9 in
3.23 in
2.9 in
3 in
Start Type
Same
Electric
Recoil
Electric
Electric
Shaft Keyway
Same
0.25 in
-
0.25 in
-
Net Torque
Same
35.6 ft-lbs.
14.1 ft-lbs.
35.6 ft-lbs.
35.6 ft-lbs.
Crankshaft
Same
Q-type
H-type
Q-type
V-type
PTO Height
Same
5.25 in
5.25 in
5.25 in
5.25 in
Cylinders (qty.)
Same
2
1
2
2
Cylinder Bore
Same
Integrated
Cast Iron
Integrated
Integrated
Net Power Output
Same
20.8 HP
8.5 HP
20.8 HP
20.8 HP
Compression Ratio
Same
9.3:1
8.5:1
9.3:1
9.3:1
Fuel Tank
Same
No
-
No
No
Oil Capacity
Same
2 qt
1.16 qt
2 qt
2 qt
Low Oil Alert
Same
Yes
-
No
Yes
Shaft Rotation (From PTO Shaft Side)
Same
Counter Clockwise
Counter Clockwise
Counter Clockwise
Counter Clockwise
Governor System
Same
Mechanical
Centrifugal Mechanical
Mechanical
Mechanical
Ignition System
Same
Electonic, Digital CDI W/variable Ignition Timing
Electronic
Electonic, Digital CDI W/variable Ignition Timing
Electonic, Digital CDI W/variable Ignition Timing
Carburetor
Same
2-barrel, Fuel Cut Solenoid, Inner Vent
Float, External Vent
2-barrel, Fuel Cut Solenoid, Inner Vent
2-barrel, Fuel Cut Solenoid, Inner Vent
Lubrication System
Same
Full Pressure
Splash
Full Pressure
Full Pressure
Cooling System
Same
Air
Air
Air
Air
Bore
Same
3.1 in
3 in
3.1 in
3.1 in
Stroke
Same
2.8 in
2.3 in
2.8 in
2.8 in
Air Cleaner Type
Same
Dual Element
Dual Element
Dual Element
Dual Element
Choke Control
Same
Remote
Manual
Manual
Manual
Throttle Control
Same
Remote
Manual
Manual
Manual
Charging System Amps
Same
20
-
17
2.7
Muffler Included
Same
No
-
No
No
Fuel Tank Capacity
Same
-
5.6 qt
-
-
Fuel Filter
Same
-
Yes
-
-
