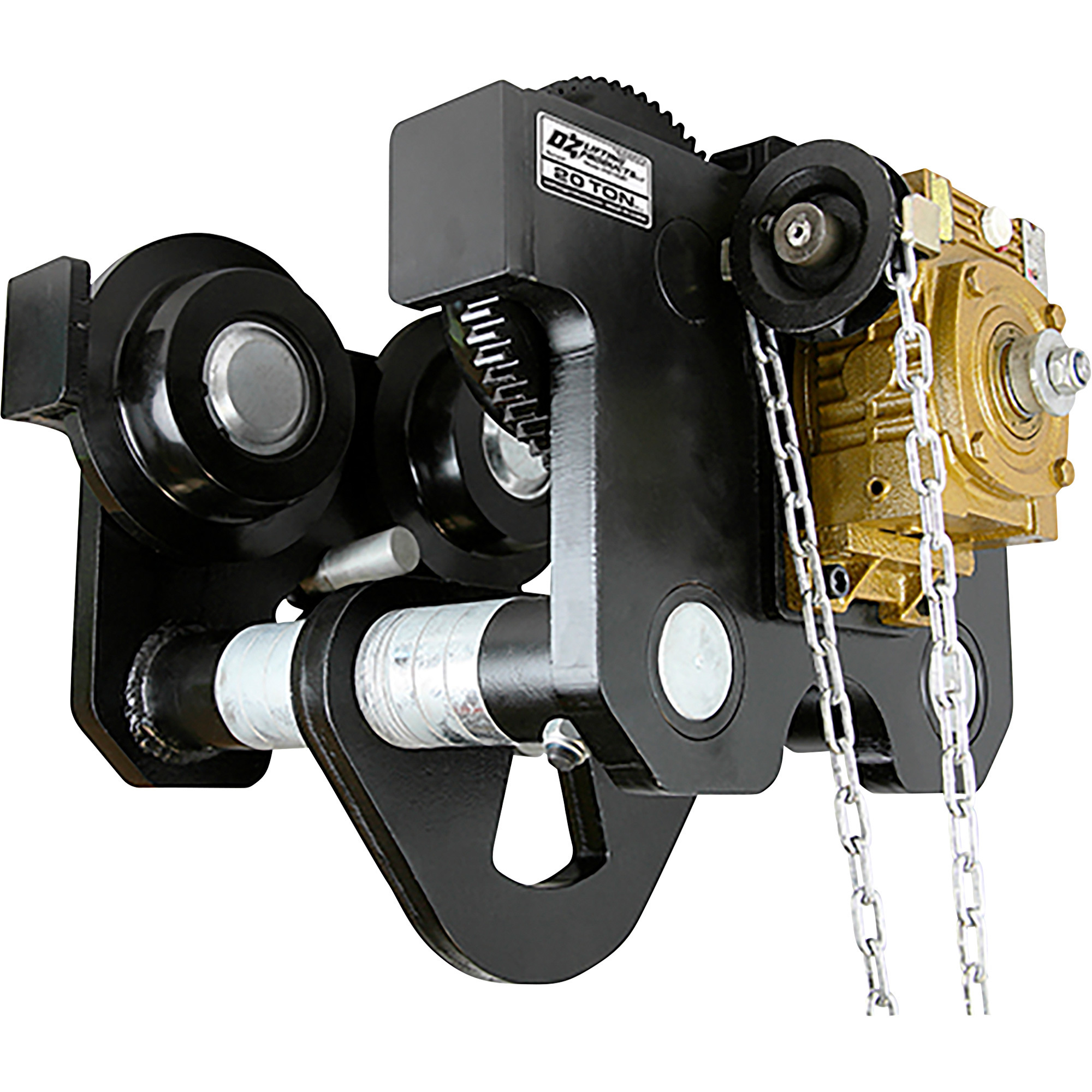

OZ Lifting Products Geared Beam Trolley, 20-Ton Capacity, 5.39-12.99 Flange Width, Model# OZ20GBT

Item# 105625
OZ Lifting Products Geared Beam Trolley, 20-Ton Capacity, 5.39-12.99 Flange Width, Model# OZ20GBT

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

OZ Lifting Products Geared Beam Trolley, 20-Ton Capacity, 5.39-12.99 Flange Width, Model# OZ20GBT

Click or Tap image to Zoom

$3029.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Lightweight, robust construction
  • Durable baked enamel paint protection
  • Precision-geared for positive load positioning
  • Anti-drop plate ensures safe load handling
  • Fits to most I-, S-, and W-beams

See full description

Complete Your Solution

  • OZ Lifting Products Geared Beam Trolley, 20-Ton Capacity, 5.39-12.99 Flange Width, Model# OZ20GBT
  • OZ Lifting Products Premium Manual Chain Hoist, 20-Ton Capacity, 10ft. Lift Height, Model# OZ200-10CHOP
Price for all two:

$7609.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The OZ Lifting Products Geared Beam Trolley is an industrial-grade unit that meets demanding lifting applications. This lightweight and robust geared beam trolley features gearing for positive load positing. Designed to fit most I, S and W-Beams, this geared beam trolley has precision ball bearing trolley wheels, an anti-drop plate and a durable baked enamel paint finish for added protection. Each unit includes a stainless steel ID tag for identification and an individual test certificate and serial number for traceability. Meets CE, ASME B30.11, ASME B30.16 standards.

What's Included

    (1) Geared beam trolley

Downloads

Product Manual

Features + Benefits

  • Lightweight, robust construction
  • Durable baked enamel paint protection
  • Precision-geared for positive load positioning
  • Anti-drop plate ensures safe load handling
  • Fits to most I-, S-, and W-beams
  • Stainless steel ID tag
  • Individual serial number and test certificate

Key Specs

AttributeSpecification

item#

105625

Brand

OZ Lifting Products

Manufacturer's Warranty

1 year limited warranty

Ship Weight

446.0 LB

Style

Manual Trolley

Capacity

40,000 lb

Adjustable

Yes

Geared

Yes
AttributeSpecification

Min. Flange Width

5.39 in

Max. Flange Width

12.99 in

Min. Radius Curve

137.76 in

Wheel Diameter

6.69 in

OSHA Approved

No

ANSI Certified

Yes

Product Weight

406.0000 lb

Dimensions L x W x H (in.)

20.55 x 26.54 x 19.65 in

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. Can you disengage the chain drive and manually pull the trolley along the beam (free Wheel it) when a load is not applied to the hoist that will be connected to this trolley?

    1 answer

    1. There is no freewheel option on the geared trolleys. The only way to make it freewheel is that you would have to take off the handwheel and remove the drive shaft gear, thus acting as a standard push trolley.

      Helpful?

  2. What size of I beam would you recommend this device to go with, Flange x Height X thickness? Do you have 30-ton and same question?

    1 answer

    1. The 20 ton trolley requires a beam height of 9.96" and the flange width is adjustable from 5.39" to 12.99".
      The 30 ton trolley requires a beam height of 15.35" and the flange width is adjustable from 5.83" to 12.99".

      Helpful?
