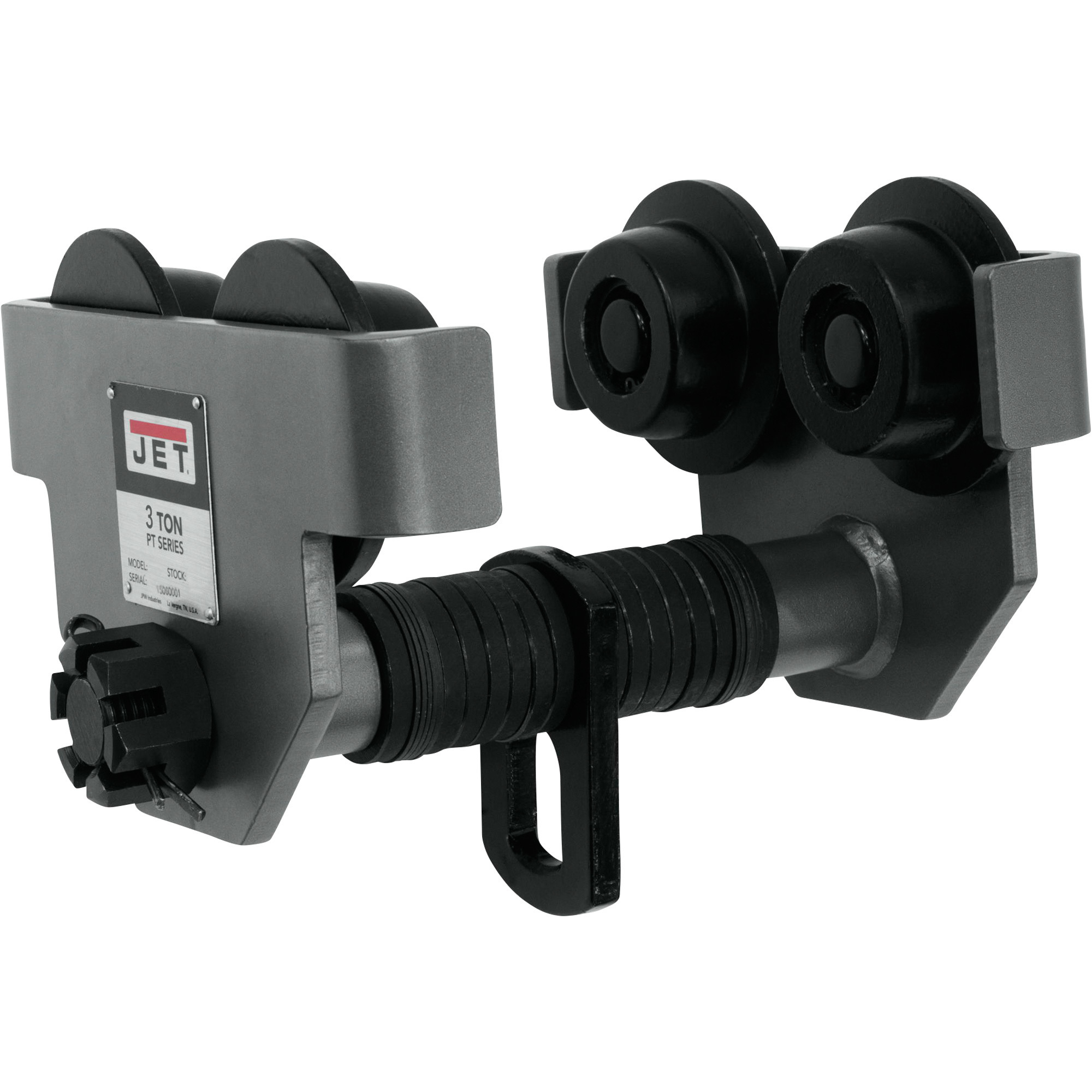

JET Heavy-Duty Manual Trolley, 3-Ton Capacity, Model# 3-PT

Item# 1451112
JET Heavy-Duty Manual Trolley, 3-Ton Capacity, Model# 3-PT

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Heavy-Duty Manual Trolley, 3-Ton Capacity, Model# 3-PT

Click or Tap image to Zoom

$584.46

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Welded heavy-gauge steel frame and powder-coat finish provide maximum durability and protection
  • Hardened large steel wheels and thicker double sealed lubricated ball bearings provide smooth movement
  • Built-in bumper guards on the side plates increase safety and extend trolley life
  • Easily adjustable to wide-flange H-beams, standard I-beams or curved track with the included spacer washers
  • Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The JET® PT Series Heavy-Duty Manual Trolley features 3-ton capacity. Built with heavy gauge steel for increased durability, the large steel wheels and thicker bearings provide smooth movement on a variety of beams. The built-in bumper guards increase user safety and extend the life of the trolley. Each JET® Manual Trolley conforms to OSHA regulations and ANSI/ASME standards.

What's Included

    (1) 3-ton heavy-duty manual trolley

Features + Benefits

  • Welded heavy-gauge steel frame and powder-coat finish provide maximum durability and protection
  • Hardened large steel wheels and thicker double sealed lubricated ball bearings provide smooth movement
  • Built-in bumper guards on the side plates increase safety and extend trolley life
  • Easily adjustable to wide-flange H-beams, standard I-beams or curved track with the included spacer washers
  • Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards
  • Load tested to 125% of capacity with certificate
  • 3-ton load capacity
  • Minimum beam flange width: 4in. to 8in.
  • Minimum beam heighth is 5in.
  • Minimum beam curve radius is 51in.
  • UPS/Fedex Shipping

Key Specs

AttributeSpecification

item#

1451112

Brand

JET

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

85.0 LB

Style

Manual Trolley

Capacity

6,600 lb

Adjustable

Yes
AttributeSpecification

Max. Beam Height

19 in

Min. Flange Width

4 in

Max. Flange Width

8 in

Min. Radius Curve

51 in

OSHA Approved

Yes

ANSI Certified

Yes

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

24 months parts/24months labor
