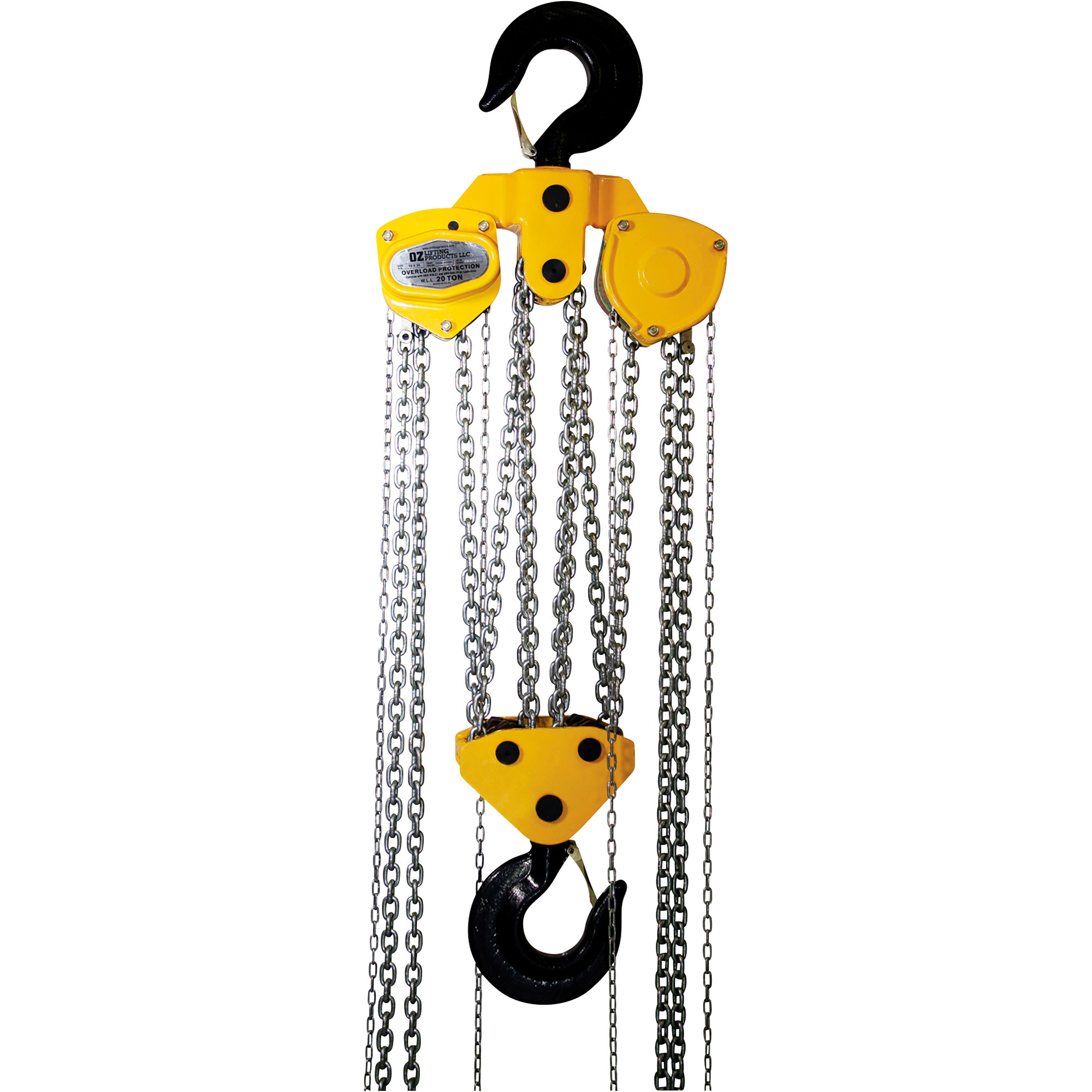

OZ Lifting Products Premium Manual Chain Hoist, 20-Ton Capacity, 10ft. Lift Height, Model# OZ200-10CHOP

Item# 105626
OZ Lifting Products Premium Manual Chain Hoist, 20-Ton Capacity, 10ft. Lift Height, Model# OZ200-10CHOP

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

OZ Lifting Products Premium Manual Chain Hoist, 20-Ton Capacity, 10ft. Lift Height, Model# OZ200-10CHOP

Click or Tap image to Zoom

$4579.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Standard Overload Protection set at approximately 150% of the rated load
  • Durable all-steel construction with a long-lasting powder coat finish
  • Versatile for both lifting and pulling
  • Double-reduction gearing for minimal lifting effort
  • Unique hand wheel design allows smooth chain operation from multiple angles

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • OZ Lifting Products Premium Manual Chain Hoist, 20-Ton Capacity, 10ft. Lift Height, Model# OZ200-10CHOP
  • Bullhead Safety Discus Safety Glasses, 10 Base Curve Wrap Around Clear Lens, Model# BH2811

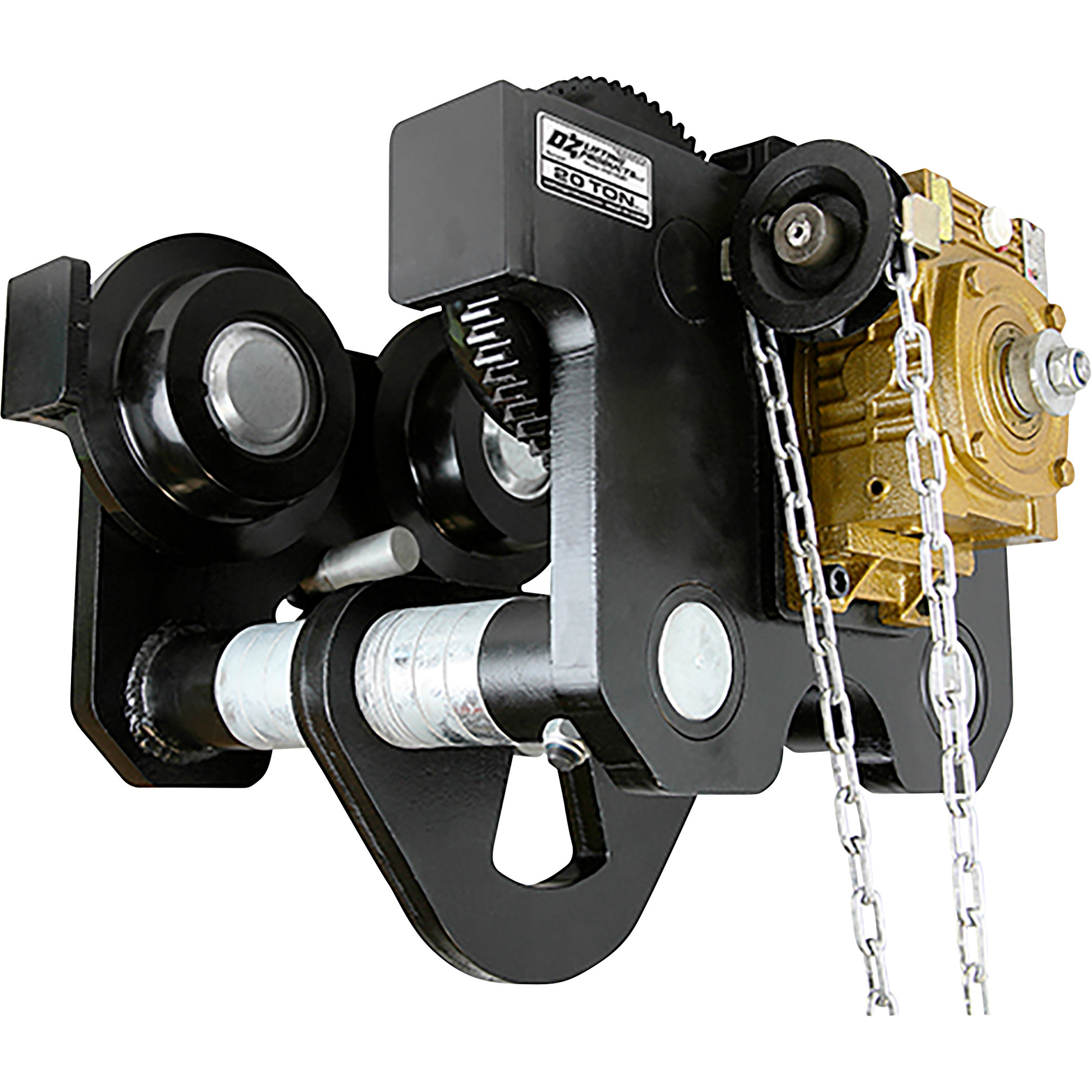

  • OZ Lifting Products Geared Beam Trolley, 20-Ton Capacity, 5.39-12.99 Flange Width, Model# OZ20GBT
  • Pyramex Cap-Style Hard Hat with 4-Point Pin-Lock Suspension - White, One Size Fits All, Model# HP14010
Price for all four:

$7624.16

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Premium Chain Hoist offers industry-leading safety with Standard Overload Protection, set at approximately 150% of the rated load. Designed for both lifting and pulling, it features double reduction gearing for minimal effort, a unique hand wheel design for smooth chain operation from any angle, and durable all-steel construction for long-lasting performance.

What's Included

    (1) Manual chain hoist

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Standard Overload Protection set at approximately 150% of the rated load
  • Durable all-steel construction with a long-lasting powder coat finish
  • Versatile for both lifting and pulling
  • Double-reduction gearing for minimal lifting effort
  • Unique hand wheel design allows smooth chain operation from multiple angles
  • Enclosed Weston-style brake system with twin pawls for reliable control
  • Fully enclosed gearing protects against contamination and debris
  • Sealed roller bearing for smooth, maintenance-free operation
  • Forged alloy steel hooks swivel 360° for easy attachment and positioning
  • Thrust bearing on lower hook prevents chain twisting and allows easy load rotation
  • Heavy-duty cast steel safety latches with bolt-and-lock nut connection
  • Grade 80 zinc-plated load chain with a durable, non-oily finish
  • Stainless steel ID tag with a unique serial number and test certificate for traceable performance
  • Quick disassembly allows for easy maintenance; see our YouTube video for details
  • Includes a free spare set of latches

Key Specs

AttributeSpecification

item#

105626

Brand

OZ Lifting Products

Manufacturer's Warranty

5 year limited warranty

Ship Weight

382.0 LB

Capacity

40,000 lb

Lift Height

10 ft
AttributeSpecification

Brake Type

Weston

Chain Bag Included

No

Required Head Room

35.04 in

Lift Chain Diameter

10 mm

Thermal Overload Protection

No

Product Weight

382 lb
