The hook eye dimension is 30.5mm or 1.2”.

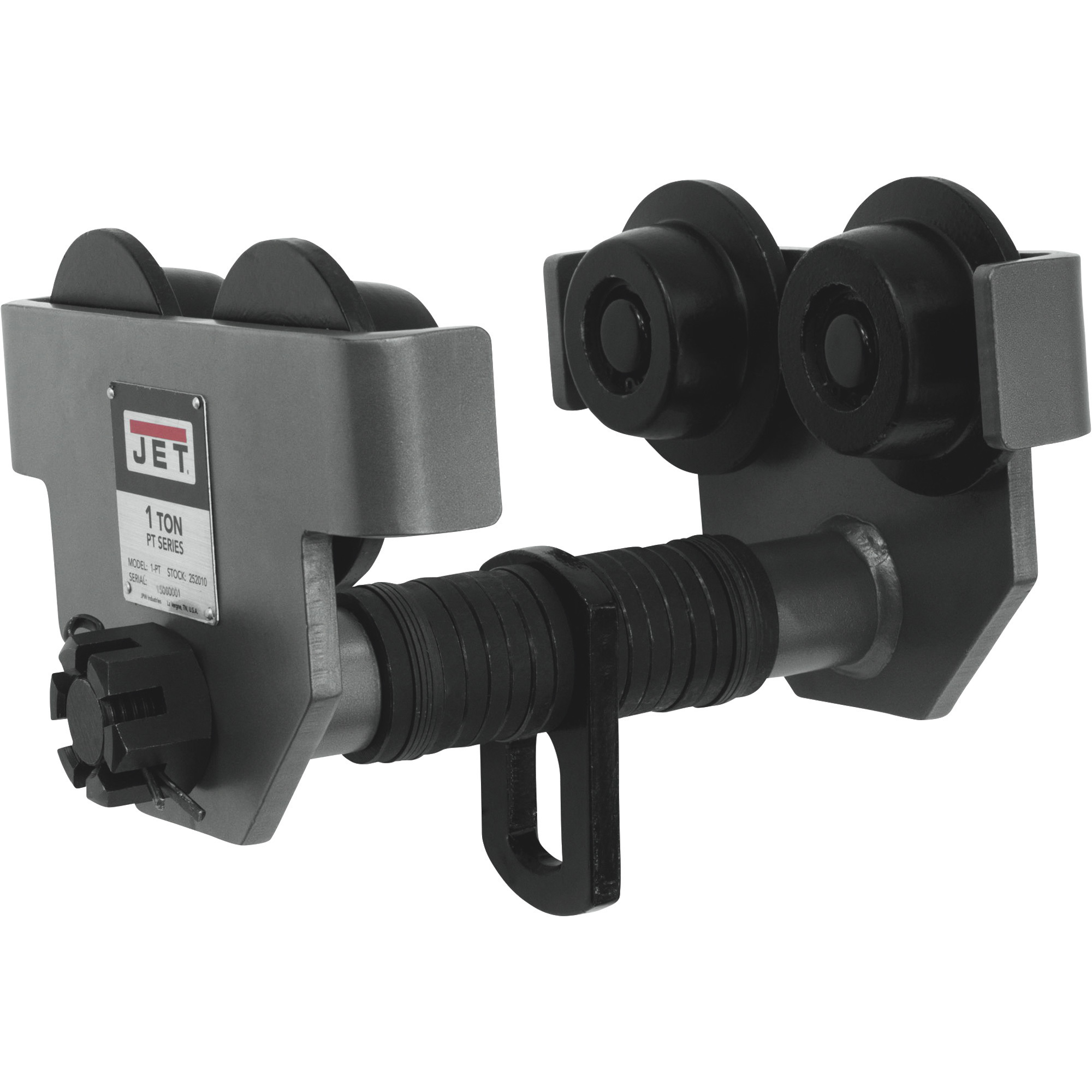

JET PT Series Adjustable Push Trolley, 1-Ton Capacity, Model# 1-PT
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$189.99
- Designed for low maintenance and trouble free operation through a wide range of beams
- For use with wide-flange H-beams, standard I-beams, or curved track
- Can be installed or removed at any point along track
- Easy adjustment -- remove one cotter pin and shift spacers to fit I-beam size
- Multiple spacer washers make beam flange width adjustment quick and easy
Prop 65 Warning: See Details
See full description
-
What is the dimension of the hook eye?
-
Helpful?
-
Thank you for your inquiry.
The hook eye dimension on the JET Manual Trolley Model # 1-PT is 30.5mm or 1.2”.
Helpful?
-
-
What is the size of the hole of the hook ring?
-
The hole inside the hook ring is 30.5mm or 1.2”.
Helpful?
-
Thank you for your inquiry.
The hole inside the hook ring on the JET Manual Trolley Model # 1-PT is 30.5mm or 1.2”.
Thank you!
Helpful?
-
-
Will this fit Gantry Crane #103181
-
The JET Adjustable Trolley is compatible with item # 103181.
Helpful?
-
Thank you for your inquiry. Yes, the JET Adjustable Trolley, model # 252010, will fit the Gantry Crane # 103181.
Please let us know if you have additional questions.
Thank you!
Helpful?
-
-
what does flange width mean?
-
"Width of Flange" refers to the width of the bottom portion of the I-Beam on which the trolley will ride.
Helpful?
-
Flange is the projected range that can be used to attach the trolley to the I-beam. This trolley has an adjustable range of 3-8".
Helpful?
-
-
compatability
Can the Jet 1 ton trolley be used with the electric hoist (142260)?
1 answer-
No, the hoist does not have a hook for connecting to the JET trolley. The mounting brackets on the hoist are designed for easy flush mounting on a beam with a maximum depth of 2 1/2in.
Helpful?
-
-
Would the hook of the Roughneck 1 ton chain hoist #20029 fit in the hook eye of this trolly?
1 answer-
The hanger bracket on this JET Adjustable Trolley is not large enough to allow usage of item # 20029.
Helpful?
-
-
does this item fit this with this Item# 856166
1 answer-
The trolley that can be used with the Vestil Gantry Crane, 856166, is shown below.
Helpful?
-
-
dimensions
what is the dimension from the bottom of the trucks (wheels) to the bottom of the hook attachment hole?
1 answer-
The measurement from the bottom of the wheel to the bottom of the hook ring is 5 1/8" inch.
Helpful?
-
-
what clearance from the top of the bottom flange is needed for this? A drawing of one of the wheels would answer this question.
1 answer-
The trolley must be installed on a beam with a mininum clearance (wheels to flange) of 1/16" to a maximum of 1/8".
Helpful?
-
See All Trolleys
See All JET Trolleys
Currently Viewing This Product
Specifications
Specifications
JET PT Series Adjustable Push Trolley, 1-Ton Capacity, Model# 1-PT
JET, Electric Trolley, Capacity 6000 lb, Style Motorized Trolley, Max. Beam Height 5.3 in, Model# 140189
JET, Electric Trolley, Capacity 10000 lb, Style Motorized Trolley, Max. Beam Height 5.3 in, Model# 144190
JET, Electric Trolley, Capacity 1000 lb, Style Motorized Trolley, Max. Beam Height 4.9 in, Model# 144183
Style
Same
Manual Trolley
Motorized Trolley
Motorized Trolley
Motorized Trolley
Capacity
Same
2,000 lb
6,000 lb
10,000 lb
1,000 lb
Adjustable
Same
Yes
Yes
Yes
Yes
Max. Beam Height
Same
19 in
5.3 in
5.3 in
4.9 in
Min. Flange Width
Same
3 in
5 in
5 in
3 in
Max. Flange Width
Same
8 in
7.2 in
7.2 in
7 in
Min. Radius Curve
Same
39 in
78.7 in
78.7 in
51.2 in
OSHA Approved
Same
Yes
No
No
No
Geared
Same
-
Yes
Yes
Yes
Volts
Same
-
230
460
460
Phase
Same
-
Single-phase
Single-phase
Single-phase
Wheel Diameter
Same
-
1.5 in
1.75 in
0.875 in
ANSI Certified
Same
-
No
No
No
Product Weight
Same
-
243.0000 lb
243.0000 lb
143.0000 lb
Dimensions L x W x H (in.)
Same
-
33.07 x 21.27 x 17.71 in
33.07 x 21.26 x 17.71 in
27.55 x 19.69 x 17.71 in
