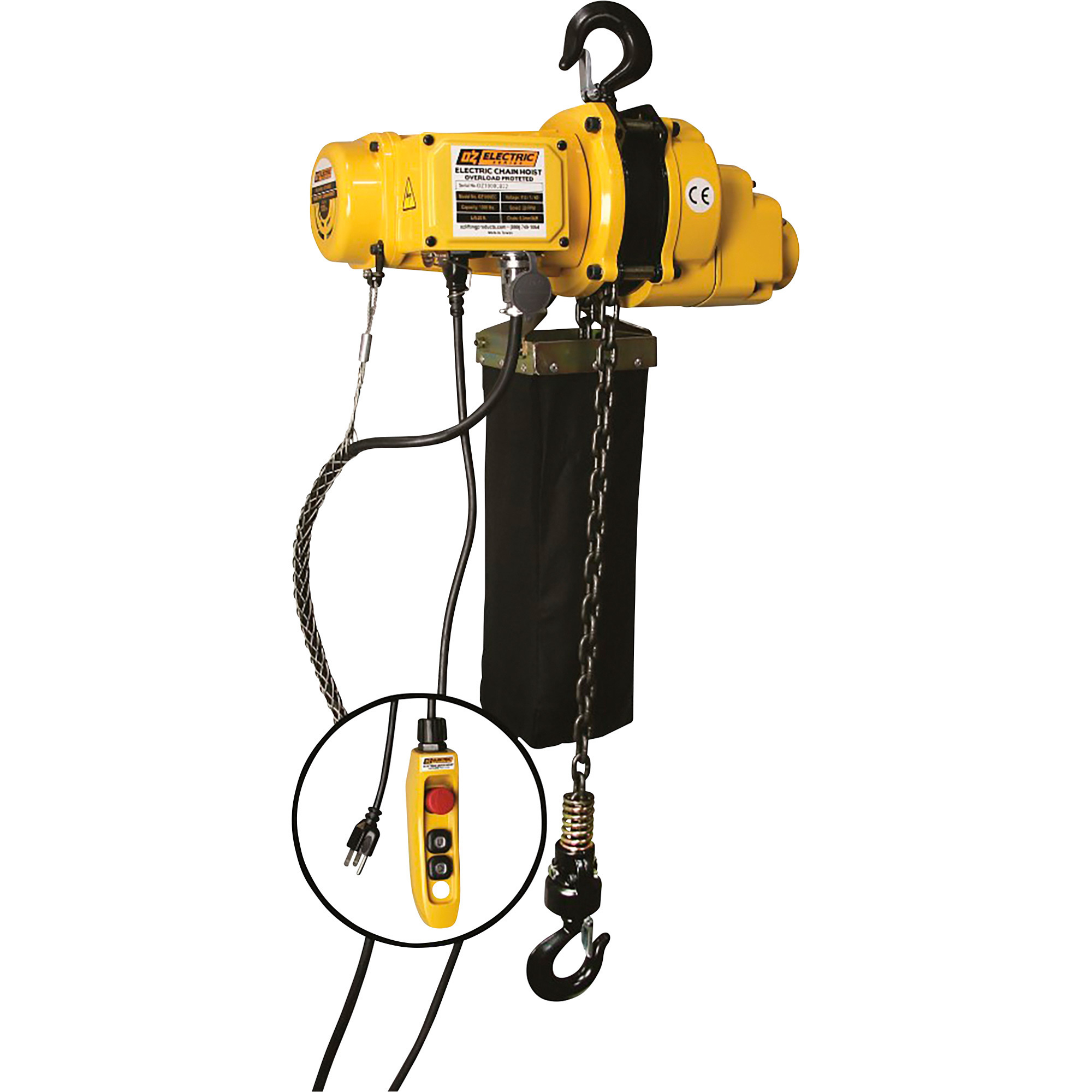

OZ Lifting Products Electric Chain Hoist, 1-Ton Capacity, 10ft. Lift, Model# OZ2000EC

Item# 105632
OZ Lifting Products Electric Chain Hoist, 1-Ton Capacity, 10ft. Lift, Model# OZ2000EC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

OZ Lifting Products Electric Chain Hoist, 1-Ton Capacity, 10ft. Lift, Model# OZ2000EC

Click or Tap image to Zoom

$1699.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • H3 Duty Class electric chain hoist meets demanding lifting applications
  • Ultra-lightweight and compact design for use in various working environments
  • Operates on standard domestic power supply
  • Overload protection
  • High performance friction clutch integrated with the load brake

See full description

Complete Your Solution

  • OZ Lifting Products Electric Chain Hoist, 1-Ton Capacity, 10ft. Lift, Model# OZ2000EC
  • Pyramex Cap-Style Hard Hat with 4-Point Pin-Lock Suspension - White, One Size Fits All, Model# HP14010
  • Bullhead Safety Discus Safety Glasses, 10 Base Curve Wrap Around Clear Lens, Model# BH2811
  • Ironton Adjustable Push Trolley, 2200-Lb. Capacity, Fits 3in.–8in.W I-Beam
Price for all four:

$1794.16

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The OZ Lifting Products Electric Chain Hoist is an ultra-lightweight, advanced electric chain hoist. It features an H3 Duty Class rating which provides 18 minutes of continuous use for operation in a various applications. This compact and powerful hoist is easy to install and operate. It features overload protection and a dual braking system for added safety. It includes a carrying case for easy transport and the ability to connect to a standard 115/1/60 VAC outlet. This unit combines convenience with top-of-the-line design. Chain bag and pendant included.

What's Included

    (1) Electric chain hoist and chain bag

Downloads

Product Manual

Features + Benefits

  • H3 Duty Class electric chain hoist meets demanding lifting applications
  • Ultra-lightweight and compact design for use in various working environments
  • Operates on standard domestic power supply
  • Overload protection
  • High performance friction clutch integrated with the load brake
  • Designed to prevent overloading the hoist
  • Forged carbon steel load hook with a heavy duty latch
  • Bottom hook with thrust bearing to allow 360° rotation to prevent twisting of load chain
  • Rigid top hook
  • Load sheave for better distribution of load and smooth lifting with reduced vibration and wear
  • Precision machined gears that are heat treated for strength and durability
  • Oil bath lubrication on all bearing rotating points for a quiet, smooth, cool operation
  • Dual braking system combines mechanical plus regenerative braking for instant and safe operation
  • Chain Grade 80 alloy steel designed and manufactured in Japan for long and dependable service lift
  • H3 Duty Class with 30% duty cycle for operation in various applications
  • 115/1/60VAC standard power for easy use anywhere
  • IP64 ergonomic pendant design for operator comfort
  • Lift and lower load easily with integrated emergency stop
  • Compact and lightweight cast aluminum alloy body for many work station applications
  • Durable vinyl bag included

Key Specs

AttributeSpecification

item#

105632

Brand

OZ Lifting Products

Manufacturer's Warranty

1 year limited warranty

Ship Weight

66.0 LB

Capacity

2,000 lb

Lift Height

10 ft

Lift Speed

13 ft./min.

Volts

115

Brake Type

Motor
AttributeSpecification

Control Type

Lever

Chain Bag Included

Yes

Watts

1,800

Lift Chain Diameter

7.1 mm

Thermal Overload Protection

Yes

Hoist Classification

H3

Dimensions L x W x H (in.)

20.08 x 8.27 x 20.08 in

Product Weight

59.0000 lb

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. what are the package / shipping dimensions of this product?

    1 answer

    1. The shipping dimensions of this chain hoist are 20" long x 10" wide x 15" high.

      Helpful?

  2. WHEN THE CHAIN IS FULLY RECESSED WHAT IS THE DIMENSION? OR HOW CLOSE ARE THE 2 HOOKS?

    1 answer

    1. The distance between the hooks would be 18.9 inches.
