Milwaukee Professional Electric Chain Hoist, 1-Ton Capacity, 15ft. Lift, Model# 9567

Item# 403680
"Milwaukee Professional Electric Chain Hoist, 1-Ton Capacity, 15ft. Lift, Model# 9567"
Milwaukee Professional Electric Chain Hoist, 1-Ton Capacity, 15ft. Lift, Model# 9567

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Milwaukee Professional Electric Chain Hoist, 1-Ton Capacity, 15ft. Lift, Model# 9567

Click or Tap image to Zoom

$3199.99

  • Shipping:

  • Store Pickup:

  • 115/230 voltage (AC), 16.0 amps at low voltage
  • 1 ton rated load, 10 ft. lift height, 16 ft./min. lifting speed
  • Built-in, multiple-disc, magnetic brake provides positive load holding and spotting
  • Adjustable upper and lower limit switches for maximum flexibility in regulating load travel

See full description

Complete Your Solution

  • Milwaukee Professional Electric Chain Hoist, 1-Ton Capacity, 15ft. Lift, Model# 9567
  • SmartStraps Web Sling, 6,400-Lb. Breaking Strength, 6ft. x 2in., Model# 840
  • Milwaukee Hard Hat with 4-Point Ratcheting Suspension, Type 1, Class E, Front Brim, White, Model# 48-73-11--
  • Pyramex Cap-Style Hard Hat with 4-Point Pin-Lock Suspension - White, One Size Fits All, Model# HP14010
Price for all four:

$3257.94

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Milwaukee® Professional Electric Chain Hoist adds lifting convenience to shop and manufacturing facilities, with load lift and height options to fit your roughest assignments. This feature-filled hoist includes a multi-disc magnetic brake for positive load holding and spotting. Adjustable upper and lower limit switches, along with an overload limiting clutch and latch-type ridged top hook. The single phase motor provides the power to meet your operational requirements; 24V pushbutton station fits easily in hand to allow thumb, trigger or two-handed operation.

What's Included

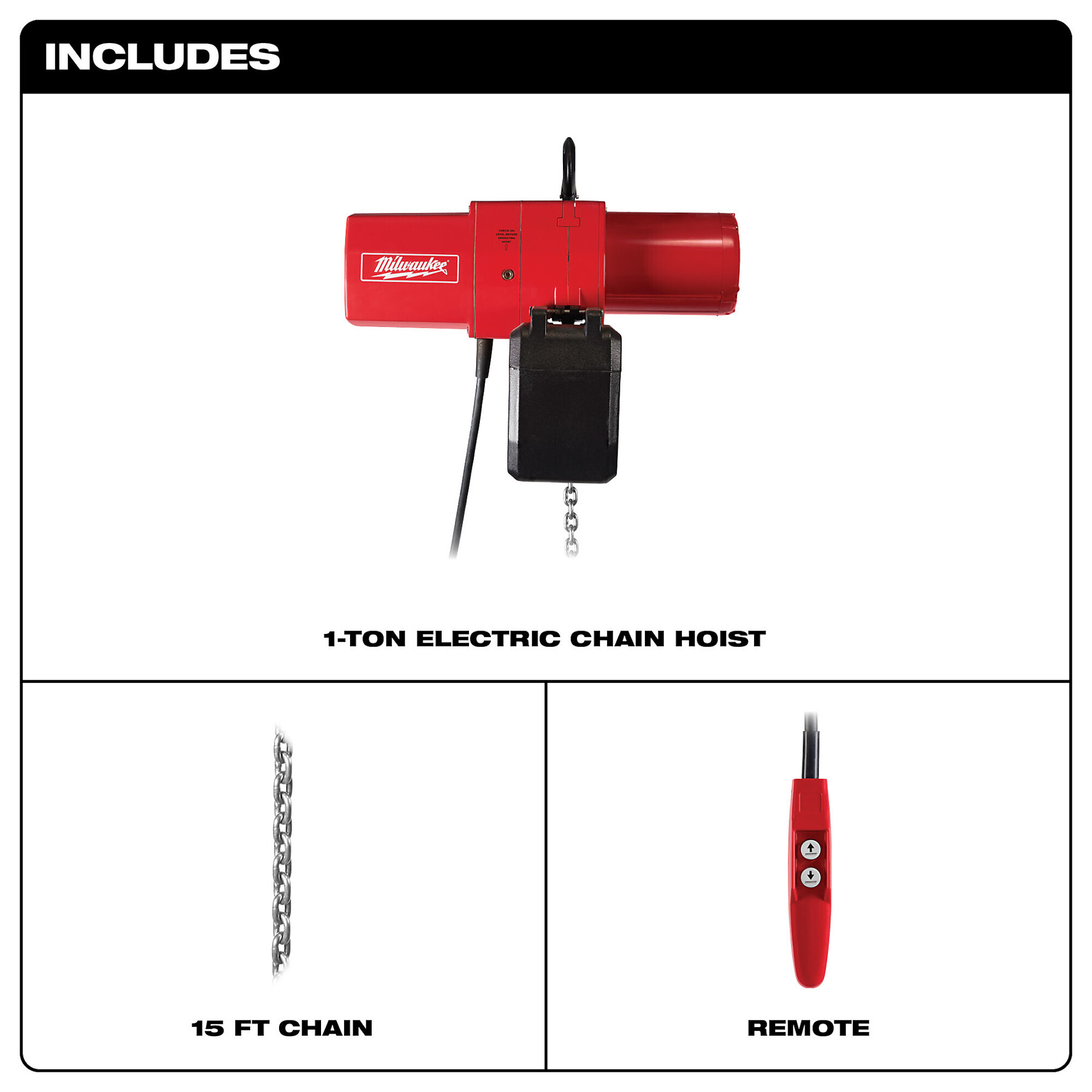

    (1) Hoist (1) Chain (1) Top hook (1) Chain hook (1) Push-button station

Downloads

Product Manual

Features + Benefits

  • 115/230 voltage (AC), 16.0 amps at low voltage
  • 1 ton rated load, 10 ft. lift height, 16 ft./min. lifting speed
  • Built-in, multiple-disc, magnetic brake provides positive load holding and spotting
  • Adjustable upper and lower limit switches for maximum flexibility in regulating load travel

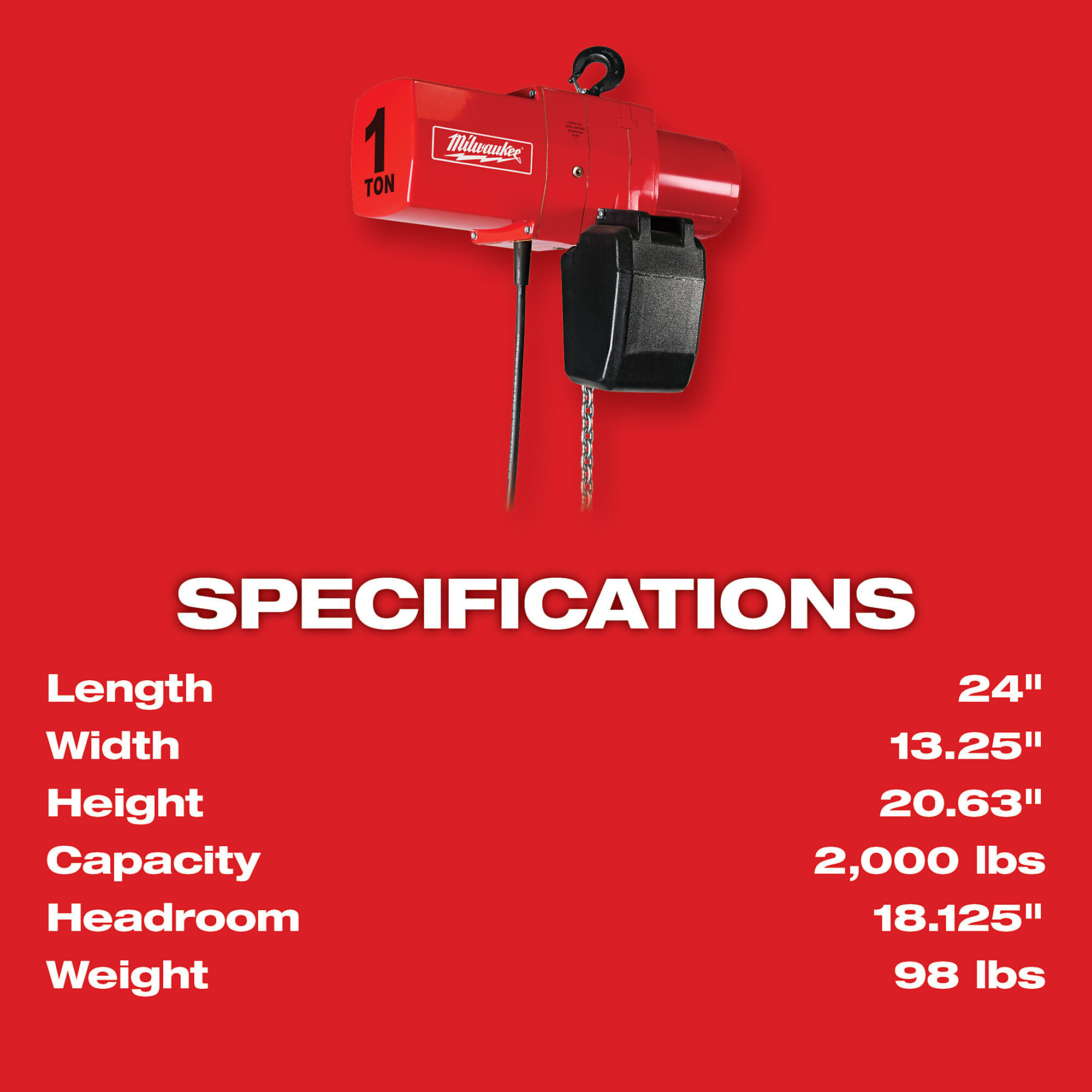

Key Specs

AttributeSpecification

item#

403680

Brand

Milwaukee

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

114.0 LB

Capacity

2,200 lb

Lift Height

15 ft

Lift Speed

16 ft./min.

Volts

115/230
AttributeSpecification

Brake Type

Disc

Control Type

Lever

Chain Bag Included

No

Required Head Room

18 in

Motor Output

1.0

Thermal Overload Protection

Yes

Hoist Classification

H3

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–10 of 12 Questions
Sort by:

  1. Can you get a chain bag for this unit?

    1 answer

    1. A plastic chain container (#JLC927-1) or a fabric bag (#JLC927-20F) can be used with this hoist. Please contact the manufacturer directly to order.

      Helpful?

  2. What is the country of origin?

    1 answer

    1. This hoist is manufactured in the United States.

      Helpful?

  3. Is it suitable for an outdoor installation?

    1 answer

    1. This is suitable for indoor use only.

      Helpful?

  4. It lists Lift Speed as 16. 16 what? I want to assume that it's FPM, but ......

    1 answer

    1. The lift speed will be 16 feet per minute.

      Helpful?

  5. what is the amperage draw for this hoist on @@) V?

    1 answer

    1. It would have an amp draw of 14 amps on 115 volt and 7 amps on 230 volt.

      Helpful?

  6. does this crane have remote control capability in addition to the cord control?

    1 answer

    1. This electric chain hoist does not have remote control capability.

      Helpful?

  7. Is there a mounting place for a chain container and what container recommended

    1 answer

    1. The part number for the chain container is MW48120111 which can be mounted to the hoist. Please call the Northern Tool parts department at 1-800-657-0516 for pricing and availability.

      Helpful?

  8. Lenght width and height of unit and can lower limit switch be set anywhere

    1 answer

    1. The dimensions of the hoist are 11"L X 27"W X 17"H. The lower limit switch would not be able to be set in a different location.

      Helpful?

  9. How long is the control cord and what is the minimum hook to hook distance

    1 answer

    1. This chain hoist has a control cord that is 11' long. Its minimum hook to hook distance is 18" (measured from the inside of one hook to the inside of the other hook). The distance from the outside of one hook to the outside of the other hook is 20-1/8".

      Helpful?

  10. Does this have a plug or does it need to be wired?

    1 answer

    1. This Milwaukee Professional Electric Chain Hoist must be hardwired.

      Helpful?
