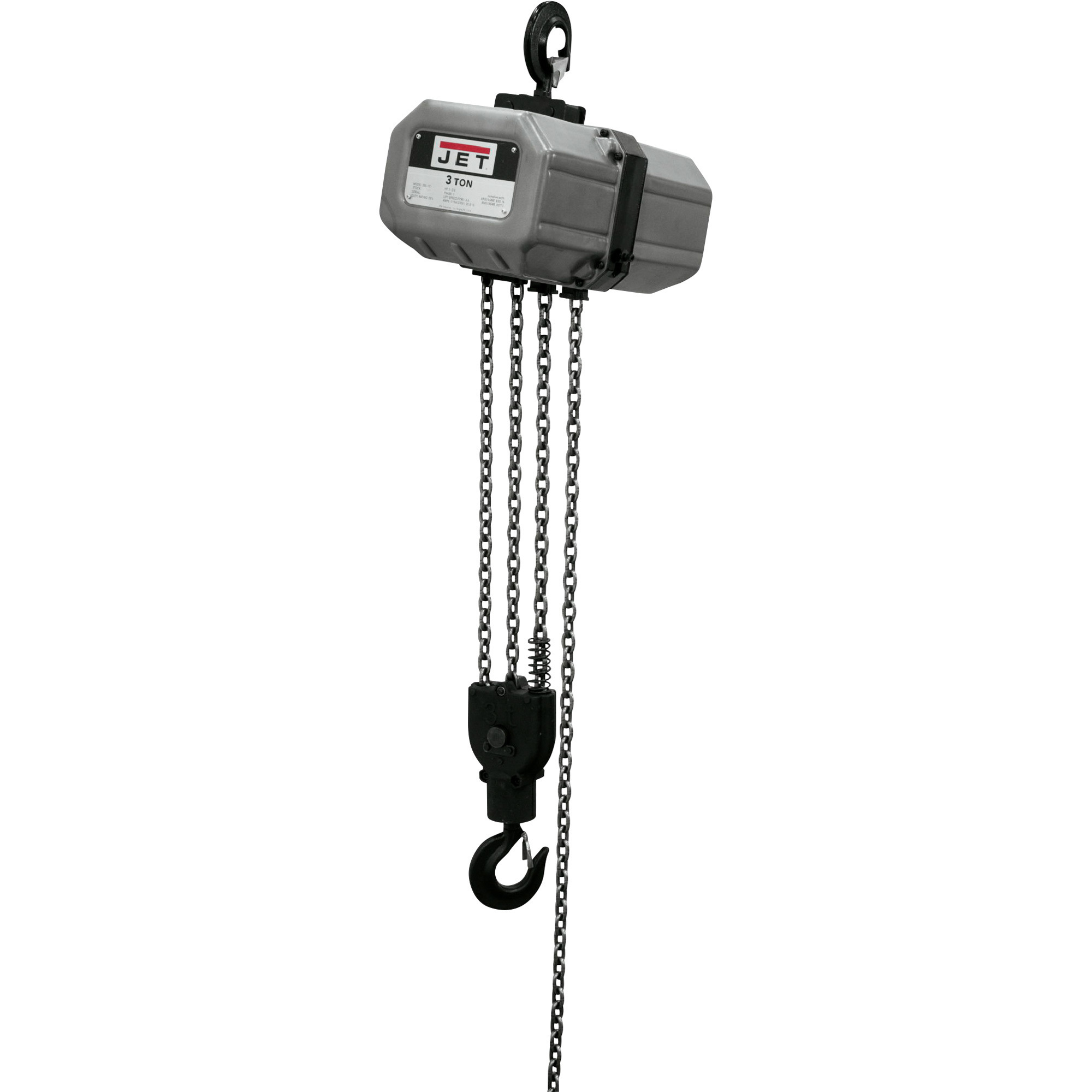

JET Electric Chain Hoist, 3-Ton Capacity, 20ft. Lift, 3 Phase, Model# 3SS-3C-20

Item# 842241
"JET Electric Chain Hoist, 3-Ton Capacity, 20ft. Lift, 3 Phase, Model# 3SS-3C-20"
JET Electric Chain Hoist, 3-Ton Capacity, 20ft. Lift, 3 Phase, Model# 3SS-3C-20

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Electric Chain Hoist, 3-Ton Capacity, 20ft. Lift, 3 Phase, Model# 3SS-3C-20

Click or Tap image to Zoom

$5248.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 18ft. push bottom control length
  • Overload protection utilizes a slip clutch design to prevent the hoist from lifting damaging loads above its rated capacity
  • Thermal overload protection protects the hoist from overheating in low voltage settings
  • DC Electro Magnetic Brake provides an industry proven safety feature that secures the load even if power is interrupted
  • Upper and lower limiting switches increase safety by preventing the load chain from over traveling

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • JET Electric Chain Hoist, 3-Ton Capacity, 20ft. Lift, 3 Phase, Model# 3SS-3C-20
  • Pyramex Cap-Style Hard Hat with 4-Point Pin-Lock Suspension - White, One Size Fits All, Model# HP14010
  • Bullhead Safety Discus Safety Glasses, 10 Base Curve Wrap Around Clear Lens, Model# BH2811
Price for all three:

$5263.17

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This JET electric chain hoist combines safety and durability to operate in commercial and industrial applications. This JET electric hoist is certified to 125% of the rated load capacity and complies with OSHA regulations. 2.14 Horse Power, Headroom at 28in., and duty cycle of 30%.

What's Included

    (1) JET 3-ton electric chain hoist

Downloads

Product Manual

Features + Benefits

  • 18ft. push bottom control length
  • Overload protection utilizes a slip clutch design to prevent the hoist from lifting damaging loads above its rated capacity
  • Thermal overload protection protects the hoist from overheating in low voltage settings
  • DC Electro Magnetic Brake provides an industry proven safety feature that secures the load even if power is interrupted
  • Upper and lower limiting switches increase safety by preventing the load chain from over traveling
  • Maintenance-free sealed gear train incorporates a sealed oil bath that eliminates upkeep
  • Control Pendant 24V pushbutton controller with cable strain relief system for durability and reliability in commercial settings
  • Grade 80 load chain provides extra durability lifting heavy loads
  • Fully enclosed, all steel plate construction with a durable powder-coat finish keeps out moisture, dust, and debris, lengthening the life of the hoist

Key Specs

AttributeSpecification

item#

842241

Brand

JET

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

248.0 LB

Capacity

6,000 lb

Lift Height

20 ft

Lift Speed

8.3 ft./min.

Duty Cycle

30 %
AttributeSpecification

Volts

230/460

Brake Type

Magnetic

Control Type

Lever

Chain Bag Included

Yes

Required Head Room

31.5 in

Lift Chain Diameter (SAE)

5/16 in

Motor Output

2.14

Thermal Overload Protection

Yes

Reviews

Questions & Answers

15 Reviews This action will navigate to reviews.

Questions

  1. I need a trolley system for this hoist 3SS-3C-20

    1 answer

    1. Click the link below to view compatible trolleys for use with this chain hoist.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

24 months parts/24months labor
