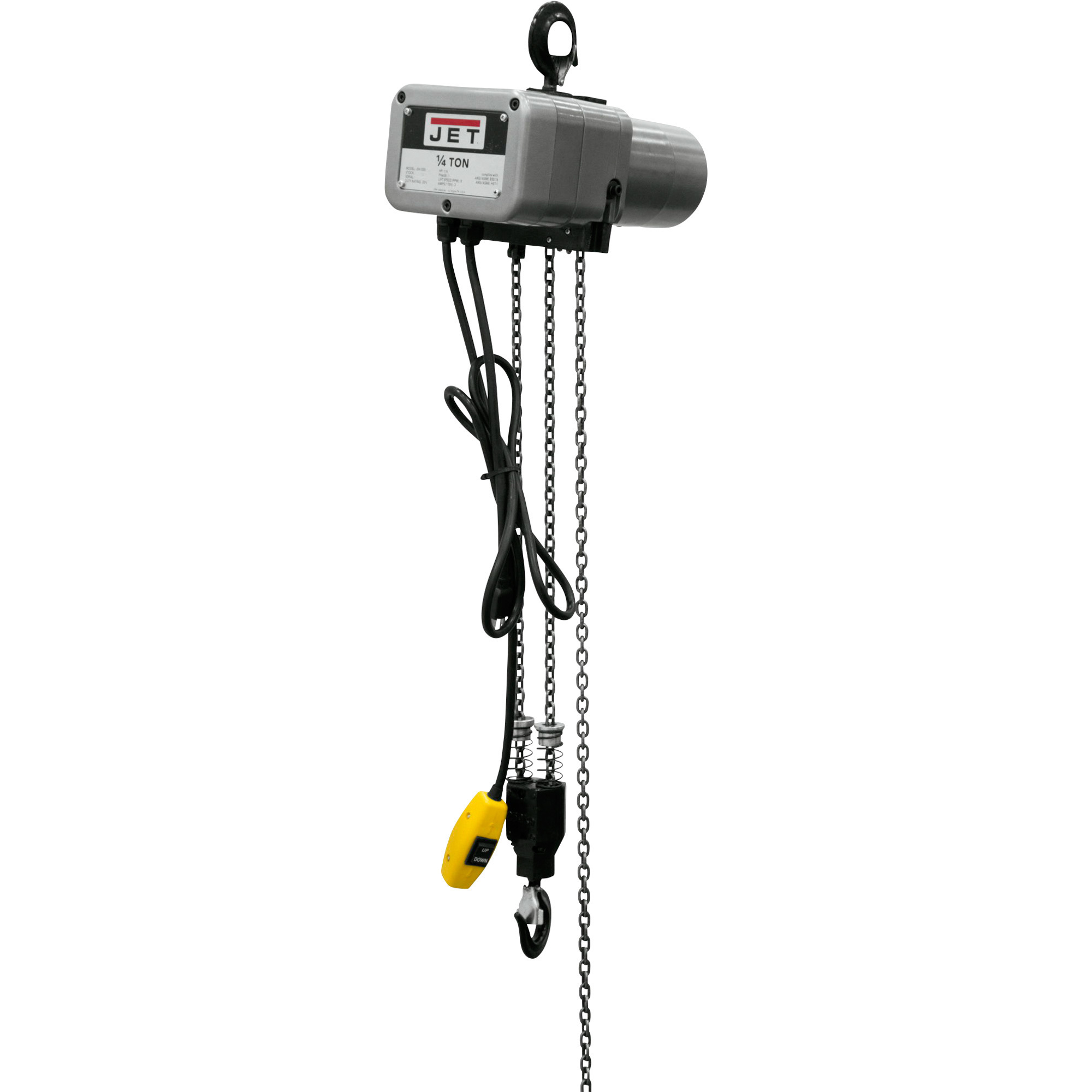

JET JSH Series Electric Chain Hoist, 1/4-Ton Capacity, 8ft. lift, 1-Phase, Model# JSH-550-10

Item# 56331
"JET JSH Series Electric Chain Hoist, 1/4-Ton Capacity, 8ft. lift, 1-Phase, Model# JSH-550-10"
JET JSH Series Electric Chain Hoist, 1/4-Ton Capacity, 8ft. lift, 1-Phase, Model# JSH-550-10

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET JSH Series Electric Chain Hoist, 1/4-Ton Capacity, 8ft. lift, 1-Phase, Model# JSH-550-10

Click or Tap image to Zoom

$2007.99

Buy 2 or more at $1977.87 ea.

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Combines safety, durability and portability to operate in light-duty and industrial applications
  • Die cast aluminum housing for light weight and portability
  • Slip clutch overload protection to prevent damage to loads above rated capacity
  • Built-in thermal overload protection system to keep hoist from overheating
  • Industry-proven magnetic disk brake to increase safety by ensuring rapid stops and securing the load

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • JET JSH Series Electric Chain Hoist, 1/4-Ton Capacity, 8ft. lift, 1-Phase, Model# JSH-550-10
  • Pyramex Cap-Style Hard Hat with 4-Point Pin-Lock Suspension - White, One Size Fits All, Model# HP14010
  • Bullhead Safety Discus Safety Glasses, 10 Base Curve Wrap Around Clear Lens, Model# BH2811
Price for all three:

$2022.17

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This JET JSH Series Electric Chain Hoist combines safety, durability and portability to operate in light-duty commercial and industrial applications. Die cast aluminum housing is lightweight and portable. Slip clutch overload protection mechanism prevents hoist from damaging loads above rated capacity. Built-in thermal overload protection system keeps hoist from overheating. Industry-proven magnetic disk brake increases safety by ensuring rapid stops and securing the load. Maintenance-free gear train incorporates a sealed oil bath, eliminating maintenance. Load chain is Grade 80 black oxide-coated for durability. Load-tested to 125% of capacity. Complies with OSHA regulations ANSI/ASME B30.16 and HST-1 standards.

What's Included

    (1) Hoist (1) Chain w/bracket and fasteners

Downloads

Product Manual

Features + Benefits

  • Combines safety, durability and portability to operate in light-duty and industrial applications
  • Die cast aluminum housing for light weight and portability
  • Slip clutch overload protection to prevent damage to loads above rated capacity
  • Built-in thermal overload protection system to keep hoist from overheating
  • Industry-proven magnetic disk brake to increase safety by ensuring rapid stops and securing the load
  • Maintenance-free gear train with sealed oil bath to eliminate maintenance
  • Grade 80 black oxide-coated load chain for durability
  • Load-tested to 125% of capacity
  • Complies with OSHA regulations ANSI/ASME B30.16 and HST-1 standards

Key Specs

AttributeSpecification

item#

56331

Brand

JET

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

38.0 LB

Capacity

500 lb

Lift Height

8 ft

Lift Speed

8 ft./min.

Volts

115

Brake Type

Combination
AttributeSpecification

Chain Bag Included

Yes

Required Head Room

17.1 in

Lift Chain Diameter (SAE)

1/6 in

Motor Output

0.16

Thermal Overload Protection

Yes

Hoist Classification

H3

Dimensions L x W x H (in.)

14.57 x 10.83 x 11.42 in

Product Weight

lb
