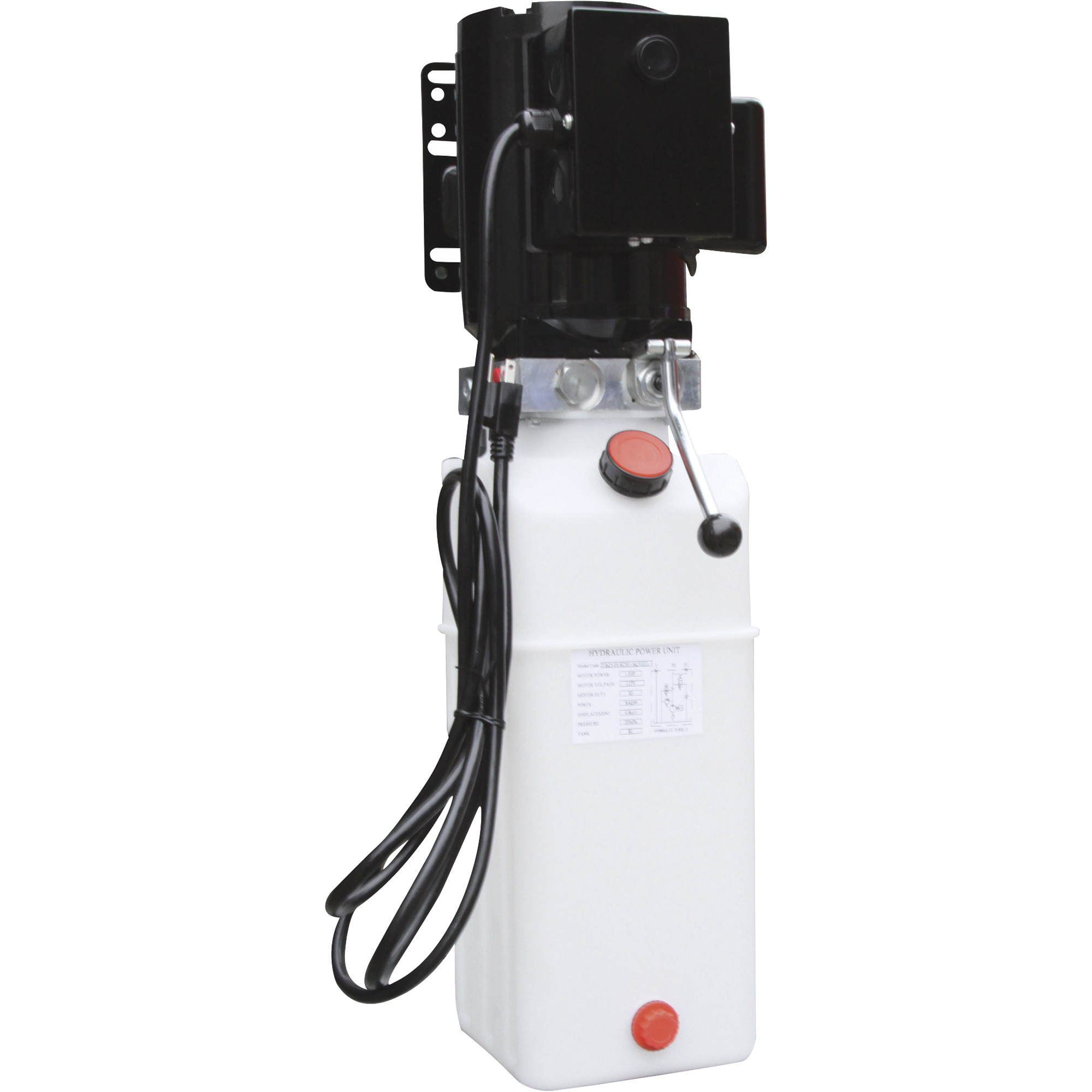

NorTrac Auto Hoist AC Power Unit, 115V, 1 GPM, 2900 PSI, Vertical Mount

Item# 47368
"NorTrac Auto Hoist AC Power Unit, 115V, 1 GPM, 2900 PSI, Vertical Mount"
NorTrac Auto Hoist AC Power Unit, 115V, 1 GPM, 2900 PSI, Vertical Mount

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorTrac Auto Hoist AC Power Unit, 115V, 1 GPM, 2900 PSI, Vertical Mount

Click or Tap image to Zoom

$499.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not available - online only
  • Delivers fast lifting speed and low amp draw
  • 0.8cc displacement
  • 1 GPM flow rate
  • 2,900 max. PSI and 3,450 max. RPM
  • 1.5 continuous HP, 3.5 peak/intermittent HP

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This single-phase NorTrac 115 Volt Auto Hoist AC Power Unit is interchangeable with all vertical-mount 115 Volt, 2- and 4-post car lift power units and may also be used on compatible hydraulic lifts and scissor lifts. Each unit features a power-up, gravity-down hydraulic circuit with the lowering movement controlled by the manual release lever/valve. It is designed for vertical-mount applications only. Optional needle valve is available (sold separately) for lowering/descent speed control.

What's Included

    (1) AC power unit

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Delivers fast lifting speed and low amp draw
  • 0.8cc displacement
  • 1 GPM flow rate
  • 2,900 max. PSI and 3,450 max. RPM
  • 1.5 continuous HP, 3.5 peak/intermittent HP
  • 2.11-gallon plastic reservoir
  • 28.2in.L x 9in.W x 11.2in.H

Key Specs

AttributeSpecification

item#

47368

Brand

NorTrac

Manufacturer's Warranty

1 year limited warranty

Ship Weight

48.0 LB

Max. Flow Rate

1 GPM

Max. PSI

2,900

Max. RPM

3,450

Power Source

Corded
AttributeSpecification

Port Inlet Size

3/8 in

Port Outlet Size

9/16 in

Thread Type

SAE

Reservoir Capacity

2.1 Gal

Volts

115

Action

Single Acting

Product Weight

lb

Dimensions L x W x H (in.)

28.25 x 9.0 x 11.25 in

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. What is the duty cycle rating of the motor (minutes)?

    1 answer

    1. The duty cycle rating is one minute on and nine minutes off.

      Helpful?

  2. Is it double acting

    1 answer

    1. This power unit features power up, gravity down. It is a single acting power unit.

      Helpful?

  3. does this unit include the fluid

    1 answer

    1. The power unit does not come with hydraulic fluid. The recommended hydraulic oil will be an L-HM46 or ATF Dexron III. Do not use motor oil.

      Helpful?

  4. What is the required current draw? Is this compatible with a standard U.S. 110 V power outlet?

    1 answer

    1. This AC power unit draws approximately 9.6 amps. It can be powered by a 110 volt outlet if the outlet accepts a 3-prong plug.

      Helpful?

  5. Is it ETL certified?

    0 answers
