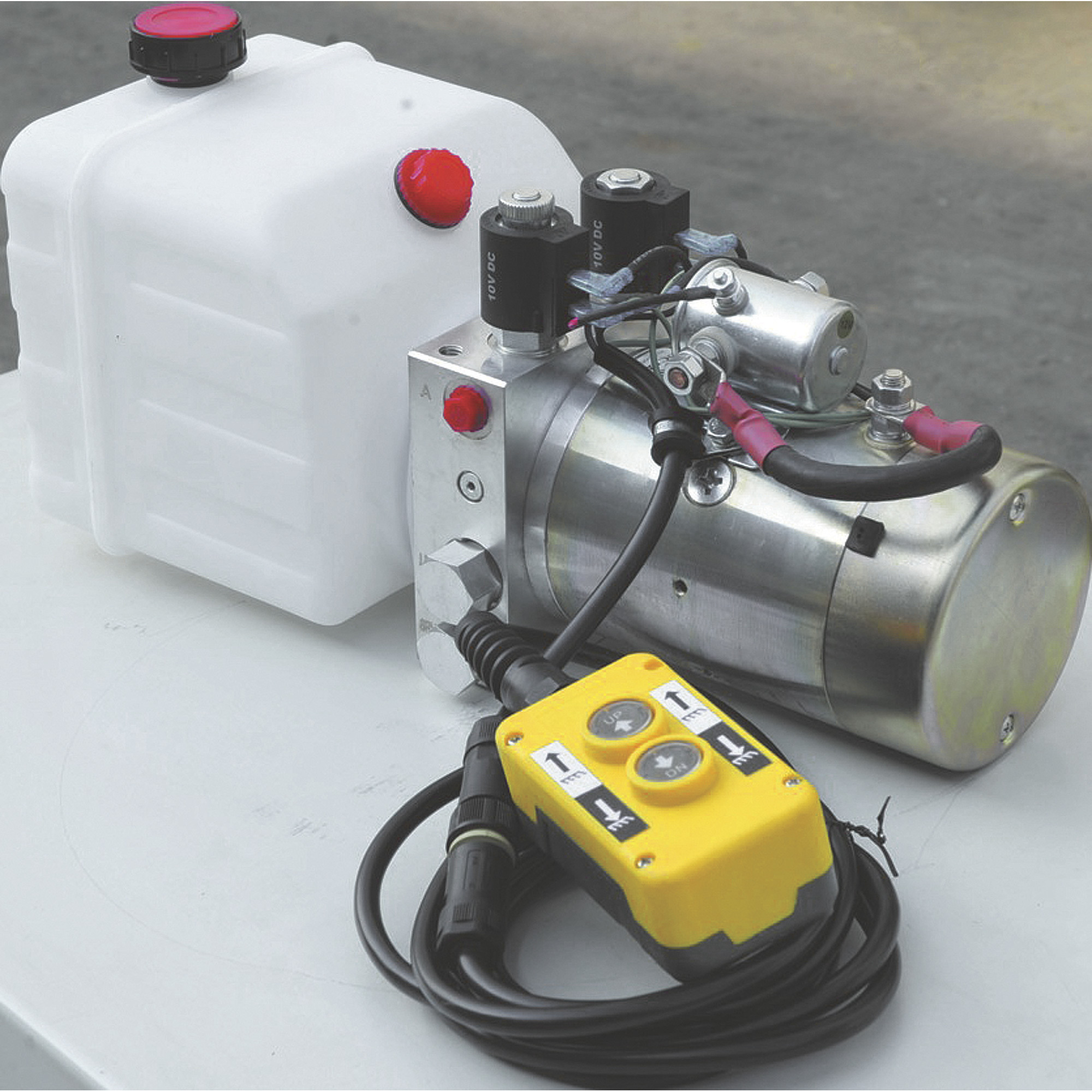

NorTrac 12 Volt DC Power Unit, Dump Trailer

Item# 47420
"NorTrac 12 Volt DC Power Unit, Dump Trailer"
NorTrac 12 Volt DC Power Unit, Dump Trailer

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorTrac 12 Volt DC Power Unit, Dump Trailer

Click or Tap image to Zoom

$629.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not available - online only
  • Rapid lifting/raise function
  • Low amperage draw
  • Built tough for long lasting life
  • 1.5 GPM flow rate with 2.1cc displacement
  • 3,000 max. RPM; 2,900 max. PSI

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This heavy-duty NorTrac 12 Volt, 2 HP Double-Acting Power Unit has been designed for dump trailer applications, whether it be for OEM or replacement applications. It provides rapid lifting and lowering with its power up, power down circuit and has load holding on both A and B ports. It is designed for horizontal mounting applications.

What's Included

    (1) DC double-acting dump trailer power unit

Downloads

Product Manual

Features + Benefits

  • Rapid lifting/raise function
  • Low amperage draw
  • Built tough for long lasting life
  • 1.5 GPM flow rate with 2.1cc displacement
  • 3,000 max. RPM; 2,900 max. PSI
  • 22.1in.L x 6.7in.W x 8.3in.H
  • 1.59-gal. tank

Key Specs

AttributeSpecification

item#

47420

Brand

NorTrac

Manufacturer's Warranty

1 year limited warranty

Ship Weight

33.0 LB

Max. Flow Rate

1.5 GPM

Max. PSI

2,900

Max. RPM

3,000
AttributeSpecification

Power Source

Battery

Port Outlet Size

9/16 in

Thread Type

SAE

Reservoir Capacity

1.59 Gal

Volts

12

Action

Double Acting

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–10 of 18 Questions
Sort by:

  1. Can this unit be used with your 2 spool valve?

    I want to operate 2 cylinders directly from the valve.

    1. Lever activated spool valves will not work with this unit because there are check valves on both the A & B ports. You should use a P&T power unit when using lever activated valves. the P port is pressure and the T port allows the fluid to return to the reservoir without any restrictions. you should use Northern item# 47369

      Helpful?

    2. The NorTrac Double-Acting Dump Trailer Power Unit would not work to operate a 2 spool lever activated valve as that valve requires a return to tank port. A recommended power unit for your application would be item number 47369 shown below.

      Helpful?

  2. Can this unit be used on a dump trailer with a single acting cylinder also?

    1. Double and single acting cylinders are constructed differently. It is not recommended to use a double acting power unit on a single acting cylinder, internal cylinder damage to the cylinder could occur.
      But you may want to contact the trailer manufacturer; many trailer manufacturers use double acting cylinders on trailers where they offer single acting power units.

      Helpful?

    2. This dump trailer power unit cannot be used with a single acting cylinder. The item #47370 would be used with a single acting cylinder. See below.

      Helpful?

  3. can I buy the tank only

    1 answer

    1. The plastic tank, part #MSYBZ-SLYX-6L-N, is available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  4. Where is the ground

    1 answer

    1. The ground is a small hole on the side of the motor. This can be viewed in the second photo displayed on the product web page.

      Helpful?

  5. Is it possible to rotate the pump 90 degrees so the pump can be bolted from the side but the reservoir fill is still on top?

    1 answer

    1. Rotating the reservoir to mount the power unit 90 degrees is not recommended. To so he Inlet filter on the pump would need to be rotated and the return to tank ports would need to be lengthened to return the fluid below fluid level. Doing so would decrease the reservoir capacity by as much as 50%. This may also void the warranty.

      Helpful?

  6. where are the hydraulic connections

    1 answer

    1. There is one on each side of the unit between the tank and motor. Please see the diagram from the PDF file of the manual located on the product page.

      Helpful?

  7. How are the hydraulic lines ran from the pump to the cylinder and where do you put a line filter at? R. Allen.

    1 answer

    1. The hydraulic lines would be connected to the pressure and return lines at the power unit. Routing the hoses in a secure area away from moving parts is recommended. The hose routing is determined by individual applications. A filter can be installed on the return low pressure side.

      Helpful?

  8. Is the "B" port releif valve adjustable?

    Can the "B" port pressure relief valve be set at a higher pressure?
    From the stated 1500 psi to maybe 3,000 psi.

    1 answer

    1. The "A" port is preset at 2900 PSI and the "B" port is preset at 1500 PSI. The pressure cannot be adjusted.

      Helpful?

  9. what fittings do I need for ports A and B?

    I bought this model and I need these fittings

    1 answer

    1. Both the A and B ports on this unit are 9/16-18 SAE O-ring ports (sometimes called a #6). Usually customers will want an SAE 9/16-18 O-ring 90 degree fitting that would thread directly into the port.

      Helpful?

  10. How much current does the pump draw?

    How much current does the pump draw at 12VDC/
    Dan

    1 answer

    1. This power unit draws a minimum of 80 amps at 12 volts. At maximum load/capacity, it draws 265 amps.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
