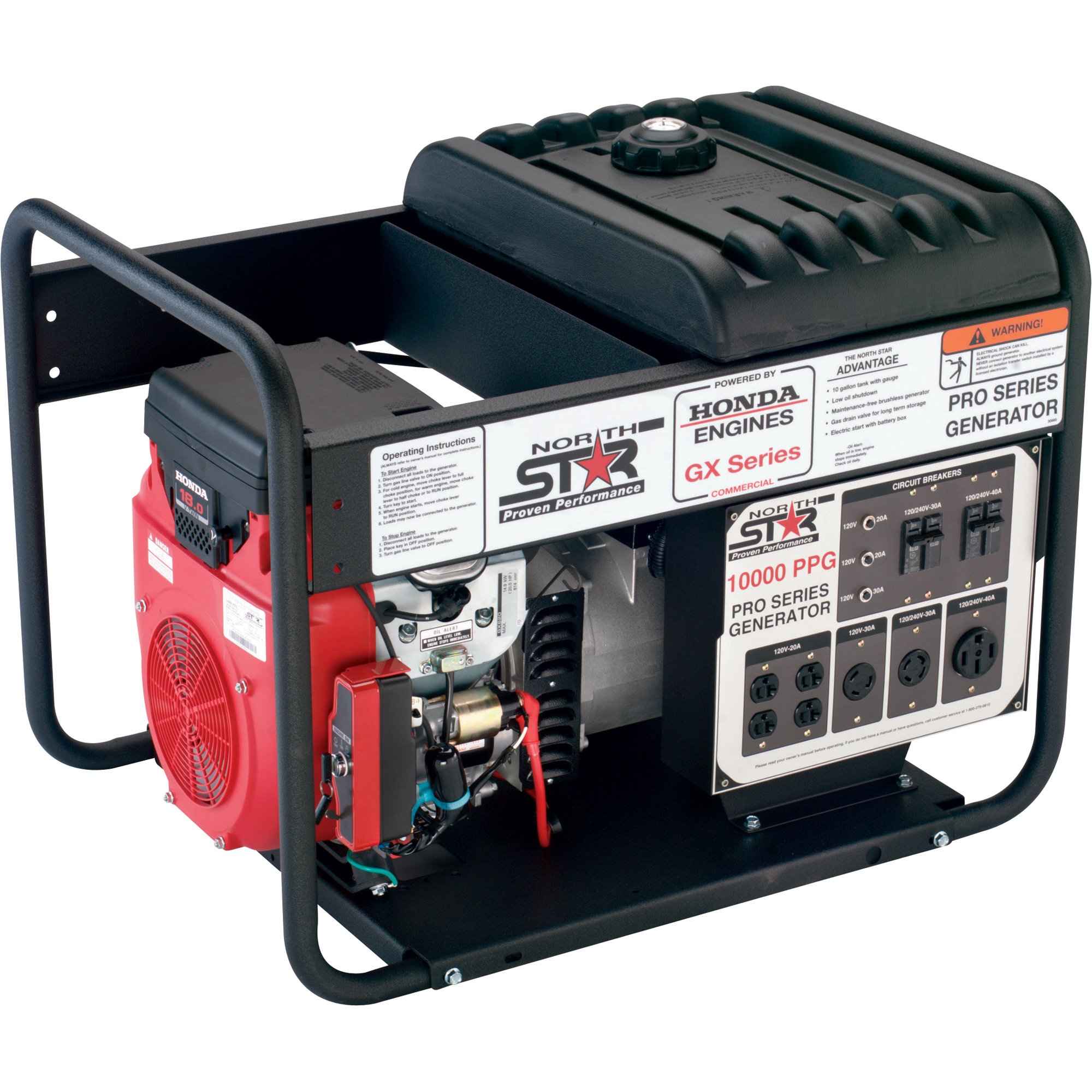

NorthStar Generator — 614cc, 10,000 Surge Watts, 8500 Rated Watts, Gasoline

Item# 165967
NorthStar Generator — 614cc, 10,000 Surge Watts, 8500 Rated Watts, Gasoline

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar Generator — 614cc, 10,000 Surge Watts, 8500 Rated Watts, Gasoline

Click or Tap image to Zoom

  • Four 20 Amp 120V receptacles
  • One 30 Amp 120V receptacle
  • One 120/240V 30 Amp locking plug receptacle
  • One 120/240V 50 Amp straight blade receptacle(breaker rated at 40 Amp)
  • Uses NEMA 5-20R, NEMA L5-30R and NEMA L14-30R locking plug receptacles and NEMA 14-50R straight blade

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

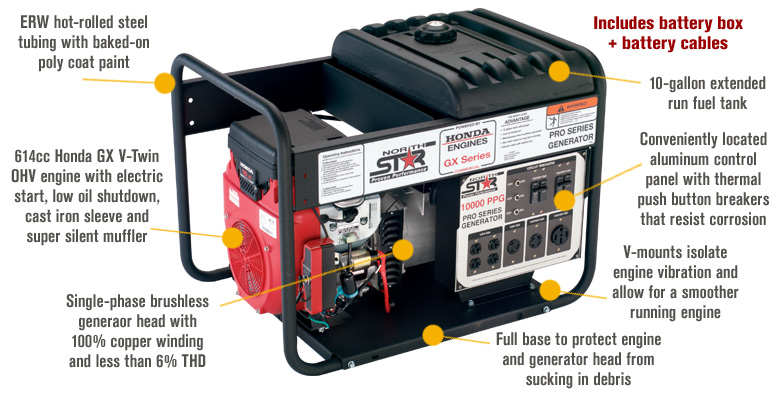

Powerful NorthStar® Generator packs features a reliable, single-phase, 100% copper-wound, brushless generator head for years of long lasting power. Industrial Honda engine has low Oil Alert shutdown protection, electric start and super silent muffler. NorthStar's V-mounts are designed to extend life by dampening and isolating engine vibration. The V-mounts have a rubber isolation mount made with a specially formulated vibration dampening elastomer that provides optimal flexibility and stiffness. Frame constructed from ERW hot-rolled steel tubing. The solid base provides a strong foundation for the generator and extends life by serving as a barrier between the ground and the generator. This prevents grass, dirt, dust and other debris from being sucked into the engine and the alternator. Not for sale in California.

What's Included

  • (1) Generator

Downloads

Product Manual

Features + Benefits

  • Four 20 Amp 120V receptacles
  • One 30 Amp 120V receptacle
  • One 120/240V 30 Amp locking plug receptacle
  • One 120/240V 50 Amp straight blade receptacle(breaker rated at 40 Amp)
  • Uses NEMA 5-20R, NEMA L5-30R and NEMA L14-30R locking plug receptacles and NEMA 14-50R straight blade
  • 70.8 Amps at 120 Volts or 35.4 Amps at 240 Volts
  • Brushless generator heads are proven to be superior in efficiency, performance and lifespan compared to brush-style generator heads
  • Less than 6% THD for use with power-sensitive equipment
  • Cast iron sleeve
  • 100% copper windings
  • Conveniently located control panel
  • Thermal magnet circuit breaker
  • Baked-on poly coat paint prevents scratches and corrosion
  • Plugs sold separately
  • Optional wheel kit Item# 165919 sold separately
  • Required battery, Item# 31868

Key Specs

AttributeSpecification

item#

165967

Brand

NorthStar

Manufacturer's Warranty

24 months parts / 24 months labor

Ship Weight

323.0 LB

Surge Watts

10,000

Rated Watts

8,500

Fuel Type

Gasoline
AttributeSpecification

Engine Displacement

614 cc

Start Type

Electric

Battery Required

Yes

Battery Included

No

Low Oil Shutdown

Yes

Dimensions L x W x H (in.)

35 3/4 x 24 1/4 x 26 1/4

Reviews

Questions & Answers

21 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. Can this unit be conveted to run on Natural Gas?

    1 answer

    1. This generator can not be converted to run on natural gas. May we suggest our Tri-Fuel generator show below that is designed to be used with natural gas.

      Helpful?

  2. Do you know if this generator comes with a manuel recoil starter

    1 answer

    1. No, this is electric start only.

      Helpful?

  3. Is the 50 amp outlet GFCI protected?

    1 answer

    1. No, none of the outlets on this generator are GFCI.

      Helpful?

  4. Why does Northstar say to use the nema 14-50R 40 amp outlet for hook up to a transfer swich

    I have a non switchable neutral on my transfer switch. Thank You for any help.

    1 answer

    1. For this NorthStar generator to operate at its full amperage potential, we recommend using the 14-50R 40 Amp hook-up.

      Helpful?

  5. Is the neutral and ground bonded in this generator

    1 answer

    1. This NorthStar generator has a bonded neutral.

      Helpful?

  6. Where is the 4 wheel kit?

    Due to the weight of this generator I need a 4 wheel kit not a 2 wheel , can you get a 4 wheel kit and how much ? thanks, greg

    1 answer

    1. We do not carry a four wheel kit for this generator.

      Helpful?
