The MHVFG30TBNG comes equipped with a metal face-plate that certifies it for use in the garage, whereas the MHVFB30NGT comes equipped with a glass face-plate.

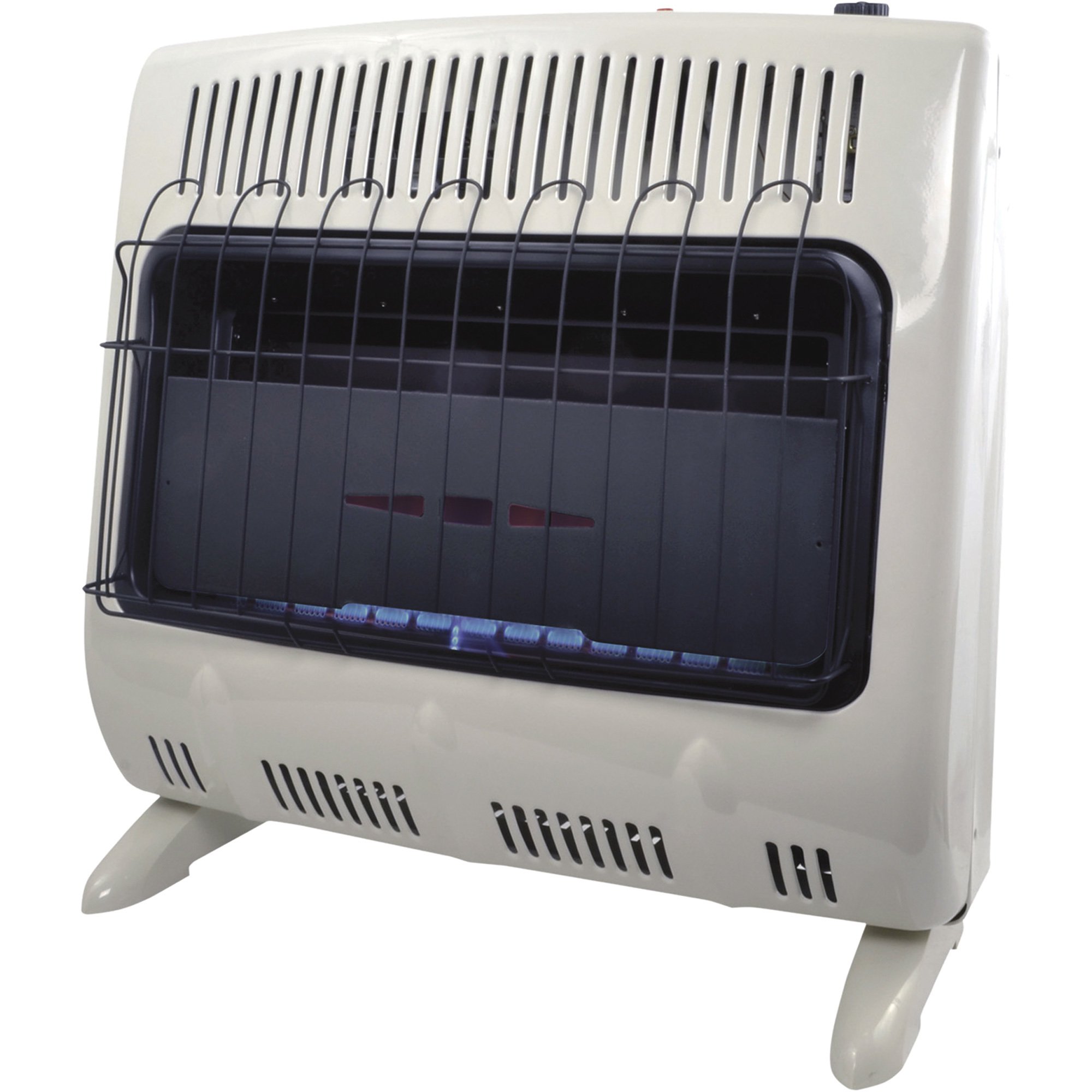

Mr. Heater Vent-Free Blue Flame Garage/Workshop Wall Heater — Natural Gas, 30,000 BTU, Model# MHVFG30TB NG
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Heats up to 750 sq. ft.
- Uses natural convection to circulate heat evenly in shop or garage
- Ideal for the garage or shop
- Oxygen depletion sensor for safety indoors
- Thermostat for automatic temperature control
See full description
What's Included
- (1) Vent-free natural gas heater
- (1) AA battery for electronic ignition
- (2) Floor mount feet
- (1) Hardware kit
Downloads

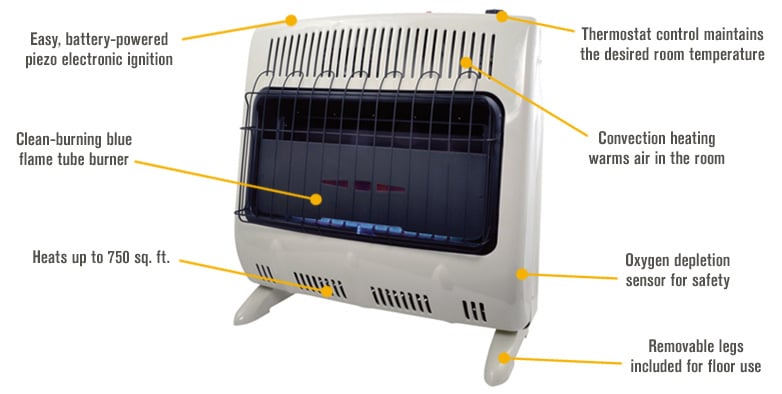

Features + Benefits
- Heats up to 750 sq. ft.
- Uses natural convection to circulate heat evenly in shop or garage
- Ideal for the garage or shop
- Oxygen depletion sensor for safety indoors
- Thermostat for automatic temperature control
- Battery-powered ignitor
- 4,500ft. high altitude restriction
-
MHVFG30TB NG and MHVFB30NGT
WHAT IS THE DIFFERENCE OTHER THAN THE PRICE?
-
Helpful?
-
The main difference is the glass front panel, versus the metal front panel. Interior models have a glass front that is more appealing to see the blue flame. Glass front units are not recommended for garage use.
Helpful?
-
-
1/2 psi natural gas regulator?
In the product manual it says psi must be equal to or less than 1/2 psi. Where do you find a regulator for natural gas? All I find is for LP.
-
This regulator would be installed by your nature gas company, to reiterate, there must be an inlet gas pressure between a 9" and 14" water column, the 1/2 psi is standard for any low pressure device.
Helpful?
-
The 1/2 psi, or 13.85 inches of water, mentioned in the manual for this Natural Gas Mr. Heater Vent-Free Blue Flame Garage/Workshop Wall Heater pertains to pressure testing only. The inlet gas pressure needs to be between 9 and 14 inches of water. Your natural gas installer would provide the regulator for your system. Northern Tool + Equipment does not carry this type of regulator.
Helpful?
-
-
Can it be adjusted to work above 4500' elevation?
-
Thank you for your inquiry. No, it cannot be adjusted. Due to the oxygen depletion system, it may not work properly at elevation higher than 4500.
Helpful?
-
This Mr. Heater vent free, blue flame garage heater should not be used above 4500 feet elevation.
Helpful?
-
-
can this unit be converted to LP
-
This heater is not capable of being converted to run off of LP gas, however we do offer this heater in LP. The item # is 255839. Please see below.
Helpful?
-
Thank you for your inquiry. This unit cannot be converted to LP.
Helpful?
-
-
Ignition says electronic, but is an autopilot unit?
I don't want a constantly running pilot.
1 answer-
The pilot light would remain on as long as the heater is turned on.
Helpful?
-
-
Can I use this in my basement
1 answer-
This heater can be used in a living space such as a basement.
Helpful?
-
-
Is 30,000 BTU enough for 2 car garage?
My research indicates 45,000 BTU is recommended for 2 car garage. Assuming in NorthEast US, I'm wondering if the 30K unit will take a long time to heat up garage. Wonder why Mr Heater does make a larger say 40K unit. Hate to install gas piping then find it is inadequate.
1 answer-
As to how long this 30,000 BTU heater will take to heat a 2 car garage, that depends on several factors: how high the ceiling is, how well insulated the garage is, and how cold ii is outside. For example, if you heating a garage when the outside temperature is -20 degrees Fahrenheit it takes longer than if the outside temperature is 20 degrees Fahrenheit above zero. It also depends on if you need to heat the garage enough to take the chill off (50 degrees or so) or to a higher temperature (60-70 degrees). So the heating time will vary depending on these various factors and conditions. Northern Tool carries a 40,000 BTU heater that requires ceilings of 12 to 15 feet high. Click the link below to view that heater. If you have further questions on sizing a heater for your garage, please call 1-800-221-0516 and speak with one of our knowledgeable sales reps.
Helpful?
-
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Natural Gas Wall Heaters
See All Mr. Heater Natural Gas Wall Heaters
Currently Viewing This Product
Item # 255639
Shipping: Sold Out
Specifications
Specifications
Mr. Heater Vent-Free Blue Flame Garage/Workshop Wall Heater — Natural Gas, 30,000 BTU, Model# MHVFG30TB NG
Mr. Heater Natural Gas Vent-Free Radiant Wall Heater, 10,000 BTU, 2-Plaque, Model# MHVFR10NG
Mr. Heater Natural Gas Vent-Free Blue Flame Wall Heater, 10,000 BTU, Model# MHVFB10NG
Mr. Heater Vent-Free Natural Gas Radiant Wall Heater, 30,000 BTU, 5-Plaque, Model# MHVFRD30NGT
Heat Output
Same
30,000 Btu/hour
10,000 Btu/hour
10,000 Btu/hour
30,000 Btu/hour
Heating Capability
Same
750 ft²
250 ft²
300 ft²
1,000 ft²
Heat Type
Same
Convection
Radiant
Convection
Radiant
Gas Inlet
Same
3/8 in
3/8 in
3/8 in
3/8 in
Blower Included
Same
No
No
No
No
Thermostat Included
Same
Yes
No
No
Yes
Needs Direct Venting
Same
No
No
No
No
Dimensions L x W x H (in.)
Same
27.25 x 11.25 x 27 in
19.75 x 11.25 x 22.5 in
7.5 x 15.75 x 20.0 in
27.25 x 11.25 x 27.0 in
Hardwired
Same
-
No
No
No
Vent-Free
Same
-
Yes
Yes
Yes
Assembled Width
Same
-
11.38 in
11.38 in
13.13 in
Assembled Height
Same
-
23 in
23 in
28.13 in
Assembled Depth
Same
-
18.25 in
18.25 in
31.13 in
Remote Included
Same
-
No
No
No
Heat Settings
Same
-
2
2
5
Product Weight
Same
-
lb
lb
lb
