The 1/2 inch provided by the wall Mount is not enough space for my fingers, I furred it out another 1 1/2 inch by ripping a 2x4.

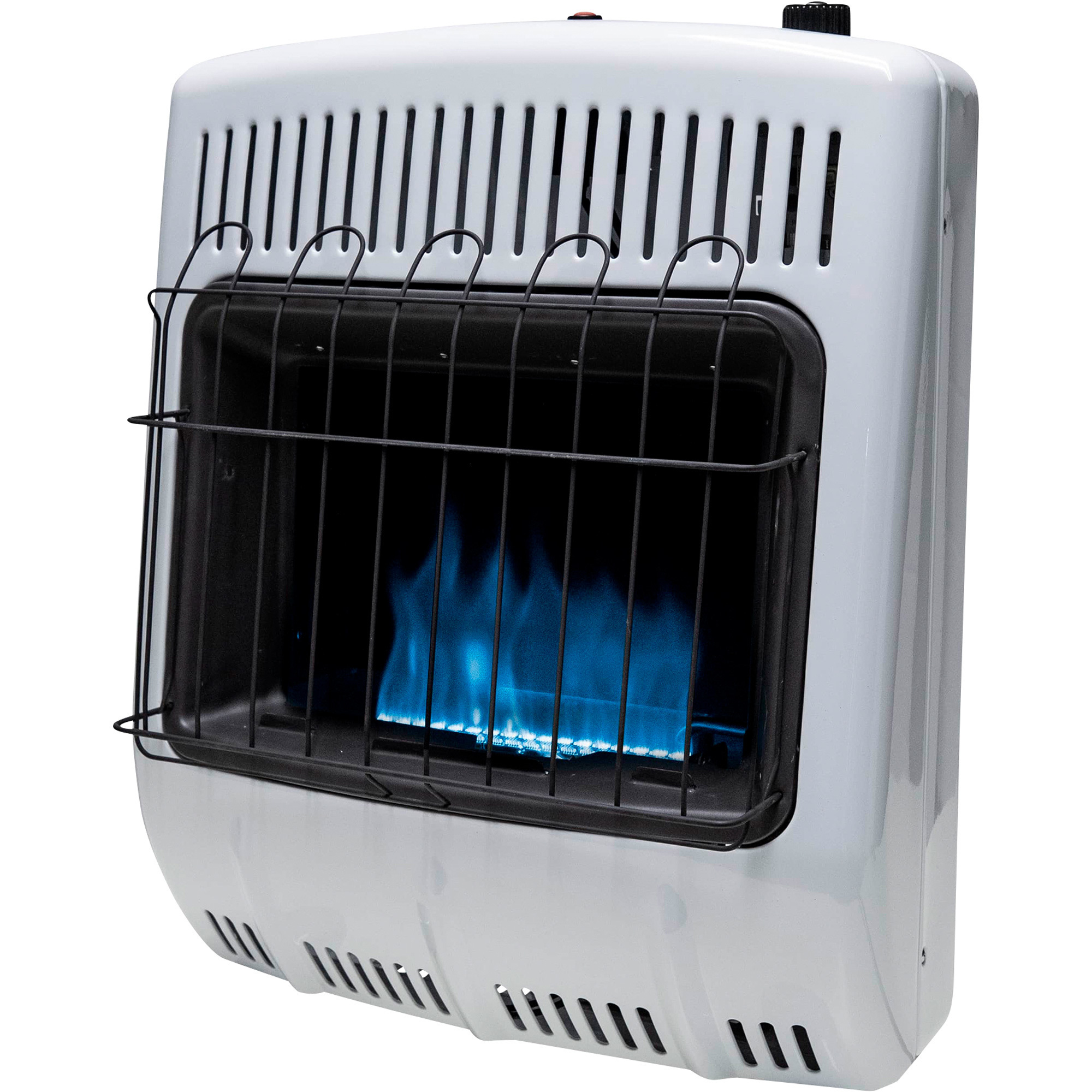

Mr. Heater Propane Vent-Free Blue Flame Wall Heater, 20,000 BTU, Model# MHVFB20LPT
Top Seller
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$219.99
- Heats areas up to 700 sq. feet
- Uses natural convection to circulate warm, comfortable air throughout the room -- great for family rooms, workshops, basement and other hard-to-heat areas
- Easy installation with no venting or electricity required, making it ideal for power outages
- Clean-burning, cost-effective heat
- Multi-output valve provides easy temperature regulation
See full description
Price for all four:
$564.96
What's Included
- (1) Mr. Heater Propane Vent-Free Blue Flame Wall Heater -- 20,000 BTU, Model# MHVFB20LPT
Downloads
Features + Benefits
- Heats areas up to 700 sq. feet
- Uses natural convection to circulate warm, comfortable air throughout the room -- great for family rooms, workshops, basement and other hard-to-heat areas
- Easy installation with no venting or electricity required, making it ideal for power outages
- Clean-burning, cost-effective heat
- Multi-output valve provides easy temperature regulation
- Convenient electronic piezo ignition for no-hassle starting
- Automatic low oxygen shutoff system
- Includes brackets for wall mounting and legs for floor use
- Requires 6in. clearance from corner and side wall
- 4,500ft. high altitude restriction
-

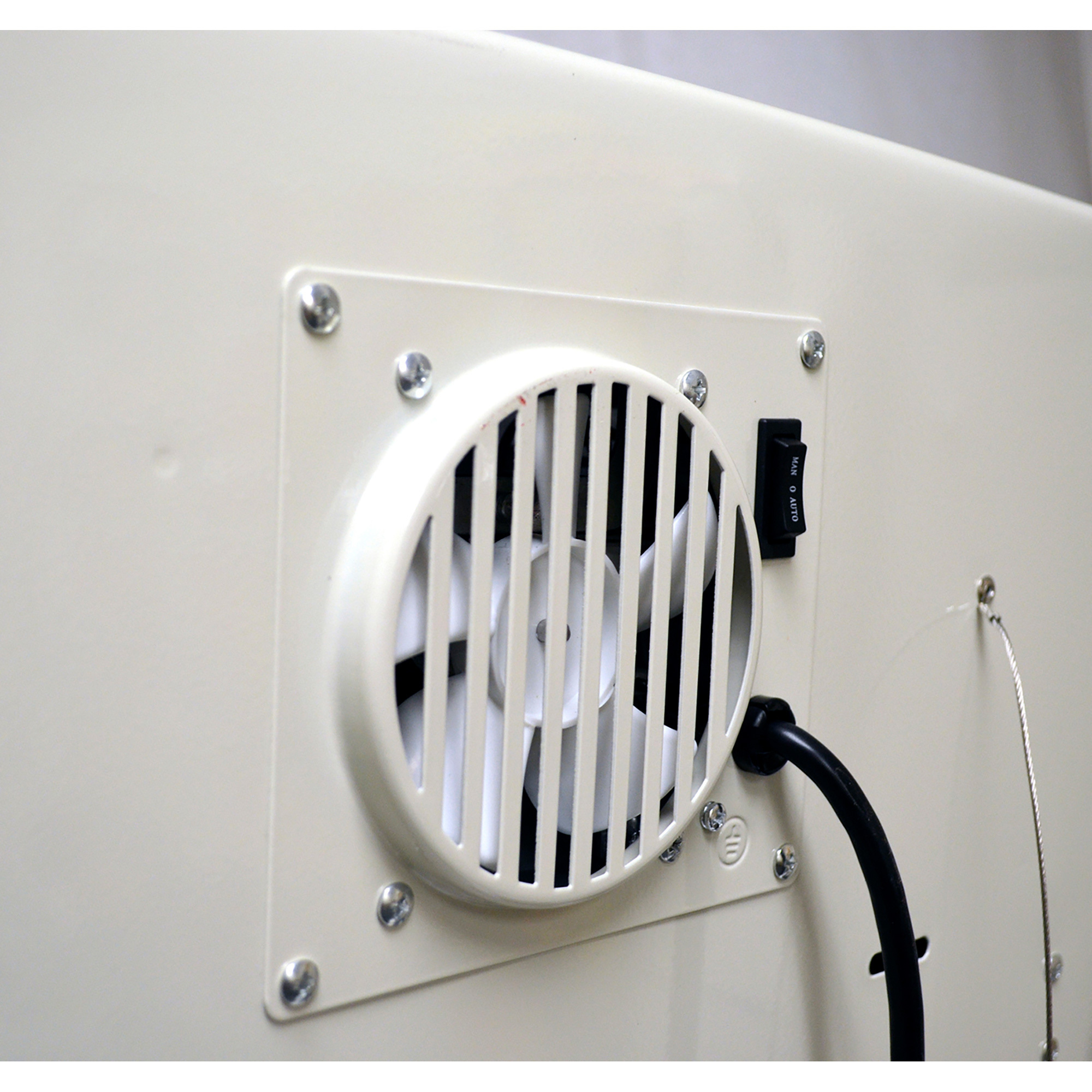

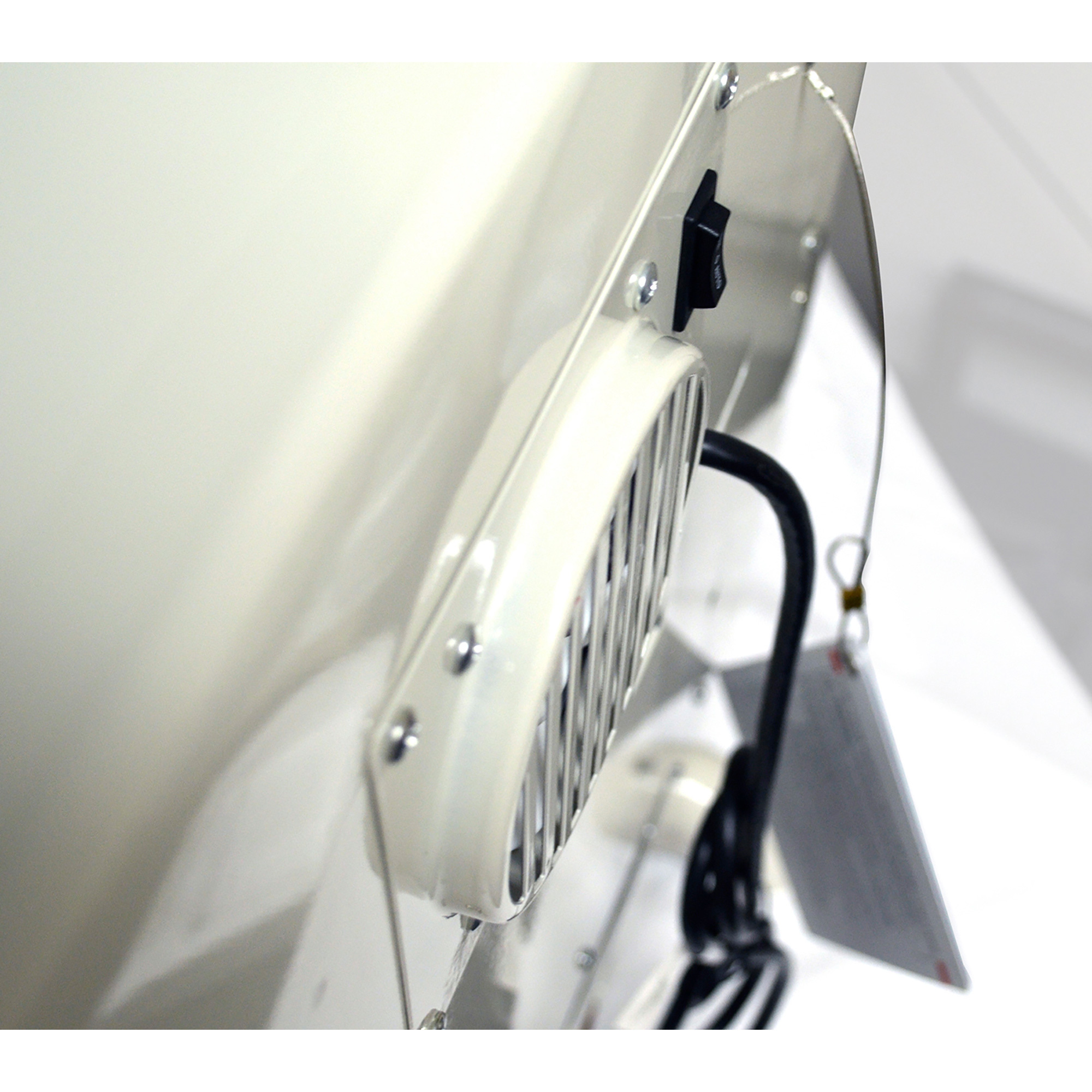

If the unit is wall mounted can you get to the fan switch? How far off the wall is the heater if wall mounted?
-
Helpful?
-
With the included mounting bracket the heater will be approximately 1" from the rear wall. You would be able to reach the fan switch from the top of the heater.
Helpful?
-
-
gas sources
Will these units run on piped in natural gas?
-
This model is for propane only. There is a similar heater for natural gas.
Helpful?
-
This Mr. Heater wall heater runs on propane. Please see below for the Mr. Heater natural gas vent-free blue flame wall heater with a 20,000 BTU rating, item 52564.
Helpful?
-
-
Do the LP Gas vent free heaters have an odor when they are burning?
-
This propane heater is a clean burning unit that leaves behind no odor, fumes or exhaust at all.
Helpful?
-
These heaters are odorless, any odor coming from these is dependent upon the environment they are used in.
Helpful?
-
-
Thermostat
I see the thermostat has 5 temperature settings, what are they? Or what is the approximate range?
-
The range is approximately 60-80 degrees, increasing about 5 degrees at each setting.
Helpful?
-
The range for these begins at 60 degrees, increasing roughly 5 degrees each setting and goes up to about 80 degrees.
Helpful?
-
-
Do you need a pressure control between the tank and heater?
1 answer-
Yes, you would want to use regulator item 25819.
Helpful?
-
-
Is there a LP hose included? How long is the hose?
1 answer-
This heater does not include a hose. We do offer a 5 ft. hose, item 330972, which is compatible. We also offer a 22 in. universal gas connection kit.
Helpful?
-
-
Will this work with and connect to a 20lb Propane tank?
1 answer-
The heater can be used with a 20-lb tank. A regulator is required. Northern Tool does offer item #25819 for the regulator.
Helpful?
-
-
What is the BTU breakdown for the different temp. settings.
1 answer-
The Low setting is 5-10,000 BTU's, the Medium setting is 10-15,000 BTUs, and the High setting is 15-20,000 BTU's.
Helpful?
-
-
Can this be used to heat a small greenhouse?
1 answer-
This unit can be used to heat a small greenhouse. This unit does require a fresh air supply. Please refer to the product manual, found on this product's specifications page, for full installation and fresh air requirements.
Helpful?
-
-
What would the restrictions from the top of heater to the ceiling? In other words top of Heater to another object?
1 answer-
This heater should not be installed where curtains, furniture, clothing, or other flammable objects are less than 36 inches from the front, top, or sides of the heater.
Helpful?
-
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Propane Wall Heaters
See All Mr. Heater Propane Wall Heaters
Currently Viewing This Product
Specifications
Specifications
Mr. Heater Propane Vent-Free Blue Flame Wall Heater, 20,000 BTU, Model# MHVFB20LPT
Mr. Heater Vent-Free Propane Radiant Wall Heater, 18,000 BTU, 3-Plaque, Model# MHVFR20LPT
Mr. Heater Propane Vent-Free Radiant Wall Heater, 10,000 BTU, 2-Plaque, Model# MHVFR10LP
Ashley Hearth, Propane Fueled Direct Vent Wall Heater - 8000 BTU/Hour - Heats up to 280 Square Feet, Model# DVAG8L
Heat Output
Same
20,000 Btu/hour
18,000 Btu/hour
10,000 Btu/hour
8,000 Btu/hour
Heating Capability
Same
700 ft²
700 ft²
300 ft²
280 ft²
Heat Type
Same
Convection
Radiant
Radiant
Convection
Hardwired
Same
No
No
No
No
Vent-Free
Same
Yes
Yes
Yes
No
Assembled Width
Same
12.75 in
12.75 in
8.5 in
20 in
Assembled Height
Same
27 in
27 in
19.75 in
13.6 in
Assembled Depth
Same
23.75 in
23.75 in
15.5 in
6.6 in
Remote Included
Same
No
No
No
No
Gas Inlet
Same
3/8 in
3/8 in
3/8 in
3/8 in
Blower Included
Same
No
No
No
No
Thermostat Included
Same
Yes
Yes
No
No
Needs Direct Venting
Same
No
No
No
Yes
Product Weight
Same
lb
lb
lb
22.5000 lb
Dimensions L x W x H (in.)
Same
23.75 x 11.25 x 27.0 in
23.75 x 11.25 x 27.0 in
19.75 x 11.25 x 22.5 in
20.0 x 6.6 x 13.6 in
Heat Settings
Same
-
-
-
2
