Mr. Heater Propane Garage Heater with Thermostat, 22,000 BTU, Model# F272100

Item# 17363
"Mr. Heater Propane Garage Heater with Thermostat, 22,000 BTU, Model# F272100"
Mr. Heater Propane Garage Heater with Thermostat, 22,000 BTU, Model# F272100

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Mr. Heater Propane Garage Heater with Thermostat, 22,000 BTU, Model# F272100

Click or Tap image to Zoom

$520.99

  • Shipping:

    Factory shipped

  • Store Pickup:

  • Clearance from the ceiling: 14in.
  • Clearance from the side: 16in.
  • Clearance from below: 48in.
  • 22,000 BTU Propane Radiant Garage/Workshop heater
  • Directs line of site radiant heat to floor-level objects.

See full description

Complete Your Solution

  • Mr. Heater Propane Garage Heater with Thermostat, 22,000 BTU, Model# F272100
  • Worthington Cylinders Propane Tank, 100 Lbs., Model# 303953
  • Mr. Heater Universal Gas Connection Kit, Model# F271239
  • Mr. Heater 225,000 BTU, 2-Stage Regulator, Model# F273863
Price for all four:

$846.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

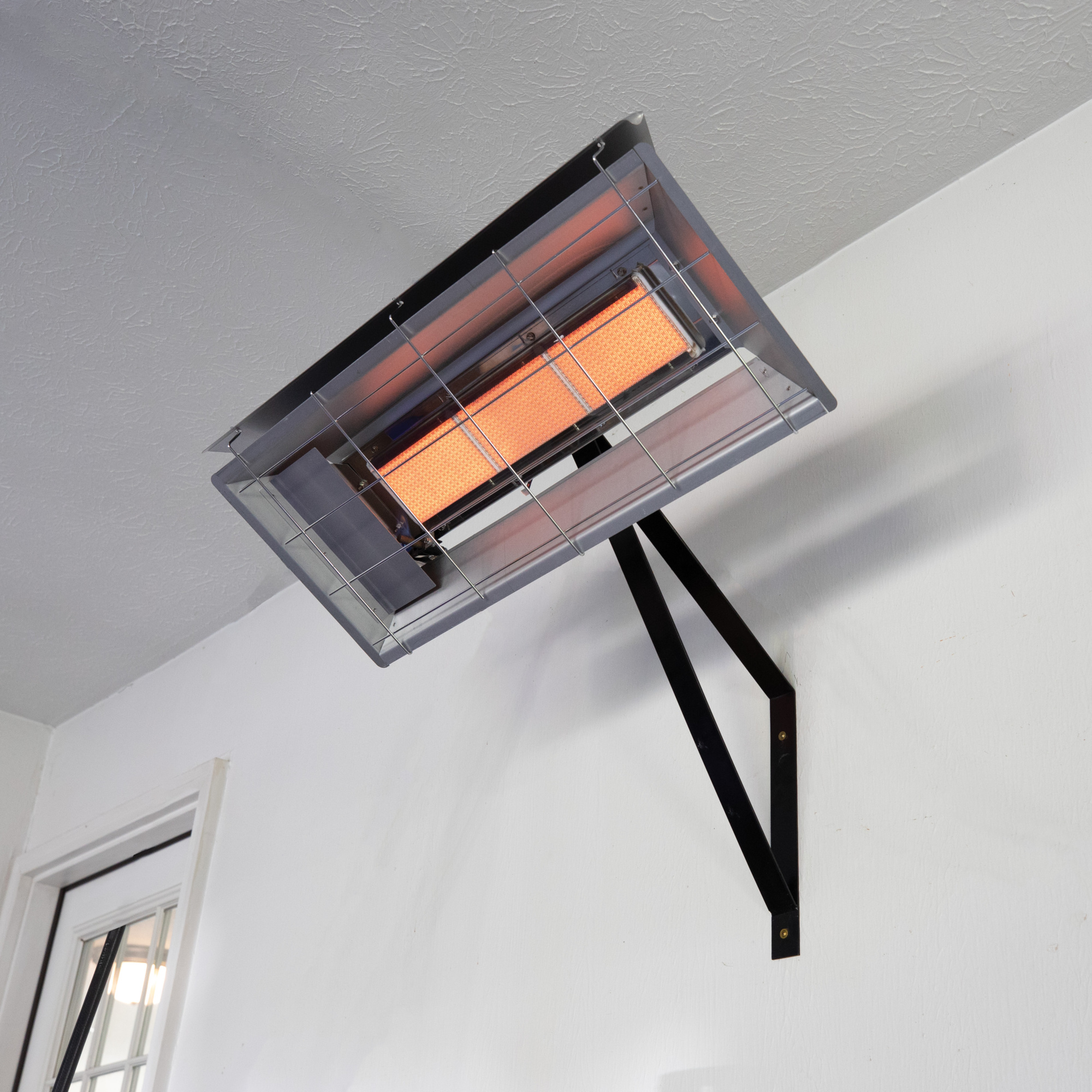

A real lifesaver during power outages! Clean, quiet, odorless LP heater has thermostat for comfort control. No electricity required. Heats a 500 square-foot area (about a 2 1/2 car garage). 29 3/4in. x 12 1/4 x 7in. wall-mount heater has automatic safety shutoff. All metal with chrome-plated steel grid and reflector. How-to video and brackets included. AGA certified. Check local codes and ordinances for approved installation and usage.

What's Included

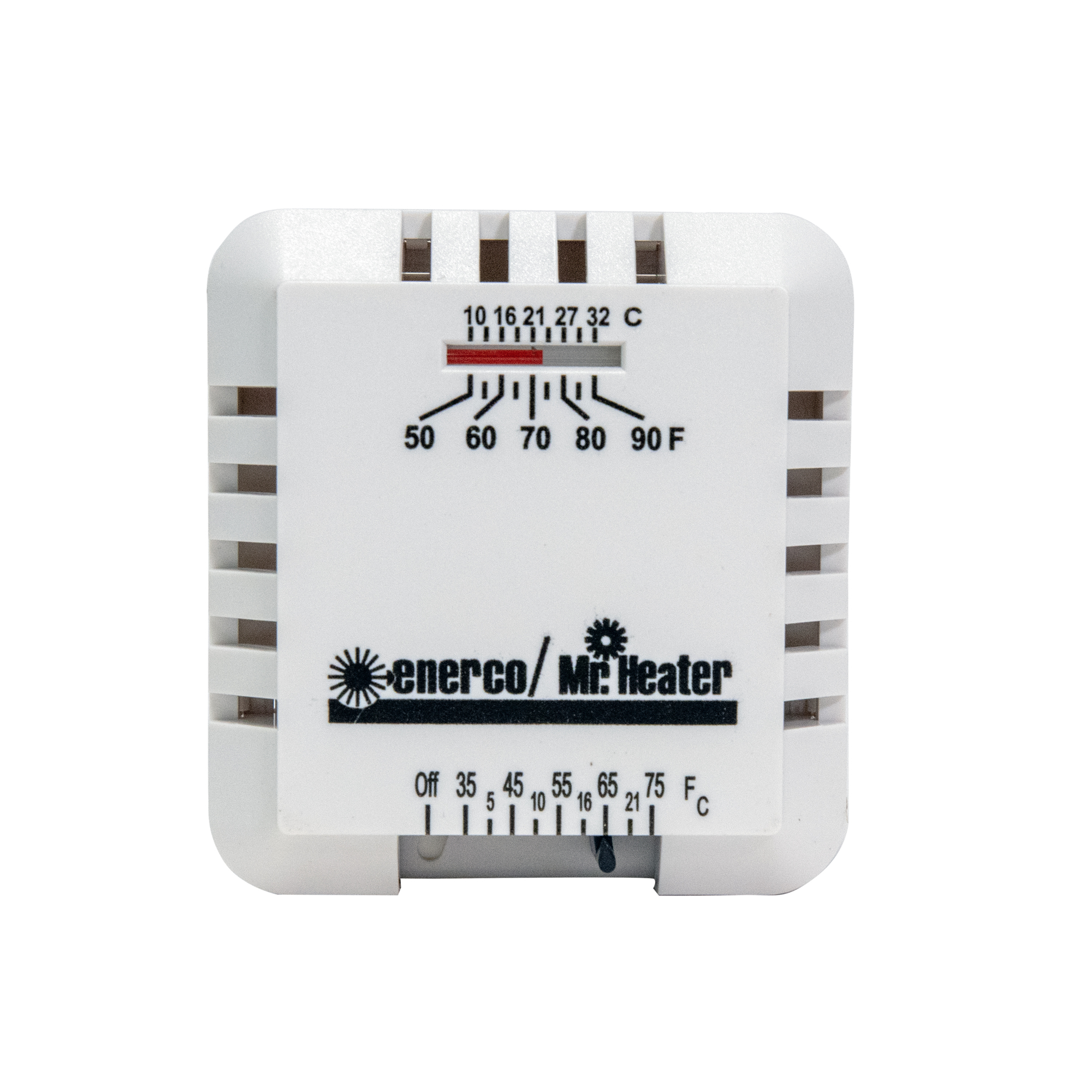

    (1) THERMOSTAT (1) WALL BRACKET

Downloads

Product Manual

Features + Benefits

  • Clearance from the ceiling: 14in.
  • Clearance from the side: 16in.
  • Clearance from below: 48in.
  • 22,000 BTU Propane Radiant Garage/Workshop heater
  • Directs line of site radiant heat to floor-level objects.
  • 99.9% efficient, it transfers almost all of the fuel it burns directly into clean safe radiant heat.

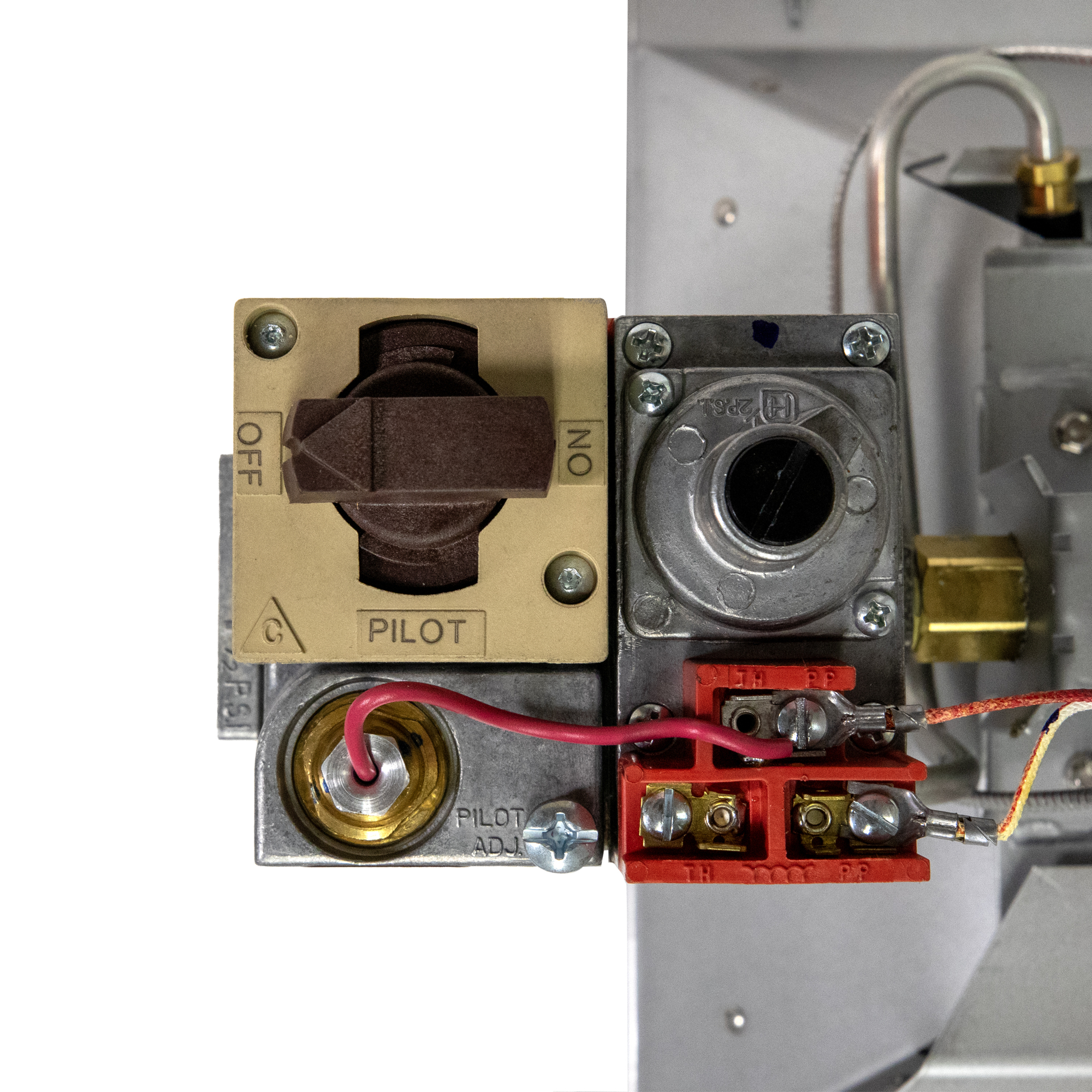

  • Has a power pile thermocouple ignition with manually lit pilot, so no electricity is required.
  • safety shut-off on the pilot and burner
  • INCLUDES thermostat and wall bracket

Key Specs

AttributeSpecification

item#

17363

Brand

Mr. Heater

Manufacturer's Warranty

1 year limited warranty

Ship Weight

21.2 LB

Heat Output

22,000 Btu/hour

Heat Type

Radiant

Heating Capability

500 ft²
AttributeSpecification

Needs Direct Venting

No

Blower Included

No

Thermostat Included

Yes

Oxygen Depletion Sensor

Yes

Product Weight

lb

Dimensions L x W x H (in.)

29.75 x 7.0 x 12.25 in

Reviews

Questions & Answers

13 Reviews This action will navigate to reviews.

Questions

1–10 of 16 Questions
Sort by:

  1. what other parts do I need to order for complete hookup?

    Can I get everything from Northern?

    1. No other parts are needed through Mr. Heater regarding this heater. We provide the thermostat and mounting materials. Check with your local gas distributor for installation.

      Helpful?

    2. You will need:
      1. Gas conduit, either blackpipe or flexible gas line.
      2. Appropriate couplings, elbow joints, reducers for the diameter pipe you will be using.
      3. Gas shut-off valve.
      4. The inlet pressure to the LP heater is 1/2 PSI. Most LP systems are at 2 PSI. You may have to purchase a 2 PSI-to 1/2PSI pressure reducing valve.

      Helpful?

    3. The garage heater will include the heater, mounting brackets, thermostat, vent and gas control valve. The piping needed to hook to your propane tank outside can be purchased from the propane company that will hook up the heater.

      Helpful?

  2. CAN I PUT THIS HEATER IN A GARAGE I PAINT CARS IN

    1. Thank you for your inquiry! Yes. This heater is certified for use in a garage or workshop.

      Helpful?

    2. This heater can be used inside of a garage where you paint your cars.

      Helpful?

  3. Minimum clearance Issues

    My garage is concrete block, open trusses and no insulation. Do I need to maintain the 30" clearance everywhere?

    1. The clearances are as follows: Top: 14", Sides: 16", Back: 12", and Below: 48".

      Helpful?

    2. No. The clearances are as follows: Top: 14", Sides: 16", Back: 12", and Below: 48"

      Helpful?

  4. Can multiple heaters (2) be connected to a single supply line?

    1 answer

    1. Two can be connected to a single gas line, but you will need to increase the pressure to ensure both heaters are getting enough fuel to stay lit. You will need to make sure both units are getting around 11"-14" WC.

      Helpful?

  5. Can this heater be used to hook up to an electric start, but still run on propane?

    1 answer

    1. This heater is not designed to have an electric start. Instructions for starting the heater begin on page 10 of the product manual found on the product webpage.

      Helpful?

  6. How much fuel does this heater use per hour on a medium setting?

    1 answer

    1. This heater uses 1.13 lbs of fuel per hour on the medium setting.

      Helpful?

  7. Do you have to operate this unit at max power? can I use an adjustible regulator to reduce the total output power?

    1 answer

    1. This is equipped with a built in pre set gas regulator, and includes an adjustable thermostat. This should not be used with a different regulator.

      Helpful?

  8. Can this heater be used in garage space of 12x30 where small gasoline engines are being repaired?

    1 answer

    1. As long as the required clearances of 5' below, 3' above, and 24" on either side of the heater are being met, it will work.

      Helpful?

  9. At what maximum altitude will it operate normal

    1 answer

    1. This heater will operate at any altitude as long as it is properly ventilated.

      Helpful?

  10. CAN THIS BE SHUT OFF SO THAT IT DOES NOT COME ON BUT THE PILOT STAYS LIT?

    1 answer

    1. You can set the thermostat at the lowest setting, so the pilot stays lit, but the heater would not come on. If you shut the heater completely off, the pilot will go out.

      Helpful?
