Katool 2-Post Lift, 12,000-Lb. Capacity, 4 HP, Model# KT-H120D

Item# 6349449
"Katool 2-Post Lift, 12,000-Lb. Capacity, 4 HP, Model# KT-H120D"
Katool 2-Post Lift, 12,000-Lb. Capacity, 4 HP, Model# KT-H120D

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Katool 2-Post Lift, 12,000-Lb. Capacity, 4 HP, Model# KT-H120D

Click or Tap image to Zoom

$3199.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Low ceiling lift with 9.25' clearance
  • 2 Post lift 12000lbs lifting capacity.
  • Manual safety release from single side.
  • Screw-on pad and extension support adaptor sets+100mm Feet-protection safety guardrails with tools box.
  • Symmetric arm, base plate design, dual hydraulic chain drive cylinders, robber pad door opening protection.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

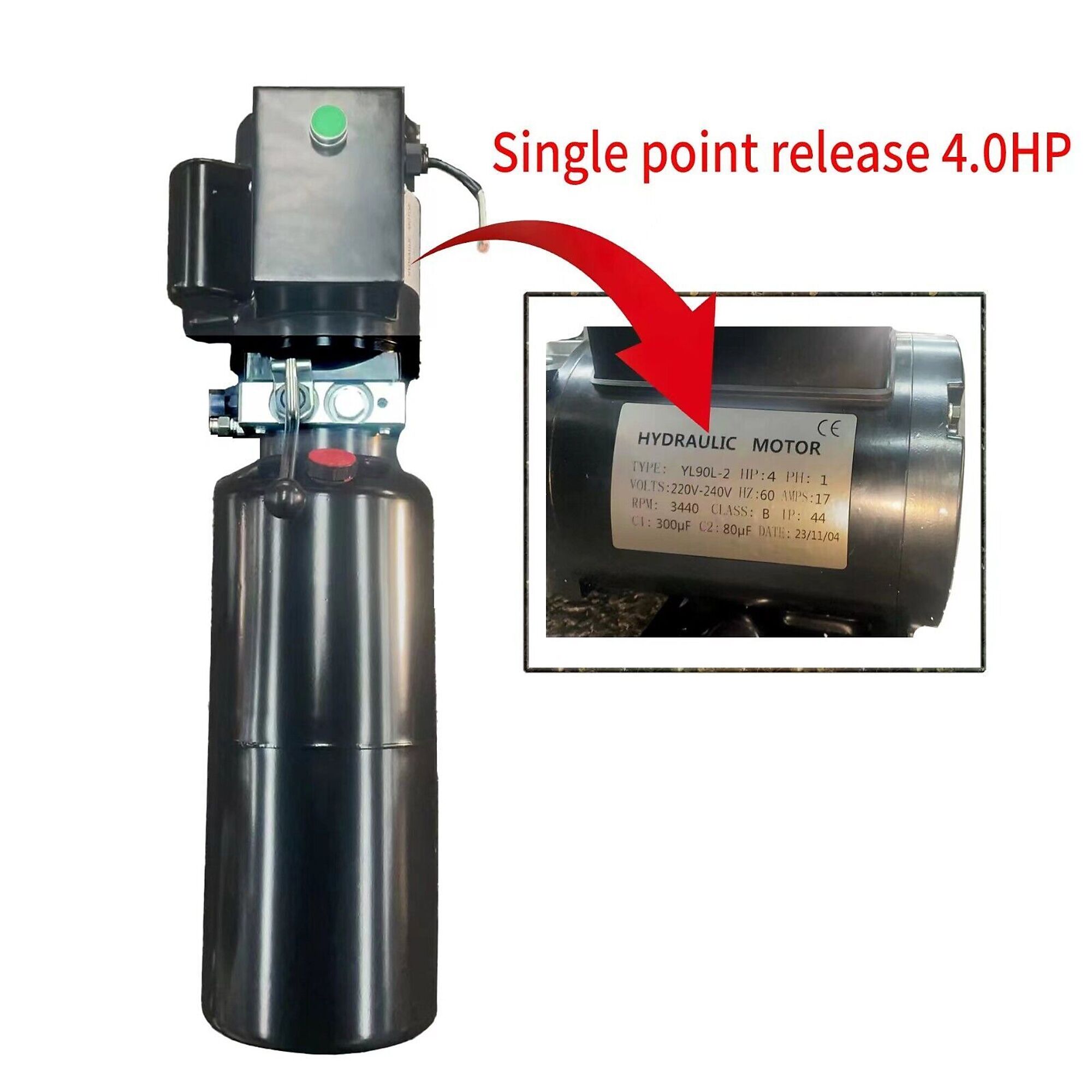

Ready to tackle even the heaviest vehicles with confidence? Introducing the Katool KT-H120D, a powerhouse lift designed to revolutionize your workspace. This heavy-duty beast has a massive 12,000 lb lifting capacity, handling everything from cars to trucks with ease. Safety is built-in with CE approval and rigorous testing exceeding the most extreme industry standards. The single-point lock release and symmetric arm design streamline your workflow, while the extended support adapter accommodates a wider range of vehicles. The lifting is made easy due to the KT-H120D's dual hydraulic chain-drive cylinders, a 4 HP motor, and robust 3/8in. cable ensure reliable and powerful lifting. Rubber pad door protection safeguards vehicles from ugly dings and scratches. So what are you waiting for? Upgrade to the Katool KT-H120D today and experience the power and efficiency of a truly professional lift! Requires a forklift onsite for unloading. This item is delivered Monday-Friday with same day or 24 hours advance contact. A forklift is required to offload the lift from a box truck or a dock-height flatbed trailer.

What's Included

    (8) Anchor Bolts (1) Hydraulic Pump
Play Item Video

Features + Benefits

  • Low ceiling lift with 9.25' clearance
  • 2 Post lift 12000lbs lifting capacity.
  • Manual safety release from single side.
  • Screw-on pad and extension support adaptor sets+100mm Feet-protection safety guardrails with tools box.
  • Symmetric arm, base plate design, dual hydraulic chain drive cylinders, robber pad door opening protection.
  • Top level hydraulic system with 220V/60HZ/1PH.
  • A forklift is required to offload the lift from a box truck or a dock-height flatbed trailer.

Key Specs

AttributeSpecification

item#

6349449

Brand

KATOOL

Manufacturer's Warranty

3 year limited warranty

Ship Weight

1367.0 LB

Capacity

12,000 lb

Max. Rise

6 ft
AttributeSpecification

Horsepower

4 HP

Motor Phase

Single-phase

Volts

220

Locking Position (qty.)

12

Product Weight

1230.0000 lb

Dimensions L x W x H (in.)

18.0 x 130.0 x 110.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. Which size anchor bolts are recommended to anchor the lift to the concrete?

    1 answer

    1. It is recommended to use 3/5" x 5.5" wedge anchor bolts.

      Helpful?

  2. What is drive thru clearance on this lift?

    1 answer

    1. The drive through clearance for this lift is 98.4".

      Helpful?

  3. how much does a post weigh

    1 answer

    1. The overall weight of this 2-post lift is 1367 pounds.

      Helpful?

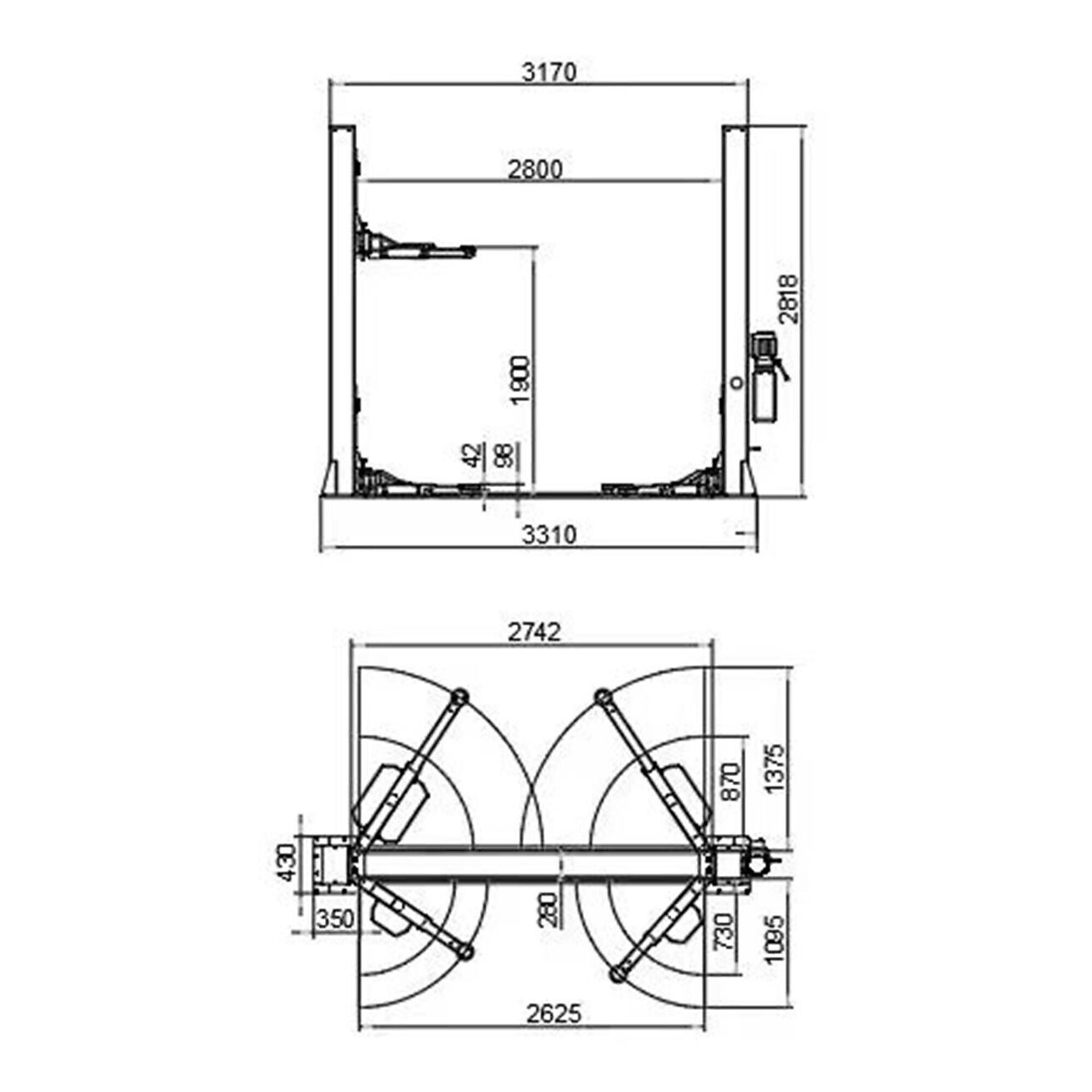

  4. Are the measurements on the photos in inches? CM? MM?

    1 answer

    1. The drawing measurements are listed in MM.

      Helpful?

  5. How thick should concrete be and what stats should it be?

    1 answer

    1. The lift would require a minimum concrete thickness of 4" with a compressive strength of at least 3000 PSI.

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty

Compare with Most Popular in Two-Post Lifts

See All Two-Post Lifts

See All KATOOL Two-Post Lifts

Specifications

Specifications
Katool 2-Post Lift, 12,000-Lb. Capacity, 4 HP, Model# KT-H120D
BendPak 2-Post Car Lift, 10,000-Lb. Capacity, Model# 10AP
BendPak 2-Post Truck and Car Lift, 10,000 Lb. Capacity, Model# 10APX
BendPak, Two Post Parking Lift 6000lb Capacity, Capacity 6000 lb, Max. Rise 6.8 ft, Horsepower 4 HP, Model# PL-6000DCX
Capacity
Same

12,000 lb

10,000 lb

10,000 lb

6,000 lb

Max. Rise
Same

6 ft

6 ft

6.5 ft

6.8 ft

Horsepower
Same

4 HP

3 HP

3 HP

4 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

220

220

220

220

Locking Position (qty.)
Same

12

14

15

10

Product Weight
Same

1230.0000 lb

1710.0000 lb

1766.0000 lb

2288.0000 lb

Dimensions L x W x H (in.)
Same

18.0 x 130.0 x 110.0 in

145.0 x 20.0 x 145.0 in

145.0 x 20.0 x 157.0 in

163.5 x 112.0 x 131.0 in

Lock Spacing
Same

-

3.75 in

4 in

-

Time of Full Rise
Same

-

45 sec.

45 sec.

50 sec.

Pad Height
Same

-

4 in

4 in

-

Drive-Thru Clearance
Same

-

102 in

102 in

-

Material
Same

-

Steel

Steel

Steel
