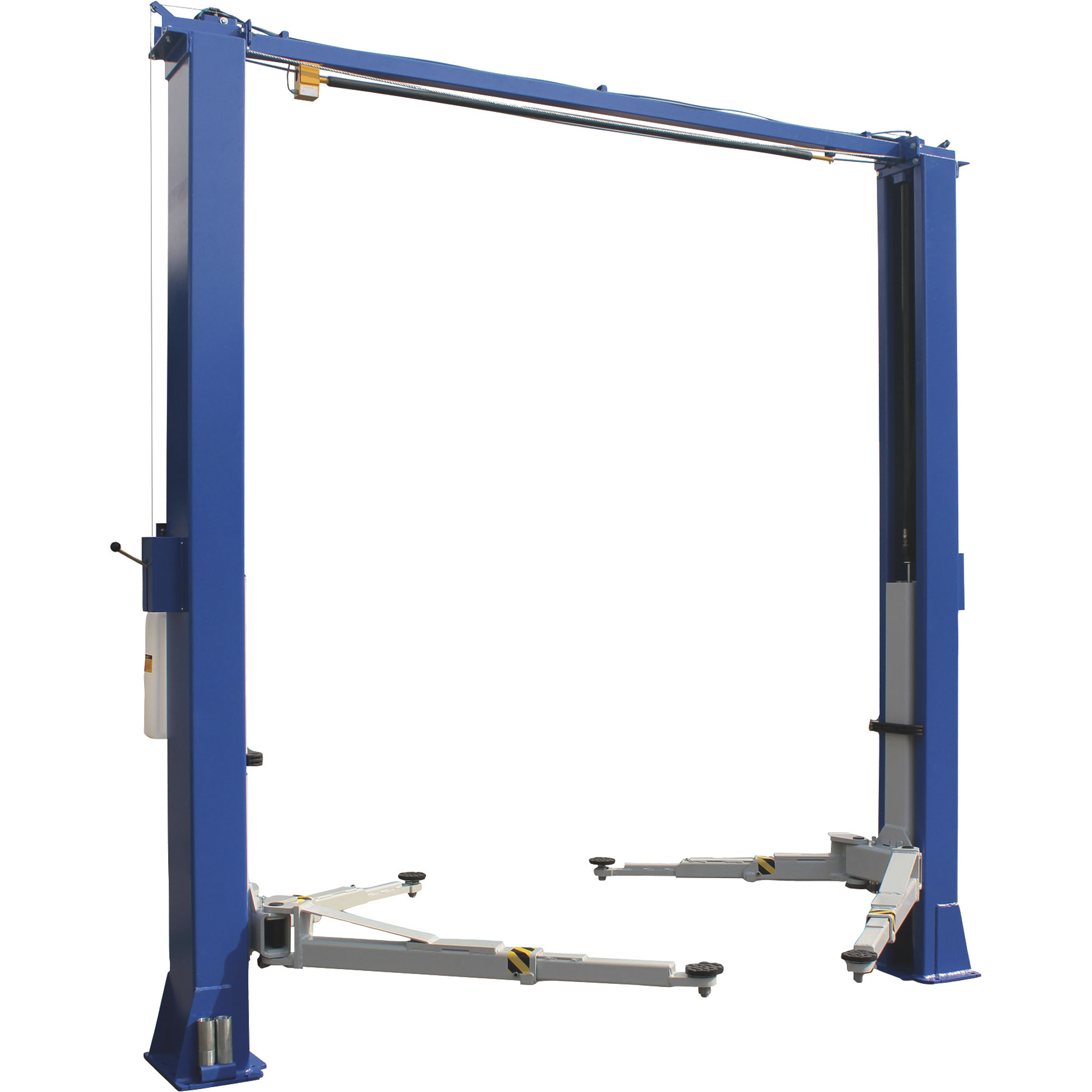

Ideal 2-Post Bi-Symmetric Vehicle Lift, 10,000-Lb. Capacity, Model# TP10KAC-DX

Item# 66416
Ideal 2-Post Bi-Symmetric Vehicle Lift, 10,000-Lb. Capacity, Model# TP10KAC-DX

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ideal 2-Post Bi-Symmetric Vehicle Lift, 10,000-Lb. Capacity, Model# TP10KAC-DX

Click or Tap image to Zoom

$5270.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Asymmetric and symmetric lifting capabilities

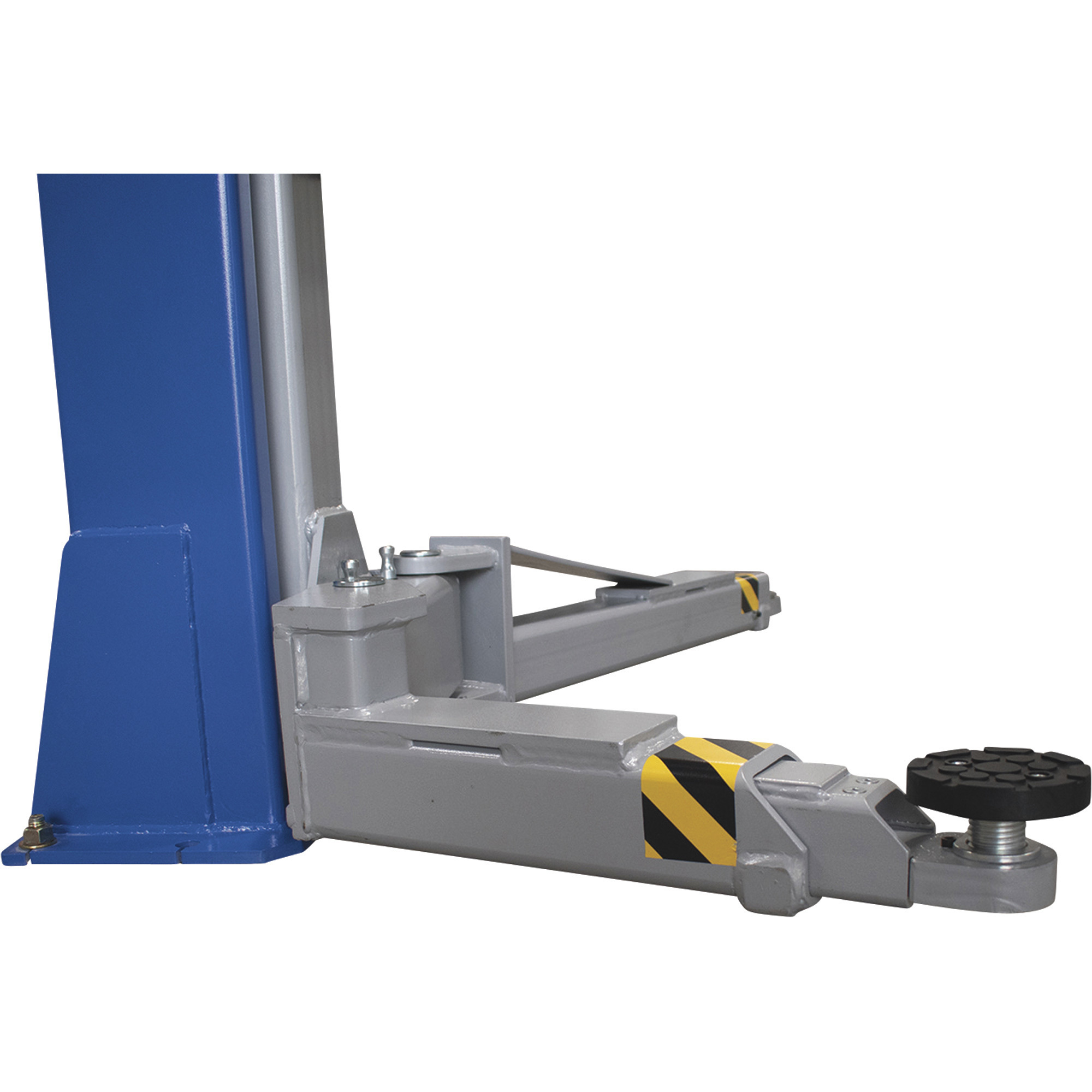

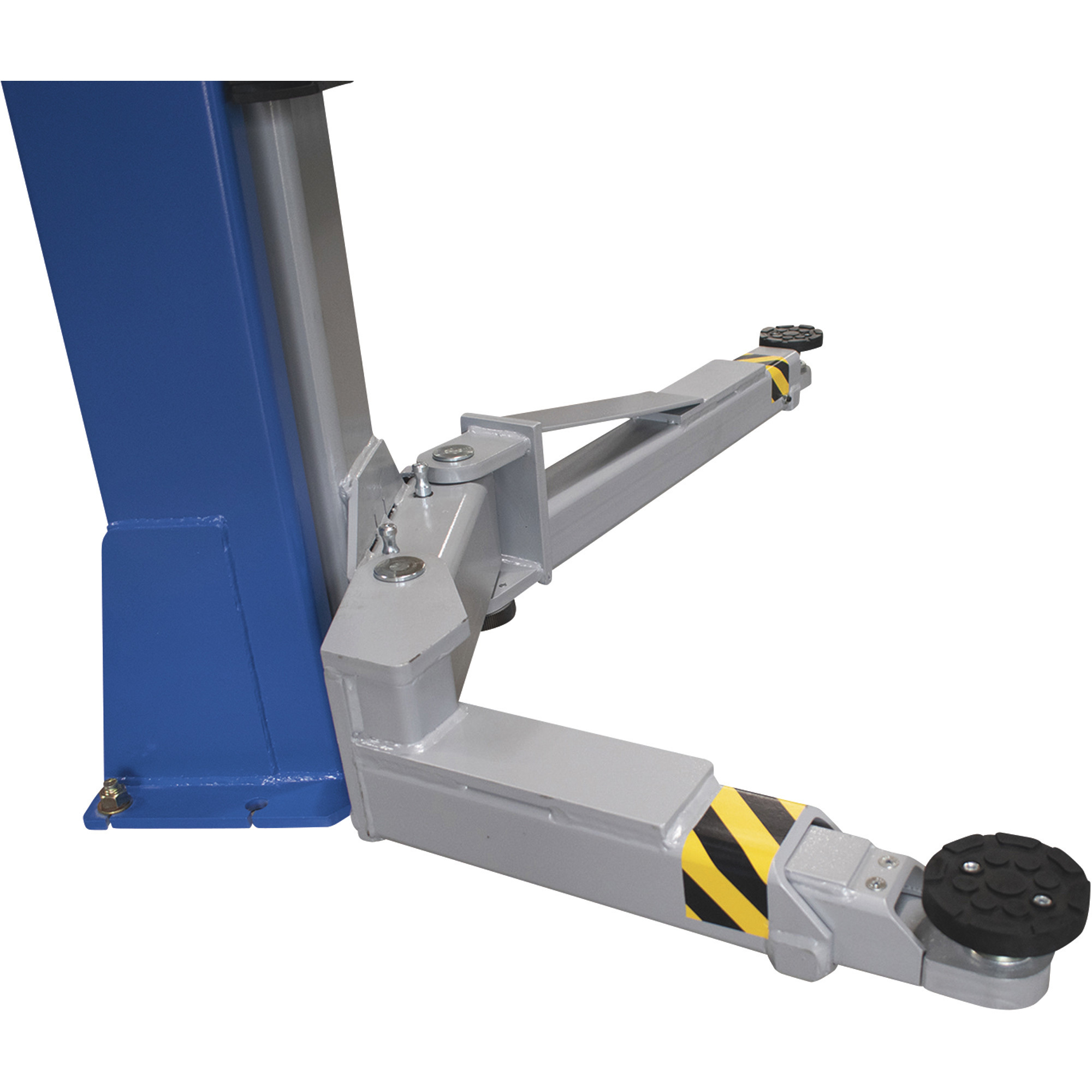

  • Flexible offset 3-stage arm design allows easier lifting of a wide range of vehicles
  • Quick, one-step single point lock release
  • Rigid single piece column for strength and stability
  • Well placed 2 post construction with rubber door guards protects against door dings

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This 10,000-lb. capacity Ideal 2-Post Bi-Symmetric Vehicle Lift features a flexible offset 3-stage arm design that allows for both symmetric and asymmetric lifting. The unique arm design coupled with a 4in. low pad height makes this a very flexible lift and allows for effective lifting of everything from a sports car to a 1-ton pickup truck. Clear floor, 2 post construction with rigid single piece column and direct pull hydraulic cylinder. ALI Certified. Item too large for lift gate. Requires forklift on site for unloading. This item is delivered by LTL enclosed van carriers Monday--Friday. A forklift is required to offload the lift from a dock-height trailer.

What's Included

    (1) 2-post bi-symmetric vehicle lift (4) 2in. truck adapters (4) 4in. truck adapters

Downloads

Product Manual

Features + Benefits

  • Asymmetric and symmetric lifting capabilities
  • Flexible offset 3-stage arm design allows easier lifting of a wide range of vehicles
  • Quick, one-step single point lock release
  • Rigid single piece column for strength and stability
  • Well placed 2 post construction with rubber door guards protects against door dings
  • Clear floor design keeps the working area under a vehicle free from tripping hazards
  • Durable, long lasting cylinder eliminates chain
  • Padded Overhead Shutoff stops vehicle prior to contacting the lift to eliminate over lifting
  • Truck Adapters (included) allow lifting of vehicles with running boards
  • Adjustable spin up pads for quick and easy adjustments
  • Item too large for lift gate; Requires forklift on site for unloading

Key Specs

AttributeSpecification

item#

66416

Brand

iDEAL by Tuxedo

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1705.0 LB

Capacity

10,000 lb

Max. Rise

5.9 ft
AttributeSpecification

Horsepower

1 HP

Motor Phase

Single-phase

Volts

220

Locking Position (qty.)

10

Product Weight

1,705 lb

Reviews

Questions & Answers

Questions

1–3 of 3 Questions
Sort by:

  1. Maximum lifting overhead height, cable or chain, or hydraulic? Height of overhead stop?

    1 answer

    1. The maximum lifting height is 71". The overall height is 144". The hoist will use equalizing cables that are routed through both carriages. This is a hydraulic lift. Maximum hydraulic pressure is 3050 PSI. The electrical power requirement is 20 amp 220 volt single phase.

      Helpful?

  2. Is this lift (Ideal Model# TP10KAC-DX) ALI certified?

    1 answer

    1. The lift is ALI Certified.

      Helpful?

  3. What country is this lift made in?

    1 answer

    1. This unit is made in China.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.

Compare with Most Popular in Two-Post Lifts

See All Two-Post Lifts

See All iDEAL by Tuxedo Two-Post Lifts

Specifications

Specifications
Ideal 2-Post Bi-Symmetric Vehicle Lift, 10,000-Lb. Capacity, Model# TP10KAC-DX
BendPak 2-Post Car Lift, 10,000-Lb. Capacity, Model# 10AP
BendPak 2-Post Truck and Car Lift, 10,000 Lb. Capacity, Model# 10APX
BendPak, Two Post Parking Lift 6000lb Capacity, Capacity 6000 lb, Max. Rise 6.8 ft, Horsepower 4 HP, Model# PL-6000DCX
Capacity
Same

10,000 lb

10,000 lb

10,000 lb

6,000 lb

Max. Rise
Same

5.9 ft

6 ft

6.5 ft

6.8 ft

Horsepower
Same

1 HP

3 HP

3 HP

4 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

220

220

220

220

Locking Position (qty.)
Same

10

14

15

10

Product Weight
Same

1,705 lb

1710.0000 lb

1766.0000 lb

2288.0000 lb

Lock Spacing
Same

-

3.75 in

4 in

-

Time of Full Rise
Same

-

45 sec.

45 sec.

50 sec.

Pad Height
Same

-

4 in

4 in

-

Drive-Thru Clearance
Same

-

102 in

102 in

-

Material
Same

-

Steel

Steel

Steel

Dimensions L x W x H (in.)
Same

-

145.0 x 20.0 x 145.0 in

145.0 x 20.0 x 157.0 in

163.5 x 112.0 x 131.0 in
