Ideal 2-Post Floor Plate Vehicle Lift, 9000-Lb. Capacity, Model# TP9KFX

Item# 66417
"Ideal 2-Post Floor Plate Vehicle Lift, 9000-Lb. Capacity, Model# TP9KFX"
Ideal 2-Post Floor Plate Vehicle Lift, 9000-Lb. Capacity, Model# TP9KFX

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ideal 2-Post Floor Plate Vehicle Lift, 9000-Lb. Capacity, Model# TP9KFX

Click or Tap image to Zoom

$3070.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Symmetric/floor plate design
  • Dependable chain drive
  • Dual point lock release provides added security
  • Reduced overall width with space-saving front-side mounted power unit
  • Single piece column design

See full description

Complete Your Solution

  • Ideal 2-Post Floor Plate Vehicle Lift, 9000-Lb. Capacity, Model# TP9KFX
  • Schumacher Wheeled Battery Charger/Trickle Charger/Desulfator/Engine Starter, 250A Power, Digital Display, Overcharge Protection, Model# SC1325
  • Northern Tool + Equipment Mechanic's Roller Seat with Built-In Storage, 300-Lb. Capacity
Price for all three:

$3429.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Ideal 2-Post Floor Plate Vehicle Lift is excellent for low-ceiling applications. The safety lock design is proven safe and effective, and the saddle adapters are great for lifting framed vehicles. Item too large for lift gate; requires forklift on site for unloading. This item is delivered by LTL enclosed van carriers Monday-Friday. A forklift is required to offload the lift from a dock-height trailer.

What's Included

    (1) 2-post floor plate vehicle lift (1) Set of drop-in swivel pads (4) 1 3/8in. height adapters (4) 4in. height adapters (1) Set of rubber door guards

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Symmetric/floor plate design
  • Dependable chain drive
  • Dual point lock release provides added security

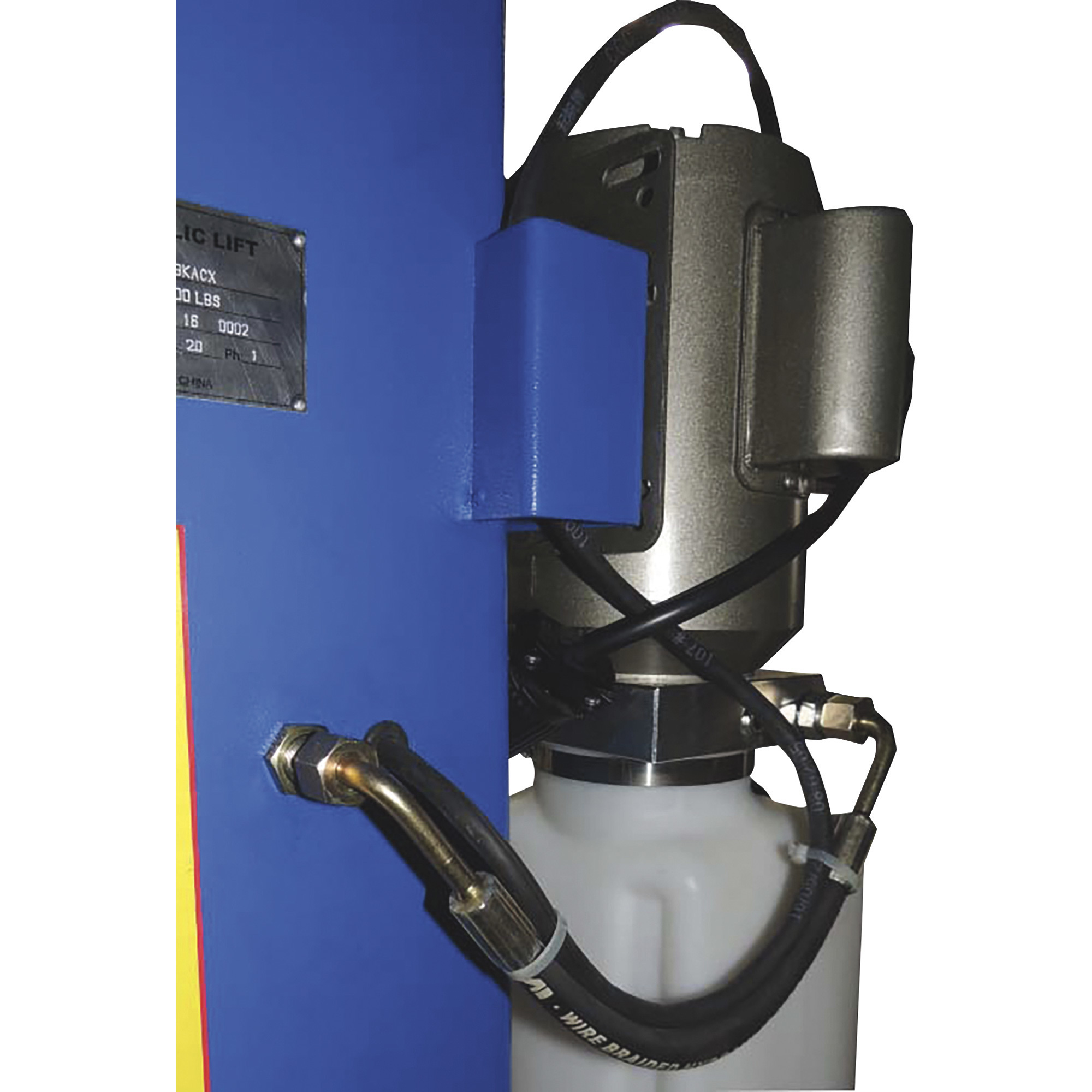

  • Reduced overall width with space-saving front-side mounted power unit
  • Single piece column design
  • Internal hose routing with integrated hose guards provide protection and a clean look
  • Rubber door guards protect car doors from contact with lift post

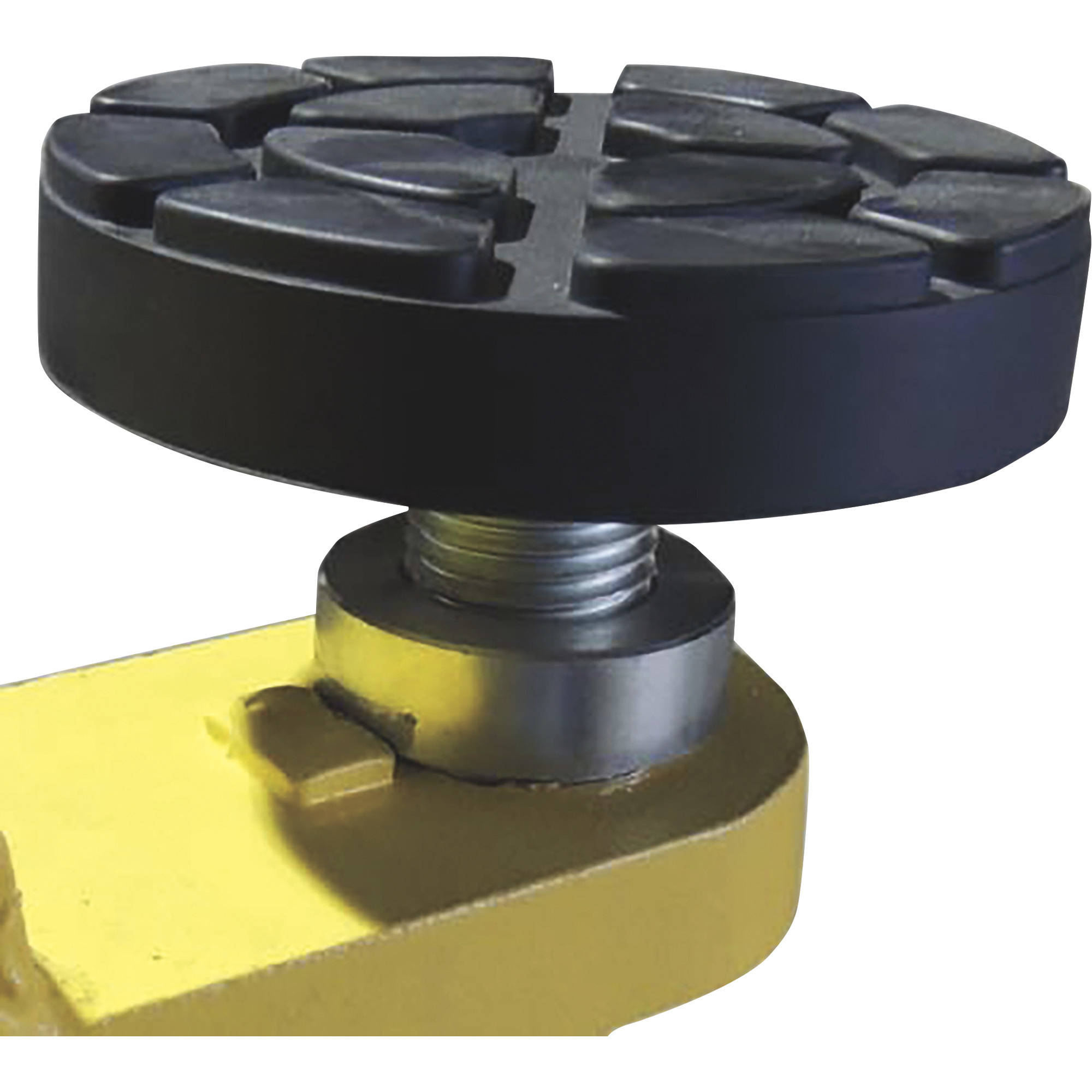

  • Low pad height is great for lifting low profile vehicles with screw up function for finite adjustment
  • Height adapters are excellent for lifting vehicles with running boards
  • Durable, corrosion-resistant powder-coat finish that is designed to last

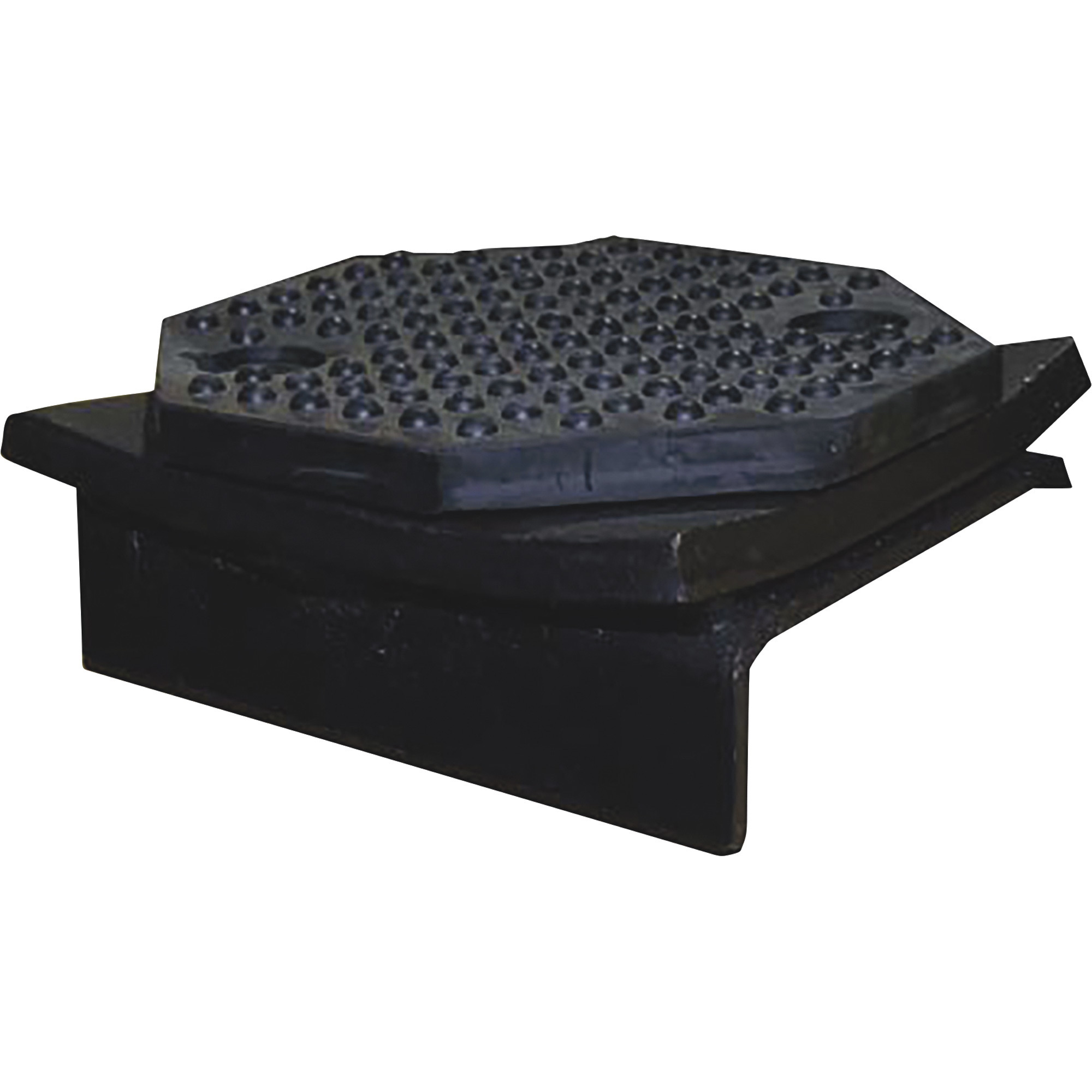

  • Includes 1 pair of saddle pad adapters, low profile "drop-in" swivel pads with 1 1/2in. adjustable height, 4 ea. stackable 1 3/8in. and 4in. "drop-in" height adapters
  • Item too large for lift gate; requires forklift on site for unloading

Key Specs

AttributeSpecification

item#

66417

Brand

iDEAL by Tuxedo

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1265.0 LB

Capacity

9,000 lb

Max. Rise

6 ft

Horsepower

1 HP
AttributeSpecification

Motor Phase

Single-phase

Volts

220

Locking Position (qty.)

8

Time of Full Rise

50 sec.

Drive-Thru Clearance

101 in

Material

Steel

Product Weight

1,265 lb

Reviews

Questions & Answers

23 Reviews This action will navigate to reviews.

Questions

1–10 of 34 Questions
Sort by:

  1. What is the weight of the heaviest single item.

    I'm wondering if it is manageable by two people.

    1. I lifted post by myself. It was heavy but I’m 52 yrs old and 167 lbs

      Helpful?

    2. It is definitely manageable by two people. I was able to assemble it myself using an engine hoist and wheel dolly to help move the heavy pieces.

      Helpful?

    3. The columns would be the heaviest pieces and would weigh approximately 500 pounds each.

      Helpful?

  2. My garage has a 3 inch slope from side to side, will that affect installation and use?

    1. You will have to cut the floor form up with rebar and pour concrete in then bolt to the floor to do it right the instructions will tell you exactly how to do it safely

      Helpful?

    2. The slope would affect the installation and use of the 2 post lift. The lift has to be installed on a level concrete floor. You would need to find a way to level the garage to mount the lift.

      Helpful?

  3. Is this lift certified ANSI/ALI ALCTV standard

    1 answer

    1. Model # TP9KFX is not certified to meet the ANSI/ALI ALCTV standard.

      Helpful?

  4. Thickness of cement needed

    1 answer

    1. The concrete should be a minimum of 4-1/4” thickness and 3,000 psi tensile strength with steal or fiber mesh reinforcement.

      Helpful?

  5. Can the height adjusters be bought separately

    1 answer

    1. The rubber swivel pad part number MSTPK9KFX-017, swivel pad weldment part number MSTPK9KFX-018 and screw collar part number MSTPK9KFX-019 can be purchased separately. Northern Tool does not sell these parts. To order, please contact our sister company Jacks Small Engine at the link below. https://www.jackssmallengines.com/

      Helpful?

  6. Need to know how wide are each of the posts

    1 answer

    1. The width from front to back from the side on each post is 11" and the depth across the front is 7 1/4".

      Helpful?

  7. Does this lift have locks on it for different heights?

    1 answer

    1. The lift does come equipped with safety locks. The first safety latch engagement is at approximately 30 inches high.

      Helpful?

  8. What is the dimension of the shipping package? model TP9KFX

    1 answer

    1. The shipping dimensions will be 117'' long, 18'' wide, and 42'' high.

      Helpful?

  9. Does this unit have a safety latch?

    1 answer

    1. This Ideal 2-Post Floor Plate Vehicle Lift does features a safety latch on each side.

      Helpful?

  10. Are the anchor bolts drive in or epoxy type bolts?

    1 answer

    1. The included anchors are driven concrete anchors.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

1 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.

Compare with Most Popular in Two-Post Lifts

See All Two-Post Lifts

See All iDEAL by Tuxedo Two-Post Lifts

Specifications

Specifications
Ideal 2-Post Floor Plate Vehicle Lift, 9000-Lb. Capacity, Model# TP9KFX
BendPak 2-Post Car Lift, 10,000-Lb. Capacity, Model# 10AP
BendPak 2-Post Truck and Car Lift, 10,000 Lb. Capacity, Model# 10APX
BendPak, Two Post Parking Lift 6000lb Capacity, Capacity 6000 lb, Max. Rise 6.8 ft, Horsepower 4 HP, Model# PL-6000DCX
Capacity
Same

9,000 lb

10,000 lb

10,000 lb

6,000 lb

Max. Rise
Same

6 ft

6 ft

6.5 ft

6.8 ft

Horsepower
Same

1 HP

3 HP

3 HP

4 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

220

220

220

220

Locking Position (qty.)
Same

8

14

15

10

Time of Full Rise
Same

50 sec.

45 sec.

45 sec.

50 sec.

Drive-Thru Clearance
Same

101 in

102 in

102 in

-

Material
Same

Steel

Steel

Steel

Steel

Product Weight
Same

1,265 lb

1710.0000 lb

1766.0000 lb

2288.0000 lb

Lock Spacing
Same

-

3.75 in

4 in

-

Pad Height
Same

-

4 in

4 in

-

Dimensions L x W x H (in.)
Same

-

145.0 x 20.0 x 145.0 in

145.0 x 20.0 x 157.0 in

163.5 x 112.0 x 131.0 in
