Tuxedo 2-Post Asymmetric Low-Profile Clear Floor Automotive Lift, 9000-Lb. Capacity, Blue, Model# TP9KACX

Item# 71525
"Tuxedo 2-Post Asymmetric Low-Profile Clear Floor Automotive Lift, 9000-Lb. Capacity, Blue, Model# TP9KACX"
Tuxedo 2-Post Asymmetric Low-Profile Clear Floor Automotive Lift, 9000-Lb. Capacity, Blue, Model# TP9KACX

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Tuxedo 2-Post Asymmetric Low-Profile Clear Floor Automotive Lift, 9000-Lb. Capacity, Blue, Model# TP9KACX

Click or Tap image to Zoom

$3150.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Reaches 72in. maximum rise in 50 seconds
  • Overhead style lift with rugged single-piece column construction on each post
  • Internal hose routing protects hoses
  • Padded overhead shutoff bar with kill switch protects the vehicle roof
  • Reduced overall width takes up less floor space

See full description

Complete Your Solution

  • Tuxedo 2-Post Asymmetric Low-Profile Clear Floor Automotive Lift, 9000-Lb. Capacity, Blue, Model# TP9KACX
  • Tuxedo Automotive Lift Cradle Adapter Set, 4-Pieces, Model# TP9KX-SPNCA
Price for all two:

$3429.00

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Tuxedo 2-Post Low-Profile Clear Floor Automotive Lift offers excellent performance at a great value. The 9000-lb. handles most cars and light trucks. The 2-post, asymmetric clear floor design won't get in the way when you are underneath the vehicle. 220 Volt operation with 2.5 HP, single-phase motor. Includes a set of drop-in swivel pads, 8 height adapters (4 ea. of 1 3/8in. and 4in. heights), and a set of rubber door guards. Item too large for lift gate. Requires forklift on site for unloading. This item is delivered by LTL enclosed van carriers Monday-Friday. A forklift is required to offload the lift from a dock-height trailer.

What's Included

    (1) 2-post lift (1) Set of drop-in swivel pads (4) 1 3/8in. height adapters (4) 4in. height adapters (1) Set of rubber door guards
Play Item Video

Features + Benefits

  • Reaches 72in. maximum rise in 50 seconds
  • Overhead style lift with rugged single-piece column construction on each post
  • Internal hose routing protects hoses
  • Padded overhead shutoff bar with kill switch protects the vehicle roof
  • Reduced overall width takes up less floor space
  • Drop-in adjustable swivel pads with height adapters add versatility
  • Set of rubber door guards protects against nicks and dings
  • Item too large for lift gate; requires forklift on site for unloading

Key Specs

AttributeSpecification

item#

71525

Brand

Tuxedo

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1370.0 LB

Capacity

9,000 lb

Max. Rise

6 ft
AttributeSpecification

Horsepower

1 HP

Motor Phase

Single-phase

Volts

220

Locking Position (qty.)

14

Product Weight

1,370 lb

Reviews

Questions & Answers

10 Reviews This action will navigate to reviews.

Questions

1–10 of 16 Questions
Sort by:

  1. What is the thing under the main cross bar and what does it do?

    1. This is a safety shutoff bar, it stops the lift when it comes in contact with the vehicle.

      Helpful?

    2. In the description it reads "Padded overhead shutoff bar with kill switch protects the vehicle roof". In other words, it stops the vertical lift so you don't dent your roof of the vehicle.

      Helpful?

    3. that is a safety shutoff bar. turns lift off at max height

      Helpful?

  2. does your company have installers for your lifts or are they all self-install ?

    1 answer

    1. Northern Tool does not have installers for these lifts.

      Helpful?

  3. overall height / ceiling needed

    1 answer

    1. The overall height of the lift is 142.9". The ceiling height should be a minimum of 2" higher than the lift. It has a maximum rise of 72".

      Helpful?

  4. Pouring new concrete slab. What is the spacing required between each column?

    1 answer

    1. The spacing between posts is 113-5/8".

      Helpful?

  5. Is this shipped as one package or does it come in more than one crate/box? Trying to figure my lift capacity to cover lifting it off a truck.

    1 answer

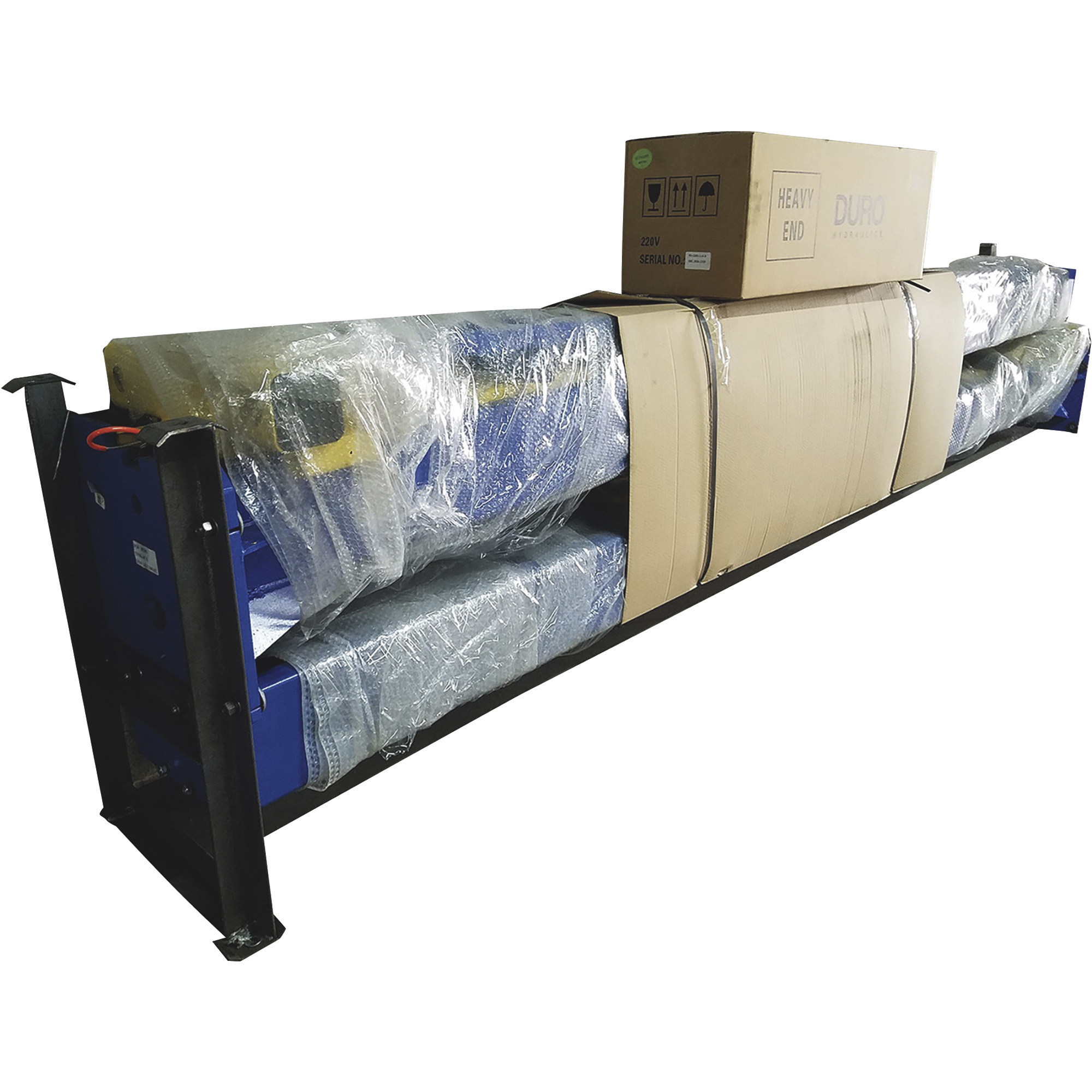

    1. This lift ships in a package that is 148" L x 18" W x 42" H. The shipping weight would be 1370 pounds.

      Helpful?

  6. what is required minimum ceiling height

    1 answer

    1. The minimum ceiling height is 12 feet.

      Helpful?

  7. can I install on cement 8inch slab outside in newhampshire cold wet weather

    1 answer

    1. The lift is for indoor installation only. It cannot be installed outside.

      Helpful?

  8. What are the 1 3/8 inch height adaptors quantity 4 that come with the unit?  Where are they used.

    1 answer

    1. They would be used for additional height on a truck or vehicle that the standard pads cannot reach.

      Helpful?

  9. Can I put this lift in a 20x20x12

    1 answer

    1. The lift has an overall height of 11.9 feet and an overall width of 11.5 feet.

      Helpful?

  10. How is this powered?

    1 answer

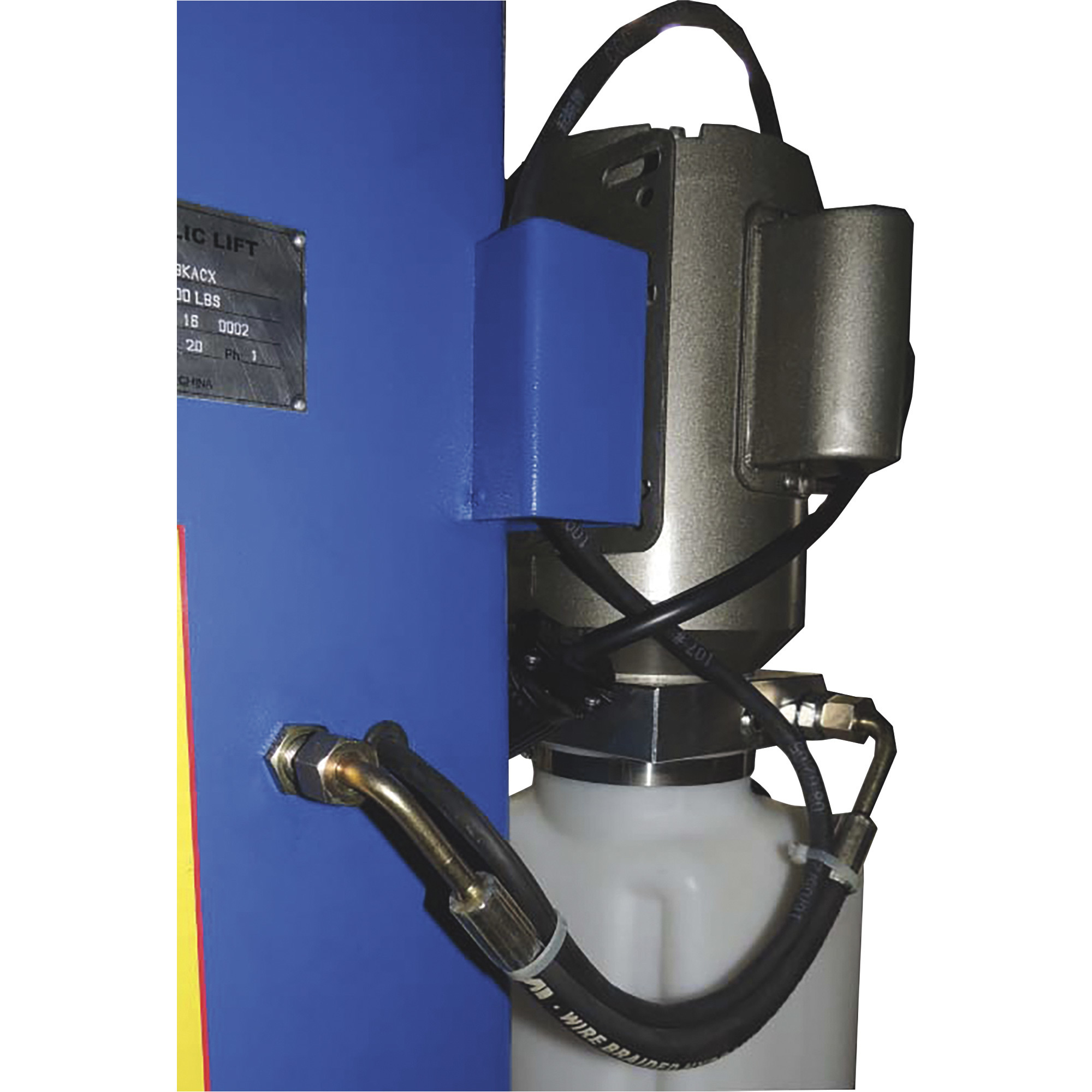

    1. This 2-post lift would need to be hardwired for 220 volt.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

1 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.

Compare with Most Popular in Two-Post Lifts

See All Two-Post Lifts

See All Tuxedo Two-Post Lifts

Specifications

Specifications
Tuxedo 2-Post Asymmetric Low-Profile Clear Floor Automotive Lift, 9000-Lb. Capacity, Blue, Model# TP9KACX
BendPak 2-Post Car Lift, 10,000-Lb. Capacity, Model# 10AP
BendPak 2-Post Truck and Car Lift, 10,000 Lb. Capacity, Model# 10APX
BendPak, Two Post Parking Lift 6000lb Capacity, Capacity 6000 lb, Max. Rise 6.8 ft, Horsepower 4 HP, Model# PL-6000DCX
Capacity
Same

9,000 lb

10,000 lb

10,000 lb

6,000 lb

Max. Rise
Same

6 ft

6 ft

6.5 ft

6.8 ft

Horsepower
Same

1 HP

3 HP

3 HP

4 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

220

220

220

220

Locking Position (qty.)
Same

14

14

15

10

Product Weight
Same

1,370 lb

1710.0000 lb

1766.0000 lb

2288.0000 lb

Lock Spacing
Same

-

3.75 in

4 in

-

Time of Full Rise
Same

-

45 sec.

45 sec.

50 sec.

Pad Height
Same

-

4 in

4 in

-

Drive-Thru Clearance
Same

-

102 in

102 in

-

Material
Same

-

Steel

Steel

Steel

Dimensions L x W x H (in.)
Same

-

145.0 x 20.0 x 145.0 in

145.0 x 20.0 x 157.0 in

163.5 x 112.0 x 131.0 in
