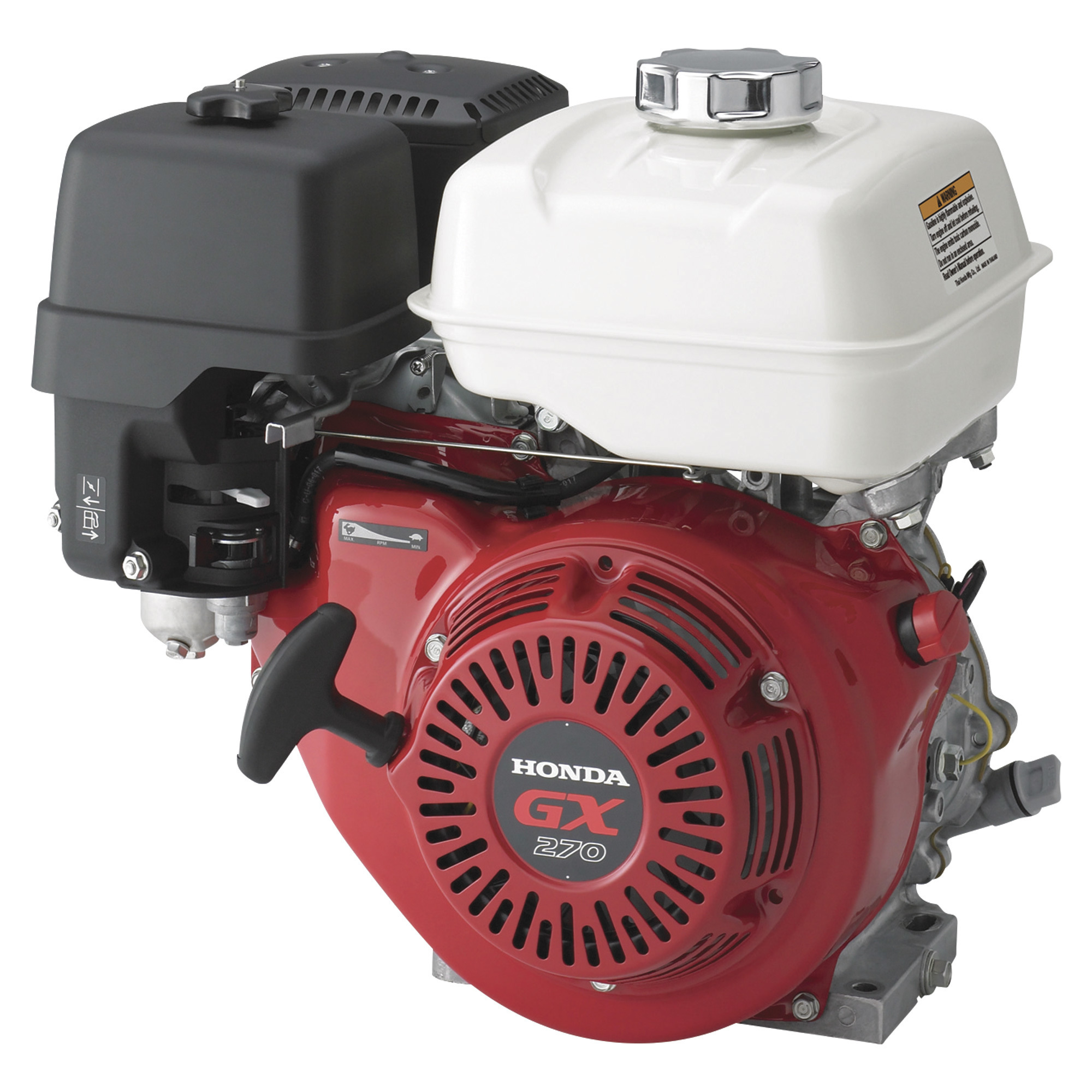

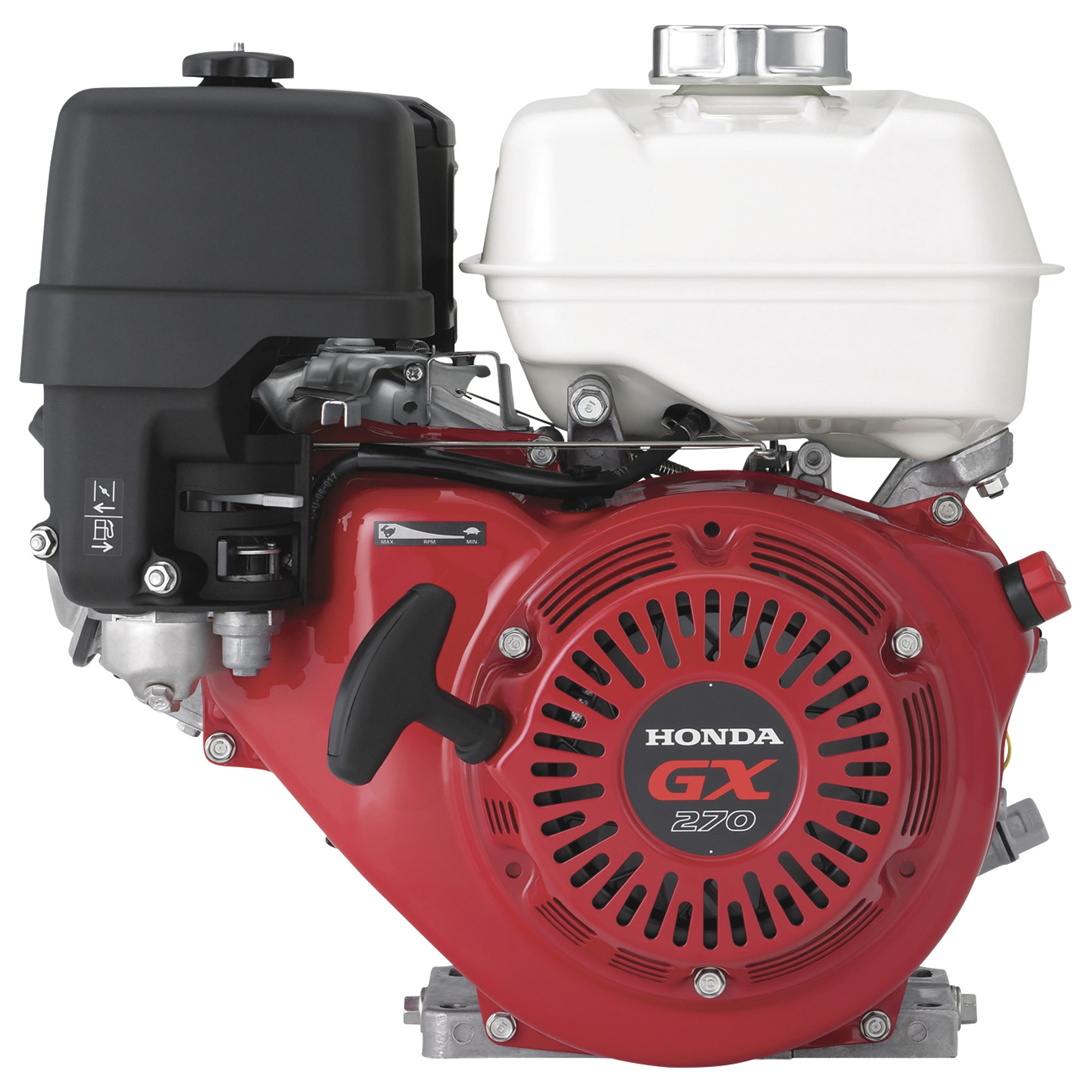

Honda Engines, HONDA 270CC OHV ENGINE, Engine Displacement 270 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX270UT2XQA2

Item# 60968
"Honda Engines, HONDA 270CC OHV ENGINE, Engine Displacement 270 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX270UT2XQA2"
Honda Engines, HONDA 270CC OHV ENGINE, Engine Displacement 270 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX270UT2XQA2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Honda Engines, HONDA 270CC OHV ENGINE, Engine Displacement 270 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX270UT2XQA2

Click or Tap image to Zoom

$739.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Out of stock at Fredericksburg VA

  • Precision camshaft design for precise valve timing, optimal valve overlap and better fuel economy
  • OHV design for increased efficiency and optimal power transfer
  • High compression ratio for better fuel efficiency
  • Low vibration from precision-engineered components
  • Ball bearing-supported crankshaft for greater stability

See full description

Complete Your Solution

  • Honda Engines, HONDA 270CC OHV ENGINE, Engine Displacement 270 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX270UT2XQA2
  • Honda Engines, HONDA MAINT. KIT, Pieces (qty.) 4 Model# HONDAKIT4
  • Honda Power Equipment 10W-30 Motor Oil, 1-Qt. Bottle
  • Drainzit, DRAINZIT OIL CHANGE AID, Model# HON1012-C.DRA
Price for all four:

$828.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Honda 270cc GX Series OHV commercial-grade engine is designed for the most demanding commercial applications. It has set an industry standard for reliability and durability. Overhead Valve design offers cooler, fuel-efficient operation and cast iron cylinder sleeve provides longer service life. The GX is reliable, easy starting and quiet running. Meets EPA and CARB emission levels standards. This legendary engine has earned the reputation as the preferred engine for construction equipment. Common applications include pressure washers, compressors, go-karts, log splitters and chipper/shredders. Not for sale in CA.

What's Included

    (1) Honda Horizontal OHV Engine, Model# GX270UT2XQA2

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Precision camshaft design for precise valve timing, optimal valve overlap and better fuel economy
  • OHV design for increased efficiency and optimal power transfer
  • High compression ratio for better fuel efficiency
  • Low vibration from precision-engineered components
  • Ball bearing-supported crankshaft for greater stability
  • Large capacity, multi-chamber exhaust system for a low noise level
  • Sophisticated air intake system
  • Oil Alert for extra engine protection
  • Carburetor filter and chamber coating help protect against fuel impurities
  • Cast iron cylinder sleeve
  • Dual element air filter
  • Simple throttle control
  • Double walled heavy-duty 5.6-qt. tank with in-tank fuel strainer
  • Large automotive-style fuel cap for easy filling
  • Dual oil fills and drains for quick oil changes
  • Easily accessible spark plug
  • Ergonomic recoil design for easy starts
  • Automatic decompression for easy starting
  • Not for sale in CA

Key Specs

AttributeSpecification

item#

60968

Brand

Honda Engines

Manufacturer's Warranty

3 year limited warranty

Ship Weight

56.0 LB

Engine Displacement

270 cc

Engine Type

GX Series OHV Commercial-duty

Shaft Diameter

1 in

Shaft Length

3.48 in

Start Type

Recoil

Net Torque

14.1 ft-lbs.

Crankshaft

Q-type

PTO Height

5.25 in

Cylinders (qty.)

1

Cylinder Bore

Cast Iron

Net Power Output

8.5 HP

Compression Ratio

8.5:1
AttributeSpecification

Fuel Tank Capacity

5.6 qt

Oil Capacity

1.16 qt

Low Oil Alert

Yes

Shaft Rotation (From PTO Shaft Side)

Counter Clockwise

Governor System

Centrifugal Mechanical

Ignition System

Electronic

Carburetor

Float, External Vent

Lubrication System

Splash

Cooling System

Air

Bore

3 in

Stroke

2.3 in

Air Cleaner Type

Dual Element

Choke Control

Manual

Throttle Control

Remote

Fuel Filter

Yes

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. What is the size and the number of threads/inch of the threaded hole in the end of the shaft on the Honda engine model # GX270UT2QA2

    1. This engine has a 3-31/64" x 1" shaft with a 3/8" -24 threads per inch (TPI) tapped end.

      Helpful?

    2. 3/8" 24 tpi, in the speck section right under the shaft size.

      Helpful?

  2. Is the shaft keyed and if so what size? 1/4"?

    Not in the listed specs regarding the crank shaft. as for most engines listed.

    1. Shaft is 1" and keyway is 1/4'

      Helpful?

    2. This engine does have a 1/4" keyed shaft.

      Helpful?

  3. when you mention throttle control is "remote (wire)" do you mean by throttle cable as you would use on a go cart, etc?

    1 answer

    1. On this motor you will find a small hole in the throttle lever where a throttle cable or wire can be inserted. This is a general purpose engine that could be used on a go cart.

      Helpful?

  4. Electric Start

    Can I remove the electric start from my old GX270 and install on a new GX270 that doesn't come with electric start? If so, is it a fairly easy task?

    1 answer

    1. You are not able to add the electric start feature to an engine that does not have it included upon the purchase.

      Helpful?

  5. propane conversion kit for GX620

    1 answer

    1. There is no propane conversion kit available for this gasoline engine.

      Helpful?

  6. To mount engine what is the bolt holes space on center ? to bolt engine to frame .

    1 answer

    1. This Honda horizontal OHV engine - 270cc has a bolt circle diameter of 5" and 6 1/2". To measure the bolt circle you want to measure from the center of the shaft to the center of the bolt and multiply by 2.

      Helpful?

  7. What is the estimated Horse power of 270cc engine?

    1 answer

    1. The historical rating for horsepower would be 8 for this engine.

      Helpful?
