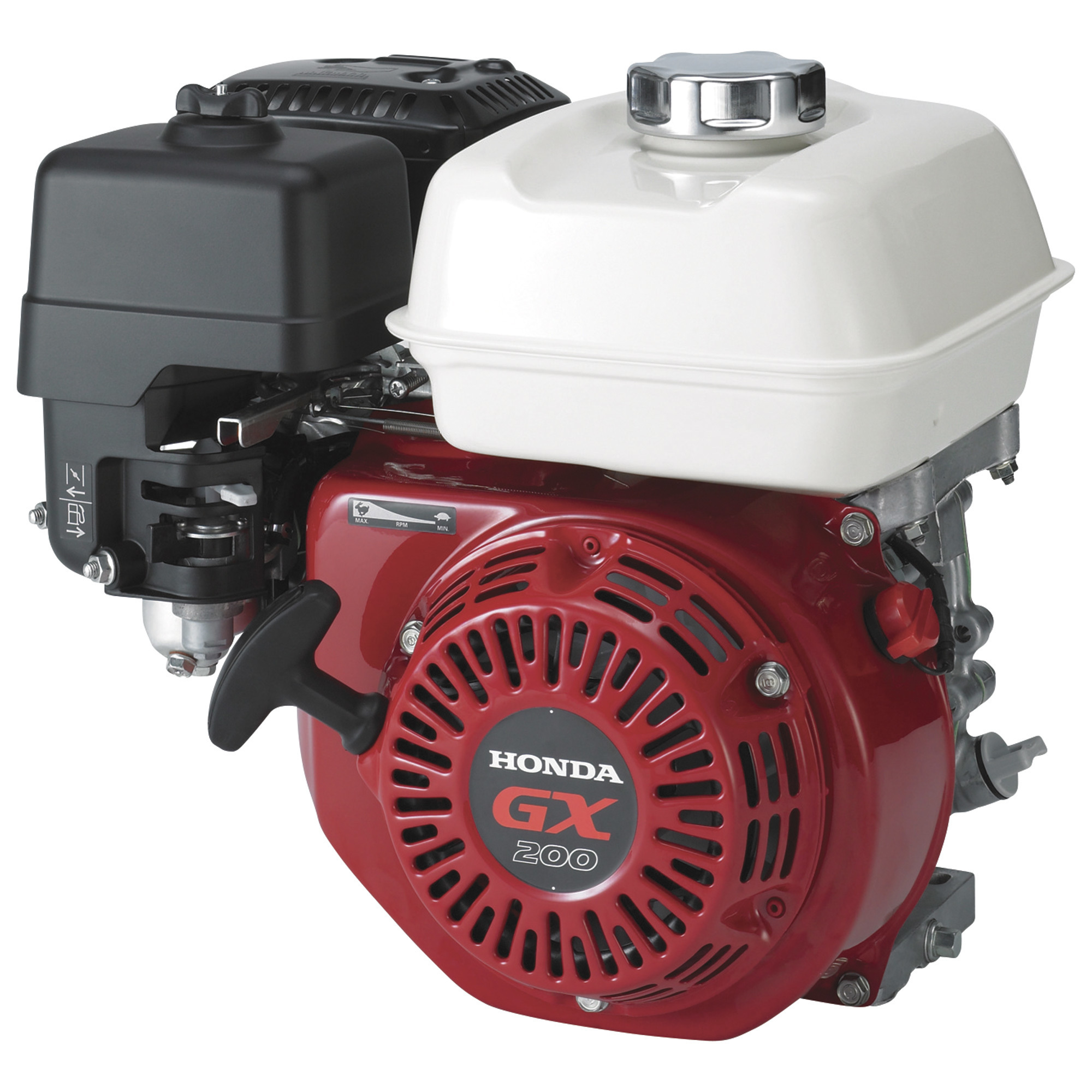

Honda Engines, 200CC HONDA ENG W/THREAD SHAFT, Engine Displacement 196 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 5/8 in, Model# GX200UT2XTX2

Item# 606511
Honda Engines, 200CC HONDA ENG W/THREAD SHAFT, Engine Displacement 196 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 5/8 in, Model# GX200UT2XTX2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Honda Engines, 200CC HONDA ENG W/THREAD SHAFT, Engine Displacement 196 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 5/8 in, Model# GX200UT2XTX2

Click or Tap image to Zoom

$499.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Honda 196cc GX OHV air-cooled, 4-stroke, horizontal engine
  • Automatic decompression for easy starting
  • Heavy-duty ball bearing supported crankshaft
  • Double walled heavy-duty tank with in tank fuel strainer
  • 49 state compliant engine, not for sale in CA

See full description

Complete Your Solution

  • Honda Engines, 200CC HONDA ENG W/THREAD SHAFT, Engine Displacement 196 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 5/8 in, Model# GX200UT2XTX2
  • Honda Power Equipment 10W-30 Motor Oil, 1-Qt. Bottle
  • Honda Engines, HONDA MAINT. KIT, Pieces (qty.) 4 Model# HONDAKIT3
  • GDI, HOUR METER W/TACHOMETER, Model# N111-0100-1005
Price for all four:

$592.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Honda 196cc GX Series OHV commercial-grade engine is designed for the most demanding commercial applications. It has set an industry standard for reliability and durability. Overhead valve design offers cooler, fuel-efficient operation and cast iron cylinder sleeve provides longer service life. The GX is reliable, easy starting and quiet running. Meets EPA and CARB emission levels standards. This legendary engine has earned the reputation as the preferred engine for construction equipment. Common application is for non-Honda water pumps; ideal for US made centrifugal pumps.

What's Included

    (1) Engine, Model# GX200UT2XTX2

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Honda 196cc GX OHV air-cooled, 4-stroke, horizontal engine
  • Automatic decompression for easy starting
  • Heavy-duty ball bearing supported crankshaft
  • Double walled heavy-duty tank with in tank fuel strainer
  • 49 state compliant engine, not for sale in CA

Key Specs

AttributeSpecification

item#

606511

Brand

Honda Engines

Manufacturer's Warranty

3 year limited warranty

Ship Weight

39.0 LB

Engine Displacement

196 cc

Engine Type

GX Series OHV Commercial-duty

Shaft Diameter

5/8 in

Shaft Length

2.42 in

Start Type

Recoil

Net Torque

9.1 ft-lbs.

Crankshaft

T-type

PTO Height

4.17 in

Cylinders (qty.)

1

Cylinder Bore

Cast Iron

Net Power Output

5.5 HP

Compression Ratio

8.5:1
AttributeSpecification

Fuel Tank

Yes

Fuel Tank Capacity

3.3 qt

Oil Capacity

0.63 qt

Low Oil Shutdown

Yes

Shaft Rotation (From PTO Shaft Side)

Counter Clockwise

Governor System

Centrifugal Mechanical

Ignition System

Electronic

Carburetor

Float

Lubrication System

Splash

Cooling System

Air

Bore

2.7 in

Stroke

2.1 in

Air Cleaner Type

Dual Element

Choke Control

Manual

Throttle Control

Manual

Muffler Included

Yes

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. please provide the pump curve showing discharge pressure, flow rate and horsepower

    1 answer

    1. This engine produces 5.6 horsepower (HP) at 3,600 revolutions per minute (rpm) and generates 12.4 Newton-meters (Nm) of torque at 2,500 rpm. The true pump curve, which illustrates the relationship between discharge pressure, flow, and horsepower, is determined by the pump's hydraulics, rather than the engine that powers it. This curve will be specific to the pump used with this engine.

      You can find the engine performance curve chart, which displays net power and torque versus RPM, under Product Summary → Downloads → Additional Product Info.

      Helpful?

  2. Is the engine made in USA-?

    1 answer

    1. This Honda engine is made in Thailand.

      Helpful?

  3. Does this engine have a charging coil? (I don't have room for electric start, but do need the charging coil.)

    1 answer

    1. The engine does not come with a charging coil.

      Helpful?
