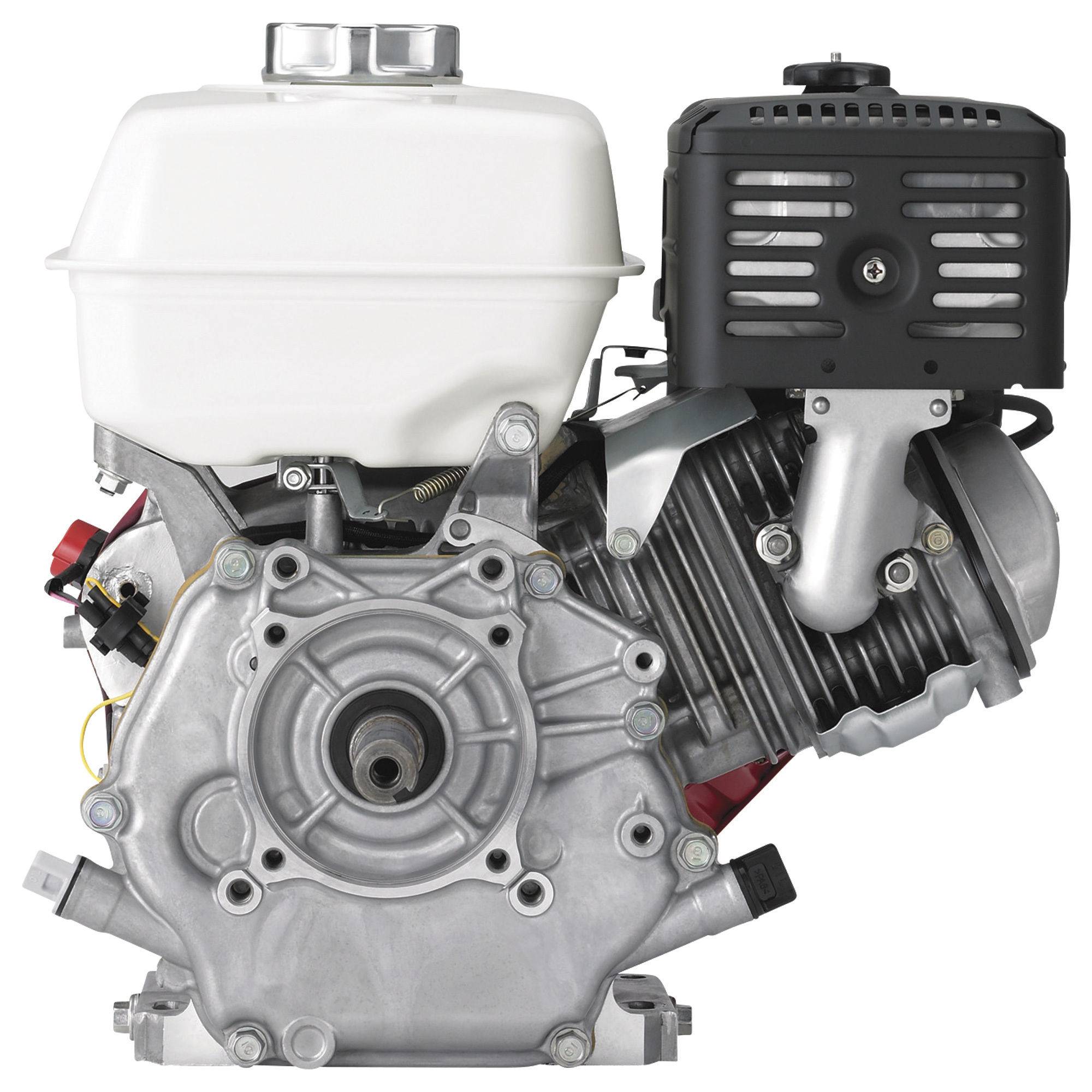

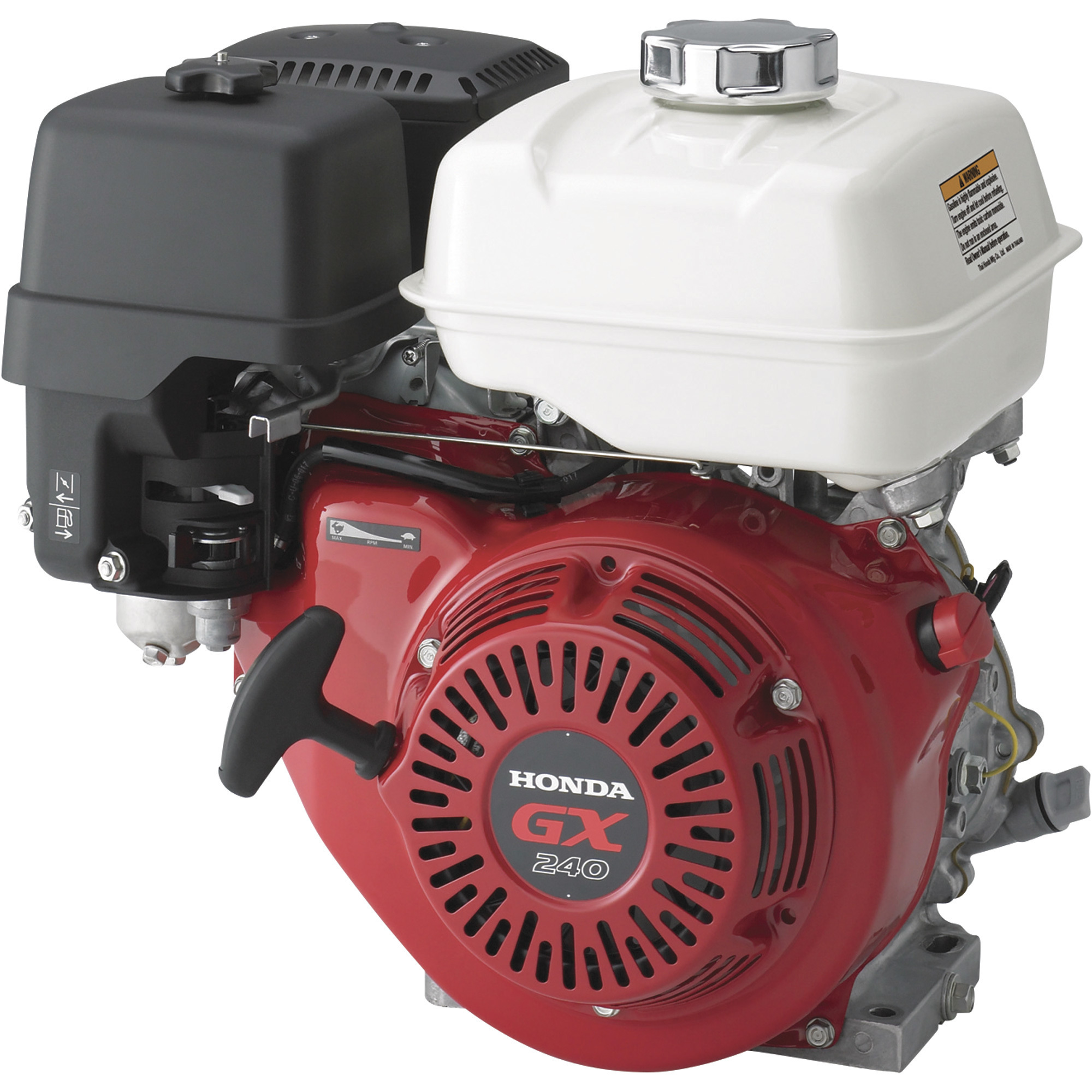

Honda Engines, HONDA 270CC OHV ENGINE, Engine Displacement 270 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX240UT2XQA2

Item# 6086
Honda Engines, HONDA 270CC OHV ENGINE, Engine Displacement 270 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX240UT2XQA2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Honda Engines, HONDA 270CC OHV ENGINE, Engine Displacement 270 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX240UT2XQA2

Click or Tap image to Zoom

$749.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not Available
  • Honda 270cc GX 240 OHV air-cooled, 4-stroke, horizontal engine
  • Precision camshaft design for precise valve timing, optimal valve overlap and better fuel economy
  • OHV design for increased efficiency and optimal power transfer
  • High compression ratio for better fuel efficiency
  • Low vibration from precision-engineered components

See full description

Complete Your Solution

  • Honda Engines, HONDA 270CC OHV ENGINE, Engine Displacement 270 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX240UT2XQA2
  • Honda Power Equipment 10W-30 Motor Oil, 1-Qt. Bottle
  • Drainzit, DRAINZIT OIL CHANGE AID, Model# HON1012-C.DRA
  • Honda Engines, HONDA MAINT. KIT, Pieces (qty.) 4 Model# HONDAKIT4
Price for all four:

$838.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Honda 270cc GX 240 Series OHV commercial-grade engine is designed for the most demanding commercial applications. It has set an industry standard for reliability and durability. Overhead Valve design offers cooler, fuel-efficient operation and cast iron cylinder sleeve provides longer service life. The GX is reliable, easy starting and quiet running. Meets EPA and CARB emission levels standards. This legendary engine has earned the reputation as the preferred engine for construction equipment. Common applications include pressure washers, compressors, go-karts, log splitters and chipper/shredders. Not for sale in CA.

What's Included

    (1) Engine, Model# GX240U1QA2

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Honda 270cc GX 240 OHV air-cooled, 4-stroke, horizontal engine
  • Precision camshaft design for precise valve timing, optimal valve overlap and better fuel economy
  • OHV design for increased efficiency and optimal power transfer
  • High compression ratio for better fuel efficiency
  • Low vibration from precision-engineered components
  • Ball bearing-supported crankshaft for greater stability
  • Large capacity, multi-chamber exhaust system for a low noise level
  • Sophisticated air intake system
  • Oil Alert for extra engine protection
  • Carburetor filter and chamber coating help protect against fuel impurities
  • Cast iron cylinder sleeve
  • Dual element air filter
  • Simple throttle control
  • Double walled heavy-duty 5.6-qt. tank with in-tank fuel strainer
  • Large automotive-style fuel cap for easy filling
  • Dual oil fills and drains for quick oil changes
  • Easily accessible spark plug
  • Ergonomic recoil design for easy starts
  • Automatic decompression for easy starting
  • Not for sale in CA

Key Specs

AttributeSpecification

item#

6086

Brand

Honda Engines

Manufacturer's Warranty

3 year limited warranty

Ship Weight

64.0 LB

Engine Displacement

270 cc

Engine Type

GX Series OHV Commercial-duty

Shaft Diameter

1 in

Shaft Length

3.48 in

Start Type

Recoil

Shaft Keyway

0.25 in

Net Torque

13.5 ft-lbs.

Crankshaft

Q-type

PTO Height

5.25 in

Cylinders (qty.)

1

Cylinder Bore

Cast Iron

Net Power Output

7.9 HP

Compression Ratio

8.5:1

Fuel Tank

Yes
AttributeSpecification

Fuel Tank Capacity

5.6 qt

Oil Capacity

1.16 qt

Low Oil Shutdown

Yes

Low Oil Alert

Yes

Shaft Rotation (From PTO Shaft Side)

Counter Clockwise

Governor System

Centrifugal Mechanical

Ignition System

Electronic

Carburetor

Float, External Vent

Lubrication System

Splash

Auto Compression Release

Yes

Cooling System

Air

Bore

2.9 in

Stroke

2.3 in

Air Cleaner Type

Dual Element

Choke Control

Manual

Throttle Control

Remote

Fuel Filter

Yes

Muffler Included

Yes

Reviews

Questions & Answers

22 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. Does this engine have a gear reduction for plaster mixer?

    I'm looking for a Honda GX240 for a plaster mixer.

    1. This engine does not have gear reduction. See item #60866 with a 6:1 gear reduction and #60680 that has a 2:1 gear reduction.

      Helpful?

    2. Honda makes and NT&E can provide you a gear reduction motor for this type of application. Give them a call and they will find you exactly the motor you need.

      Helpful?

  2. What is the from the base to center of the crankshaft ?

    1 answer

    1. The dimension from the base to the center of the crankshaft is 3.48 inches.

      Helpful?

  3. What is the mounted shaft height

    1 answer

    1. The PTO shaft height is 5.25".

      Helpful?

  4. How many horsepower?

    1 answer

    1. The estimated HP is 7.9 HP (5.9 KW) at 3600 RPM.

      Helpful?

  5. what is the bolt pattern

    1 answer

    1. The mounting pattern is 7.70" L x 3.8" W.

      Helpful?

  6. How many horsepower do they have?

    1 answer

    1. This would be an approximate 9 horsepower engine.

      Helpful?
