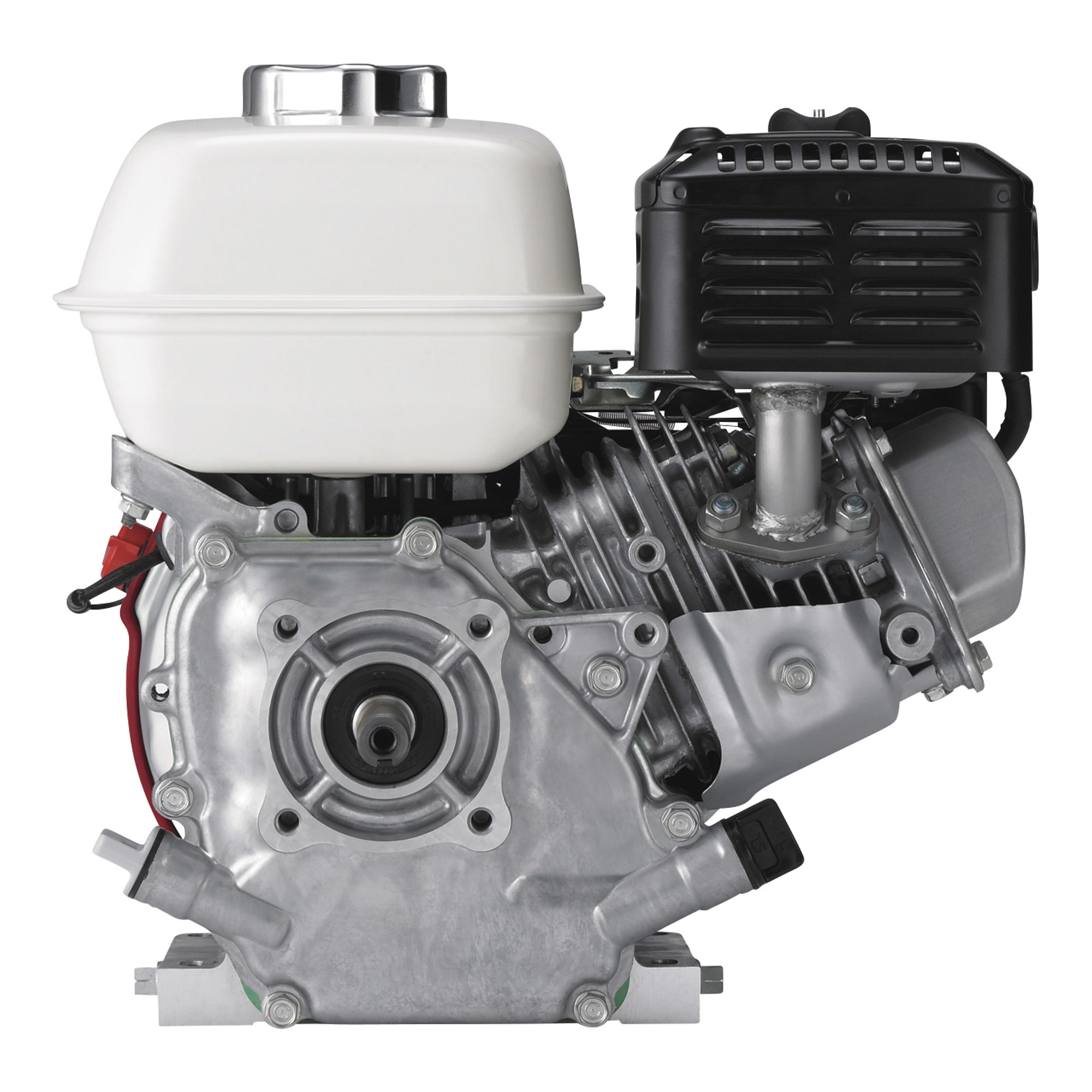

Honda 118cc GX Series OHV Commercial-Grade Engine, 3/4in. Shaft, Model# GX120T3XQX2

Item# 6032
"Honda 118cc GX Series OHV Commercial-Grade Engine, 3/4in. Shaft, Model# GX120T3XQX2"
Honda 118cc GX Series OHV Commercial-Grade Engine, 3/4in. Shaft, Model# GX120T3XQX2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Honda 118cc GX Series OHV Commercial-Grade Engine, 3/4in. Shaft, Model# GX120T3XQX2

Click or Tap image to Zoom

$454.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not Available
  • Honda 118cc GX OHV air-cooled, 4-stroke, horizontal engine
  • Automatic decompression for easy starting
  • Heavy-duty ball bearing supported crankshaft
  • Double walled heavy-duty tank with in tank fuel strainer
  • 50-state compliant engine

See full description

Complete Your Solution

  • Honda 118cc GX Series OHV Commercial-Grade Engine, 3/4in. Shaft, Model# GX120T3XQX2
  • Honda Power Equipment 10W-30 Motor Oil, 1-Qt. Bottle
  • Honda Engines, HONDA MAINT. KIT GX110 GX120 Pieces (qty.) 4 Model# HONDAKIT2
  • Drainzit, DRAINZIT OIL CHANGE AID, Model# HON1010-C.DRA
Price for all four:

$535.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Honda 118cc GX Series OHV commercial-grade engine is designed for the most demanding commercial applications. It has set an industry standard for reliability and durability. Overhead Valve design offers cooler, fuel-efficient operation and cast iron cylinder sleeve provides longer service life. The GX is reliable, easy starting and quiet running. Meets EPA and CARB emission levels standards. This legendary engine has earned the reputation as the preferred engine for construction equipment. Common applications include pressure washers, compressors, go-karts, log splitters and chipper/shredders.

What's Included

    (1) Engine, Model# GX120UT2QX2

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Honda 118cc GX OHV air-cooled, 4-stroke, horizontal engine
  • Automatic decompression for easy starting
  • Heavy-duty ball bearing supported crankshaft
  • Double walled heavy-duty tank with in tank fuel strainer
  • 50-state compliant engine

Key Specs

AttributeSpecification

item#

6032

Brand

Honda Engines

Manufacturer's Warranty

3 year limited warranty

Ship Weight

27.0 LB

Engine Displacement

118 cc

Engine Type

GX Series OHV Commercial-duty

Shaft Diameter

3/4 in

Shaft Length

2.43 in

Start Type

Recoil

Shaft Keyway

0.18 in

Net Torque

5.4 ft-lbs.

Crankshaft

Q-type

PTO Height

4.17 in

Cylinders (qty.)

1

Cylinder Bore

Cast Iron

Net Power Output

3.5 HP

Compression Ratio

8.5:1
AttributeSpecification

Fuel Tank Capacity

2.1 qt

Oil Capacity

0.59 qt

Low Oil Shutdown

Yes

Low Oil Alert

Yes

Shaft Rotation (From PTO Shaft Side)

Counter Clockwise

Governor System

Centrifugal Mechanical

Ignition System

Electronic

Carburetor

Float

Lubrication System

Splash

Auto Compression Release

Yes

Cooling System

Air

Bore

2.4 in

Stroke

1.7 in

Air Cleaner Type

Dual Element

Choke Control

Manual

Throttle Control

Remote

Muffler Included

Yes

Reviews

Questions & Answers

14 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. Is this engine set up to use cable throttle??

    1. Not without modifications.

      Helpful?

    2. Remote wire throttle and choke conversion is possible with additional components. These components are not sold by Northern.

      Helpful?

  2. What is the mounting bolt pattern, I want this to replace a Briggs engine of similar size

    1 answer

    1. The mounting pattern will be 6.4" L x 3.1" W.

      Helpful?

  3. Does Honda make an electric start version of this 118cc engine?

    1 answer

    1. There is not an electric start version of this engine currently manufactured by Honda.

      Helpful?

  4. weight of this engine?

    1 answer

    1. This Honda engine has a dry weight of 29 lbs.

      Helpful?

  5. wii a 6;1 reducer bolt right up to this motor/

    1 answer

    1. A 6:1 reducer cannot be bolted directly to this engine. See our item #60326 for this engine with the 6:1 gear reduction.

      Helpful?

  6. Will this engine work on a go kart?

    1 answer

    1. Honda does not make a specific engine for a go kart. However, as long as the shaft and mounting bolt pattern are the right sizes, it would work.

      Helpful?
