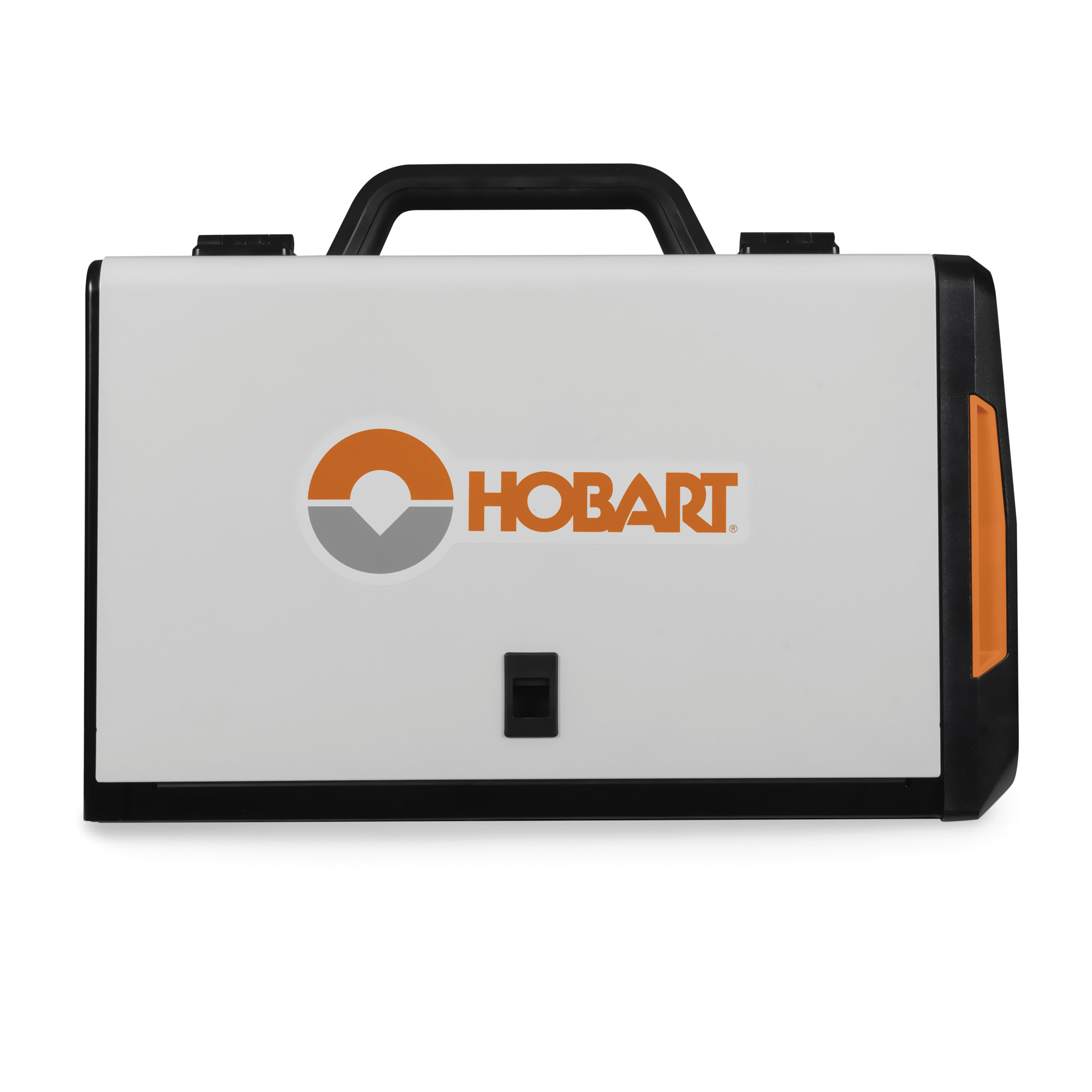

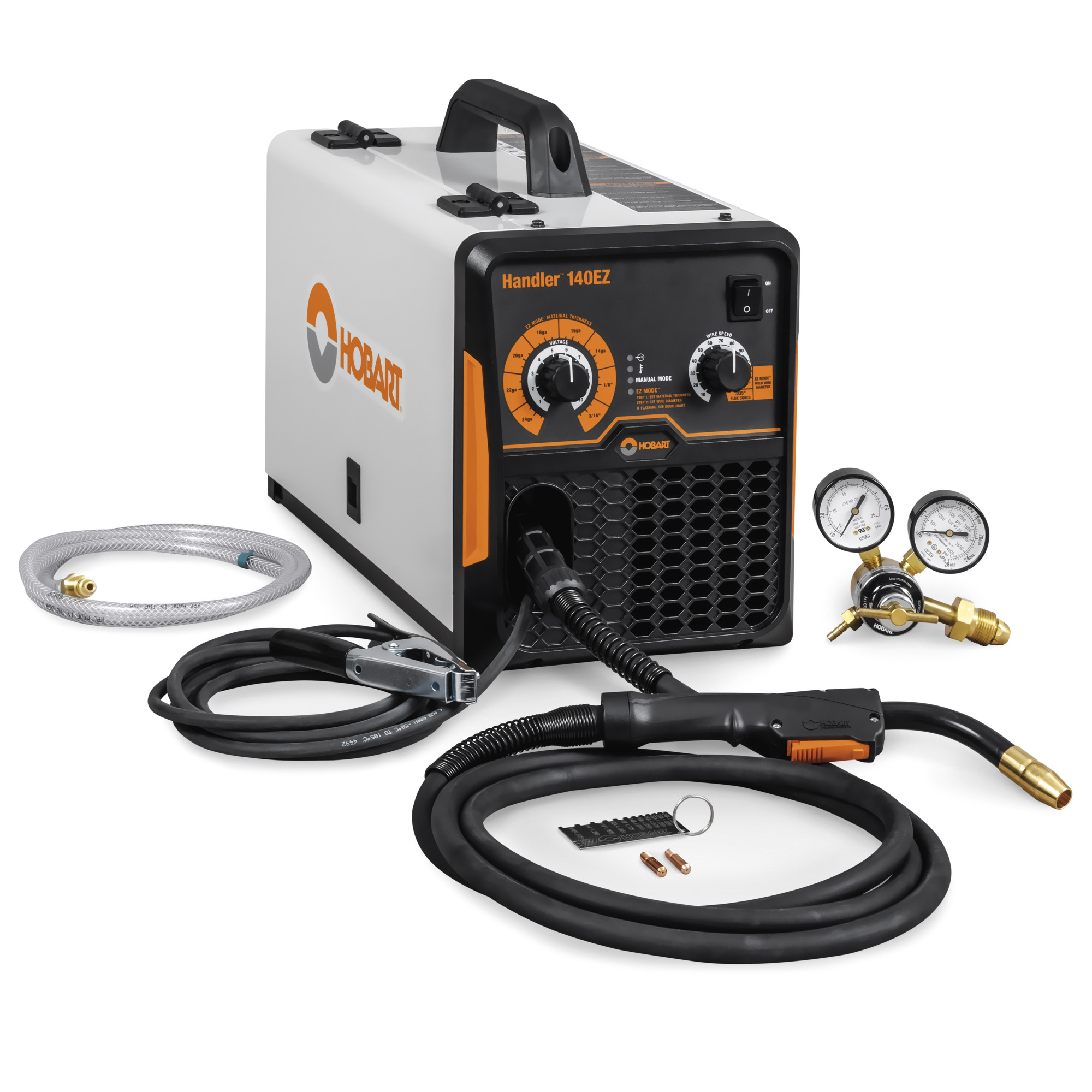

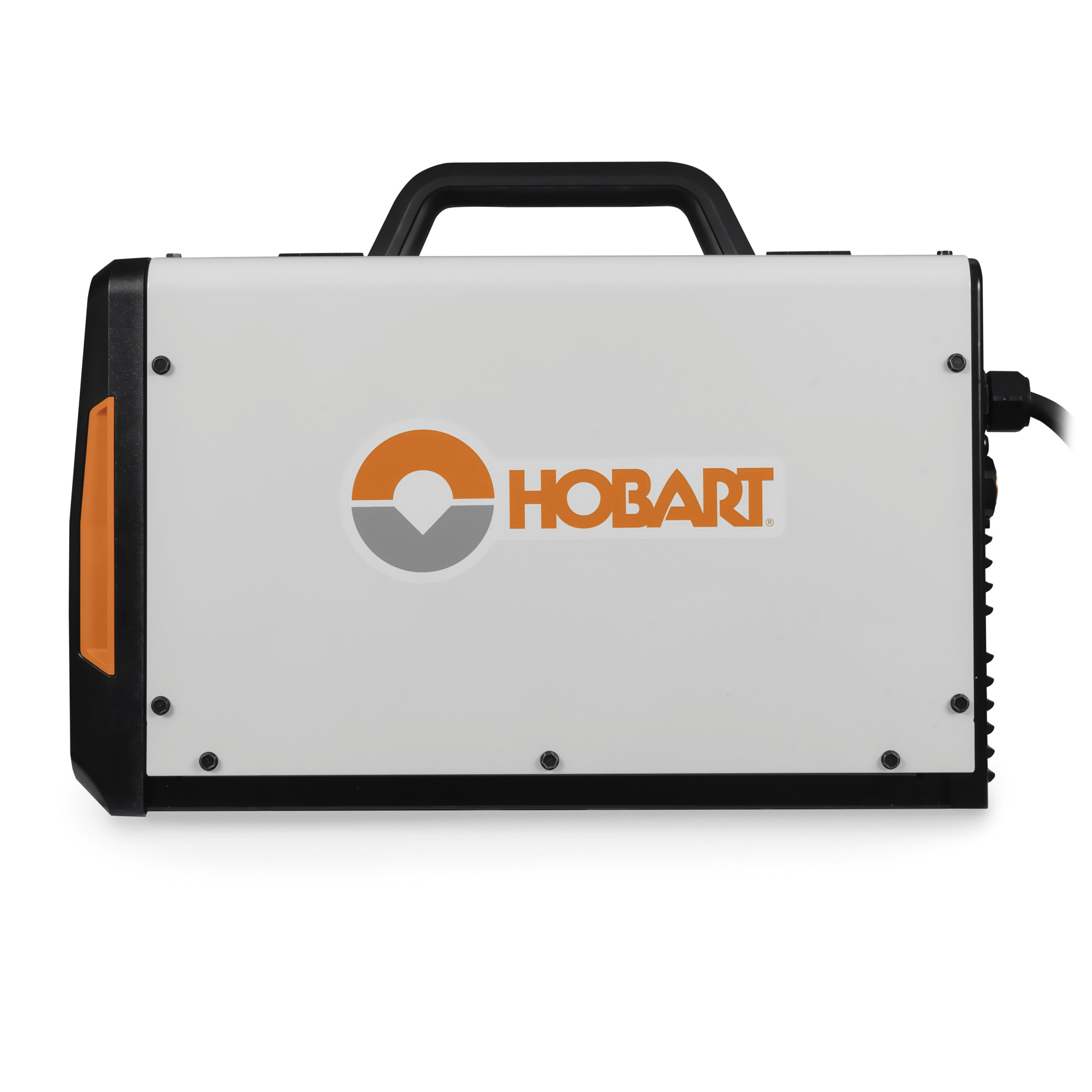

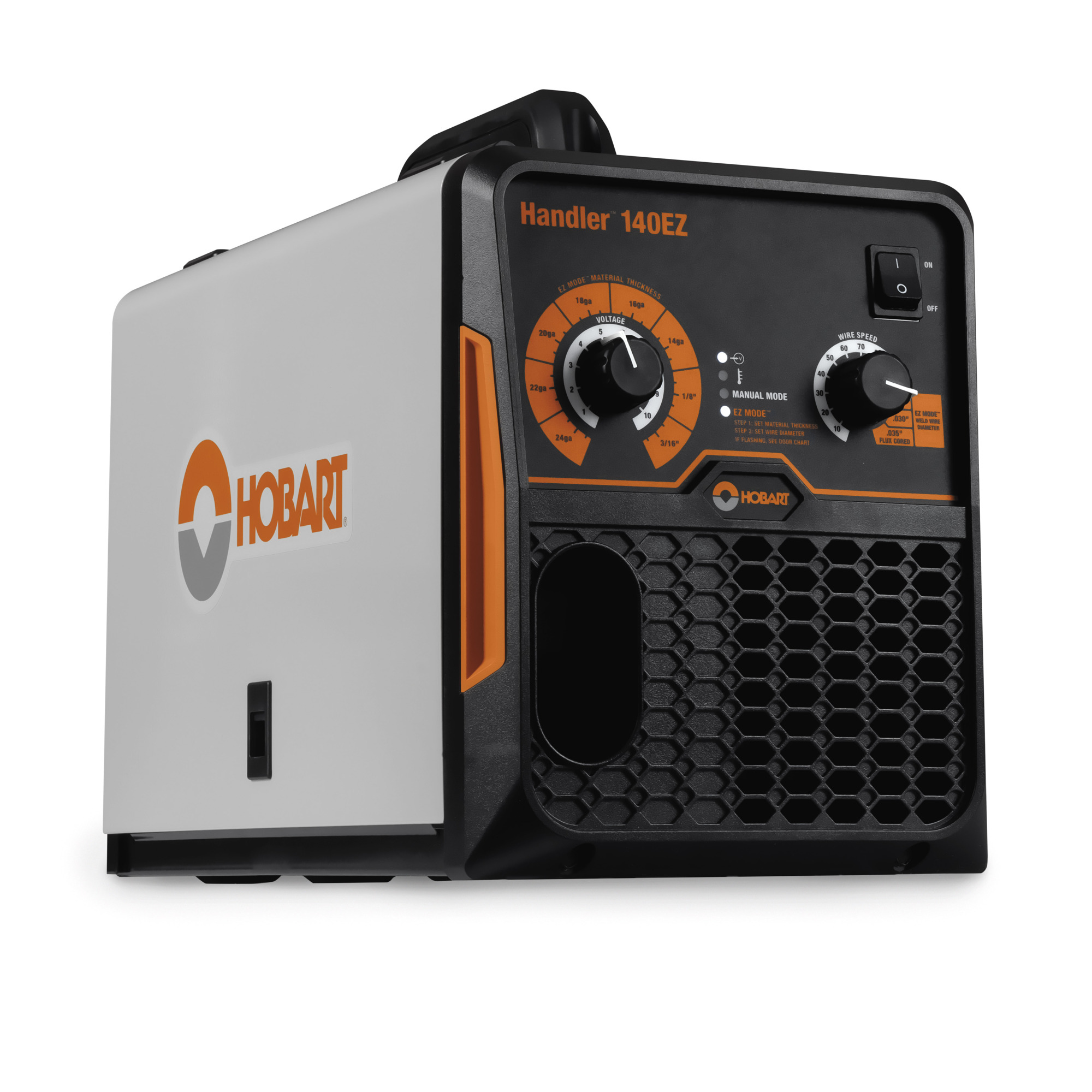

Hobart Handler 140EZ MIG Welder, Model# 500582

Item# 6646128
Hobart Handler 140EZ MIG Welder, Model# 500582

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Hobart Handler 140EZ MIG Welder, Model# 500582

Click or Tap image to Zoom

$749.99

  • Shipping:

    Backordered: Order now to reserve yours -
    Estimated to ship 09/03/26
    $19.99 Same Day

  • Store Pickup:

    2 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Welding Amp Range: 30-140 A
  • Rated Output: 90 A at 18.5 VDC, 30% duty cycle
  • Mild Steel Thickness Range: 24 ga, - 3/16 in.
  • 10 ft. (3 m) HM-100 MIG gun with ergonomic, rubber-padded handle
  • 10 ft. (3 m) work cable with clamp

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Hobart Handler 140EZ MIG Welder, Model# 500582
  • Klutch MonsterView 1400 Auto-Darkening Welding Helmet
  • Klutch Welding Tool Kit, 3 Pcs.
  • Ironton Leather TIG Welding Gloves — Single Pair
Price for all four:

$856.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

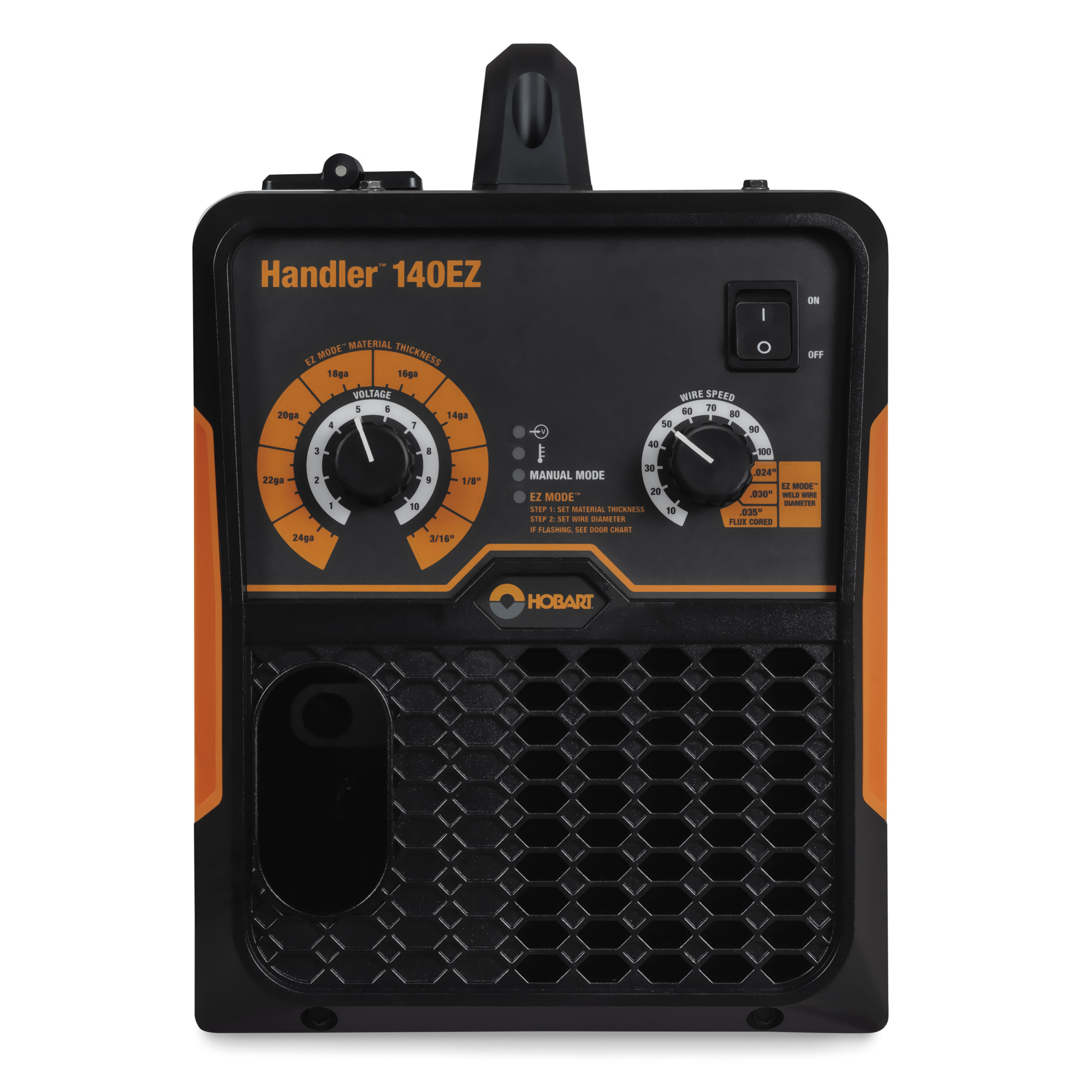

The Handler 140 operates on 120-volt power. With a broad output range of 30–140 amps. It welds as thin as 24 gauge and up to 3/16in. in a single pass — weld thicker materials with multiple passes and proper material prep. Infinite voltage control and EZ Mode™ make setup and producing better welds easier on different materials and thicknesses. Fine tune your settings anywhere between 1–10 creating less spatter and cleaner welds with infinite voltage control or quickly change parameters with two turns of a knob with EZ Mode. Spool hub accommodates 4- and 8in. spools and wire is fed into a rugged, angled drive assembly for quick and easy setup. Quick Select™ drive rolls offer three grooves — two for different sizes of solid wire and a third for flux-cored wire.

What's Included

    (1) Hobart Handler 140EZ Mig Welder Includes: 10 ft. (3 m) HM-100 MIG gun with ergonomic, rubber-padded handle; 10 ft. (3 m) work cable with clamp; Power cord with plug; Built-in gas solenoid valve and dual-gauge regulator with gas hose; .030 in. (0.8 mm) co

Downloads

Product Manual

Features + Benefits

  • Welding Amp Range: 30-140 A
  • Rated Output: 90 A at 18.5 VDC, 30% duty cycle
  • Mild Steel Thickness Range: 24 ga, - 3/16 in.
  • 10 ft. (3 m) HM-100 MIG gun with ergonomic, rubber-padded handle
  • 10 ft. (3 m) work cable with clamp
  • Power cord with plug
  • Built-in gas solenoid valve and dual-gauge regulator with gas hose
  • .030 in. (0.8 mm) contact tips
  • Quick Select™ drive roll for .024 in. (0.6 mm) or .030/.035 in. (0.8/0.9 mm) solid wire, and .030/.035 in. (0.8/0.9 mm) flux-cored wire
  • Material thickness gauge
  • Hobart 5/3/1 Industrial Warranty - Five-year warranty on transformers, stabilizers and main rectifiers; three years on generators, PC boards and drive systems; and one year on guns (MIG, plasma and TIG torches)

Key Specs

AttributeSpecification

item#

6646128

Brand

Hobart

Manufacturer's Warranty

5 year limited warranty

Ship Weight

65.0 LB

Volts

120

Max. Amps

140

Power Type

AC

Spool Gun Included

No

Max. Welding Wire Diameter

0.03 in
AttributeSpecification

Duty Cycle

30

Min. Amps

30

Cart Included

No

Mig Ready

Yes

Clamp Cable Length

10 ft

Regulator and Gas Hose Included

Yes

Product Weight

53.0000 lb

Dimensions L x W x H (in.)

19.6 x 9.8 x 14.3 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

See All Welding Helmets
Klutch MonsterView 1400 Auto-Darkening Welding Helmet
4.6 out of 5 stars. 74 reviews

Klutch MonsterView 1400 Auto-Darkening Welding Helmet

Item # 113644

$69.99
See All Welding Hand Tools

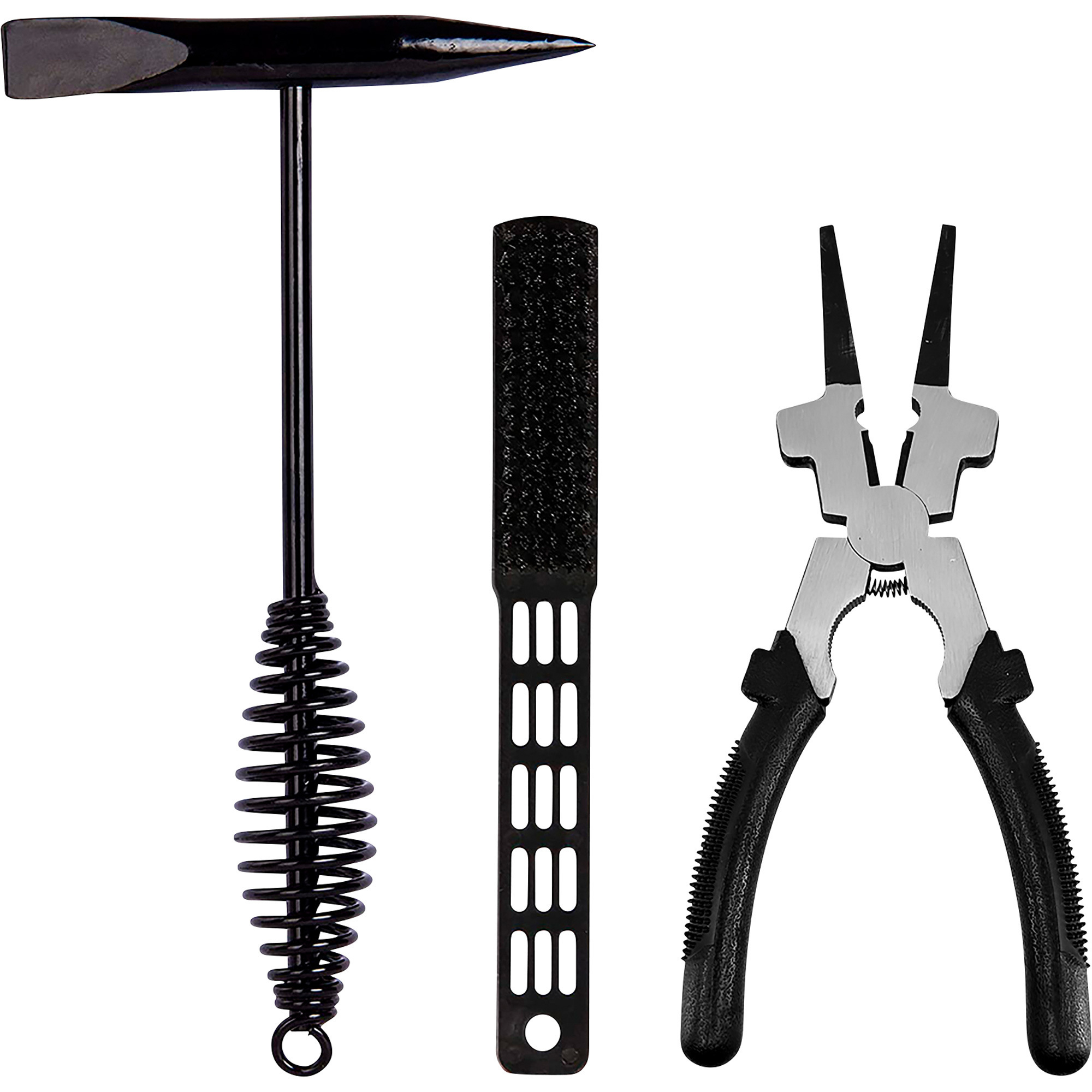

Klutch Welding Tool Kit, 3 Pcs.
