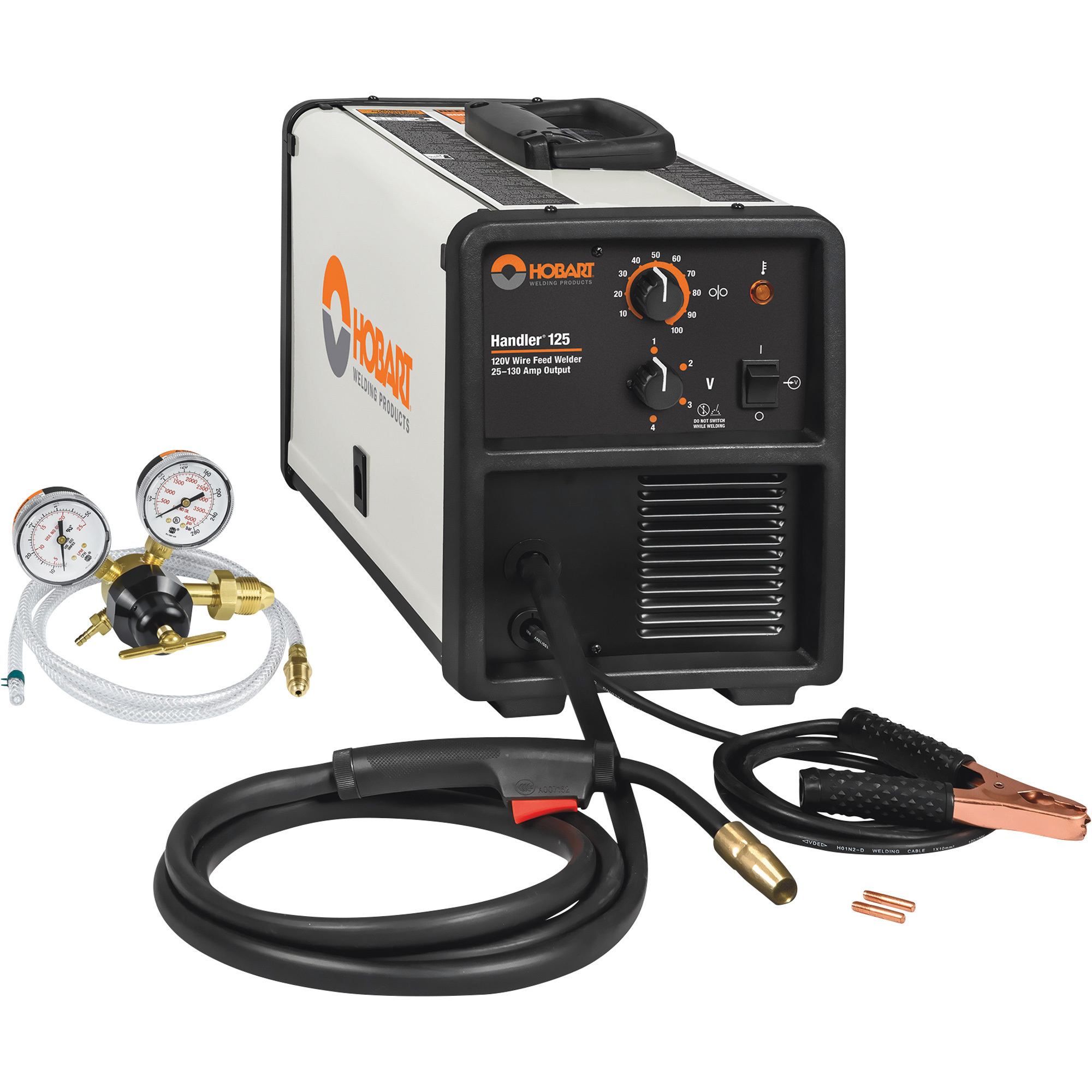

Hobart Handler 125, 120V, 130 Amp, Flux-Core Welder, MIG Welder, Model #951000076

Name: Hobart Handler 125, 120V, 130 Amp, Flux-Core Welder, MIG Welder, Model #951000076
Brand: Hobart
SKU: 115195

Item# 115195

Click or Tap image to Zoom

This item is no longer available.

No shielding gas required using 0.030 and .035in. self-shielding flux-core wire
Infinite wire-feed speed control
4 output voltage settings provide a broad operating window for each wire, with quick and easy adjustment for different thicknesses and joints
Welds 24-ga. to 3/16in. steel with flux-core wire
Rated output of 80 Amps @ 25% duty cycle; 50 Amps @ 60% duty cycle; 40 Amps @ 100% duty cycle

See full description

Product Summary

The Hobart Handler 125 Flux-Core /MIG Welder, similar to the Hobart Handler 140 Flux-Core/MIG Welder, with the exception that the 140 welds a bit thicker, comes with gas regulator, gas hose and transformer with 10-50 SCFH Flow Gauge Regulator. This complete package is sold only at Northern Tool and allows for easy setup and infinite wire speed control. Traditional operation with separate voltage and wire-feed speed knobs allow customized control. This unit operates off 120V household current. A gas solenoid makes it easy to change from flux-core wire to MIG welding. Take complete control of your project with this flow gauge regulator form Hobart, which provides precise control of shielding gas during both MIG and TIG welding in order to protect against fusion defects, porosity and weakening of weld metals. Regulator gauge lenses are medium-duty shatter-resistant polycarbonate. The anodized aluminum body is corrosion resistant. Precise pressure adjustment is possible with the neoprene diaphragm. Dual filters protect against debris, creating reliable operation. This welder is 100% tested and inspected and comes with a one-year warranty. The inert gas hose prevents sediment accumulation with the smooth interior and exterior. Working pressures are increased with the open-weave inner braid and PVC reinforcement.

What's Included

(1) Hobart Handler 125 Flux-Cored/MIG Welder Transformer, 120V, 25-30 Amp Output with Hobart 10-50 SCFH Flow Gauge Regulator, Model# 951000076 (1) Handler 125 Wire-Feed Welder (1) 8ft. spool gun cable (1) 8ft. work cable with clamp (1) 6ft. power cord with plug (2) Contact tips (1) Weld setup chart (Also includes owner's manuals with parts list, installation, operation and maintenance guidelines)

Features + Benefits

No shielding gas required using 0.030 and .035in. self-shielding flux-core wire
Infinite wire-feed speed control
4 output voltage settings provide a broad operating window for each wire, with quick and easy adjustment for different thicknesses and joints
Welds 24-ga. to 3/16in. steel with flux-core wire
Rated output of 80 Amps @ 25% duty cycle; 50 Amps @ 60% duty cycle; 40 Amps @ 100% duty cycle
Safe, built-in contactor keeps wire electrically "cold" until trigger is pulled
Self-resetting thermal overload protects the power transformer from overloads to ensure reliability
Durable feed head with quick-release drive roll tension lever offers positive feed with adjustable tension plus easy accessibility to thread new wire
Spool hub assembly accommodates 4in. or 8in. spools for added flexibility
Operates from 120V standard household current
Includes H100F2-8 8ft. gun, 8ft. work cable with clamp and 2 contact tips

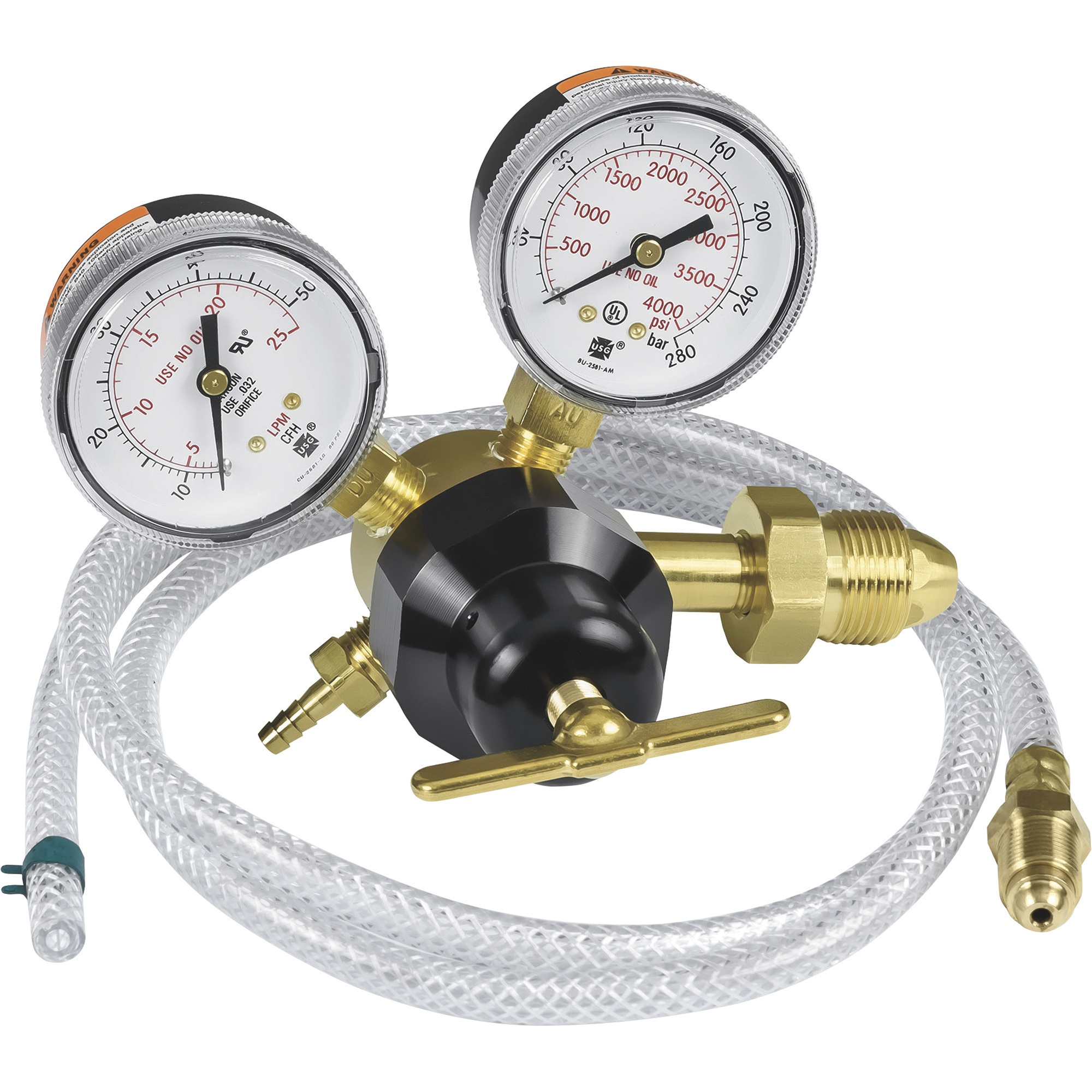

Medium-duty regulator
Shatter-resistant polycarbonate gauge lenses
Anodized aluminum body for corrosion resistance
Precise pressure adjustment with the neoprene diaphragm
Dual filters, which will protect seat from debris, creating reliable operation
100% tested and inspected
Working pressures are increased with the open-weave inner braid and PVC reinforcement
Inert gas hose prevents sediment accumulation with the smooth interior and exterior
Hobart 5/3/1 Industrial Warranty - Five-year warranty on transformers, stabilizers and main rectifiers; three years on generators, PC boards and drive systems; and one year on guns (MIG, plasma and TIG torches)

Key Specs

Attribute	Specification
item#	115195
Brand	Hobart
Manufacturer's Warranty	5 year limited warranty
Ship Weight	63.0 LB
Volts	120
Max. Amps	130
Power Type	AC
Multi-process	Yes
Spool Gun Included	No
Welding Processes	Flux-Core, MIG
Max. Weld Thickness	0.31 in
Max. Welding Wire Diameter	0.3 in

Attribute	Specification
Duty Cycle	25% At 80a; 60% At 50a; 100% At 40a
Weldable Materials	Steel, Stainless Steel
Wire Feed Speed Control	Yes
Cart Included	No
Mig Ready	Yes
Power Cord Length	6 ft
Clamp Cable Length	8 ft
Regulator and Gas Hose Included	Yes
Shielding Gas Required	No
Product Weight	60.0000 lb
Dimensions L x W x H (in.)	19.4 x 10.0 x 13.5 in
