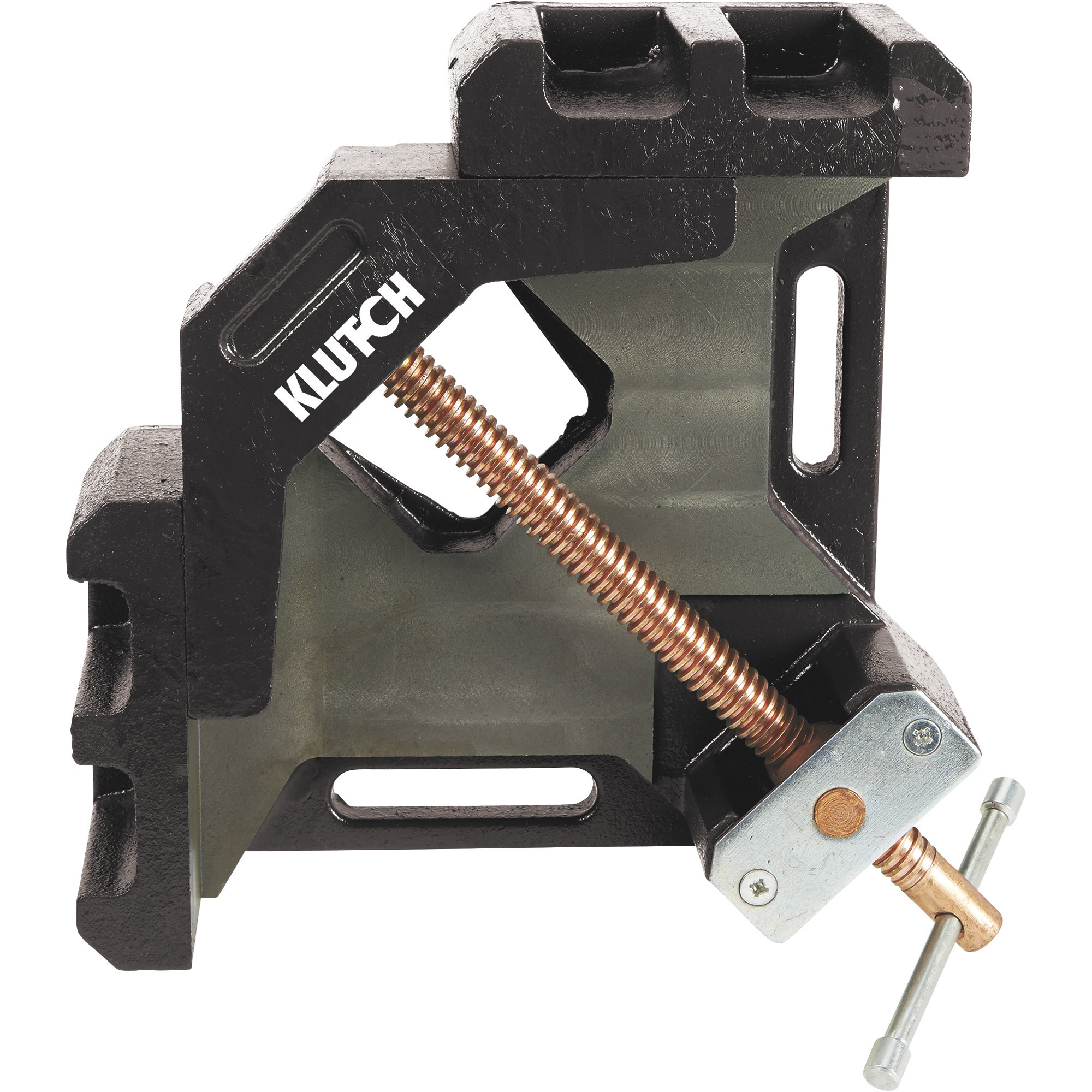

Klutch 2-Axis Welding Angle Clamp, 4in. Capacity

Item# 58697
"Klutch 2-Axis Welding Angle Clamp, 4in. Capacity"
1 Pieces
Klutch 2-Axis Welding Angle Clamp, 4in. Capacity

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch 2-Axis Welding Angle Clamp, 4in. Capacity

Click or Tap image to Zoom

  • 2 3/8in. throat depth; 4in. max. opening width; 5in. jaw length
  • Slotted base holes provide easy mounting
  • Copper-plated screws withstand weld spatter

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Klutch® 2-Axis Welding Angle Clamp is a heavy-duty cast iron vise that allows 2 items of different diameters to be joined at a 90° angle. Great for quick, easy set-ups for welding or assembling projects.

What's Included

    (1) Welding angle clamp

Features + Benefits

  • 2 3/8in. throat depth; 4in. max. opening width; 5in. jaw length
  • Slotted base holes provide easy mounting
  • Copper-plated screws withstand weld spatter

Key Specs

AttributeSpecification

item#

58697

Brand

Klutch

Manufacturer's Warranty

1 year limited warranty

Ship Weight

23.0 LB
AttributeSpecification

Opening Size

4 in

Pieces (qty.)

1

Throat Depth

2.375 in

Reviews

Questions & Answers

75 Reviews This action will navigate to reviews.

Questions

1–10 of 12 Questions
Sort by:

  1. Is this clamp big enough to handle 2" square tubing?

    Originally posted on Northern Industrial Welders 2-Axis Welders Angle Clamps — 4in. Capacity

    1. Yes. Easily. Will hold 4".

      Helpful?

    2. More than big enough. I'm sure this can handle much larger stock.

      Helpful?

    3. Yes, its set up to handle 4"

      Helpful?

    4. Yes, 2 inch tubing is not an issue. This clamp can handle up to 4inch material on both legs.

      Helpful?

    5. Yes

      Helpful?

    6. yes

      Helpful?

    7. Yes, it will handle 2 inch tubing.

      Helpful?

    8. Yes, each corner opens up to 4 3/8"

      Helpful?

    9. Yes, no problem.

      Helpful?

    10. Yes, this Welding Clamp will work for 2 inch square tubing.

      Helpful?

  2. For those that have one - Question

    Does the spindle and clamp head pivot ? It looks like a re-make of an AC100 clamp, if you search you can see the pictures of the pivot, wondering if this does the same.

    Originally posted on Northern Industrial Welders 2-Axis Welders Angle Clamps — 4in. Capacity

    1. Yes, it pivots at the clamp head and threaded boss as seen in pictures.

      Helpful?

    2. Yes, the spindle rotates in its circular seat as does the clamping head. Consequently, it can clamp different stock sizes in each side and hold square.

      Helpful?

    3. Yes it does pivot in either direction.

      Helpful?

    4. Yes it does pivot allowing you to clamp different size materials.

      Helpful?

    5. the head piviots

      Helpful?

    6. Yes, everything pivots

      Helpful?

    7. Yes, it does pivot.

      Helpful?

    8. yes, it pivots each way, which is nice for different sizes to be welded together.

      Helpful?

    9. Yes it swivels so you can use it with 2 different product dimensions.

      Helpful?

    10. The spindle and clamp head does pivot.

      Helpful?

  3. up to what size square stock will they handle?

    Originally posted on Northern Industrial Welders 2-Axis Welders Angle Clamps — 4in. Capacity

    1. 4"

      Helpful?

    2. This clamp can easily handle 4 inch material.

      Helpful?

    3. I opened the clamp all the way and it looks like it's over 4 inches or wider. I didn't have a tape measure at the time.

      Helpful?

    4. I'd have up to 2" square stock in it, but I think it'll do more than that. Anything bigger than 2" is overkill for the kind of stuff I do.

      Helpful?

    5. The Northern Industrial Welders 90° Welding Angle Clamp will handle up to 4" square stock.

      Helpful?

  4. Can it be used for wood (2x4's)?

    Originally posted on Northern Industrial Welders 2-Axis Welders Angle Clamps — 4in. Capacity

    1. Yes it will work on wood

      Helpful?

    2. Absolutely, although you'll have to be creative as far as attaching the 2 pieces of wood together.

      Helpful?

    3. Serious overkill, but yes you could.

      Helpful?

    4. Yes, this product may be used with wood.

      Helpful?

  5. Clamp height

    In other words, how far does your clamped product stand off from the surface that the clamp rests on?

    Originally posted on Northern Industrial Welders 2-Axis Welders Angle Clamps — 4in. Capacity

    1. approximately an inch.

      Helpful?

    2. The clamping material height is 30 mm or 1.18".

      Helpful?

  6. What is the length and width of the slots? And what is the dimension from center to center of the slots in the X & Y axis?

    1 answer

    1. The bottom slot length is 80mm and width is 13mm. The right slot length is 60mm and width is 13mm. The distance from one axis to the other is approximately 110MM.

      Helpful?

  7. Does it offer spacers the same height as the Lamp to hold up the end that isn’t being welded to keep it level or do you have to make your own

    1 answer

    1. Spacers are not offered with the clamp, they would have to be fabricated.

      Helpful?

  8. What is the height of the clamp

    From the bottom of the base to the area where the material rests? Typically should be just around 1" but just want to confirm.

    Thank you

    1 answer

    1. The height from the base of the of the clamp to the surface where the material rests is 1 5/32 inches.

      Helpful?

  9. Will this work with round tubing?

    I need to weld both round and square tubing. Will this clamp work with round tubing?

    1 answer

    1. This Klutch Welding Clamp can securely hold round tubing up to 4" in diameter.

      Helpful?

  10. What is the capacity for Square Tube

    The stats list 4" as well as 2 3/8". Which is which? Will it hold a pair of 4" square tubes at a right angle, or ony 2"?

    Also, How deep are the jaws (for holding round pipe)? 1" deep to hold 2" pipe, 2" deep to hold 4" etc etc?

    Thanks

    1 answer

    1. This angle clamp's jaw has a maximum opening/capacity of 4" wide. The jaw (throat) depth is 2-3/8". This angle clamp will hold a pair of 4" square tubes at a right angle. With a jaw depth of 2-3/8", it can securely hold round pipe up to 4" in diameter.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
