Haldex AC Hydraulic Power System Self-Contained, 2 HP, 230/460V AC, Model# 1400029

Item# 10592
Haldex AC Hydraulic Power System Self-Contained, 2 HP, 230/460V AC, Model# 1400029

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Haldex AC Hydraulic Power System Self-Contained, 2 HP, 230/460V AC, Model# 1400029

Click or Tap image to Zoom

$1899.99

  • Shipping:

    Available now

  • Store Pickup:

    Not available - online only
  • Reservoir: 12 in. L x 12 in. W x 14 in. H

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

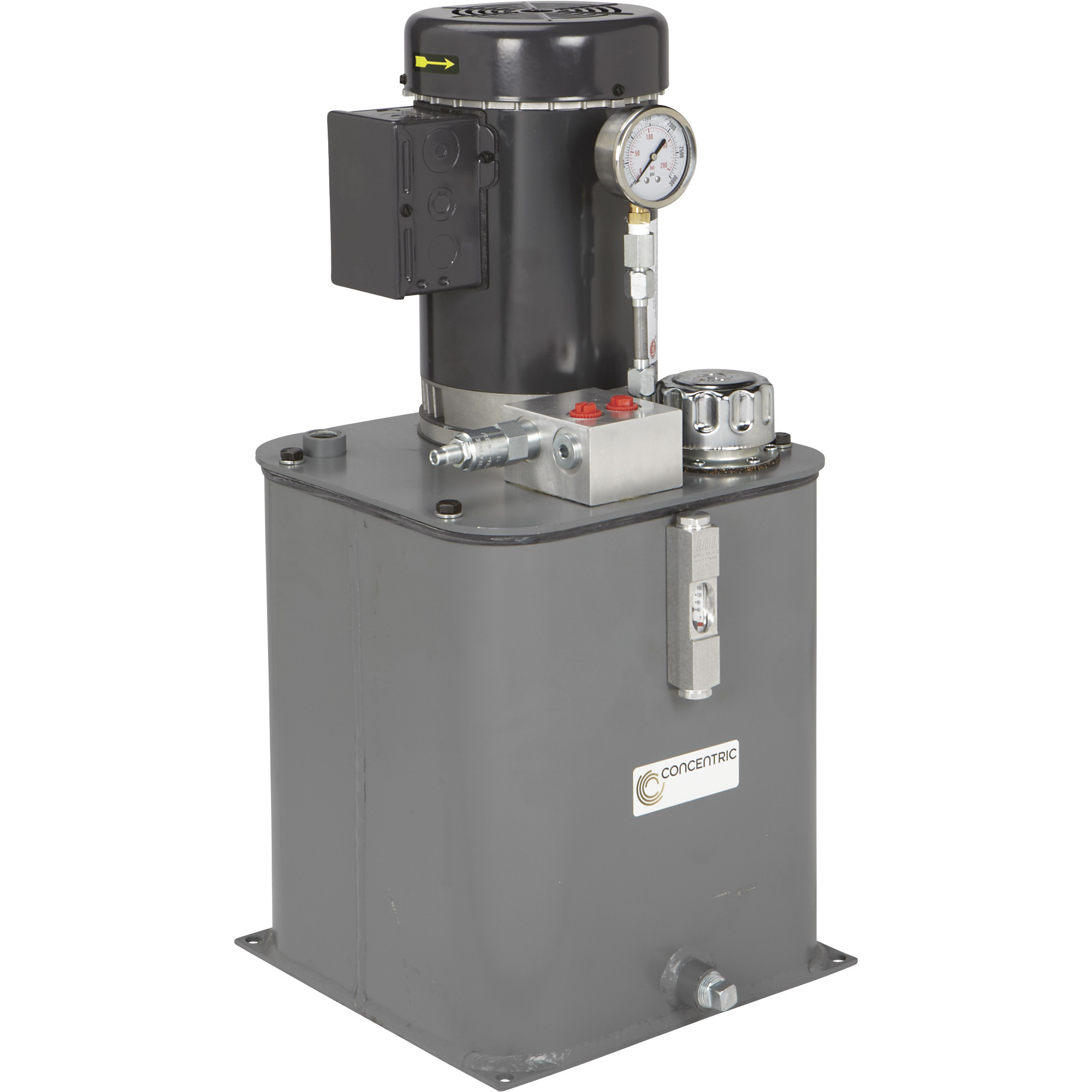

Handles a wide variety of industrial applications. All models have 1,725 RPM TEFC (totally enclosed, fan-cooled) motors, check valve, adjustable relief valve and 3,000 PSI pressure gauge. High strength cast iron housing. DU® bearings. Filler screen, sight gauge and flexible coupling. Hardened and ground alloy steel gears and shafts. Pressure-balanced pumps provide up to 90% overall efficiency. Ideal for systems using low viscosity fluids in high temps and high duty cycle applications. Does not include manifold or interface.

What's Included

    (1) AC hydraulic power unit (fully assembled and tested)

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Reservoir: 12 in. L x 12 in. W x 14 in. H

Key Specs

AttributeSpecification

item#

10592

Brand

Concentric

Manufacturer's Warranty

1 year limited warranty

Ship Weight

91.0 LB

Max. Flow Rate

2 GPM

Max. PSI

1,500

Max. RPM

1,725

Power Source

Electric
AttributeSpecification

Port Inlet Size

9/16 in

Port Outlet Size

9/16 in

Thread Type

SAE

Reservoir Capacity

5 Gal

Volts

460

Phase

AC

Horsepower

3

Action

Single Acting

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. What is the decibel rating when this unit is operating under loaded conditions.

    1 answer

    1. This unit has not been tested for a decibel rating.

      Helpful?

  2. Can you supply me with an extra pump and motor?

    I want to keep a spare pump and motor for this unit. We purchased one of these as an extra last December and we would like to keep a spare pump and motor on hand. Are these available?

    1 answer

    1. The motor is part number JB2190150, and the pump is part number JB1300429, please call our Parts Dept. for pricing and availability at 1-800-657-0516.

      Helpful?

  3. Required Circuit Breaker Amperage

    460vac, three phase
    Required Circuit Breaker Amperage?
    Circuit Breaker Curve Type (c or d)?

    1 answer

    1. The information available on the Haldex self-contained power system is that at 460vac, three phase, the unit will draw 3.8 full load amps or 30 locked rotor amps. A circuit breaker curve type is not available.

      Helpful?

  4. Can I get this unit with a 15 gal tank?

    I would like to get the 2hp motor with a 1.5gpm pump on a 15 gallon tank. 230v 3 phase.

    1 answer

    1. This unit is not available with a 15 gallon tank. See below for the unit with a 15 gallon tank already.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
