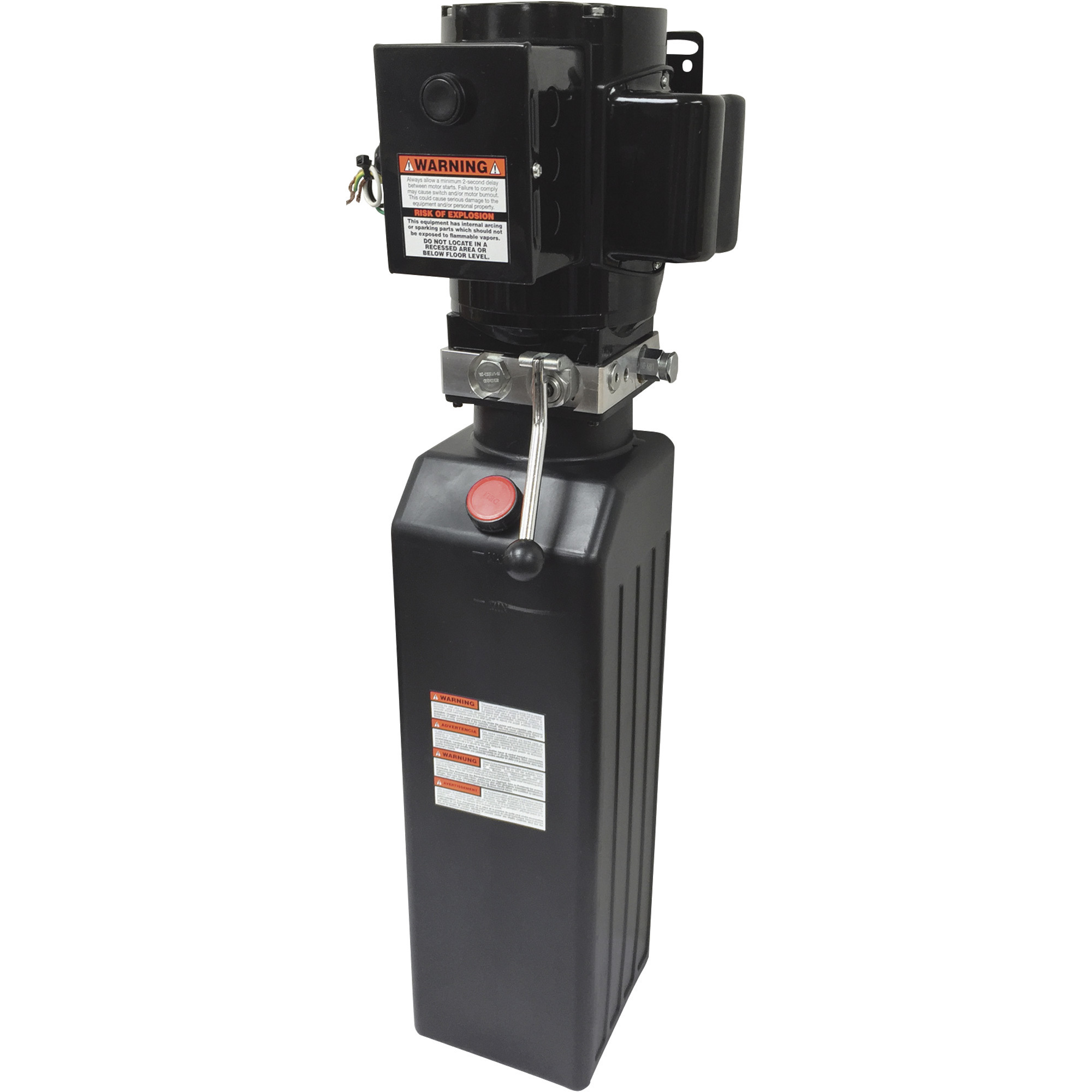

NorTrac Auto Hoist AC Power Unit, 230V, 2 GPM, 2900 PSI, Vertical Mount, Manual Lowering

Item# 47373
"NorTrac Auto Hoist AC Power Unit, 230V, 2 GPM, 2900 PSI, Vertical Mount, Manual Lowering"
NorTrac Auto Hoist AC Power Unit, 230V, 2 GPM, 2900 PSI, Vertical Mount, Manual Lowering

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorTrac Auto Hoist AC Power Unit, 230V, 2 GPM, 2900 PSI, Vertical Mount, Manual Lowering

Click or Tap image to Zoom

$549.99

  • Shipping:

    Backordered: Order now to reserve yours -
    Estimated to ship 07/28/26

  • Store Pickup:

    Not available - online only
  • Delivers fast lifting speed and low amp draw
  • 2.2cc displacement
  • 2 GPM flow rate
  • 2,900 max. PSI; 2,850/3,450 max. RPM
  • 1.5 continuous HP, 3.5 peak/intermittent HP

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This single-phas NorTrac 230 Volt Auto Hoist AC Power Unit is interchangeable with all vertical-mount 230 Volt, 2- and 4-post car lift power units and may also be used on compatible hydraulic lifts and scissor lifts. Each unit features power-up/gravity-down function with the lowering movement controlled by the manual release valve. It is designed for vertical-mount applications only.

What's Included

    (1) AC power unit

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Delivers fast lifting speed and low amp draw
  • 2.2cc displacement
  • 2 GPM flow rate
  • 2,900 max. PSI; 2,850/3,450 max. RPM
  • 1.5 continuous HP, 3.5 peak/intermittent HP

Key Specs

AttributeSpecification

item#

47373

Brand

NorTrac

Manufacturer's Warranty

1 year limited warranty

Ship Weight

52.2 LB

Max. Flow Rate

2 GPM

Max. PSI

2,900

Max. RPM

3,450

Power Source

Electric
AttributeSpecification

Port Outlet Size

9/16 in

Thread Type

SAE

Reservoir Capacity

3.17 Gal

Volts

240

Phase

AC

Horsepower

3

Action

Single Acting

Reviews

Questions & Answers

16 Reviews This action will navigate to reviews.

Questions

1–10 of 12 Questions
Sort by:

  1. Tonnage Rating

    What would the tonnage rating be that this unit would produce?

    1. This unit lifted my 8K truck.

      Helpful?

    2. To find this you would need to know the size of your cylinders in order to calculate the maximum lift force based on the max pressure of the unit.

      Helpful?

    3. This AC power unit doesn't have a specific tonnage rating. Its tonnage rating depends on the size(bore diameter and length) of the hydraulic cylinder you're using it with.

      Helpful?

  2. Can I buy a new tank? Customer ran into theirs with a forklift

    1 answer

    1. The reservoir tank, part #DLH622-0012, is available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  3. Could this be set up for 2 way operation?

    1 answer

    1. The power unit can be set up for a two way operation. The motor is not fan cooled. The motor is unable to be run continuously. The 3/8" NPT port on the side will be the return port. You will need to move the return to tank tube inside the reservoir to the corresponding port.

      Helpful?

  4. i’d like this unit to provide power to a multi-valve manifold (to control several cylinders).  can i remove the manual valve handle and insert a return plug?  if so, which part?  i want to turn the unit on and have it provide pressure, until i turn it off

    1 answer

    1. The power unit does not accept a return plug. The motor is not fan cooled. A fan cooled motor is recommended to operate more than one cylinder.

      Helpful?

  5. can you select left or right side plumbing

    1 answer

    1. This power unit will accommodate left or right side plumbing. Both P1 and P2 can be used as the pressure port.

      Helpful?

  6. I am replacing a 1,750 PSI unit with this. How do I set the overpressure to match this? Do I need special tools to do so?

    1 answer

    1. This unit can be set to 1750 PSI. The cartridge should be taken to a hydraulic specialist to be reset.

      Helpful?

  7. Where is it made ?

    1 answer

    1. This item is manufactured in China.

      Helpful?

  8. is this single phase

    1 answer

    1. This power unit is 230V single phase.

      Helpful?

  9. Will this pump work on a 10,000 lb lift ???

    1 answer

    1. This power unit doesn't have a specific weight rating. The rating depends on the size of the hydraulic cylinder you are using.

      Helpful?

  10. Is this unit set up for a overhead kill switch?

    1 answer

    1. An overhead limit switch can be mounted overhead and used to shut off power to the AC motor. Make sure that it is properly connected.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
