GPI 115V 12 GPM Fuel Transfer Pump with Manual Nozzle

Item# 360565
GPI 115V 12 GPM Fuel Transfer Pump with Manual Nozzle

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

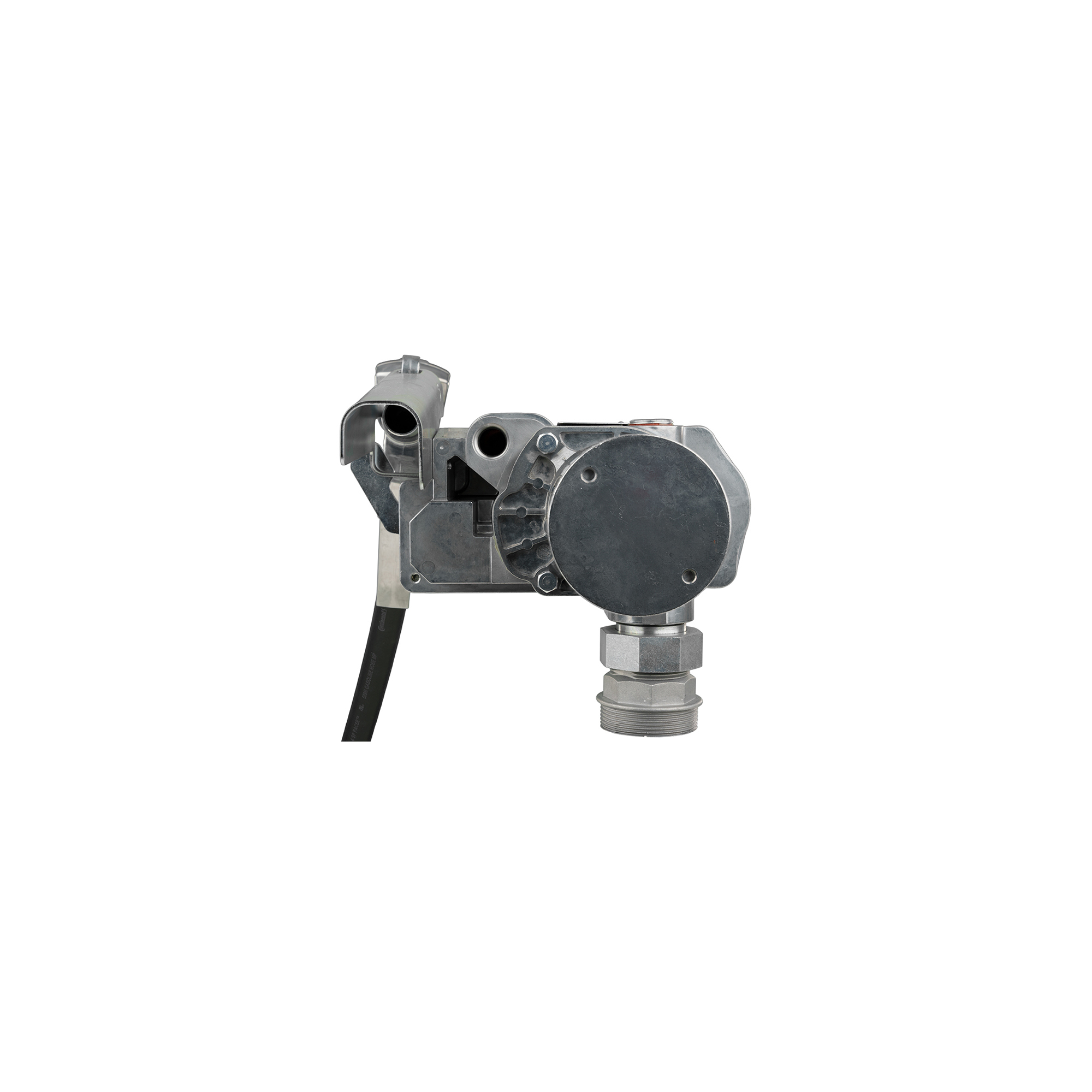

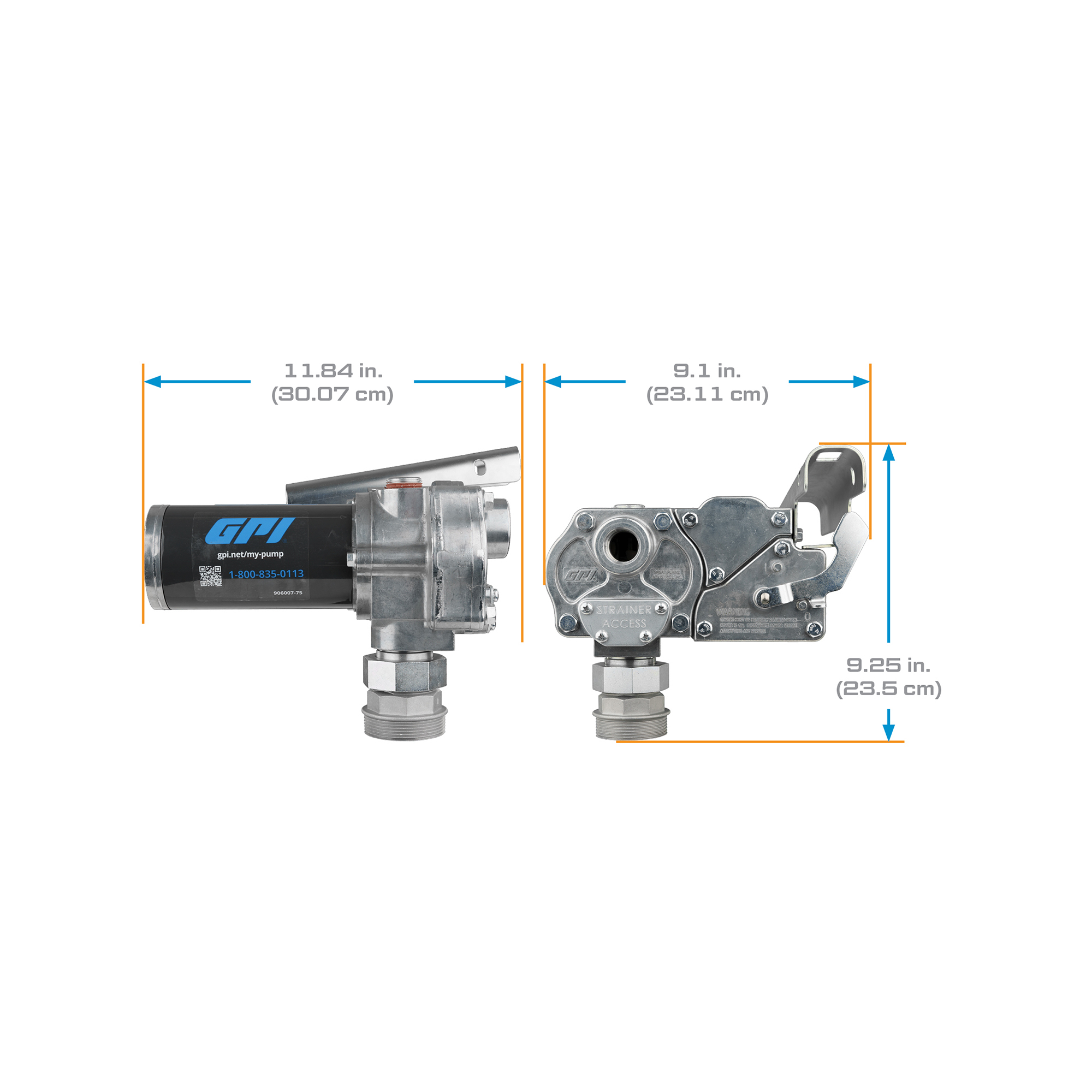

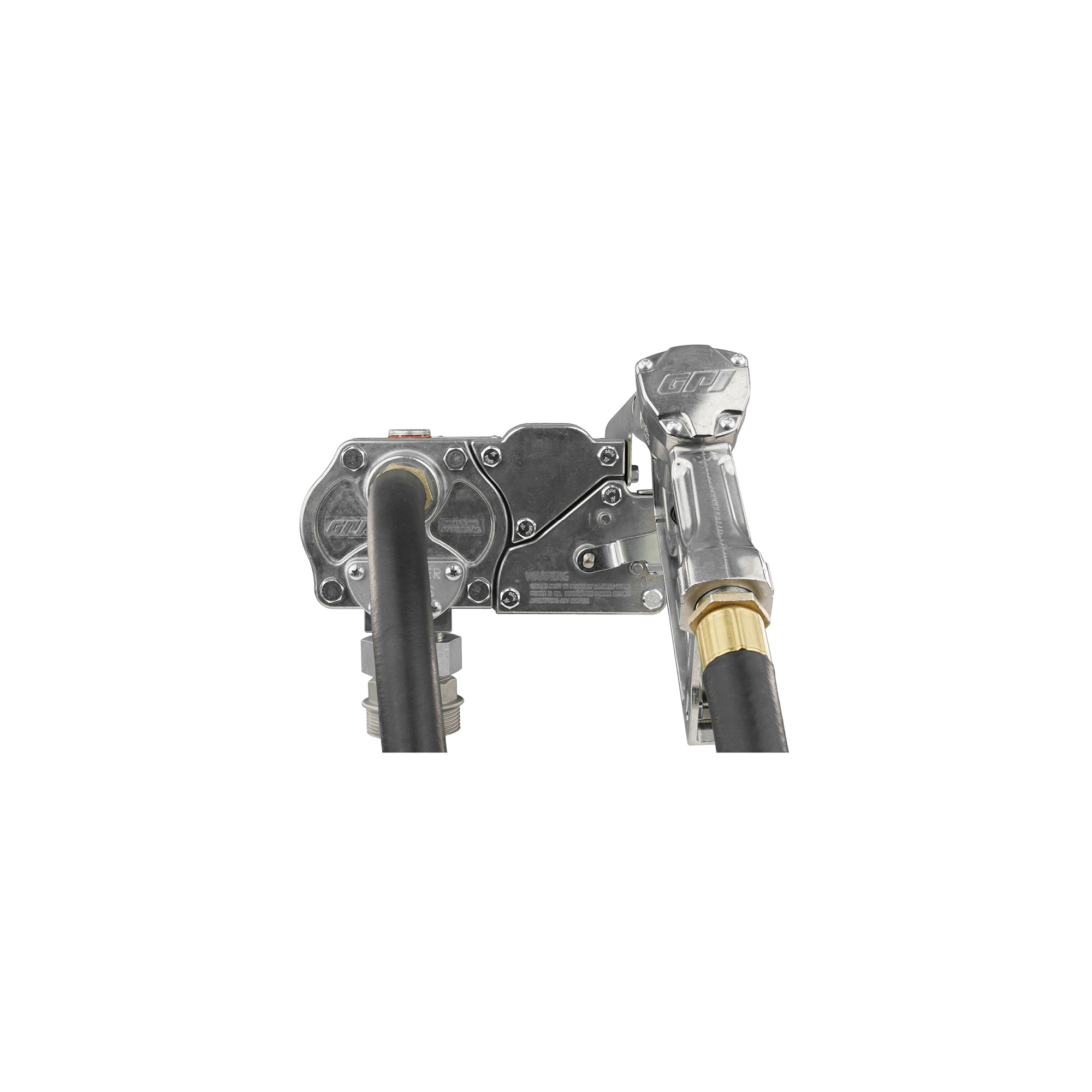

GPI 115V 12 GPM Fuel Transfer Pump with Manual Nozzle

Click or Tap image to Zoom

$559.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not Available
  • 115V self-priming pump
  • 1/8 HP motor is overload protected and explosion proof
  • Bypass valve
  • Manual nozzle delivers fuel at up to 12 GPM
  • Nitrile seal prevents leakage

See full description

Complete Your Solution

  • GPI 115V 12 GPM Fuel Transfer Pump with Manual Nozzle
  • GPI 18 GPM, 10 Micron Particulate Filter Kit with 3/4-inch NPT Aluminum Adapter
  • GPI 3-30 GPM Digital Fuel Meter
  • 3M Professional Chemical Splash/Impact Goggles, Clear Lens, Model# 91264
Price for all four:

$812.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The GPI® Fuel Transfer Pump is a safe and easy way to dispense gasoline, diesel fuels or kerosene. Features a rotary gear design that's made from lightweight yet durable cast aluminum. The 115V AC motor delivers flow rates up to 12 GPM. Ideal for stationary locations in fleet, agriculture or industrial applications. Includes manual unleaded nozzle, fuel hose and adjustable suction pipe. Motor is UL listed; CSA certified.

What's Included

    (1) Model# M1115S-MU transfer pump (1) 3/4in. manual unleaded nozzle (1) 3/4in. x 12ft. static wire fuel hose (1) Adjustable suction pipe (1) Tank bushing adapter (1) Hardware kit

Downloads

Product Manual

Features + Benefits

  • 115V self-priming pump
  • 1/8 HP motor is overload protected and explosion proof
  • Bypass valve
  • Manual nozzle delivers fuel at up to 12 GPM
  • Nitrile seal prevents leakage
  • Lightweight aluminum body provides corrosion resistance and reduces tank stress
  • Lockable nozzle cover deters theft to protect your investment
  • Unique strainer and poppet design allows for easy access and maintenance
  • For use with gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% bio-diesel blends such as B20) and kerosene
  • Convenient spin collar for easy installation and versatile pump mounting
  • Comes complete with 3/4in. manual unleaded nozzle, 3/4in. dia. x 12ft. L static wire fuel hose and 15in. to 40in. adjustable suction pipe
  • Add the GPI model# 01A31GM Digital Flow Meter (Item# 10930) or FM-200-G6N Mechanical Fuel Meter (both sold separately) to create your own fueling system

Key Specs

AttributeSpecification

item#

360565

Brand

GPI

Manufacturer's Warranty

Lifetime Limited Warranty

Ship Weight

22.0 LB

GPM

12

Flow (GPM)

12

Volts

115

Nozzle Type

Manual

Max. Suction Lift

5.5 ft

Max. Suction Lift (ft.)

5 1/2
AttributeSpecification

Inlet Port

1 in

Outlet Port

3/4 in

Hose Length

12 ft

Inlet Port (in.)

1

Duty Cycle

30 min

Bypass Valve

Yes

Outlet Port (in.)

3/4

Horsepower

0.12 HP

Hose (in. x ft.)

3/4 x 12

Reviews

Questions & Answers

47 Reviews This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. Is this pump waterproof and can it be mounted outdoors on a 275 gallon oil tank to pump #2 fuel oil.

    1 answer

    1. The pump can be outdoors. You can pump #2 fuel oil with this pump.

      Helpful?

  2. What is the maximun length the suction tube can extend to?

    1 answer

    1. The suction pipe supplied has a variable length of 22 to 40 inches (56 to 102 cm). If additional length is needed, use the 15 inch (38 cm) Suction Pipe Extension, part # 115527-2 which can be purchased through GPI direct.

      Helpful?

  3. What is the difference between a manual and an automatic nozzle?

    1 answer

    1. The automatic nozzle has a sensor that detects when the tank is full and will automatically shut off , the same as the gas pumps at the gas station do. With a manual nozzle you would need to monitor when the tank is full and stop pumping the fuel yourself.

      Helpful?
