GPI Fuel Transfer Pump, 12 GPM, 115V AC, Auto Unleaded Nozzle, Model# M-1115S-AU

Item# 26527
"GPI Fuel Transfer Pump, 12 GPM, 115V AC, Auto Unleaded Nozzle, Model# M-1115S-AU"
GPI Fuel Transfer Pump, 12 GPM, 115V AC, Auto Unleaded Nozzle, Model# M-1115S-AU

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

GPI Fuel Transfer Pump, 12 GPM, 115V AC, Auto Unleaded Nozzle, Model# M-1115S-AU

Click or Tap image to Zoom

$599.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Call Store for Availability
  • 115V self-priming pump
  • 1/8 HP motor is overload protected and explosion proof
  • Bypass valve
  • Automatic nozzle delivers fuel at up to 12 GPM
  • Nitrile seal prevents leakage

See full description

Complete Your Solution

  • GPI Fuel Transfer Pump, 12 GPM, 115V AC, Auto Unleaded Nozzle, Model# M-1115S-AU
  • GPI 18 GPM, 10 Micron Particulate Filter Kit with 3/4-inch NPT Aluminum Adapter
  • GPI 3-30 GPM Digital Fuel Meter
  • Strongway Spring-Rewind Fuel and Oil Hose Reel, 3/4in. x 25ft. NBR Rubber Hose, 1250 PSI
Price for all four:

$1234.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

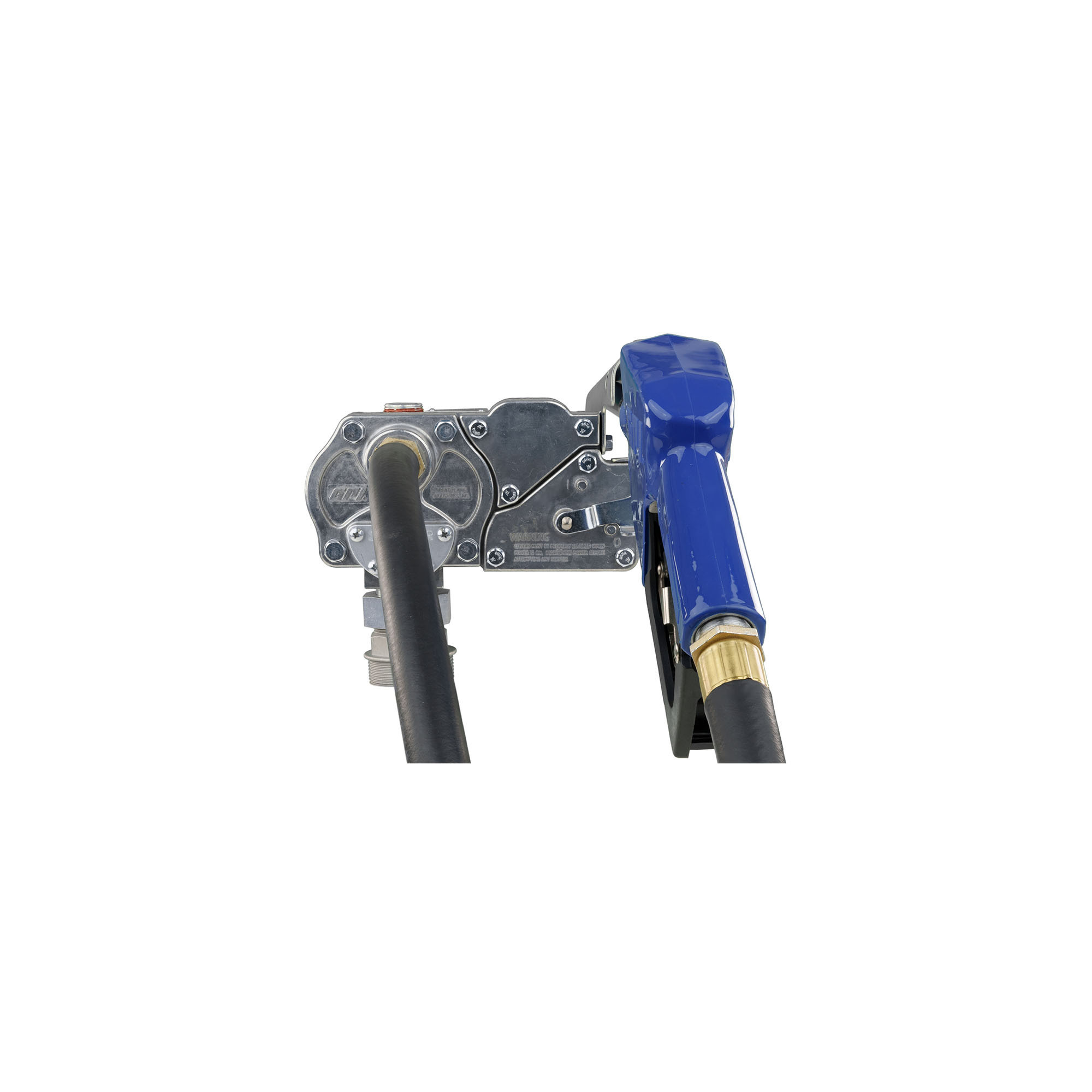

The GPI® Fuel Transfer Pump is a safe and easy way to dispense gasoline, diesel fuels or kerosene. Features a rotary gear design that's made from lightweight yet durable cast aluminum. The 115V AC motor delivers flow rates up to 12 GPM. Ideal for stationary locations in fleet, agriculture or industrial applications. Includes automatic unleaded nozzle, fuel hose and adjustable suction pipe. Motor is UL listed; CSA certified.

What's Included

    (1) Model# M1115S-AU transfer pump (1) 3/4in. automatic unleaded nozzle (1) 3/4in. x 12ft. static wire fuel hose (1) Adjustable suction pipe (1) Tank bushing adapter (1) Hardware kit (1) 15in. to 25in. adjustable suction pipe (1) 15in. suction pipe extension (1) 2in. bung adapter

Downloads

Product Manual

Features + Benefits

  • 115V self-priming pump
  • 1/8 HP motor is overload protected and explosion proof
  • Bypass valve
  • Automatic nozzle delivers fuel at up to 12 GPM
  • Nitrile seal prevents leakage
  • Lightweight aluminum body provides corrosion resistance and reduces tank stress
  • Lockable nozzle cover deters theft to protect your investment
  • Unique strainer and poppet design allows for easy access and maintenance
  • For use with gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% bio-diesel blends such as B20) and kerosene
  • Convenient spin collar for easy installation and versatile pump mounting
  • Comes complete with 3/4in. automatic unleaded nozzle, 3/4in. dia. x 12ft. L static wire fuel hose and 15in. to 40in. adjustable suction pipe
  • Add the GPI model# 01A31GM Digital Flow Meter (Item# 10930) or FM-200-G6N Mechanical Fuel Meter (both sold separately) to create your own fueling system
  • 15in. to 25in. adjustable suction pipe has 1-inch MNPT threads and is designed to be installed in the 1-inch inlet of some GPI transfer pumps
  • 2in. bung adapter

Key Specs

AttributeSpecification

item#

26527

Brand

GPI

Manufacturer's Warranty

Lifetime Limited Warranty

Ship Weight

23.0 LB

GPM

12

Flow (GPM)

12

Volts

115

Nozzle Type

Automatic

Max. Suction Lift

4.81 ft

Max. Total Head

23 ft

Amps

1.5

Max. Suction Lift (ft.)

4 13/16

Watts

172.5

Max. Total Head (ft.)

23

Inlet Port

1 in
AttributeSpecification

Outlet Port

3/4 in

Discharge

18.2 ft

Self-Priming

Yes

Hose Length

12 ft

Inlet Port (in.)

1

Speed

1,400 rpm

Duty Cycle

30 min

Bypass Valve

Yes

Outlet Port (in.)

3/4

Horsepower

0.12 HP

Product Weight

lb

Discharge (ft.)

18 1/5

Dimensions L x W x H (in.)

10.0 x 9.0 x 7.5 in

Hose (in. x ft.)

3/4 x 12

Speed (RPM)

1,400

Reviews

Questions & Answers

15 Reviews This action will navigate to reviews.

Questions

1–10 of 12 Questions
Sort by:

  1. Does this pump have the standard 2 inch bung style port for installing on top of tank?

    1. Yes

      Helpful?

    2. This pump comes with a 2 inch bung adapter.

      Helpful?

  2. Is this explosion proof and can a meter be added?

    1. says explosion proof pump. and yes i have a meter and 2 filters on mine

      Helpful?

    2. This GPI Fuel Transfer Pump has an explosion proof motor and a meter can be added.

      Helpful?

  3. Can I use a flexible or semi-flexible inlet hose with this pump? What would be the smallest diameter hose I could possibly use. I plan on ideally using it to pump gasoline out of cars at my yard

    1 answer

    1. The pump comes with a suction pipe to be connected to a fuel tank, it could not be used with a flexible or semi-flexible inlet hose for this application.

      Helpful?

  4. Can anyone verify exactly how high this sits above the tank when mounted?

    1 answer

    1. As this is a tapered thread, the final, installed height will vary according to the way that the female threads of the tank or barrel are cut and if the bung is raised.

      Helpful?

  5. can the pick up tube be adjusted to 44"?

    1 answer

    1. The suction pipe cannot be adusted to 44". The suction pipe can adjust from 15" to 40".

      Helpful?

  6. How long is the power cord? If it comes with one

    1 answer

    1. The pump does not come with a cord. It would need to be hardwired.

      Helpful?

  7. Can this pump be mounted outdoors?

    1 answer

    1. This pump is rainproof for outdoor use.

      Helpful?

  8. Can I add a fuel filter to this pump

    1 answer

    1. A fuel filter can be used with this pump. Please view item #114300 for a compatible filter kit.

      Helpful?

  9. can this be used for solvents ?

    1 answer

    1. This pump can be used to transfer Stoddard solvents or mineral spirits solvents. If your solvent is another type, you'll need to check its compatibility chart in regards to cast aluminum, Buna (O-rings), and Valox (gears).

      Helpful?

  10. Will the GPI Fuel Kit work with this? #53289

    1 answer

    1. The GPI fuel kit will work with model M1115S-AU 115V 12GPM GPI fuel pump.

      Helpful?
