GPI 3-30 GPM Digital Fuel Meter

Item# 10930
GPI 3-30 GPM Digital Fuel Meter
Top Seller
GPI 3-30 GPM Digital Fuel Meter

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

GPI 3-30 GPM Digital Fuel Meter

Click or Tap image to Zoom

$159.99

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    2 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Flow range of 3 to 30 GPM (10 to 100 LPM)
  • Typical accuracy is +/- 2.5% (accuracy can vary to +/- 5%)
  • One cumulative and one resettable batch total
  • Durable construction materials include aluminum housing, nylon rotor, ceramic bearings, tungsten carbide shaft, 316 stainless steel rings and zinc plated steel bushings
  • For use only with gasoline (up to 10% alcohol blends such as E10), diesel fuel (up to 20% biodiesel blends such as B20), biodiesel (B100) and kerosene

See full description

Complete Your Solution

  • GPI 3-30 GPM Digital Fuel Meter
  • GPI 20 GPM 12V Fuel Transfer Pump
  • 3M Professional Chemical Splash/Impact Goggles, Clear Lens, Model# 91264
  • Klutch Auto-Rewind Air Hose Reel with 3/8in. x 50ft. Rubber Hose, 300 PSI
Price for all four:

$1056.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The GPI Digital Turbine Fuel Meter is made from durable cast aluminum and features an LCD display that is accurate to +/-5% of the reading. This economical turbine meter is designed for flow rates from 3 to 30 GPM and is factory calibrated in gallons for use with diesel, gasoline or kerosene. The lightweight meter mounts easily to the end of a hose and is ideal for use with free flow gravity systems or combined with an electric transfer pump as part of a fuel transfer system. Includes two 3/4in. reducers to work with either 1in. or 3/4in. line sizes, 3/4in. MNPT pipe nipple and 2 standard AAA batteries.

What's Included

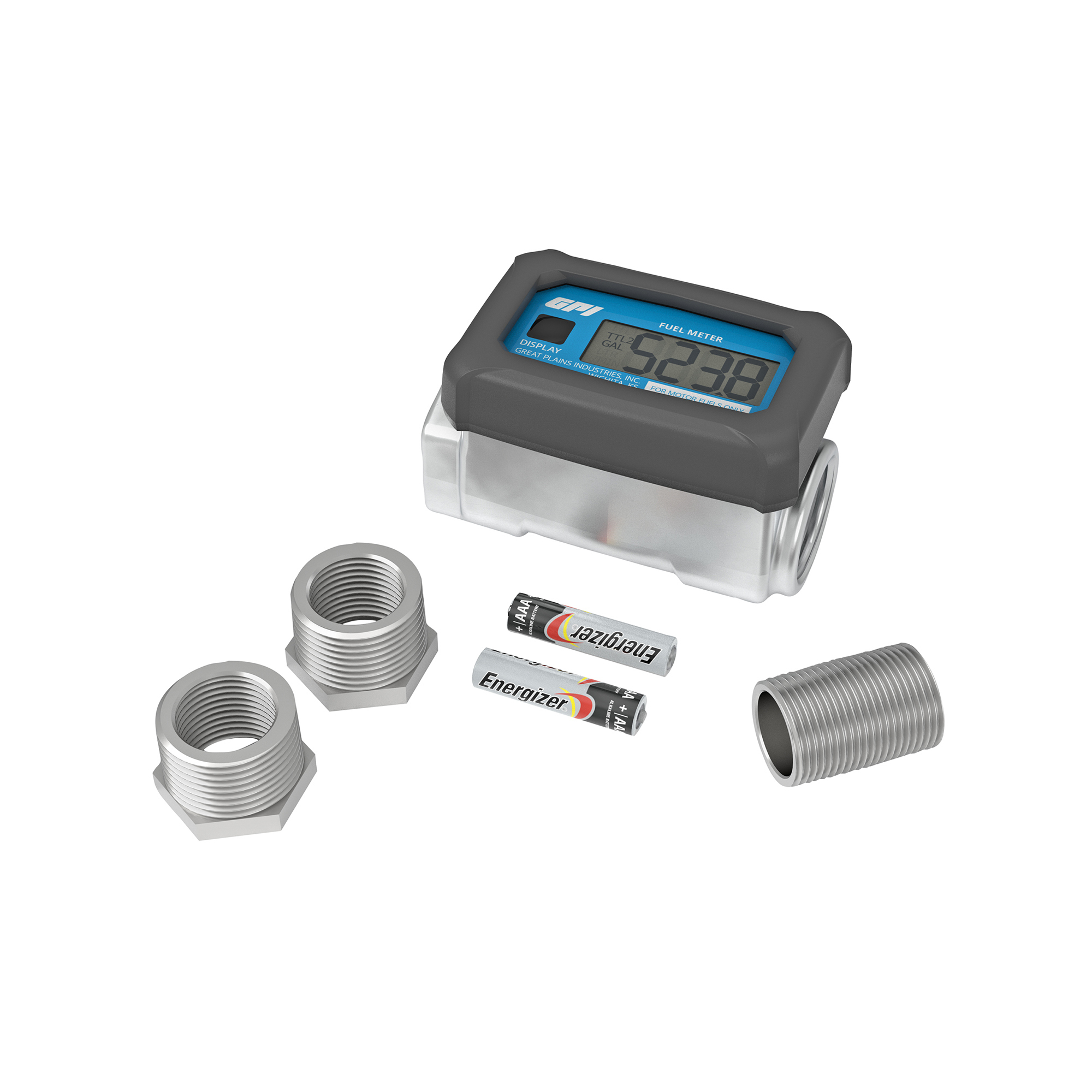

    (1) Model# 01A31GM digital turbine fuel meter (2) Reducer bushings (1) Pipe nipple (2) AAA batteries (1.5V alkaline)

Downloads

Product Manual
Play Item Video

Accurately Measure Flow … Right at the Nozzle

Quick and Easy Readings

The aluminum turbine meter lets you monitor your fuel flow with just a quick glance as you fill. An easy-to-read LCD display instantly provides a readout in gallons. Check your batch total or get your cumulative total, all with an accuracy within 5%.

Versatility You Can Count On

This meter can handle kerosene, diesel and biodiesel blends, plus gasoline, including E15 alcohol blends. 1in. NPT threads are standard, with 3/4in. reducer fittings also included to provide additional mounting options.

Easy On, Easy Off

The meter turns on manually or starts automatically with the first trickle of fuel, your choice. For your convenience, it features automatic off — once you stop the flow, the meter shuts off when its job is done. No remembering to hit an off switch, which means no wasted batteries as a result of the meter accidentally being left on.

Meter with Confidence

Expert Answers Are Available

Northern Tool + Equipment is here to help you succeed. Our field-trained, dedicated team of welding experts is ready to help — call or email and you'll get a prompt response.

The GPI Advantage

The GPI Model #113255-1 Digital Flow Meter is built to last and perform. But to give you extra peace of mind, GPI stands behind this product with a 2-year limited warranty.

Guaranteed Satisfaction

Shop in complete confidence, knowing that Northern Tool + Equipment protects your investment and is ready to provide you with the assistance and helpful resources you need.

Features + Benefits

  • Flow range of 3 to 30 GPM (10 to 100 LPM)
  • Typical accuracy is +/- 2.5% (accuracy can vary to +/- 5%)
  • One cumulative and one resettable batch total
  • Durable construction materials include aluminum housing, nylon rotor, ceramic bearings, tungsten carbide shaft, 316 stainless steel rings and zinc plated steel bushings
  • For use only with gasoline (up to 10% alcohol blends such as E10), diesel fuel (up to 20% biodiesel blends such as B20), biodiesel (B100) and kerosene
  • Large, easy to read 4-digit display
  • Auto-off display turns off after 1 minute of inactivity to extend battery life
  • Reducer bushings provide versatility for use with 1in. or 3/4in. line sizes
  • Can be mounted on hose end for easy meter reading
  • Powered by two field replaceable AAA batteries
  • Aluminum body is lightweight and corrosion resistant

Key Specs

AttributeSpecification

item#

10930

Brand

GPI

Manufacturer's Warranty

2 year limited warranty

Ship Weight

1.54 LB

Min. Flow Rate

3 GPM

Max. Flow Rate

30 GPM

Max. PSI

300

Operating PSI

300
AttributeSpecification

Product Type

Fuel Meters

Inlet Port

1 in. NPT

Outlet Port

1 in. NPT

Min. Temperature

14 °F

Max. Temperature

140 °F

Product Weight

lb

Dimensions L x W x H (in.)

4.0 x 2.5 x 2.0 in

Reviews

Questions & Answers

42 Reviews This action will navigate to reviews.

Questions

1–10 of 19 Questions
Sort by:

  1. could this be used to meter anti- freeze mixture 50/50?

    1. should work as there is a impeller in the housing to read flow when we have our tanks repaired we have to flush out with water they read fine on that

      Helpful?

    2. This flow meter can be used for 50/50 mixed antifreeze.

      Helpful?

  2. Will it works with 100LL aviation fuel?

    1. Yes it has worked fine for me with avgas.

      Helpful?

    2. The GPI Digital Flow Meter is compatible with metering 100LL aviation fuel.

      Helpful?

  3. Can this be used on a hand pump

    1 answer

    1. This unit is designed to work with free flow gravity systems or combined with an electric transfer pump.

      Helpful?

  4. How well will this hold up pumping 12.5% bleach "SH"

    1 answer

    1. The fuel meter is not for use with bleach. It is designed only to be used with gasoline (up to 10% alcohol blends such as E10), diesel fuel (up to 20% biodiesel blends such as B20), biodiesel (B100) and kerosene.

      Helpful?

  5. Is it calibrated?

    1 answer

    1. The meters are calibrated.

      Helpful?

  6. If battery dead does fuel flow shut off?

    1 answer

    1. When batteries are removed or lose power, the batch and cumulative totals reset to zero but the factory calibration is retained.

      Helpful?

  7. how do you reset the ttl2 reading back to zero

    1 answer

    1. The TTL2 is the cumulative total. This total provides continuous measurement and may not be manually reset. When the cumulative total reaches a maximum reading of 9999, it will automatically reset to zero.

      Helpful?

  8. What country is this product made in?

    1 answer

    1. This item is manufactured in the United States.

      Helpful?

  9. Is this meter waterproof and can it be used outdoors.

    1 answer

    1. The meter would be waterproof and can be used outdoors.

      Helpful?

  10. Is this available in 3/4" inlet/outlet size?

    1 answer

    1. The digital fuel meter is not available in 3/4" inlet and outlet.

      Helpful?
