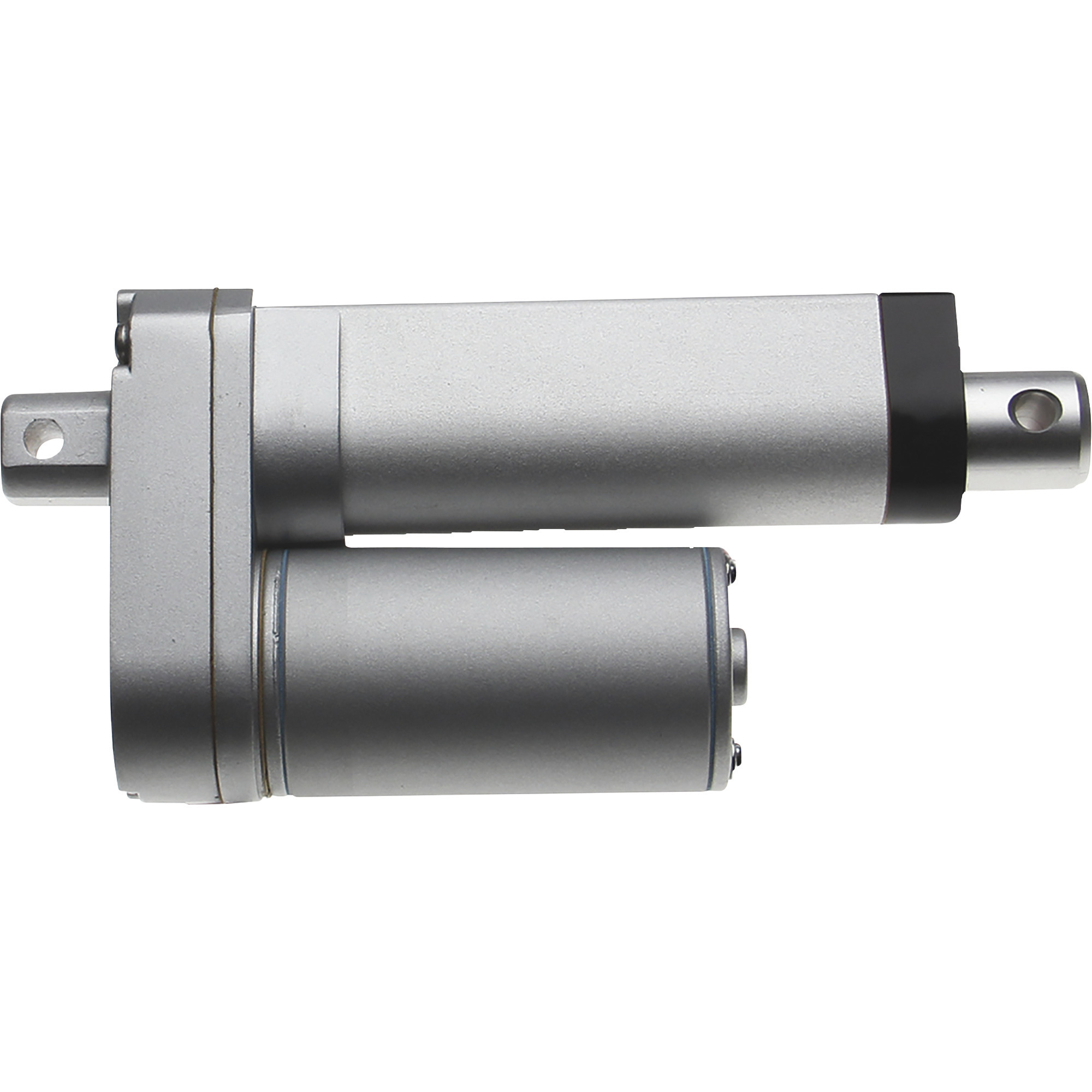

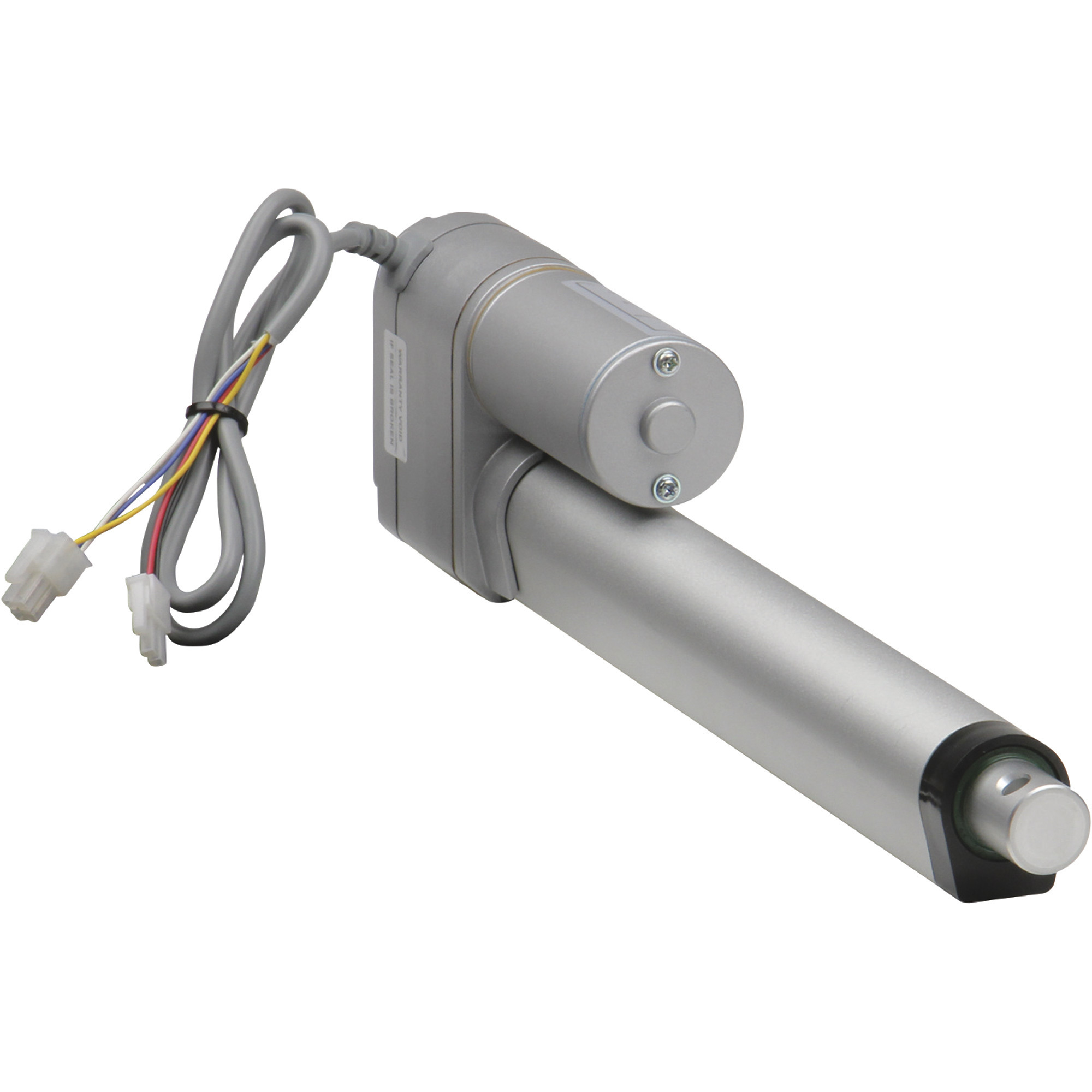

Glideforce 110-Lb. Capacity Linear Actuator, 7.87in. Stroke, Model# LACT8P

Item# 27327
Glideforce 110-Lb. Capacity Linear Actuator, 7.87in. Stroke, Model# LACT8P

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Glideforce 110-Lb. Capacity Linear Actuator, 7.87in. Stroke, Model# LACT8P

Click or Tap image to Zoom

$159.99

Buy 6 or more at $157.59 ea.

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 8in. nominal/7.87in. actual stroke
  • 12V motor
  • 20:1 reduction gearbox
  • 110-lb. dynamic load rating
  • Extension speed is 0.39in./sec. at max. load

See full description

Complete Your Solution

  • Glideforce 110-Lb. Capacity Linear Actuator, 7.87in. Stroke, Model# LACT8P
  • Glideforce 7-Channel Wireless Remote Control, Model# VERSA7
  • Glideforce Programmable Controller Kit, Controls One LD-ACME Linear Actuator, Model# LA-CONTROLLER
  • Glideforce Programmable Controller Kit, Controls Two LD-ACME Linear Actuators, Model# Dual Actuator
Price for all four:

$519.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Glideforce LD-ACME model linear actuator features an all-metal housing and is water-resistant and sealed against dust for rugged durability. 12V motor has 20:1 reduction gearbox that gives actuator a dynamic load rating of 110 lbs. and is rated to hold up to 500 lbs. when not moving. Use to raise and lower power equipment attachments, auto hoods and trunks, position solar panels, television lifts and many other applications around the home and farm. Unit can be controlled with a double pole, double throw switch or with the built-in position sensor and optional linear actuator programmable controller.

What's Included

    (1) Linear actuator

Downloads

Product Manual Product Manual2

Features + Benefits

  • 8in. nominal/7.87in. actual stroke
  • 12V motor
  • 20:1 reduction gearbox
  • 110-lb. dynamic load rating
  • Extension speed is 0.39in./sec. at max. load
  • Extension speed is 0.59in./sec. at no load
  • 25% duty cycle
  • 3.4 Amps at full load
  • 0.6 Amps at no load
  • IP65 enclosure
  • Nonadjustable end stop limit switches simplify installation and wiring
  • ACME drive for smooth, quiet operation
  • 1/4in. mounting pin holes
  • 13.7in. retracted length
  • 0.787in. shaft diameter
  • 14 1/4in.L x 1 1/2in.W x 3in.H overall
  • Can be controlled with a double pole, double throw switch
  • Can be controlled with built-in position sensor and optional linear actuator programmable controller

Key Specs

AttributeSpecification

item#

27327

Brand

Concentric

Manufacturer's Warranty

1 year limited warranty

Ship Weight

3.0 LB

Stroke Length

8 in

Dynamic Load Capacity

110 lb
AttributeSpecification

Static Load Capacity

500 lb

Product Type

Linear Actuator

Gear Ratio

20:1

Length Retracted

13.68 in

Volts

12

Frame Material

Multiple

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. Usable for a snowplow power angle?

    Wondering if this would be sturdy enough for using as a power angle for a 60" snowplow on an ATV.

    1. I would use one of the stronger actuators with a higher STATIC LOAD capacity for such an application.

      Helpful?

    2. This actuator would not be sturdy enough for this application. It would not stand up to the weight of the snow. It would be recommended to use the industrial actuator, item #27325 for 1000 pounds.

      Helpful?

  2. Which DPDT switch for use with 27327 linear actuator?

    I want to purchase the actuator for a dump trailer. I don't want to do anything fancy, just simple dump and return switch. I noticed there are switches listed with the product, one of which is currently unavailable. Neither are listed as a double pole/double throw switch which is what I believe would be best suited for my dumper project? Can you tell me which switch you have that will work for me?

    1 answer

    1. This linear actuator only has a 110 lb. weight capacity and would not be a good selection for your application. Please see our item #3309041 or #3309027 for your application. You want to make your selection by the make, model and weight capacity. Search under lift gates+dump kits for a full selection.

      Helpful?
