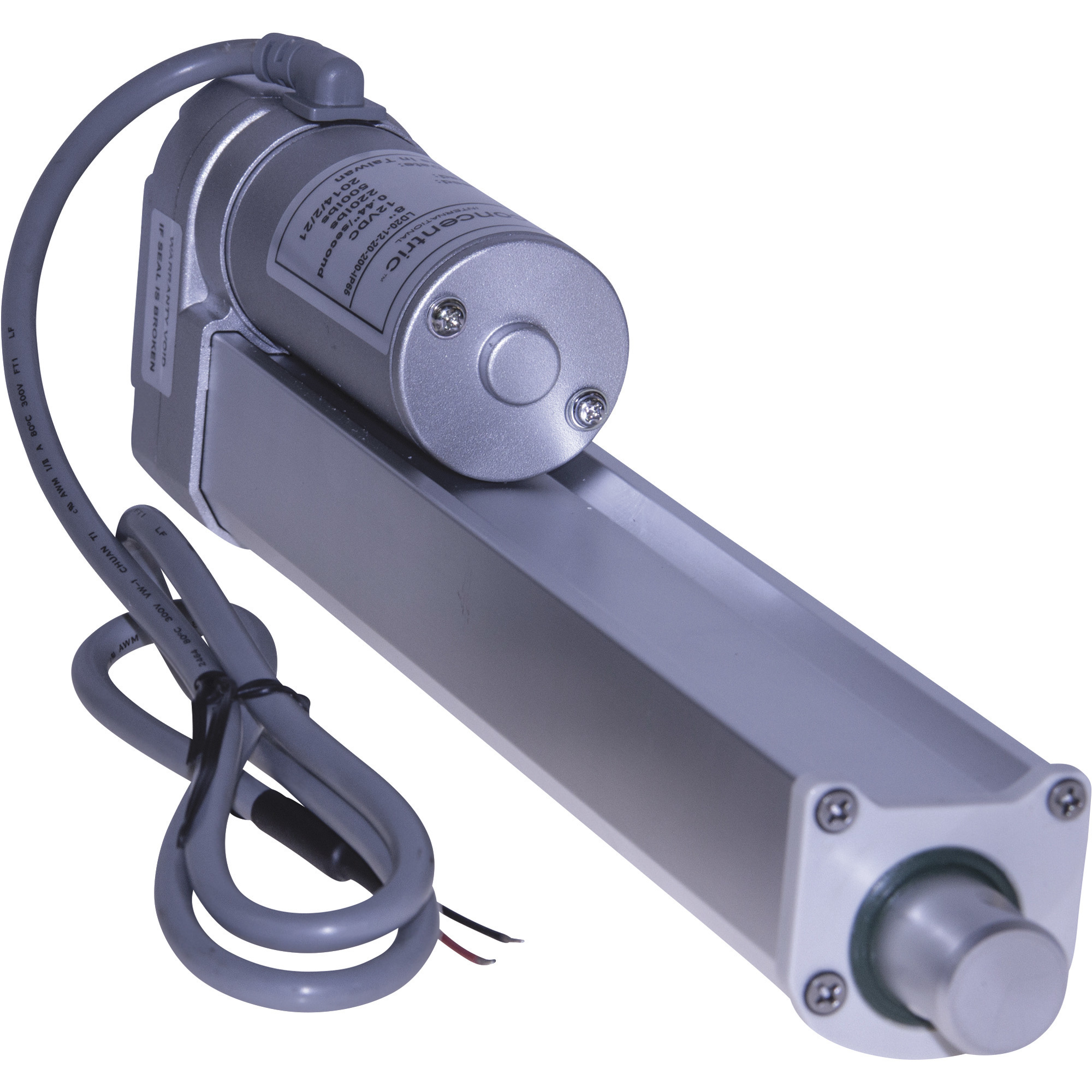

Glideforce 225-Lb. Capacity Linear Actuator by Concentric, 12in. Medium-Duty, 11.81in. Stroke, Model# MD122012

Item# 51565
Glideforce 225-Lb. Capacity Linear Actuator by Concentric, 12in. Medium-Duty, 11.81in. Stroke, Model# MD122012

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Glideforce 225-Lb. Capacity Linear Actuator by Concentric, 12in. Medium-Duty, 11.81in. Stroke, Model# MD122012

Click or Tap image to Zoom

$224.99

Buy 6 or more at $221.62 ea.

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • All-metal housing is water-resistant and sealed against dust for rugged durability
  • 20:1 reduction gearbox to provide a load rating of 220 lbs.
  • Rated to hold 1000 lbs. when not in motion
  • Can be controlled with a double pole, double throw switch
  • Durable aluminum/steel frame material

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Glideforce 225-Lb. Capacity Linear Actuator by Concentric is ideal for automotive, agricultural, ATV, solar and home automation applications. Raise and lower power equipment attachments, auto hoods and trunks; position solar panels; rotate snow blower chutes; or use it for various other projects. Non-adjustable end stop switches simplify installation and wiring. 11.81in. stroke. 15.94in. retracted length/27.76 extended length.

What's Included

    (1) Linear actuator

Downloads

Product Manual

Features + Benefits

  • All-metal housing is water-resistant and sealed against dust for rugged durability
  • 20:1 reduction gearbox to provide a load rating of 220 lbs.
  • Rated to hold 1000 lbs. when not in motion
  • Can be controlled with a double pole, double throw switch
  • Durable aluminum/steel frame material
  • 12 Volt power

Key Specs

AttributeSpecification

item#

51565

Brand

Concentric

Manufacturer's Warranty

1 year limited warranty

Ship Weight

3.2 LB

Stroke Length

11.81 in

Dynamic Load Capacity

220 in

Static Load Capacity

1,000 lb
AttributeSpecification

Product Type

Linear Actuator

Gear Ratio

20:1

Length Retracted

15.93 in

Length Extended

27.75 in

Volts

12

Frame Material

Multiple

Reviews

Questions & Answers

Questions

1–5 of 5 Questions
Sort by:

  1. what is the eyelet dia?

    1 answer

    1. The eyelet, or mounting hole, at each end of the actuator is 3/8" diameter.

      Helpful?

  2. can you sinc 2 (1 each side of hood)

    The hood weighs 200lbs I want one each side synchronized so opening and closing match

    1 answer

    1. This linear actuator has a full load speed of 0.17"/sec to 0.73"/sec. So, if two of these are connected to the same switch, they may operate at slightly different speeds.

      Helpful?

  3. What is the stroke speed per inch ?

    1 answer

    1. The speed at no load is .24 inches/second up to 1.06 inches/second. The speed at full load is .17 inches/second up to .73 inches/second.

      Helpful?

  4. does changing the input voltage polarity change diction of travel

    1 answer

    1. Yes, changing the input voltage polarity would change the direction of travel.

      Helpful?

  5. how many amps can this draw

    1 answer

    1. The Guideforce Linear actuator will draw between 4.5-5 amps.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
