The welder will require a 20 amp breaker.

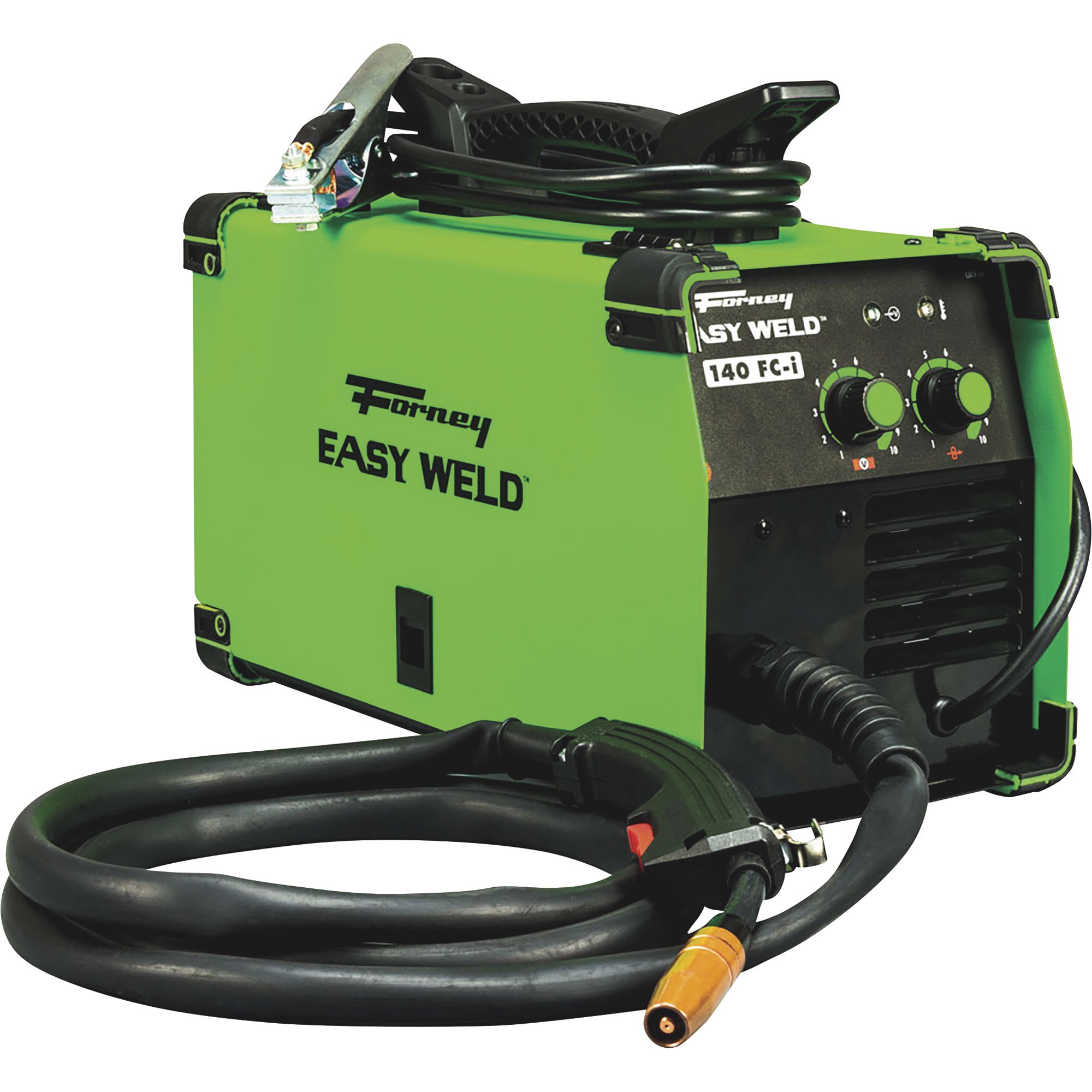

Forney Easy Weld 140 FC-i, 120V 140 Amp Inverter Flux Core Welder, Model# 261
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- 120 Volt single phase flux-core wire welder is lightweight and portable
- Convenient operation does not require welding gas and can run off standard household power with a 20 Amp or higher circuit breaker
- Infinite voltage and wire feed speed control allows easily adjustable dial settings for the perfect weld every time
- Rugged all-metal case can handle the tough day-to-day jobs
- Designed to handle 2- and 10-lb. rolls of 0.030in. flux-core wire
See full description
What's Included
- (1) Welder
- (1) MIG gun
- (1) Ground clamp
- (1) Adapter
- (1) Contact tip
Downloads
Features + Benefits
- 120 Volt single phase flux-core wire welder is lightweight and portable
- Convenient operation does not require welding gas and can run off standard household power with a 20 Amp or higher circuit breaker
- Infinite voltage and wire feed speed control allows easily adjustable dial settings for the perfect weld every time
- Rugged all-metal case can handle the tough day-to-day jobs
- Designed to handle 2- and 10-lb. rolls of 0.030in. flux-core wire
- 140 Amp output welds up to 1/4in. mild steel
- DUTY CYCLE: 30% @ 90 Amps
- Built-in top carry handle for easy portability
- MIG ready
- Includes 8ft. MIG gun, 8ft. ground clamp, 20A-15A adapter and one additional 0.030in. contact tip
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All MIG + Flux Core Welders
See All Forney MIG + Flux Core Welders
Currently Viewing This Product
Shipping: Sold Out
Specifications
Specifications
Forney Easy Weld 140 FC-i, 120V 140 Amp Inverter Flux Core Welder, Model# 261
Lincoln Electric LE31MP 120V 140 Amp Multi-Process Welder – MIG, Flux Core, Stick & TIG Welding Machine, Portable DC Welder with 60% Duty Cycle, 1/4" Steel Capacity, DIY & Professional Use, Model #K3461-1
Lincoln Electric Remote Output Control, 6-Pin Connection, 100ft. Cord, Model# K857-1
Hobart Multi-Handler 200, Dual Voltage 120V/240V, 200 Amp Inverter MIG Welder, Multiprocess Welder, SpoolRunner 100 Spool Gun, Flux Core Welder, Stick Welder + TIG Welder
Volts
Same
120
120
-
120/240
Max. Amps
Same
140
140
-
200
Multi-process
Same
Yes
Yes
-
Yes
Welding Processes
Same
Flux-Core, MIG
Flux-Core, MIG, Stick, TIG
-
Flux-Core, MIG, Stick, TIG
Max. Weld Thickness
Same
0.25 in
0.25 in
-
0.375 in
Max. Welding Wire Diameter
Same
0.035 in
0.035 in
-
0.375 in
Duty Cycle
Same
30% at 90A
Mig: 60% At 95a; Stick: 60% At 80a; Tig: 60% At 115a
-
Mig-120v: 30% At 110a; 240v: 30% At 165a
Weldable Materials
Same
Mild steel, various other metal
Mild Steel, Stainless Steel, Aluminum
-
Aluminum, Steel, Stainless Steel
Wire Feed Speed Control
Same
Yes
Yes
-
Yes
Mig Ready
Same
Yes
Yes
-
Yes
Clamp Cable Length
Same
8 ft
10 ft
-
10 ft
Shielding Gas Required
Same
No
Yes
-
No
Product Weight
Same
19 lb
46.0000 lb
13.9000 lb
43.4000 lb
Dimensions L x W x H (in.)
Same
16.75 x 8.12 x 12 in
18.12 x 9.0 x 13.62 in
5.25 x 12.0 x 6.5 in
20.8 x 10.6 x 13.4 in
Power Type
Same
-
DC
AC
AC
Spool Gun Included
Same
-
No
-
-
Min. Amps
Same
-
80
-
-
Cart Included
Same
-
No
-
No
Power Cord Length
Same
-
10 ft
100 ft
6.5 ft
Electrode Cable Length
Same
-
10 ft
-
-
Regulator and Gas Hose Included
Same
-
Yes
-
Yes
