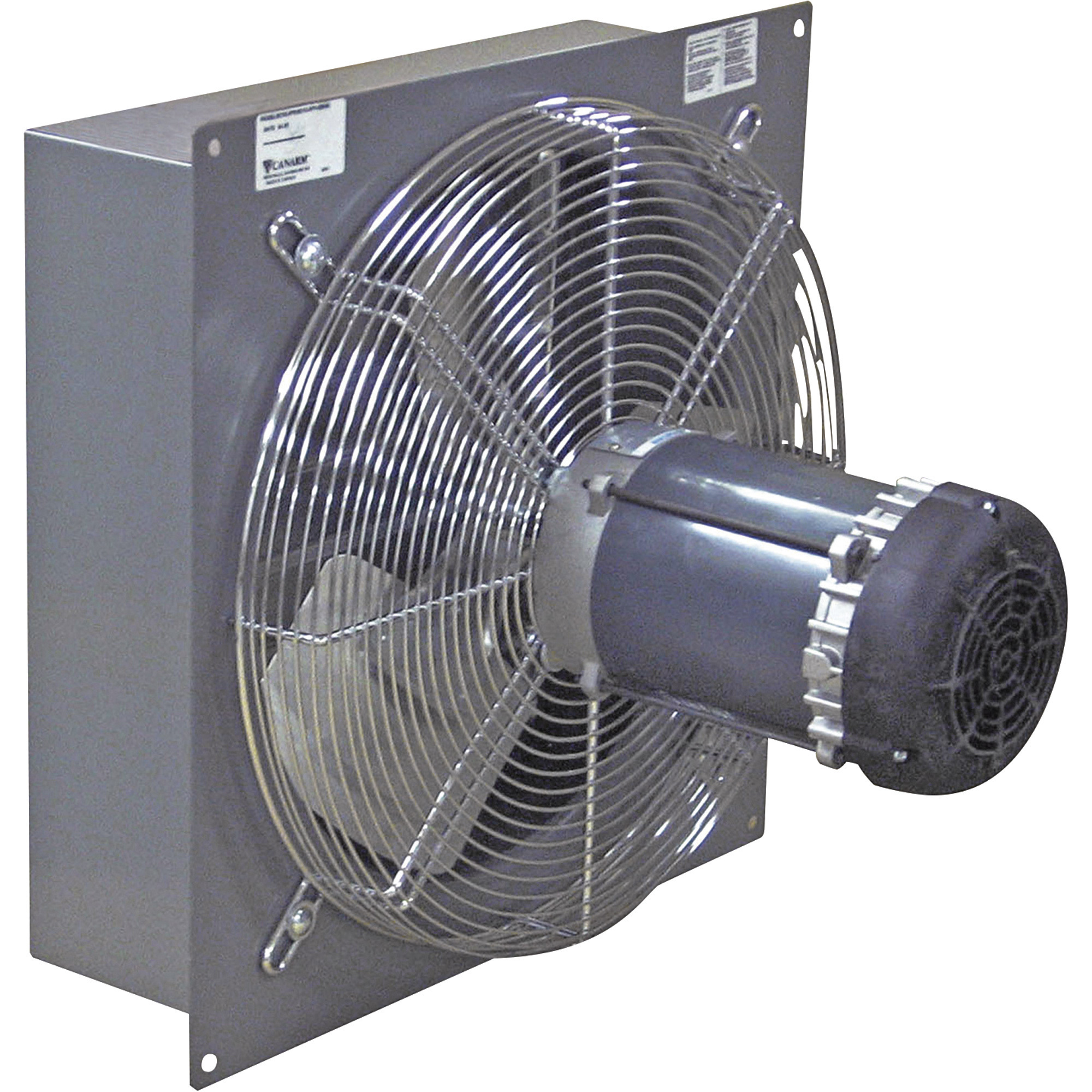

Canarm Explosion-Proof Totally Enclosed Exhaust Fan, 24in., 1/3 HP, 5,500 CFM, Model# SD24-XPF

Item# 14773
"Canarm Explosion-Proof Totally Enclosed Exhaust Fan, 24in., 1/3 HP, 5,500 CFM, Model# SD24-XPF"
Top Seller
Canarm Explosion-Proof Totally Enclosed Exhaust Fan, 24in., 1/3 HP, 5,500 CFM, Model# SD24-XPF

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Canarm Explosion-Proof Totally Enclosed Exhaust Fan, 24in., 1/3 HP, 5,500 CFM, Model# SD24-XPF

Click or Tap image to Zoom

$889.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Rugged steel welded box housing has a durable powder-coated finish
  • Heavy wire chrome-plated OSHA guards
  • Totally enclosed ball bearing 1/3 HP motor with thermal overload protection ensures reliable performance
  • Installs from interior
  • Requires hardwired connection

See full description

Complete Your Solution

  • Canarm Explosion-Proof Totally Enclosed Exhaust Fan, 24in., 1/3 HP, 5,500 CFM, Model# SD24-XPF
  • 3M Paint and Pesticide Respirator - N95, NIOSH Approved, Model# 65021HA1A
  • 3M Professional-Grade Over-the-Head Hearing Protector, NRR 30dB, Model# 90565-4DC-PS
  • Tjernlund Duct Booster Fan, 10in., 475 CFM, Model# EF-10
Price for all four:

$1204.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

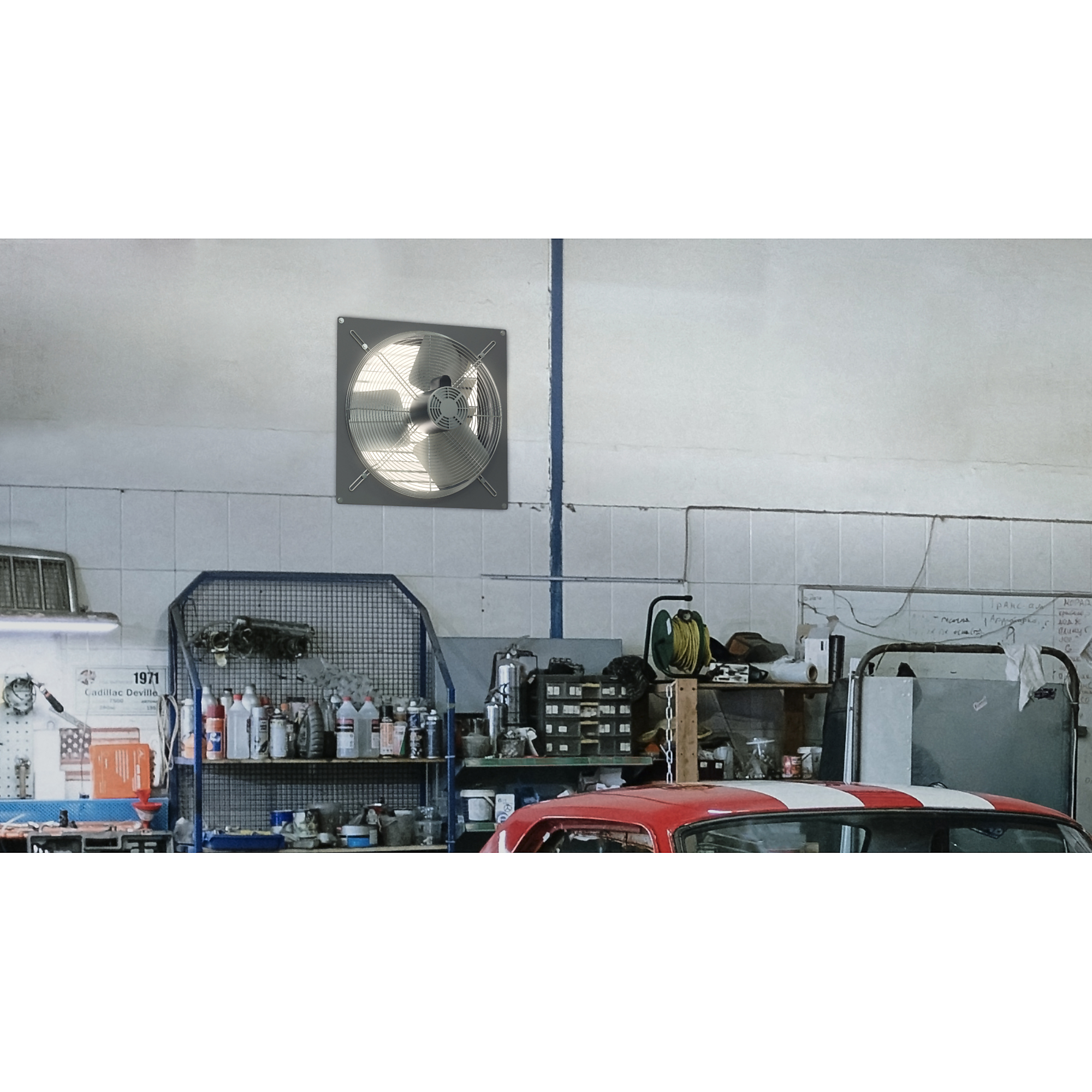

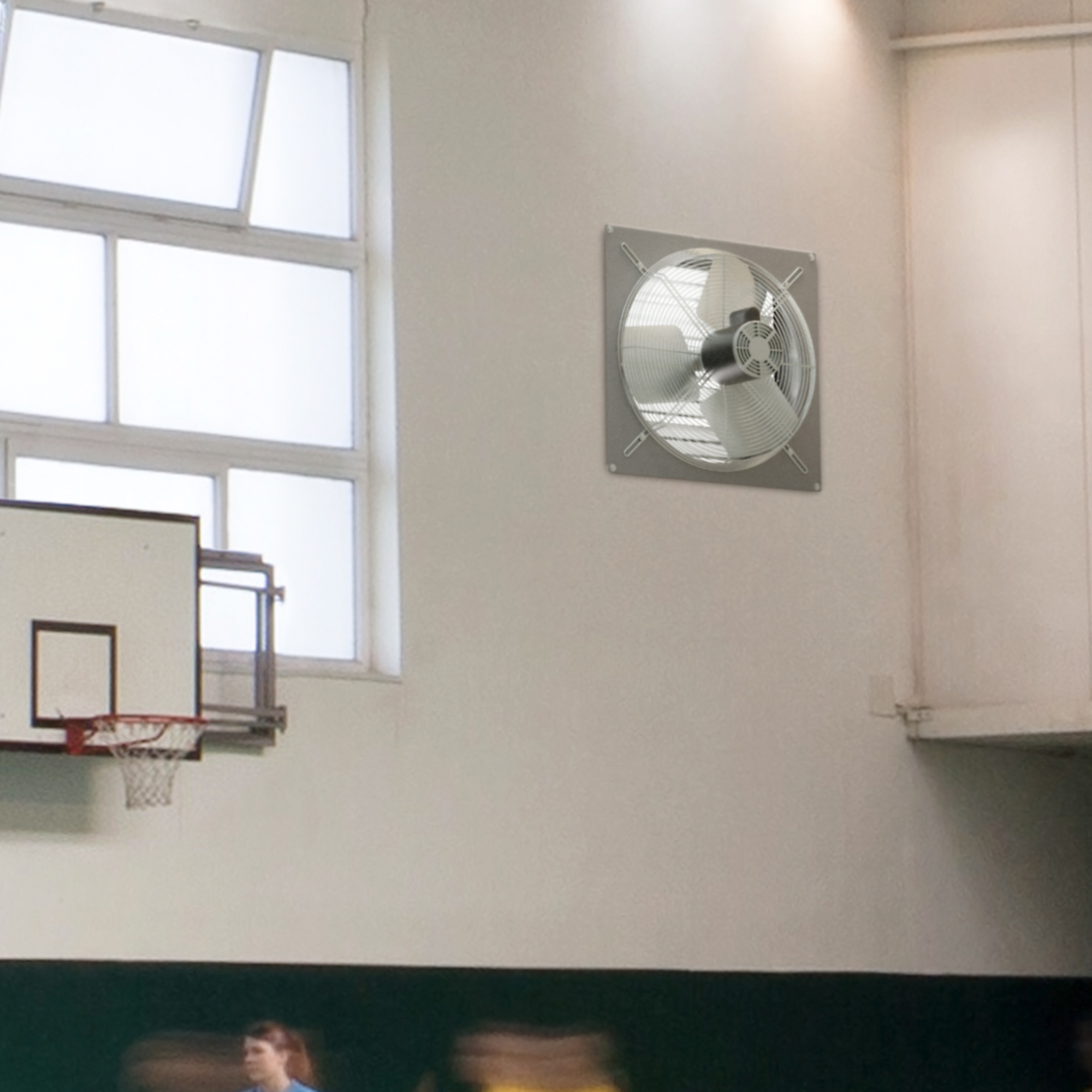

This Canarm Explosion-Proof Totally Enclosed Exhaust Fan has the quality and easy installation to make this efficient, low-maintenance fan a great choice for shops, farms and more.

What's Included

    (1) Fan

Downloads

Product Manual Product Manual2
Play Item Video

Features + Benefits

  • Rugged steel welded box housing has a durable powder-coated finish
  • Heavy wire chrome-plated OSHA guards
  • Totally enclosed ball bearing 1/3 HP motor with thermal overload protection ensures reliable performance
  • Installs from interior
  • Requires hardwired connection
  • Aluminum louver shutters are supported by long-life nylon bushings

Key Specs

AttributeSpecification

item#

14773

Brand

Canarm

Manufacturer's Warranty

1 year limited warranty

Ship Weight

110.0 LB

Drive Type

Direct
AttributeSpecification

Fan Diameter

24 in

Air Delivery

5,500 cfm

Volts

115/230

Speeds (qty.)

1

Horsepower

0.33 HP

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. Does this fan have a UL rating for Class 1 div 1?

    1 answer

    1. The Canarm explosion proof fans do meet the following hazardous classifications, Class 1 division 1 group C and group D, Class 2 division 1 group F and group G. The explosion proof fans do not meet class 1 division 1 group A and group B and class 2 division 1 group E.

      Helpful?

  2. Cab this fan be ducted?

    1 answer

    1. The Canarm exhaust fan is not recommended to be ducted, it is designed for use in free-air applications.

      Helpful?

  3. Can this unit be wired for variable speed?

    1 answer

    1. This exhaust fan cannot be wired for variable speed.

      Helpful?

  4. what is rough opening size in wall

    1 answer

    1. The framing dimensions are 27"L X 27"H X 6"D.

      Helpful?

  5. would this fan work in paint booth

    1 answer

    1. Per manufacturer this is not recommended for paint booths. Paint could get in the motor and then it would void the warranty.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

See All Inline Duct Fans

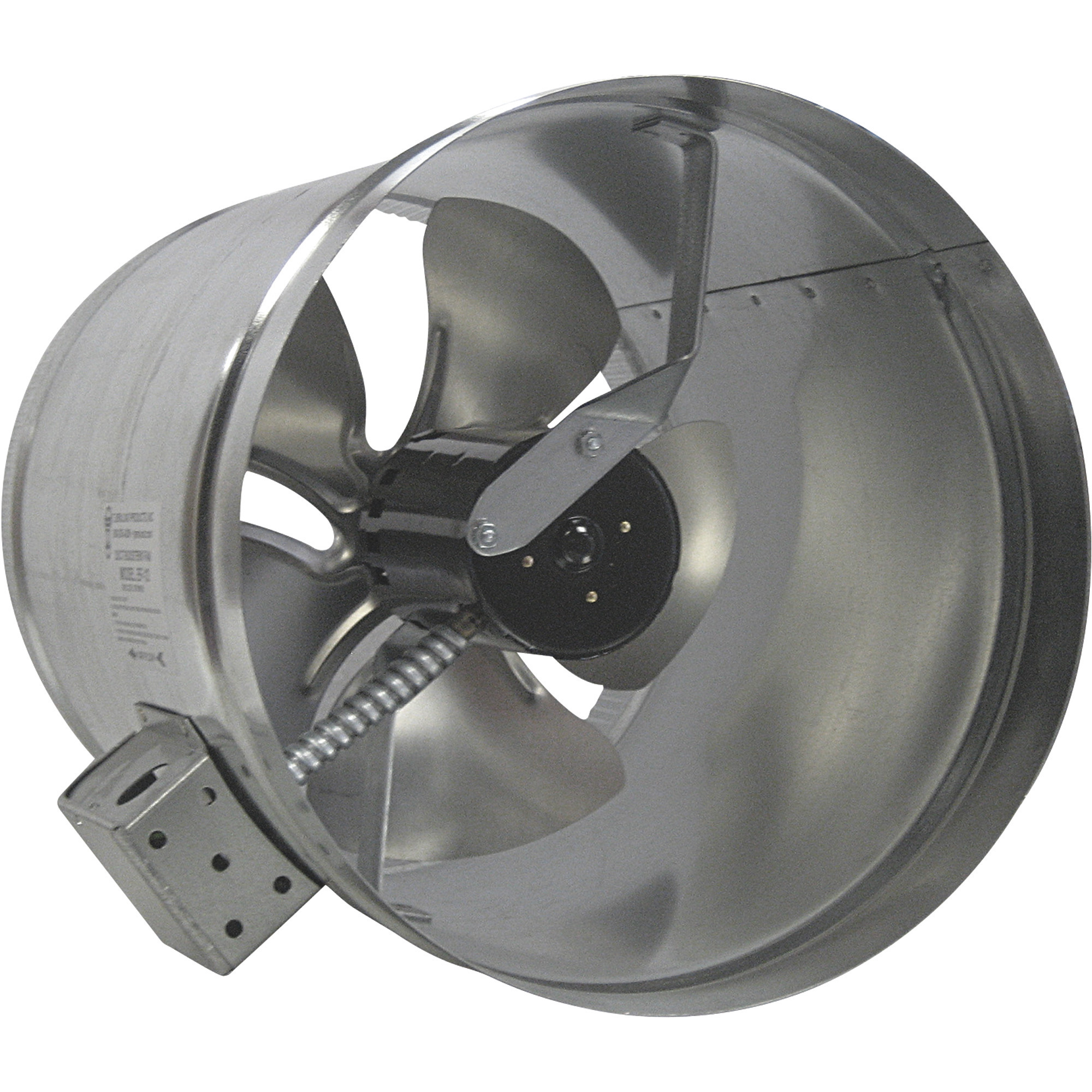

Tjernlund Duct Booster Fan, 10in., 475 CFM, Model# EF-10
