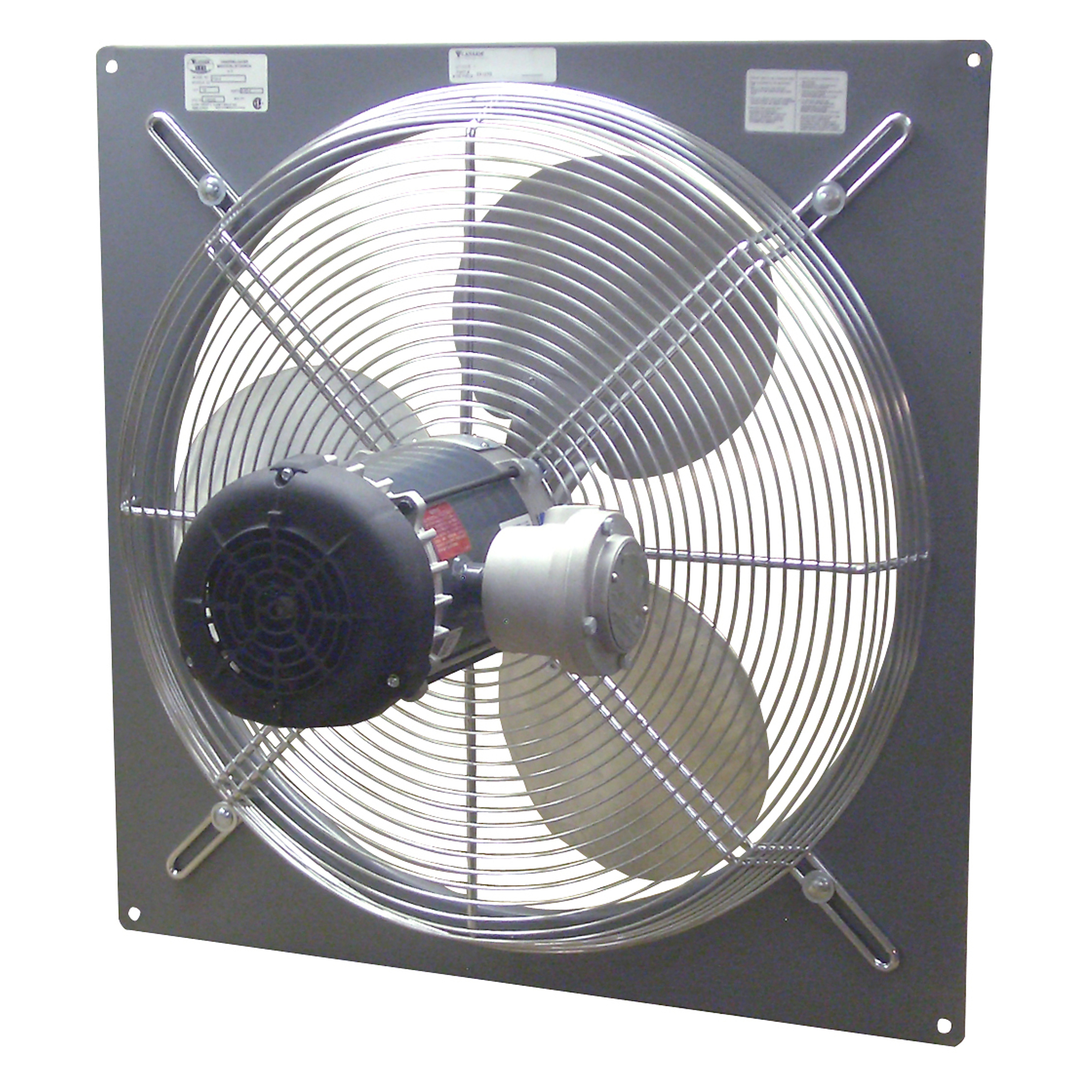

Canarm Explosion-Proof, Single-Speed Exhaust Fan, 24in., 1/3 HP, 5,520 CFM, Model# P24-4

Item# 13770
Canarm Explosion-Proof, Single-Speed Exhaust Fan, 24in., 1/3 HP, 5,520 CFM, Model# P24-4

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Canarm Explosion-Proof, Single-Speed Exhaust Fan, 24in., 1/3 HP, 5,520 CFM, Model# P24-4

Click or Tap image to Zoom

$879.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Durable powder-coated finish
  • Heavy-duty OSHA motor mount/guard
  • Totally enclosed 1/3 HP motor with overload protection

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Canarm 24in. Explosion-Proof Single-Speed Exhaust Fan is a robust and reliable solution for industrial, commercial, and farming applications. Engineered with a direct drive, horizontal discharge design, this fan ensures optimal performance and safety in environments where explosive gases or dust may be present. With a fan diameter of 24 inches, it delivers an impressive air flow of 5520 cubic feet per minute (cfm), effectively ventilating large spaces and maintaining air quality. Built to withstand demanding conditions, the fan's sturdy construction guarantees long-lasting durability and dependable operation. Whether used in manufacturing plants, agricultural facilities, or commercial buildings, the Canarm Explosion-Proof Exhaust Fan provides essential ventilation while adhering to strict safety standards, making it an indispensable addition to any high-risk environment.

What's Included

    (1) Fan

Downloads

Product Manual Product Manual2
Play Item Video

Features + Benefits

  • Durable powder-coated finish
  • Heavy-duty OSHA motor mount/guard
  • Totally enclosed 1/3 HP motor with overload protection

Key Specs

AttributeSpecification

item#

13770

Brand

Canarm

Manufacturer's Warranty

1 year limited warranty

Ship Weight

14.0 LB

Drive Type

Direct
AttributeSpecification

Fan Diameter

24 in

Air Delivery

5,520 cfm

Volts

115/230

Horsepower

0.33 HP

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. is the blower reversible. can the motor direction be reversed

    1. no

      Helpful?

    2. The blower motor on this fan cannot be reversed.

      Helpful?

  2. Do you need 230 outlet for this gan

    1 answer

    1. This exhaust fan requires 115 or 230 volts.

      Helpful?

  3. What is the RPM on the motor of this fan?

    1 answer

    1. The motor on this Canarm Single Speed Exhaust Fan would be rated at 1700 RPM.

      Helpful?

  4. What amperage does this pull

    What sized breaker is needed for this fan?

    1 answer

    1. This Canarm explosion-proof exhaust fan pulls 6.6 amps on 115 volts or 3.1-3.3 amps at 230 volts. A 10 or 15 amp circuit breaker could be used.

      Helpful?

  5. Can this be ordered with the front guard

    Mfg’s website says there is a front guard available for this. Is this guard a wire guard and can it be ordered installed or separately?

    1 answer

    1. The Canarm front guard for this fan is part # XFG24 available through the manufacturer. This is an 18 gauge galvanized 3/4” expanded metal screen.

      Helpful?

  6. Shudders?

    Does this fan come with a shudder box. Or is one availble? If it is not included.What is the item number for one.If availble .

    1 answer

    1. This Canarm exhaust fan does not include the shutter box. You can obtain the shutter box from the manufacturer directly. For a motorized shutter box, the part number is SX3224x24 and for a standard shutter box, the part number is SR3224x24.

      Helpful?

  7. Can the motor be placed outside?

    We would like to use this fan as air intake instead of an exhaust. What is the NEMA rating of the motor? Can the motor be placed outside?

    1 answer

    1. This Canarm fan is meant to be installed on the inside of an outside wall for exhaust only. The NEMA rating is not available at this time. We carry a fan made for outside use. The item number is 43973 (see below).

      Helpful?

  8. will this fan work in a paint booth?

    1 answer

    1. This Canarm Explosion-Proof, Single-Speed Exhaust Fan is fully enclosed and can be used in a paint booth. Routine maintenance to clear paint build up may be required.

      Helpful?

  9. What are the fan blades made of?

    Are the fan blades made of plastic or aluminum so they won't spark? Is this fan safe for a paint booth?

    1 answer

    1. The blades are manufactured from aluminum. The explosion-proof fan is safe for paint booth use.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
